*Please check year, make, model and engine size. Thank you.

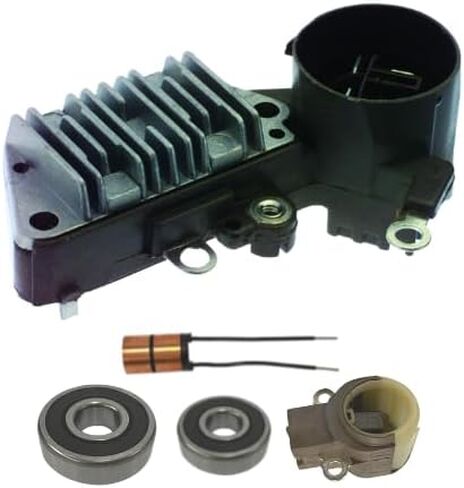

Specifications and Features:

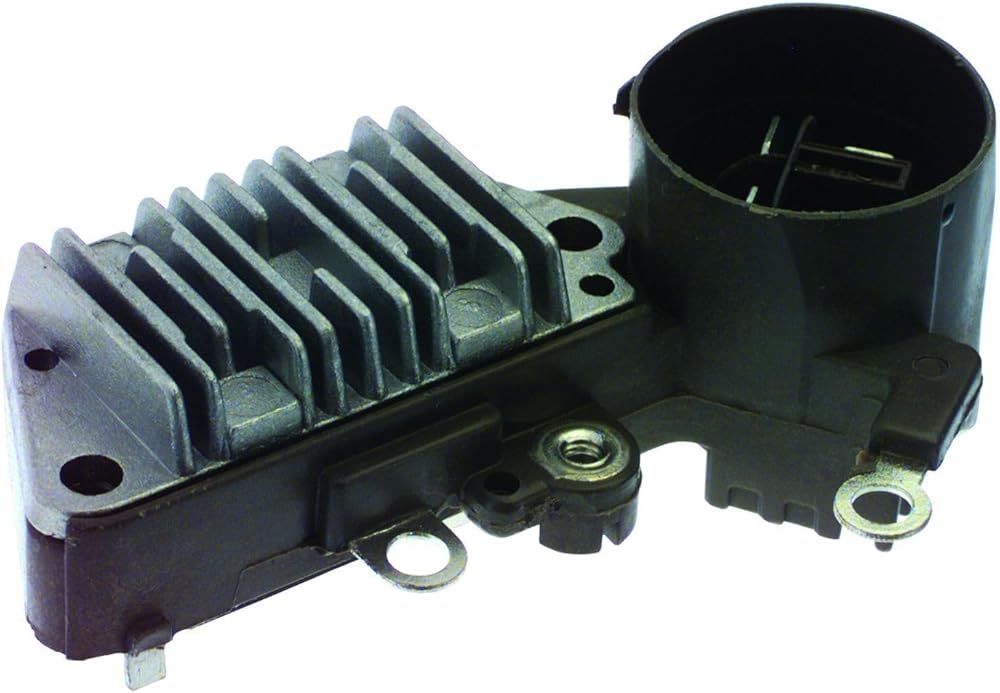

TYPE Regulator
CIRCUIT A-CIRCUIT
LRC WO /LRC
PLUG CODE 294
SYSTEM VOLTAGE 12
TERMINALS C, FR, IG, L
VOLT SET 14.5
DIM 1:63.5mm Mtg. Length
FEATURE 1:100% New Transpo
NOTE 1:Active lamp function - with output.
SPECS FOR: Den.so IR/IF Alternators
SPECS:12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Vset

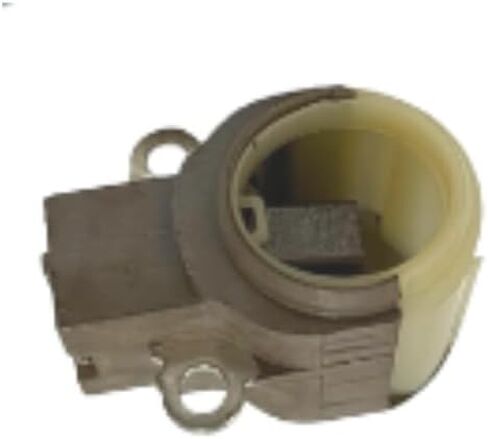

TYPE Brush Holder
HEIGHT 23.7
LENGTH OA 43.3
TYPE Brushes
CONTACT SURFACE CONCAVE
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7

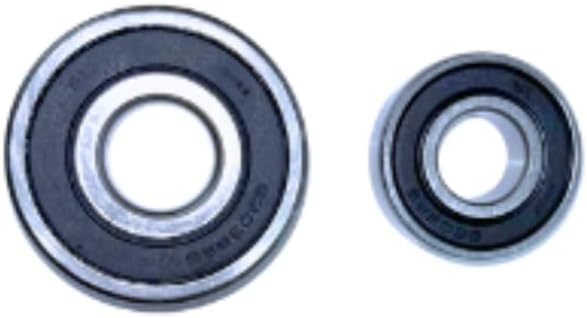

TYPE Bearing
ID 15
IND REF NUM 279
OD 35
SIDE-1 FEATURE RUBBER SEAL
SIDE-2 FEATURE RUBBER SEAL
WIDTH 13
TYPE Slip Ring
ID 8.85
LENGTH RING 1 9.55
LENGTH RING 2 9.7
LENGTH RINGS 20.7
OD SLIP RING 14.5
Compatible Vehicles:
Acur
CL L4 2.2L 1997
Integra L4 1.6L 1988-1989
TL L5 2.5L 1995-1996
Vigor L5 2.5L 1992-1994
Hond
Accord L4 2.2L 1990-1997
Civic L4 1.5L 1988-1993
Civic L4 1.6L 1988-1995
Civic del Sol L4 1.5L 1993
Civic del Sol L4 1.6L 1993-1995
CRX L4 1.5L 1988-1991
CRX L4 1.6L 1988-1991
Prelude L4 2.2L 1992-1996
Prelude L4 2.3L 1992-1996
Interchange #
Regulator
IN224
Brush Holder Assy
39-8203-3
Brushes
38-8201
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
Slip Ring, Rotor
28-82853
Lester
13325, 13325, 13395, 13507, 13507, 13508, 13509, 13509, 13538, 13538, 13539, 13540, 13684, 14989
Replaces
Den.so 126000-0940, 126000-1030, 126000-1300, 126000-1700, Hond 31150-P08-013, 31150-PM4-003, 31150-PT2-003
USED ON
Acur (1988-1997) ** Hond (1988-1997)
UNIT NUMBERS
Acur 31100-P0A-A01, 31100-P0A-A01RM, 31100-P0A-A03, 31100-P1R-A01, 31100-P1R-A01RM, 31100-PG7-J01, 31100-PG7-J01RM, 31100-PG7-J02, 31100-PV1-A01, 31100-PV1-A01RM, 31100-PV1-A02, CHA60, CJP56, CJS49, CJS50, CJU14; Den.so 100211-3590, 100211-3660, 100211-3690, 100211-3890, 100211-8150, 100211-8151, 100211-8190, 100211-8280, 100211-8550, 100211-8710, 100211-8750, 100211-8770, 100211-9770, 101211-0250, 101211-5480, 101211-5490, 101211-5500, 101211-5690, 101211-5840, 101211-5850, 101211-5870, 101211-9140, 9760211-855, 9760211-875, 9761211-549, 9761211-550, 9761219-585; Hond 31100-P08-003, 31100-P08-003RM, 31100-P08-013, 31100-P08-014RM, 31100-P08-014RM, 31100-P08-024RM, 31100-P08-024RM, 31100-P0A-A01, 31100-P0A-A01RM, 31100-P0A-A03, 31100-P0A-AA010, 31100-P0B-A01, 31100-P0B-A01RM, 31100-P0B-AA010, 31100-P12-A01, 31100-P12-A01RM, 31100-P12-A02, 31100-P12-A02RM, 31100-P13-0133, 31100-P13-013RM, 31100-P14-A01, 31100-P14-A02, 31100-P14-A02, 31100-P14-A02RM, 31100-P14-A02RM, 31100-P1R-A011M, 31100-P30-033, 31100-P30-033RM, 31100-P30-Y0031, 31100-PM5-A01, 31100-PM5-A01RM, 31100-PM8-A01, 31100-PM8-A01RM, 31100-PM8-A02, 31100-PM8-A03, 31100-PM8-A03RM, 31100-PT2-003, 31100-PT3-A51, 31100-PT3-A511M, 31100-PT3-A51RM, 31100-PT3-A52, 31100-PT3-A52RM, 31100-PV0-013, 31100-PV0-0130, CHA50, CHA57, CIP20, CJP16, CJP16, CJP20, CJP29, CJP61, CJP76, CJP78, CJQ21, CJQ21, CJS49, CJS50, CJS51, CJS70, CJS85, CJS86, CJS88; Vale 437637, 437680
