LEAPING KNIGHT Magneto Generator Engine Stator Coil Fit For Honda ATC 185S 1982-1983, ATC 200 1982-1983, 200E/ES 1982-1984

REPLACEMENT PART NUMBER:31120-958-023
Fitments:
Fit for Honda ATC 185S 1982-1983
Fit for Honda ATC 200 1982-1983
Fit for Honda ATC 200E/ES 1982-1984
Fit for Honda ATC 200M/S 1984-1986
Fit for Honda ATC 200X 1983-1985

Feature:
Great quality ignition stator coil that will work with many ATC three wheelers.
An easy fix to replace the ignition source coil on the stator plate.
Requires soldering two wire leads to tabs on this new coil.
It is a very cost effective solution to fix an otherwise very expensive OEM stator plate.
Direct replacement to you original unit
Plug-and-play, direct fit, easy installation.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Generator Stator Coil

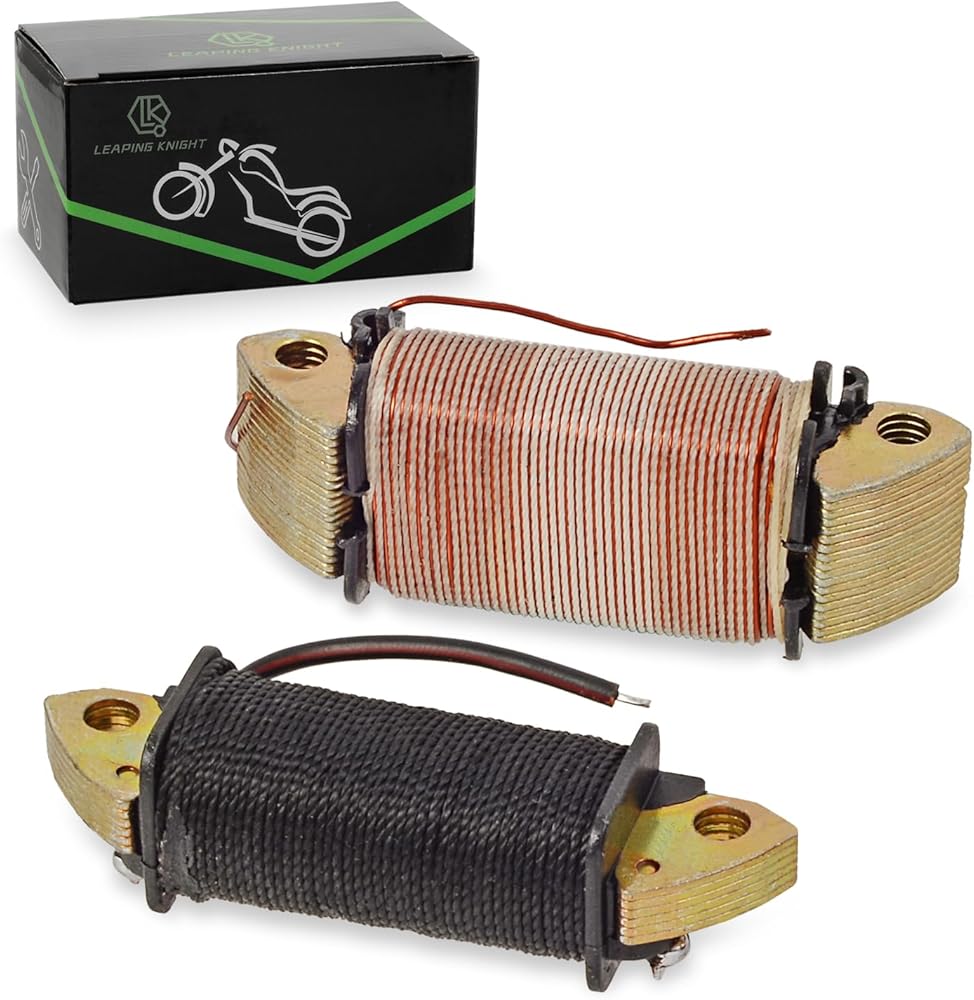

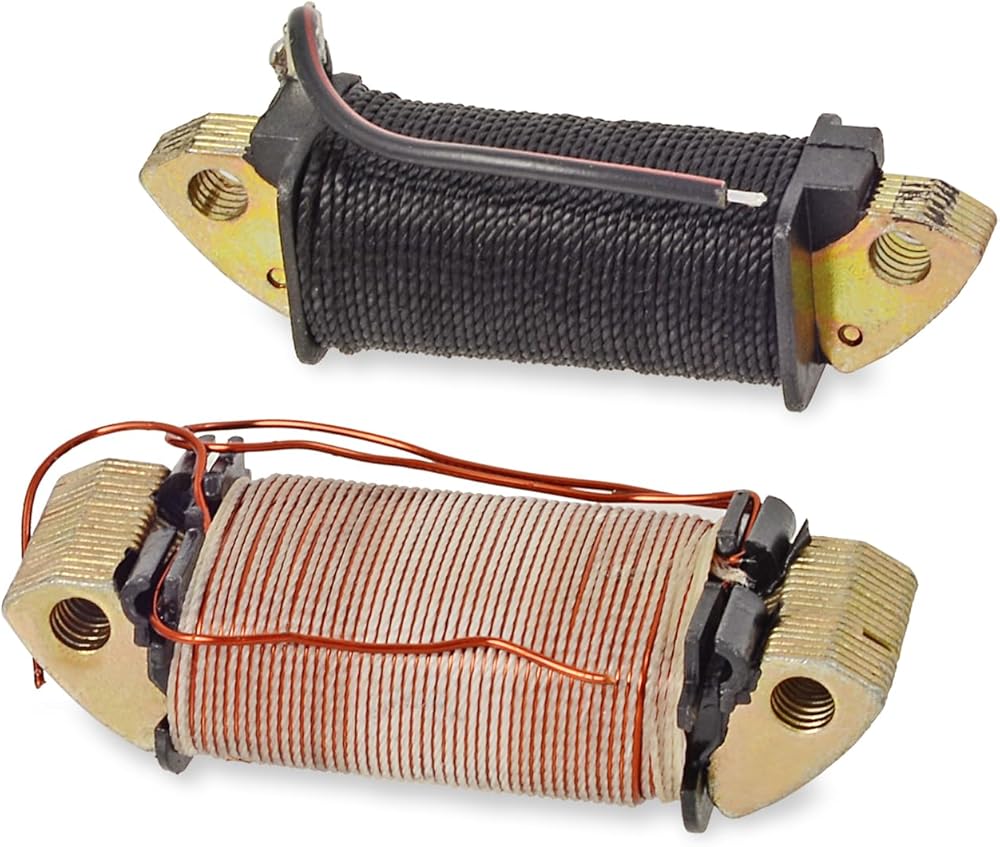

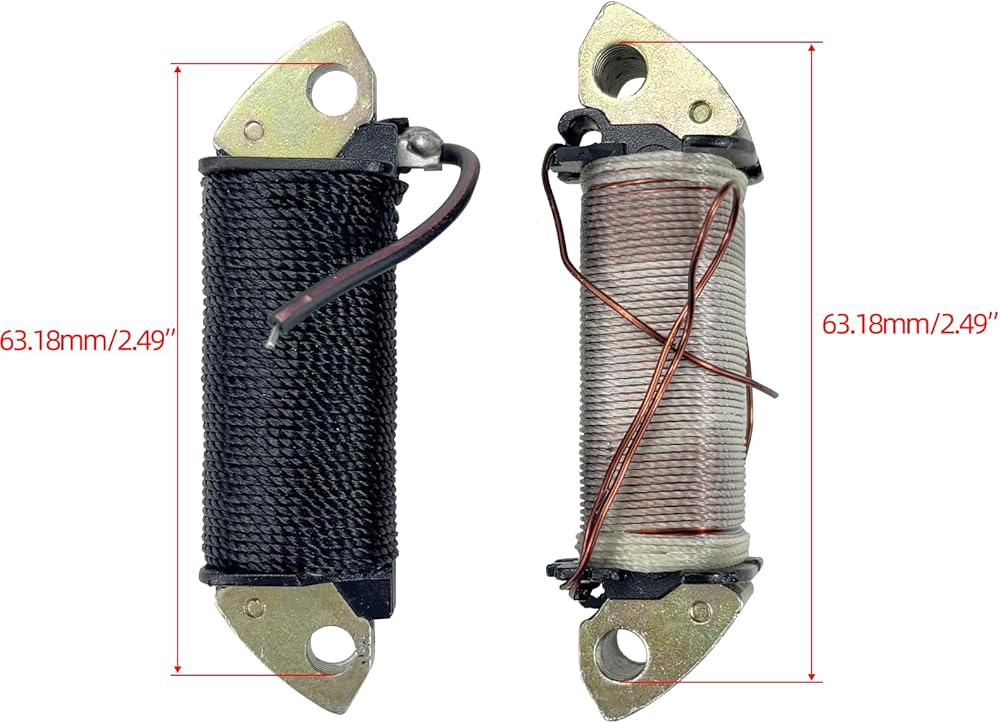

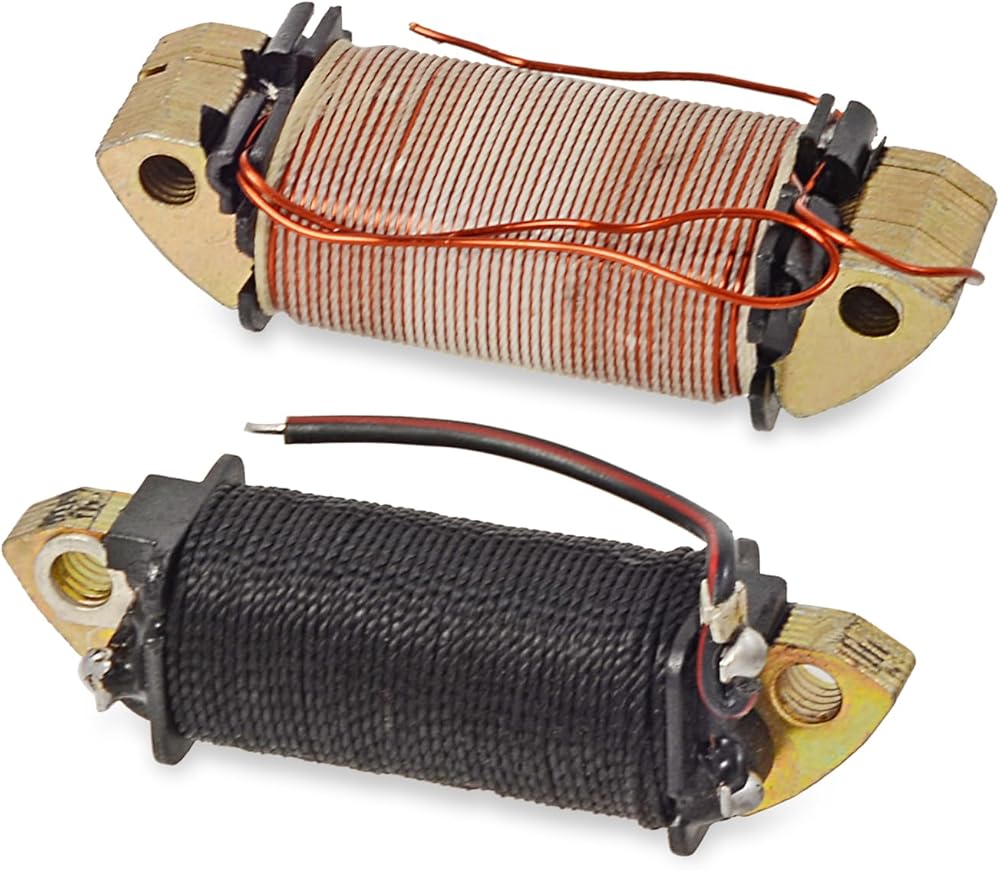

Package Included:1xStarting coil,1xLighting coil

NOTE:
Before installing you new stator. Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
