For GL1800 For GoldWing 1800 GL 1800 2005 - 2014 2015 2016 2017 Motorcycle Accessories Gear Display Indicator Digital Meter
Fitment:
For GL1800 For GoldWing 2005 - 2017
Description:

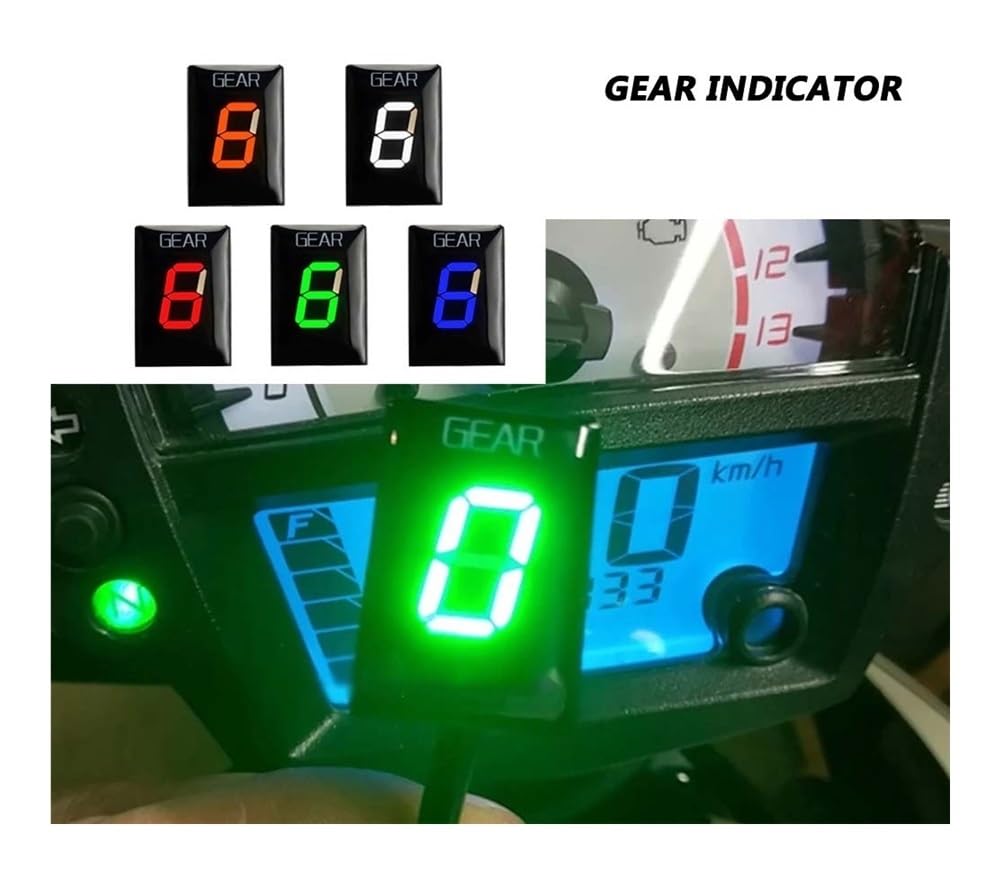

Color of Light Source:Red/Blue/green
Item Name:Speed Gear Display Indicator
Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch
Feature:

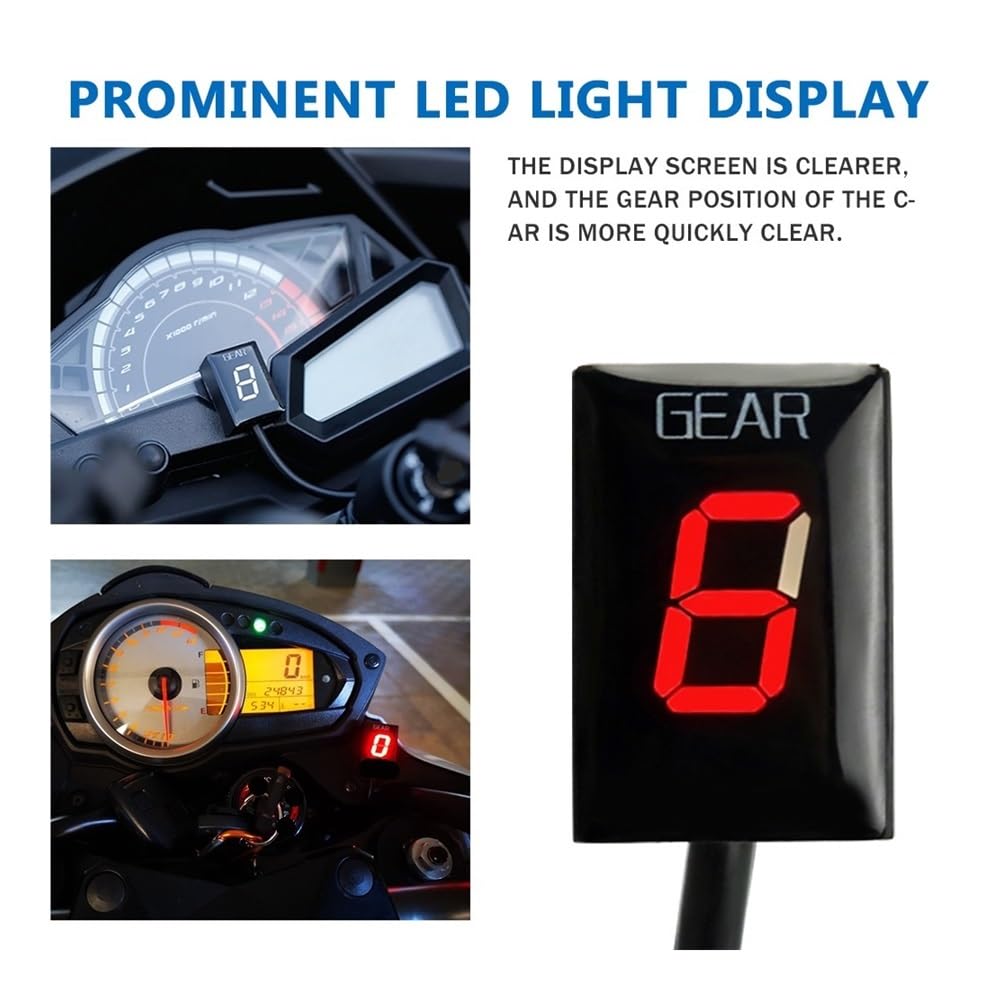

Shows current gear number

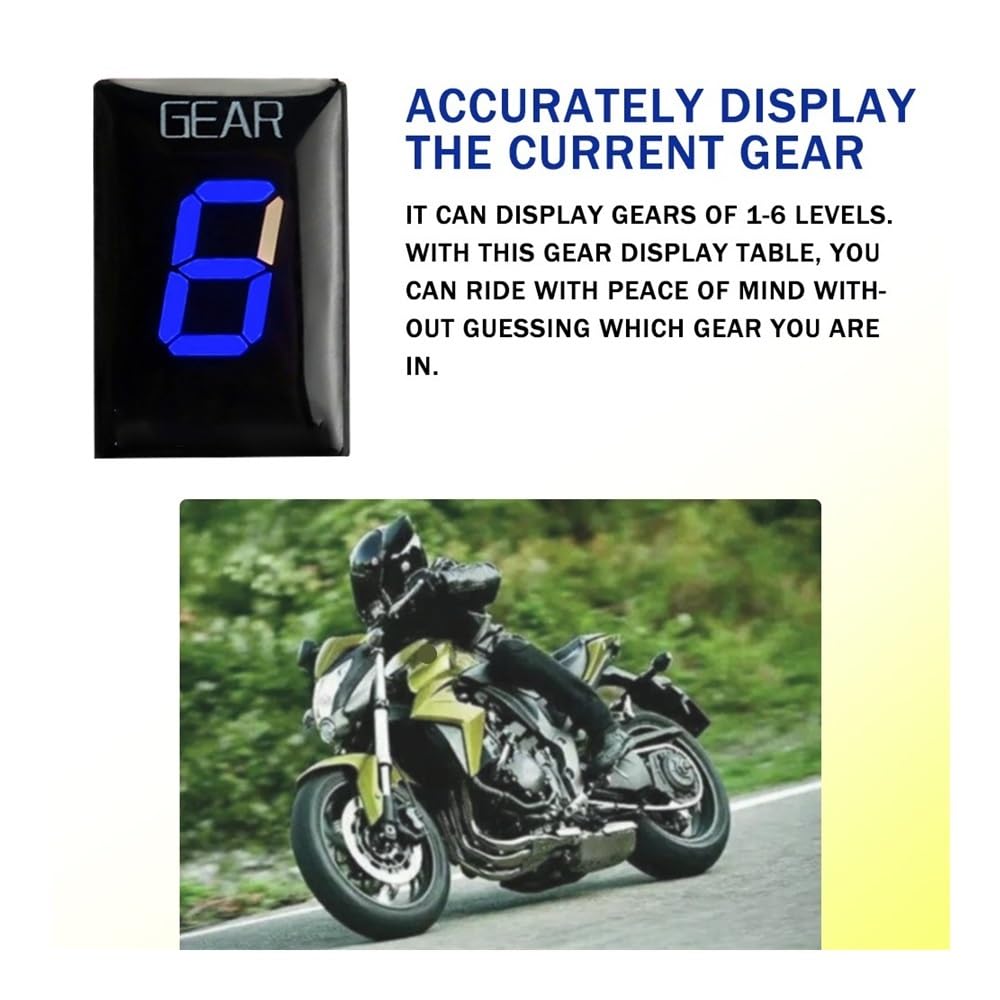

Indicates current gear from 1 to max of 6. and a neutral indicator.
Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.
Display can be mounted anywhere
Installation:

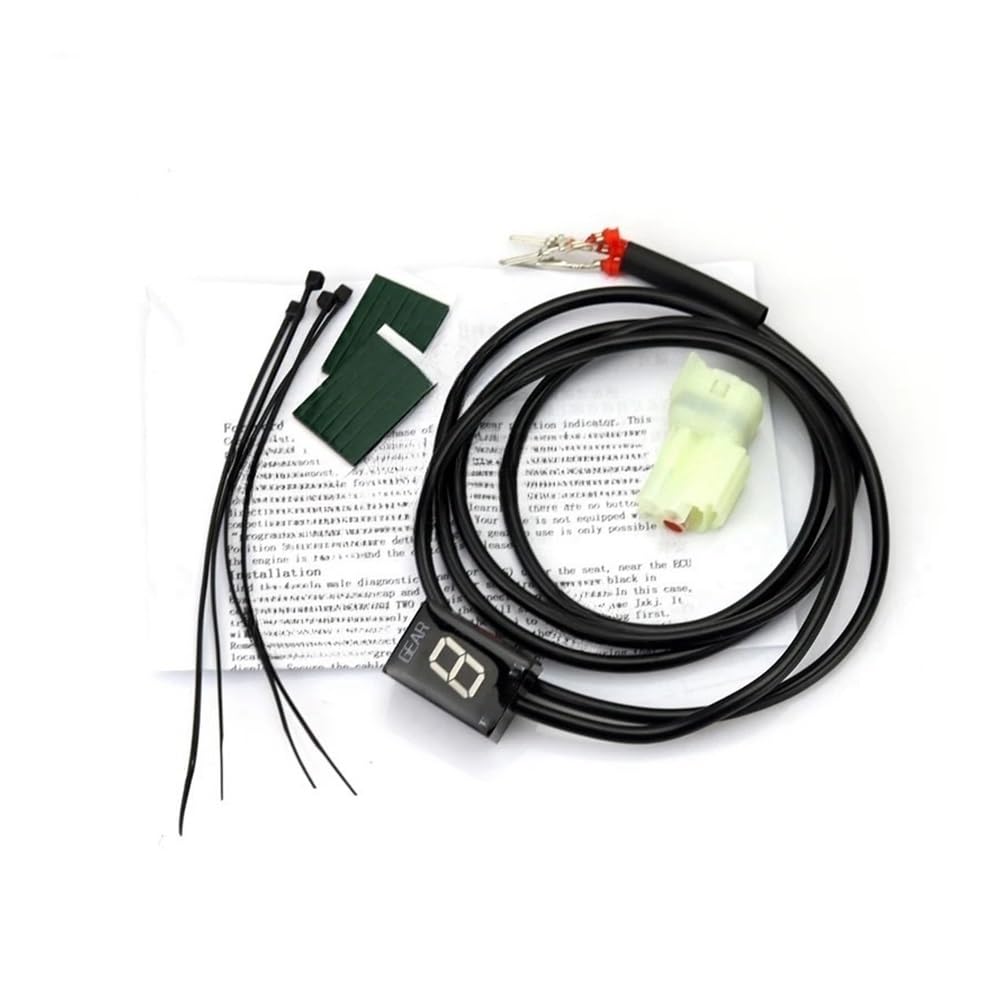

Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.
Steps:
-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.
-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)
the screen displays L, indicating that learning is started.
accelerate through the handle throttle slowly
-The display will blink "1".Select first gear, release the clutch, and keep the RPM above idle speed. The display is blinking faster while the unit is learning the gear.
-When the display shows "2", select second gear.
Repeat this process until all gears are thought (5 or 6).
The unit is programmed and should indicate the gears correctly.
Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.
Reset:
If some gears are not indicated correctly, please reset gear indicator.turn on the switch of the switch lock. When the gear indicator shows 5.4.3, turn off the switch of the switch lock immediately, and then turn on the switch of the switch lock immediately. According to the above operation, turn on and turn off the switch of the switch lock five times in a row to see if the reset is complete.
Features : Gear display
: LED+ABS
