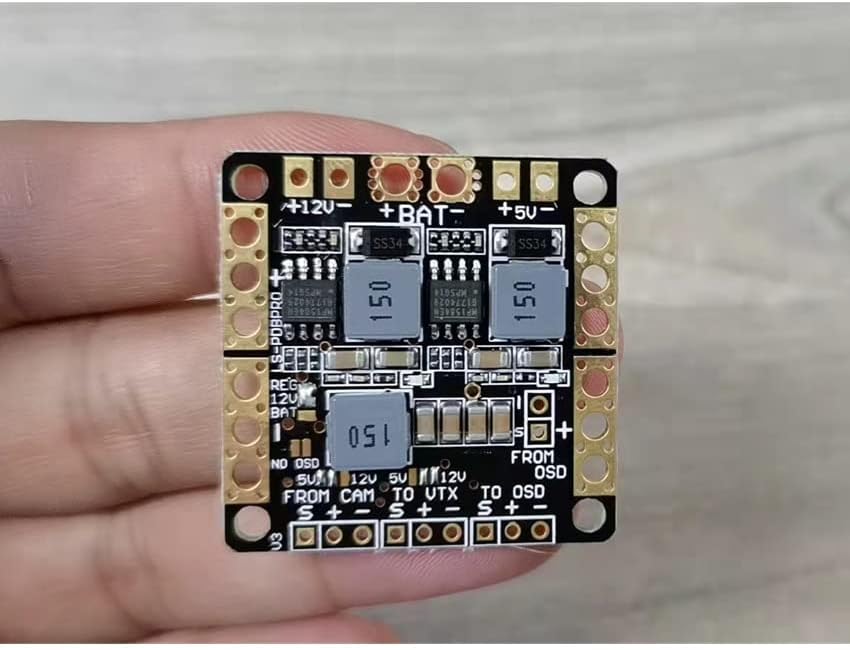

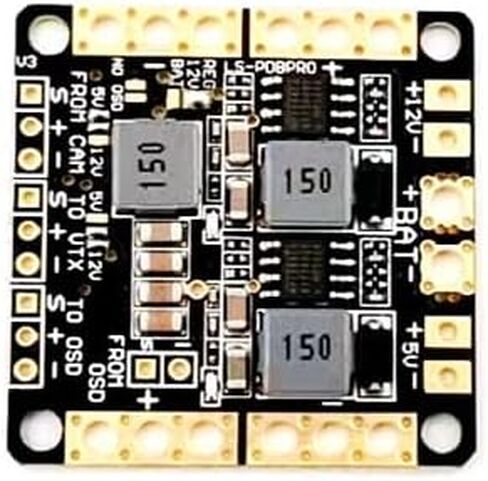

CC3D Naze32 F3 Flight Control Distribution Board PDB With 5V-12V 3A BEC Output/Filter Integrated OSD For Remote Control Drone
Reminder: Type B 5v 12v integrated OSD
You need to flash the osd firmware on the buyer's official website before you can use it! ! !
Type A: The foreign solution PDB+UBEC board integrates a filter circuit, which is more integrated, more stable and more convenient to debug, and the power supply is purer. Without clutter, the image transmission is farther and clearer!
Five-function integration: power distribution board, dual BEC, LC filter, OSD, automatic disconnection of OSD and FC.
Input voltage supports 2-6S.
When inputting 2S 3S, the 12V output voltage can be selected as the battery voltage through the solder joint.
The voltage of the camera and video transmission, you can choose 5V 12V through the solder joints.

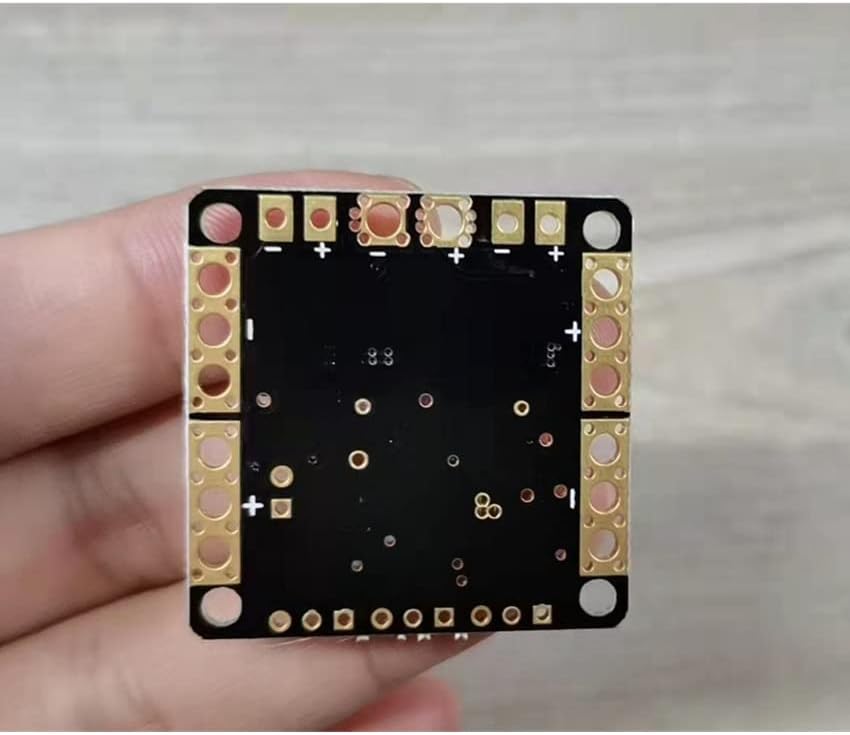

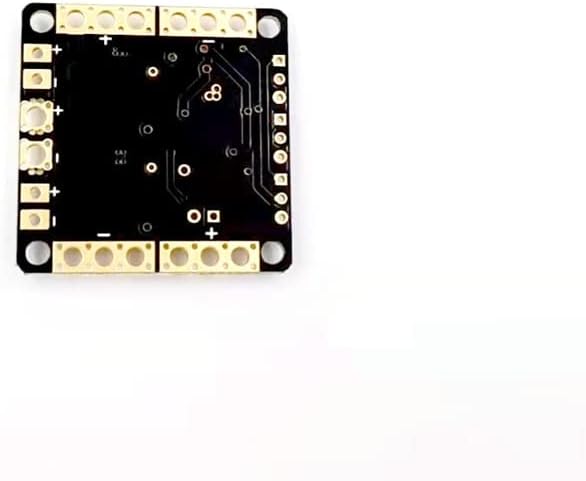

2oz copper foil 4-layer PCB to ensure the passage of large current.
The battery ESC pads are arranged in pairs for easy wire bonding.
Dual BEC, DC-DC synchronous rectification 5V voltage regulator (3A), DC-DC synchronous rectification 5V voltage regulator (3A).
5V 12VBEC with LC filter.
With OSD function, support KVteam MWOSD and other firmware, with FTDI.
The connection between OSD and PC will automatically disconnect TX RX from the flight controller.
36*46mm, the installation hole distance is 30.5mm (same as Naze32, CC3D, SP3 and other 36*36 size flight control installation holes). with LED indicator.
Item specifics:
Quantity: 1 pcs
Wheelbase: Upper Shell
Size: /
Technical parameters: Value 10
Model number: PDB BEC
For vehicle type: Airplanes
Tool supplies: Assembled class
Four-wheel drive attributes: Motors
Remote control peripherals/devices: ESC
Upgrade parts/accessories: Frame
Rc parts & accs: Connectors/Wiring
Material: Composite Material
Origin: Mainland China
Recommend age: 12+y,18+
