Baomain AC Contactor HC1-40/04 120V 40A Coil 4 Pole 4NC Normally Closed(N/C) Universal Circuit Control 35mm DIN Rail Mount in Saudi Arabia Baomain AC Contactor HC1-40/04 120V 40A Coil 4 Pole 4NC Normally Closed(N/C) Universal Circuit Control 35mm DIN Rail Mount in Saudi Arabia Baomain AC Contactor HC1-40/04 120V 40A Coil 4 Pole 4NC Normally Closed(N/C) Universal Circuit Control 35mm DIN Rail Mount in Saudi Arabia Baomain AC Contactor HC1-40/04 120V 40A Coil 4 Pole 4NC Normally Closed(N/C) Universal Circuit Control 35mm DIN Rail Mount in Saudi Arabia Baomain AC Contactor HC1-40/04 120V 40A Coil 4 Pole 4NC Normally Closed(N/C) Universal Circuit Control 35mm DIN Rail Mount in Saudi Arabia Baomain AC Contactor HC1-40/04 120V 40A Coil 4 Pole 4NC Normally Closed(N/C) Universal Circuit Control 35mm DIN Rail Mount in Saudi Arabia

25 Amp.

SAR 80
SAR 85
Size25 Amp.
Style110 VAC
Model25 Amp.
Part NumberBCT-25/04-110VAC
– 1 +

Special Features

  • Rated Current : 40A;Ue : 400V; Number of Poles: 4
  • 110 - 120 VAC Coil, 52VA inrush, 10VA sealed

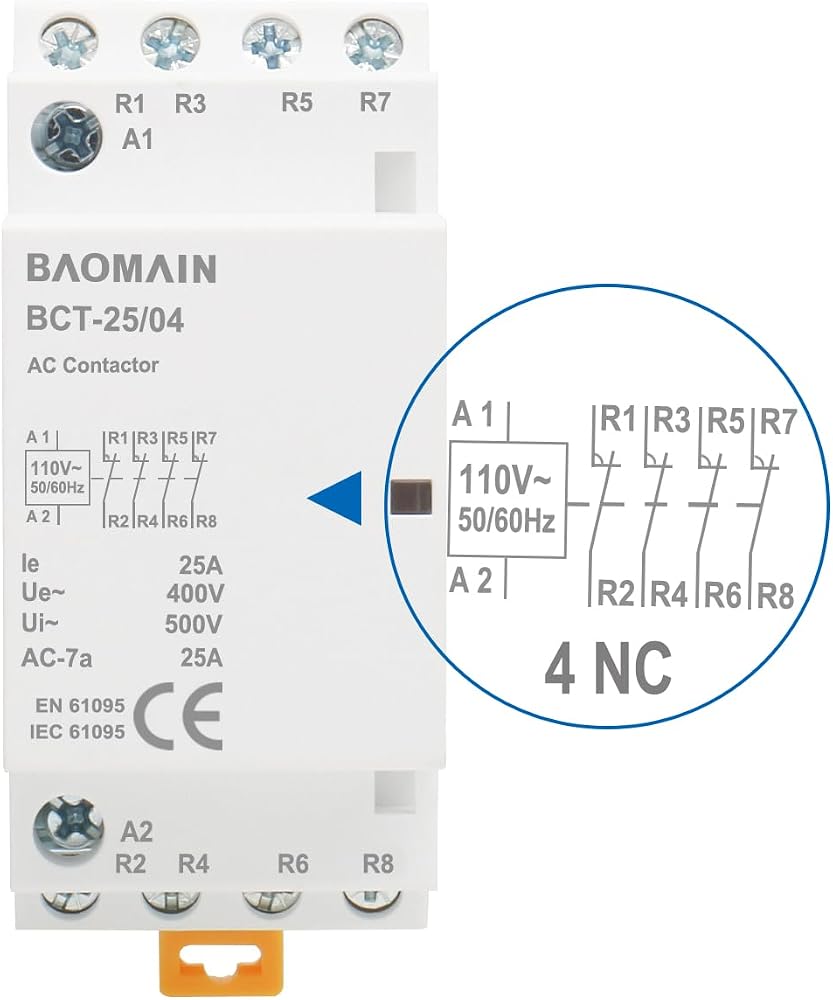

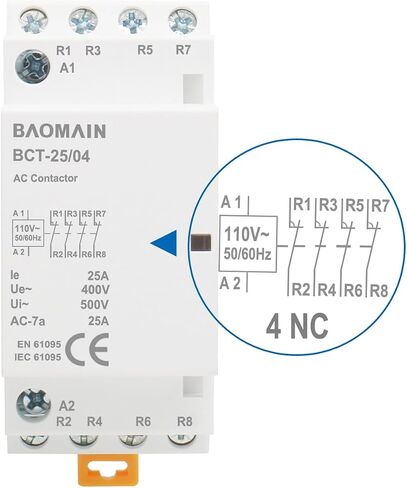

  • Normally Closed(NC)

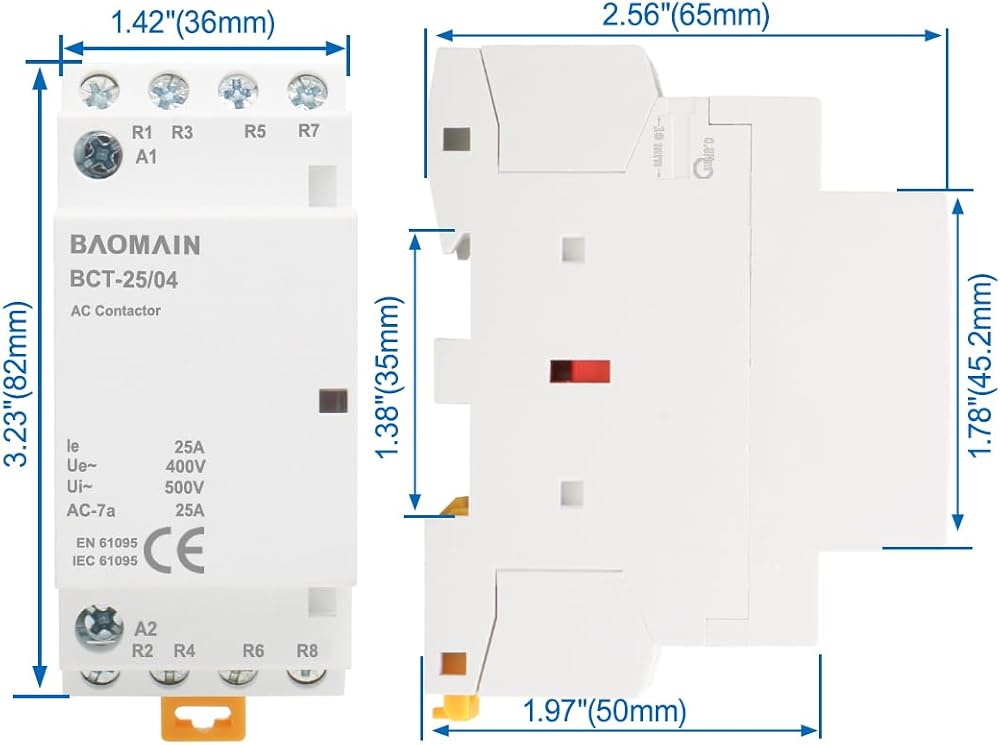

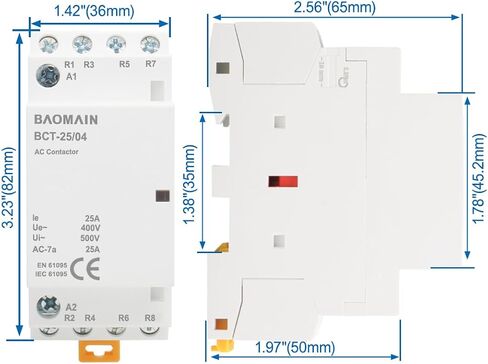

  • Size: 60 x 55 x 67mm / 2.4" x 2.2" x 2.7"(L*W*T)

Description

This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

Operating Temperature -30...+70 °C (-22...+158 °F)
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm
Electric strength: 4 kV Max
Max switching capacity 600 switch/hr
Ballast and General purpose Power ON indicator
40Amp 4 Pole Lighting Contactor 120VAC Coil No N/O Contacts
