Cannon Lifting Servo Vertical Steady Controller PCB Board for RC Tank Model 6.1S Version
Below is video for this item,
Instructions:
Just lay flat the board (the long side is facing to the front and back, and the surface with the knob must stay upside)
The steering gear line is inserted horizontally

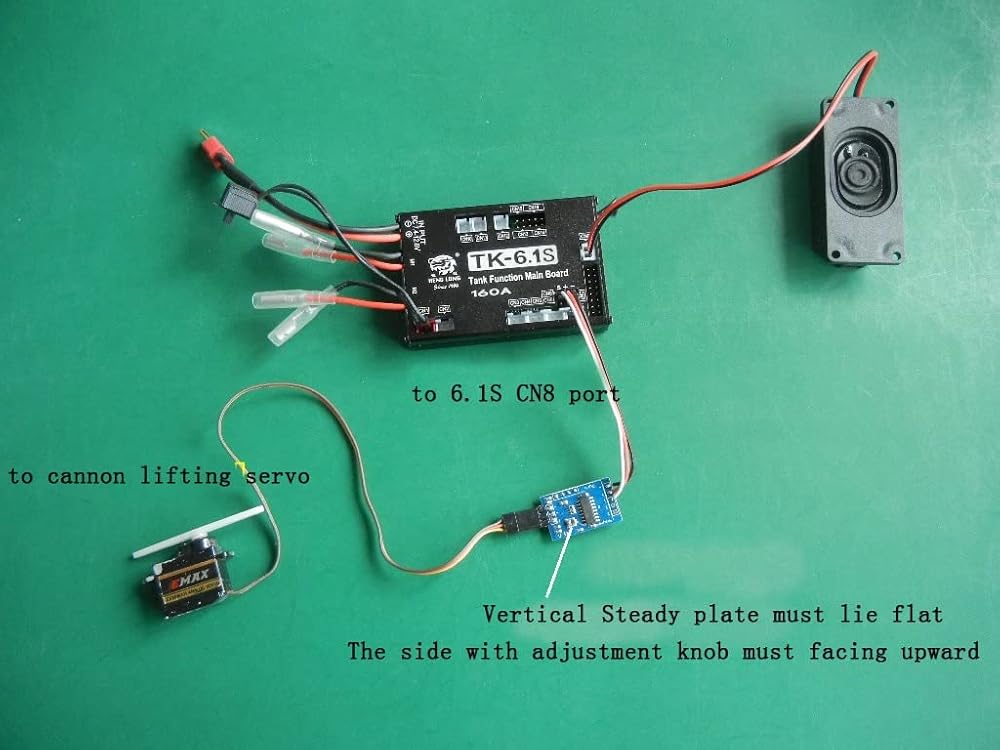

Connect the wires according to the wiring diagram and power on
Keep the model still for 2 seconds after power on, the blue led is on, and the gyroscope is automatically calibrated
After that, it can be used normally. When the user operates the steering gear with joystick, the vertical stability does not take effect. When the user does not actively operate, the vertical stability takes effect.

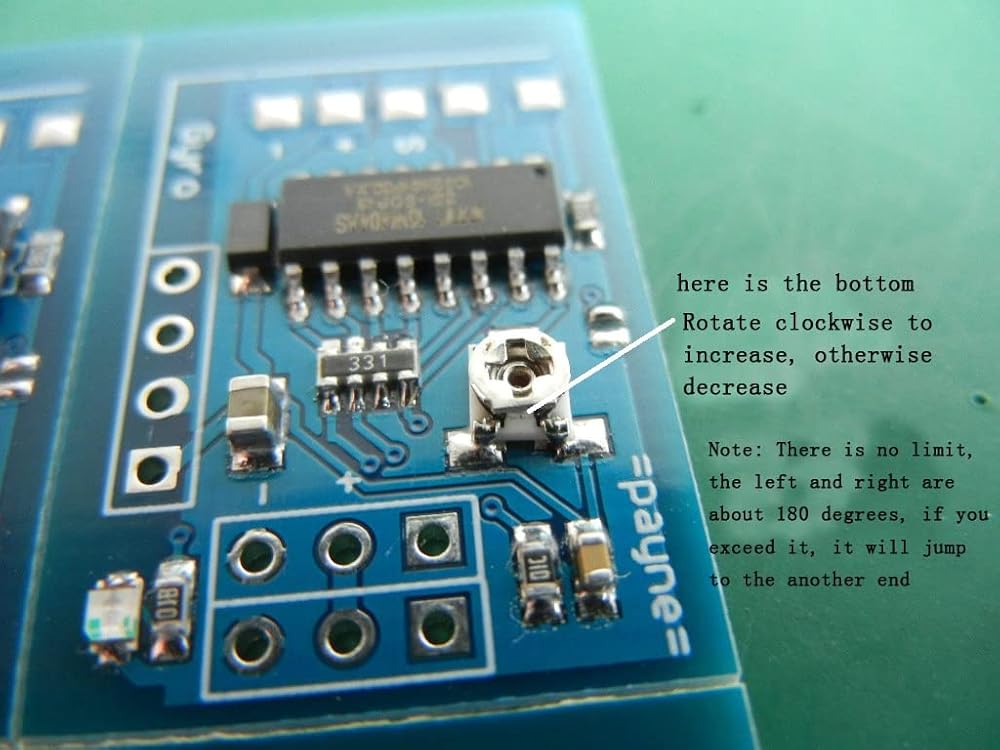

The sensitivity knob on the board can be adjusted as needed
Only supports the stability of the gun steering gear, does not support the turret rotation
parameter:
Voltage: 3.6-6v
Input signal: servo signal (remote control PWM signal)
Board size: 30x20mm
This device is not only can use to the tk6.1s board, in principle, as long as the servo is controlled according to the gyro, this board can be used.
Two modes,
1. J1 is not connected: the PCB is not placed on the controlled object (for example, not on the cannon, but in the turret)
2. J1 is connected: place the PCB on the controlled object(e.g. on the cannon or on the gimbal)
Package include,

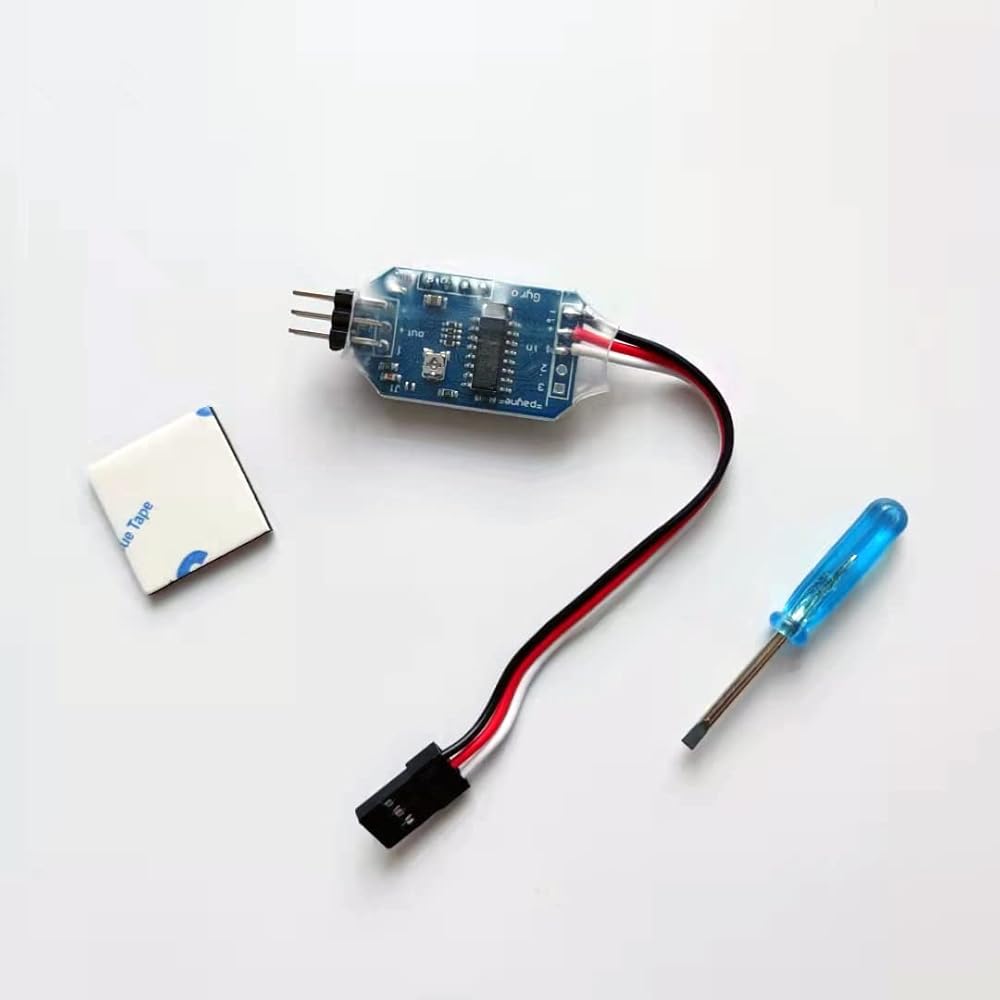

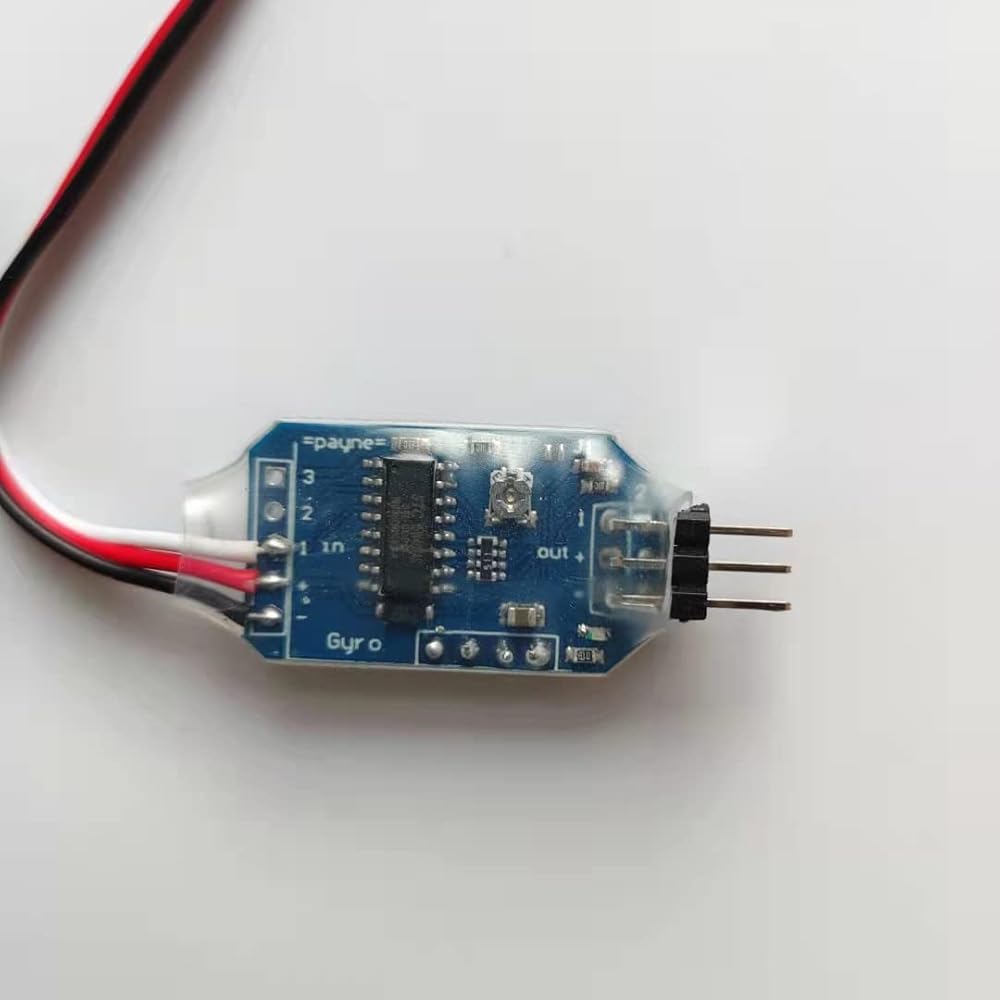

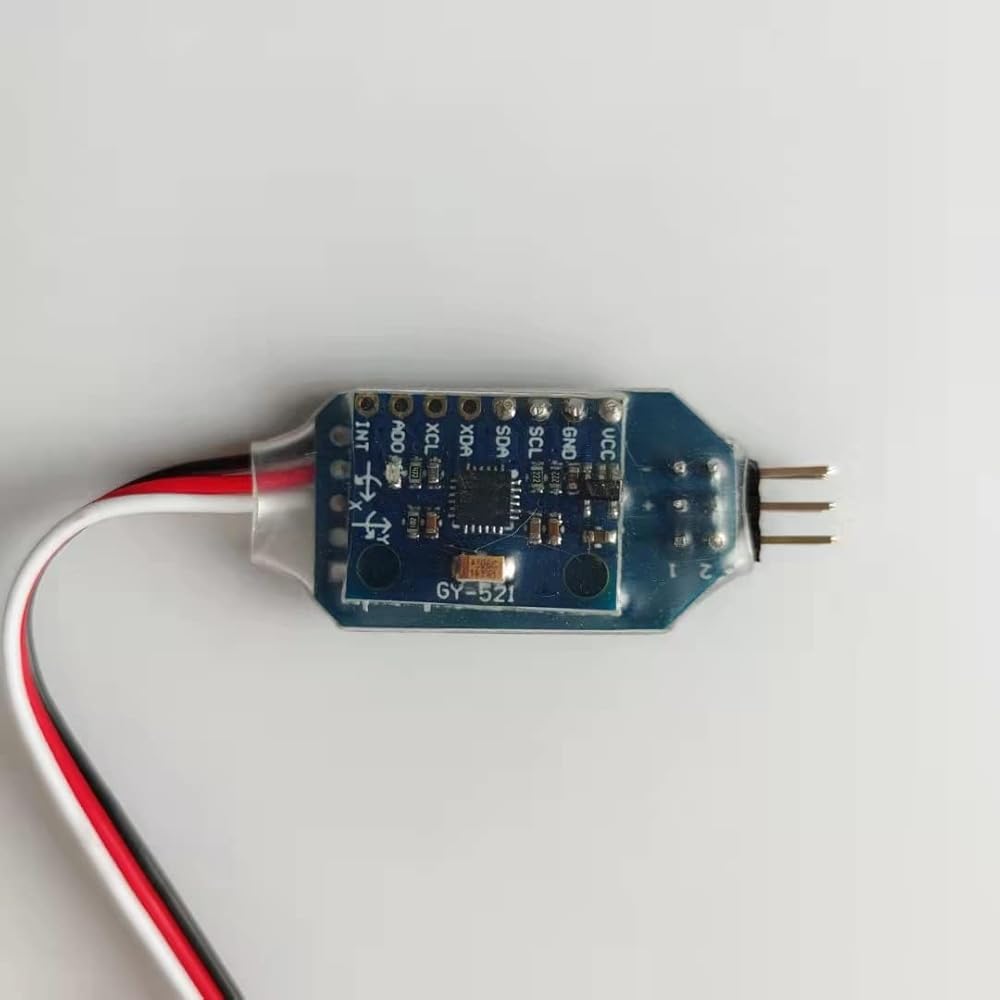

1pc x Vertical Steady Controller(new version,actual picture as below for new version.)
(Other parts in above pictures are not included.)
