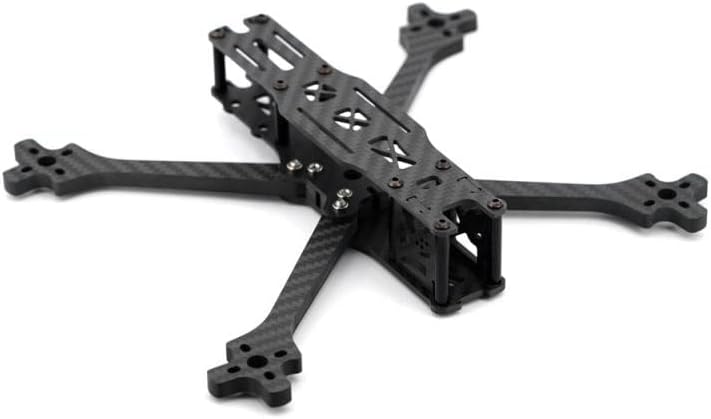

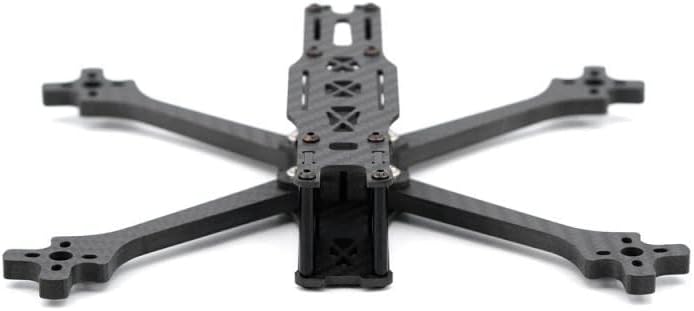

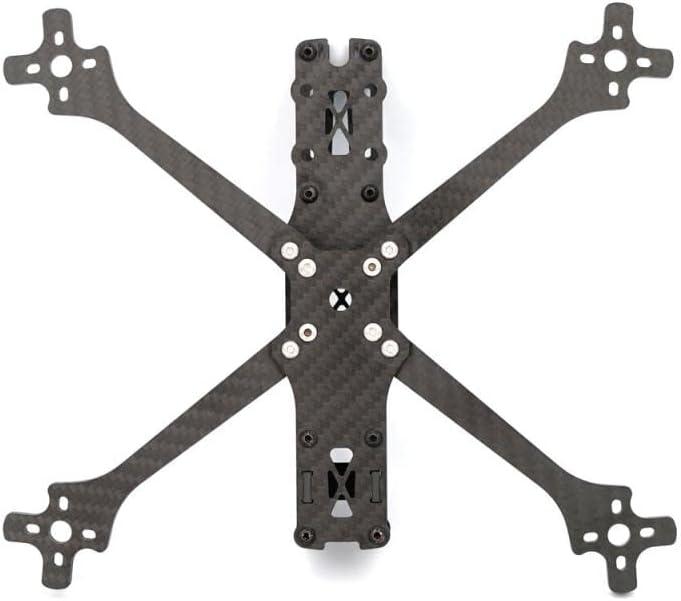

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
ABOUT THE PROJECT
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
PACKAGE CONTAINS:
1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
1x Screw & Standoff set
TECHNICAL Specifications:
Wheelbase 5": 226
Top Plate: 2mm
Middle Plate: 2mm
Bottom Plate: 2.5mm
Arms Spacer: 6mm
Camera plate: 2mm
Standoff height: 30 and 22mm
Arm thickness 5": 6mm
Stack Mounting: 30.5 × 30.5mm & 20 x 20
Weight 5": *123.5g
HARDWARE:
16X M3x10 allen screw
4X M3x12 allen screw
4X M3x14 allen screw
4X OD 5mm M3 30mm standoff
4X OD 5mm M3 22mm standoff
8x M3 press insert nut
Item specifics:
Size: SOURCE ONE V5
For vehicle type: Helicopters
Tool supplies: other
Four-wheel drive attributes: other
Remote control peripherals/devices: other
Upgrade parts/accessories: other
Rc parts & accs: other
Material: other
Origin: Mainland China
Recommend age: 12+y,14+y
