1. Full aluminum alloy Cover, anodized, can test analog and digital servos, can control ESC (motor speed stepless regulation test)
2. Can simultaneously test whether 3 servos are synchronized (this function mainly applies to helicopter steering mechanism in CCPM mode)
3. There are 3 modes to check servos or ESC
4. You can connect 1 to 3 servos simultaneously and test the consistency of 1 to 3 servos, etc.
5. You can also connect 1-3 ESC to test and compare their timing respectively.

Specifications:
Features:
Full aluminum alloy Cover, anodized, can test analog and digital servos, can control ESC (continuous motor speed regulation test)
It can simultaneously test whether 3 servos are synchronized (this function mainly applies to helicopter steering mechanism in CCPM mode)

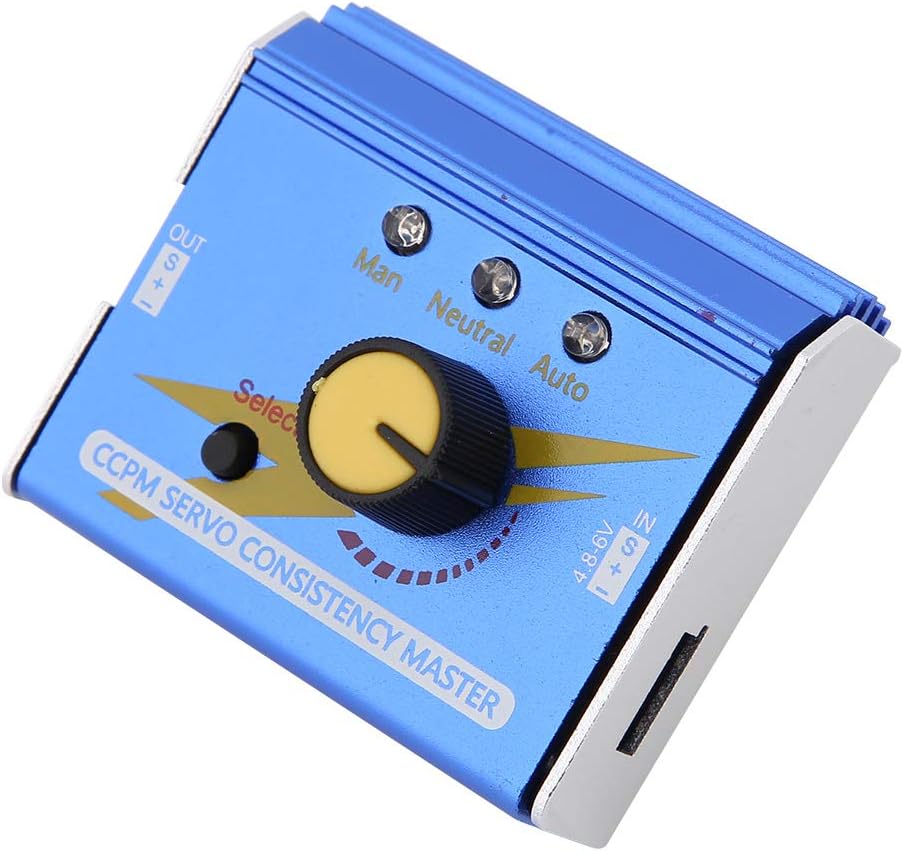

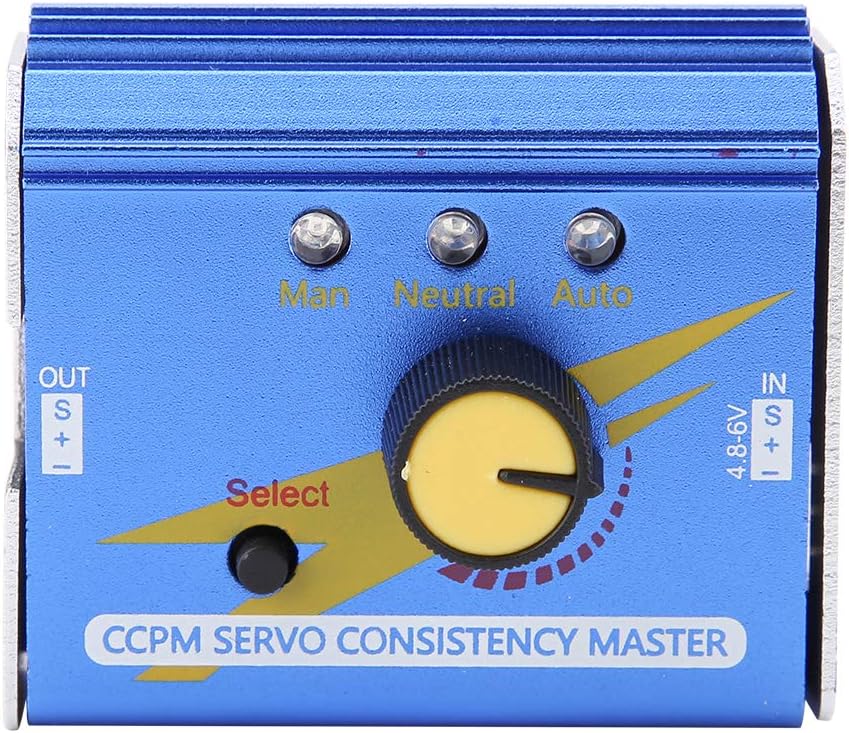

There are 3 modes to check servos or ESC:
Manual mode: turn the knob at different speeds, check the time;
Neutral mode: make the servo return to the neutral point;
Automatic "wiper" mode: make the servo rotate like a windshield wiper at the largest angle.
You can connect 1 to 3 servos simultaneously and test the consistency of 1 to 3 servos, etc.
You can also connect 1-3 ESCs to test and compare their timing respectively.
You can connect 3 servos of CCPM helicopters and select servos by neutral and synchronous functions.
You can also connect the planes servo, install the steering box and adjust the planes using neutral mode, etc.

Specification:
Material: aluminum alloy
Input voltage: DC4.8-6v
Channel: 3CH
Weight: about 28g/1oz

Packing List:
1 x 3-channel ESC servo tester
