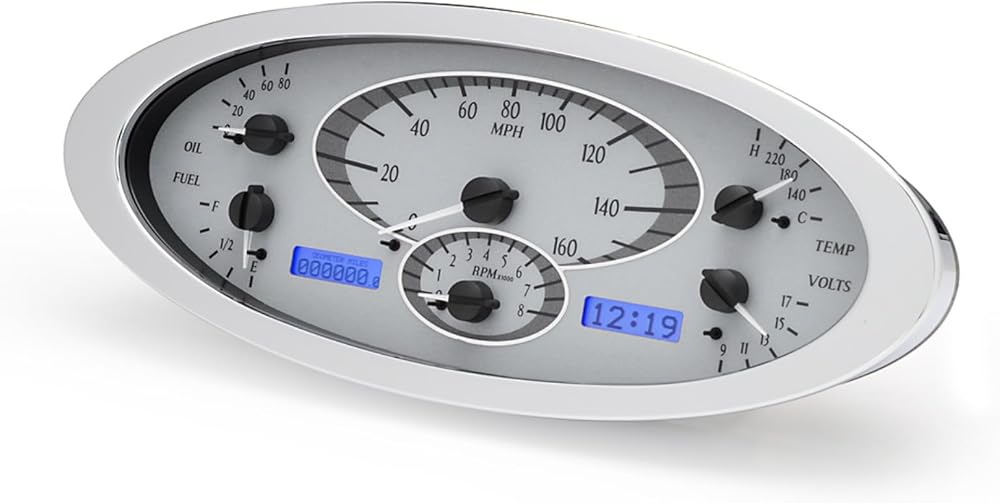

This reproduction gauge system fits directly into the stock dash without modification.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

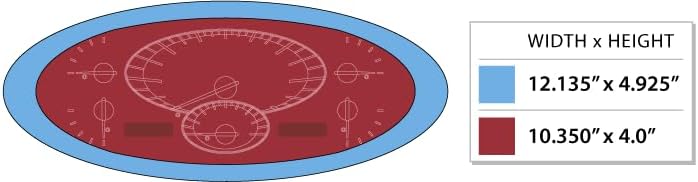

Dimensions:
Overall: 12.135" W x 4.925" H
Cutout: 11.685" W x 4.525" H
*Includes new chrome bezel shown
Analog Gauges:
Speedometer - 0-160 MPH
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Digital Message Centers:
Standard Displays:
-Odometer (One time user settable, Million Mile)
-Dual (A/B) Trip Meter (0- 9,999.9)
-Clock (12 hour)
Performance Meters:
-0-60 MPH Timer (0- 100 kmh)
-1/4 mile time
-1/4 mile end speed (trap speed)
-High speed recall
-High RPM recall
Built-In Indicators:
-Turn Signals (Left/ Right)
-High Beam
-Check Engine
-Parking Brake
-Cruise Control (On/ On & Engaged when vehicle is equipped)
-Gear Position (Optional GSS-3000 sensor required, sold separately)
-4 x 4 (When vehicle is equipped)
-Wait to Start (When vehicle is equipped)
