1. Fully aluminum alloy enclosure, anodized, can test analog and digital servos, can control ESC (motor stepless speed regulation test)
2. It can simultaneously test whether 3 servos are synchronized (this function is mainly applicable to helicopter steering gear in CCPM mode)
3. There are 3 modes to check servos or ESC
4. It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
5. You can also connect 1-3 ESC to test and compare their time respectively.

Spec:
Features:
Fully aluminum alloy enclosure, anodized, can test analog and digital servos, can control ESC (motor stepless speed regulation test)
It can simultaneously test whether 3 servos are synchronized (this function is mainly applicable to helicopter steering gear in CCPM mode)
There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the time;
Neutral mode: make the servo go back to the neutral point;
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their time respectively.
It can connect 3 servos of the CCPM helicopters, and select servos by neutral and synchronous functions
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Specification:
Material: aluminum alloy
Input voltage: DC4.8-6v
Channel: 3CH
Weight: Approx.28g/1oz

Package list:

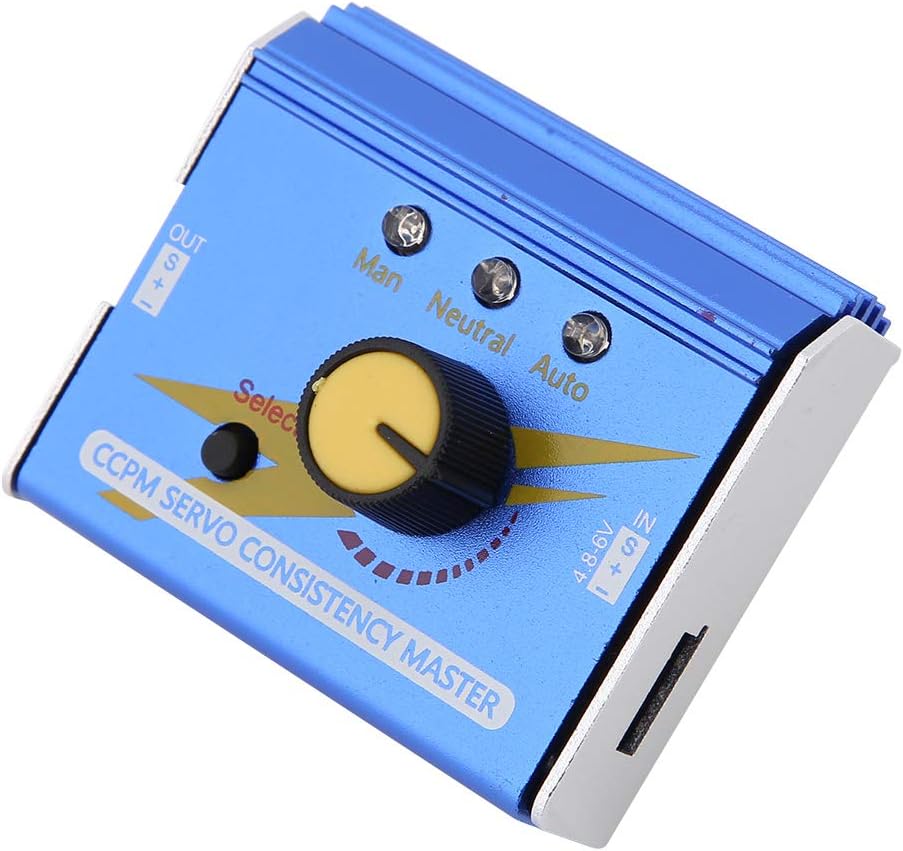

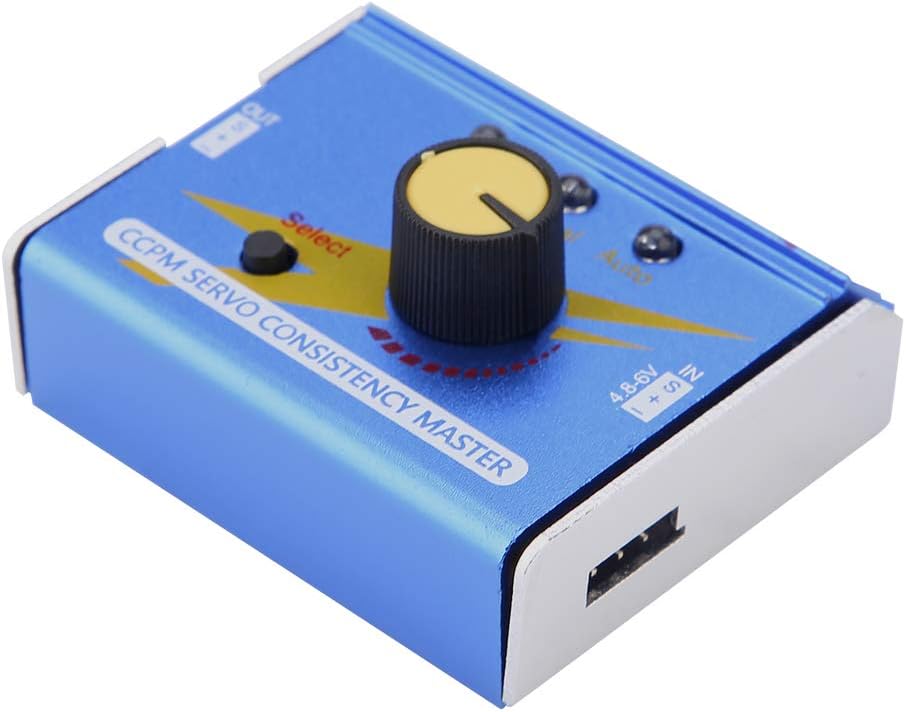

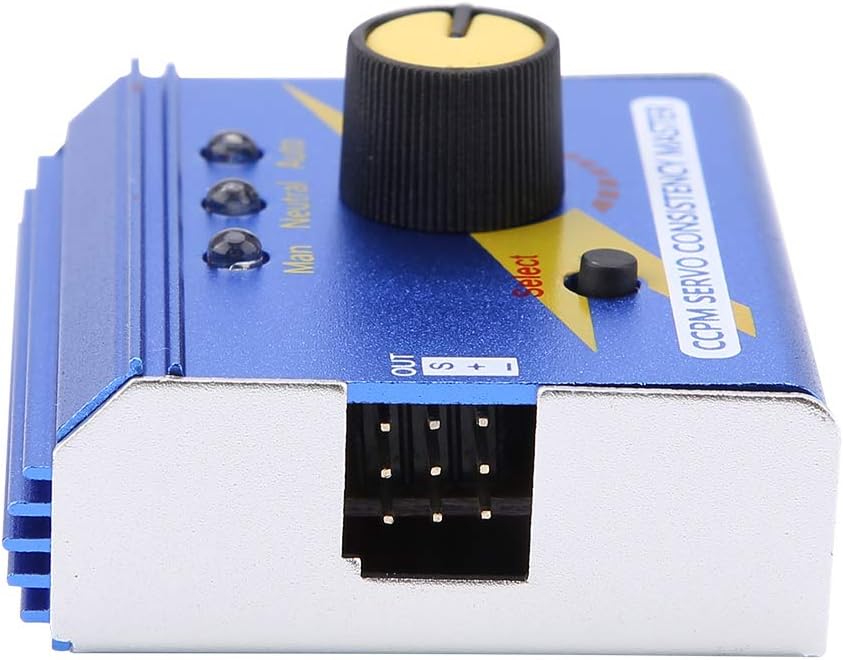

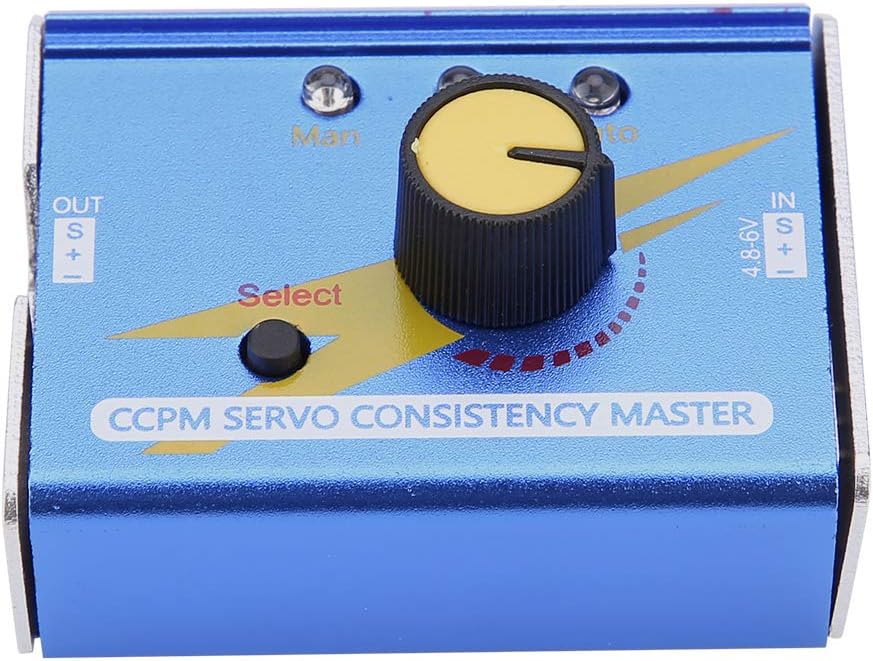

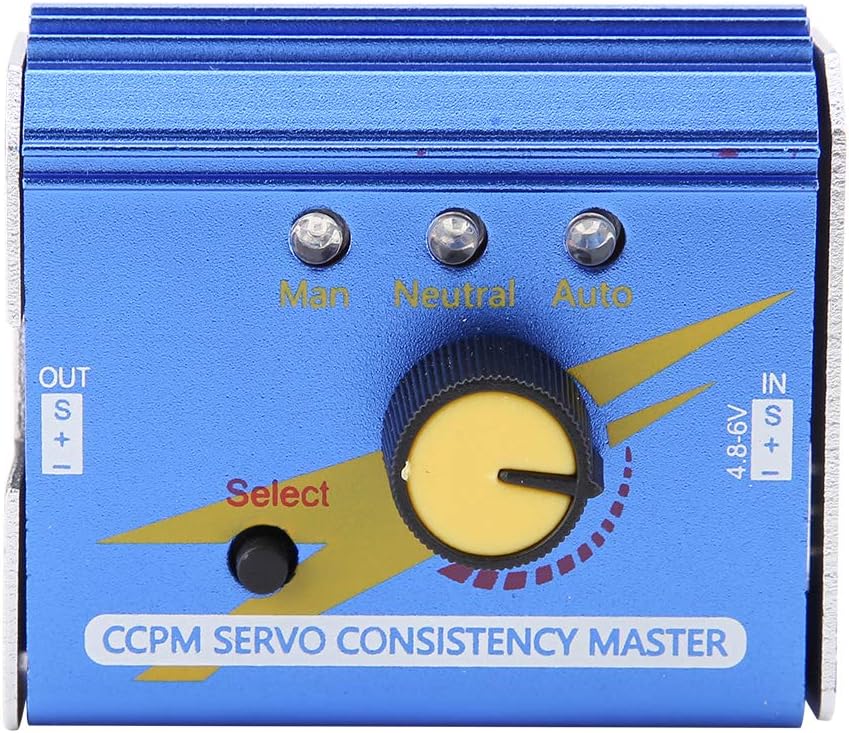

1 x 3CH ESC Servo Tester
