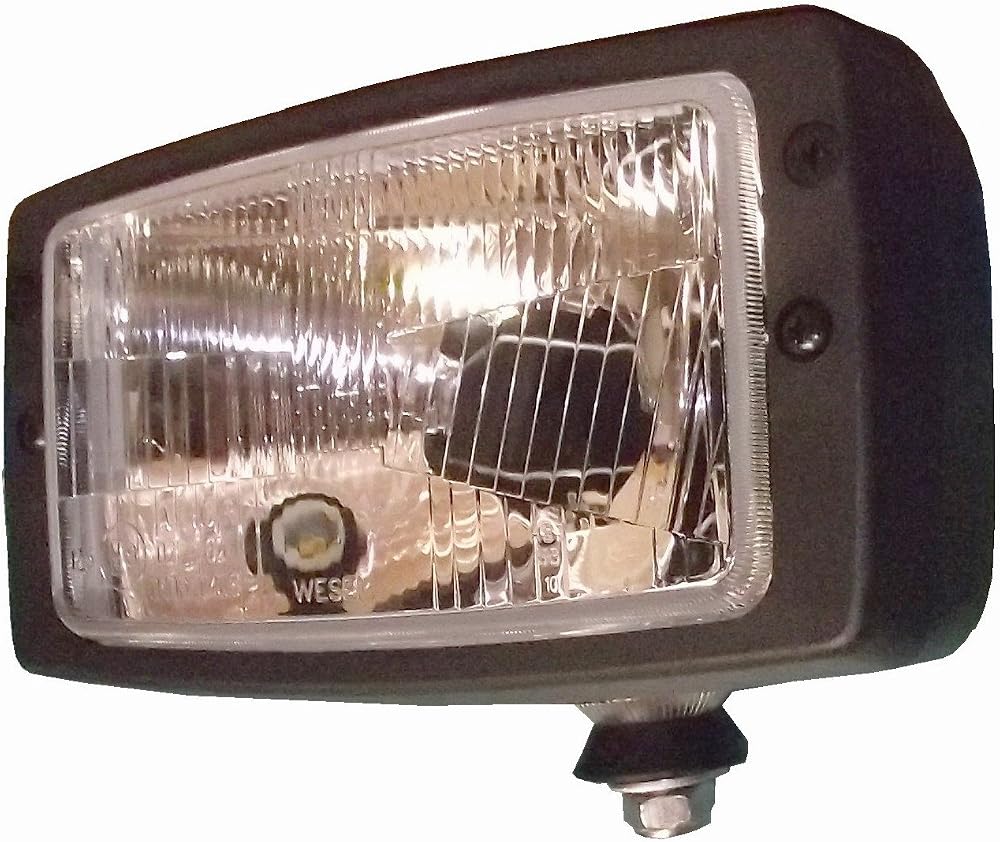

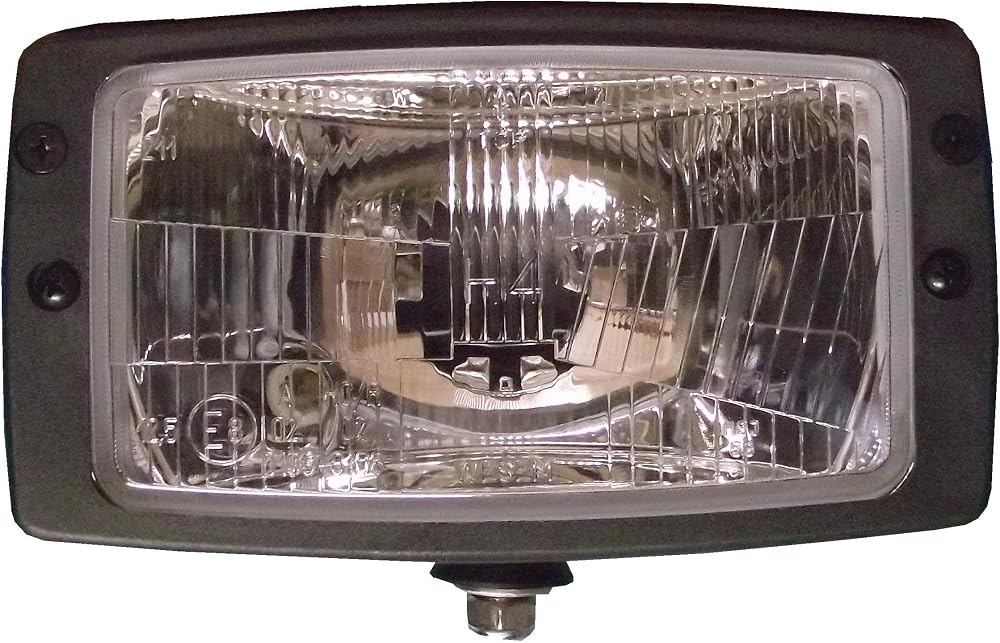

1 main headlights H4 12/24 V for TRAKTOR or tractor with light, parking light, high beam and ablend Light – including H4 Light Bulb
Directions for use:
For fixing up against the factory intended or free standing on the front mounted to the bodywork of the vehicle.
Suitable for universal use
Ideal for rigs and Langsamlaufende vehicles
General information
The headlight Type H4 have the homologation E8 assembly , metal Refektor , glass panel , elasticated element for attaching the main bulb ; plastic housing black , position control unit – Mounting Holder
Suitable for the following bulbs: 12 V 45/40 W R2, R2 24 V 55/50 W H4 12 V 60/55 W, H4 24 V 75/70 W T4 W 12 V or 24 V with socket BA9s
Technical details:
The reference number of driving (R2 version), which indicate the maximum illumination intensity, is 7.5 '(i.e. about 37.5 L by hand in 25 m).
The reference number of driving (version H4), which indicate the maximum illumination, 12.5 '(i.e. approximately 60 Lx in clearance from 25 m).
Installation Methods:
The headlamp is mounted on the body by means of M10 screw standing.
, e.g. suitable for: a – Tractors: Zetor, ZETOR Forterra, ZETOR Proxima, FENDT, FENDT FARMER, FENDT Favorit, Ursus, Pronar, John Deere, farmer, farm Trac B – Slow The vehicles: Ammann, Div, Doosan, hammer, Hyundai c – Tractors: Zetor: Proxima I Forterra
Light functions: Parking light high low beam light beam
