Specifications
Condition: New
Type: Hydraulic Air Foot Pump
Material: Engineering Plastic
Color: Black and Yellow
Flow Rate: 0.75-0.95L/0.2-0.25Gal/min
Driving Mode: Pneumatic
Rated Pressure: ≤70Mpa
Hydraulic Oil: No.32(Not Included)
Available Oil Volume: 2.3L/0.6 Gal
Inlet Thread: RC1/4''
Outlet Thread: NPT3/8''
Gross Weight: 10kg/22 lbs
Net Weight: 9.5kg/20.94lbs
Package Size: 34.2*20*20.5cm/ 13.46*7.87*8.07in
Product Size: 31.5*17.5*21cm/12.4*6.89*8.27in
Highlights
Brand New, With High-Class Material
Quality Assurance
Exquisite Workmanship
Stable Performance
Thoughtful Design
Powerful Function
Easy to Maintain
Fits (As a Reference)
The Hydraulic Pump Efficiently Operates Many Industrial and Construction Ram Applications and is a Great Unit for Use With a Wide Variety of Rams, Presses, and Hydraulic Pullers.
Package Included

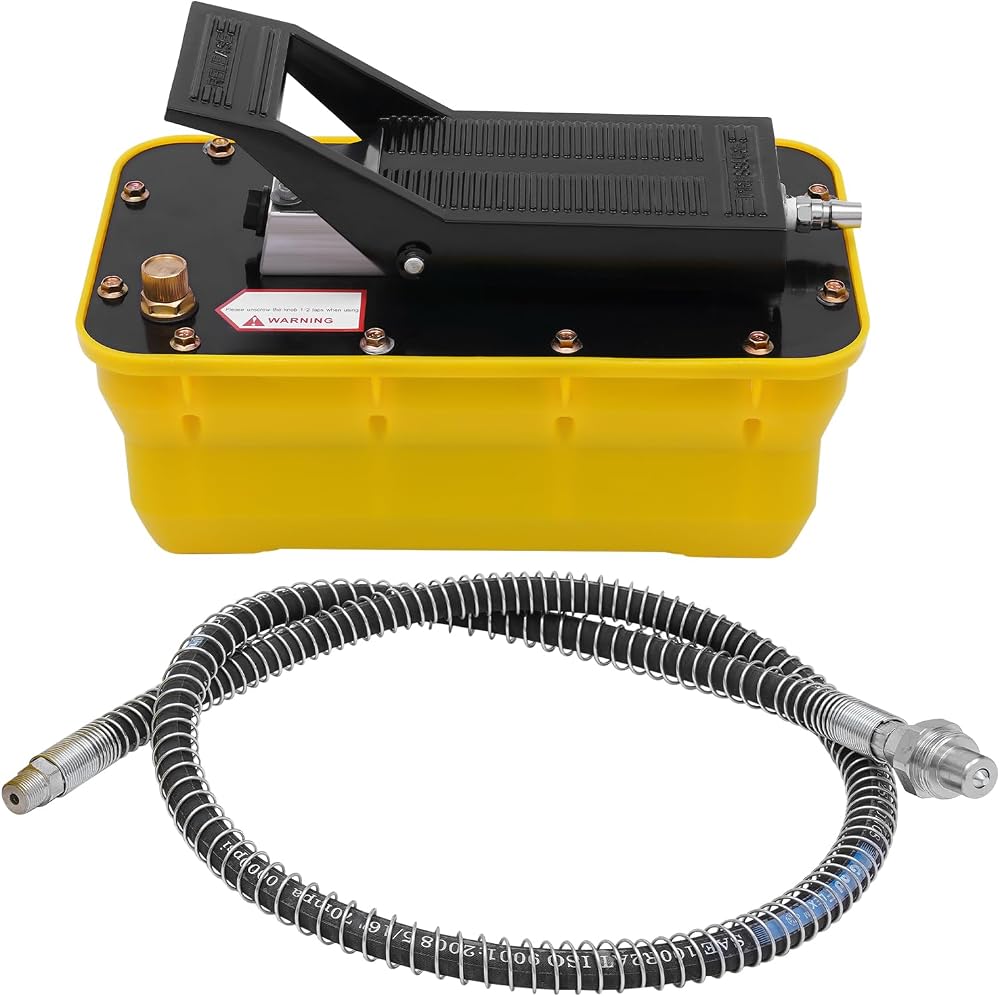

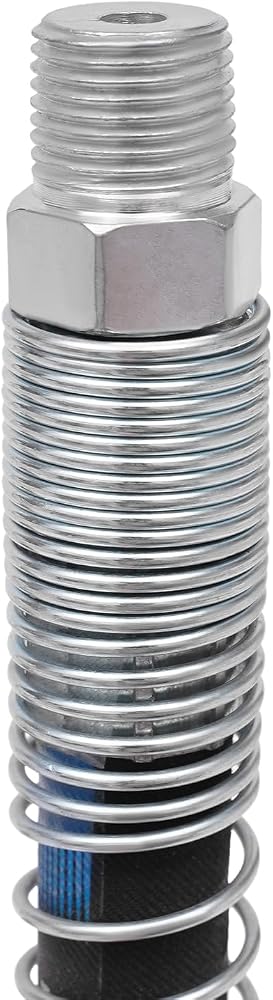

1* Air Hose

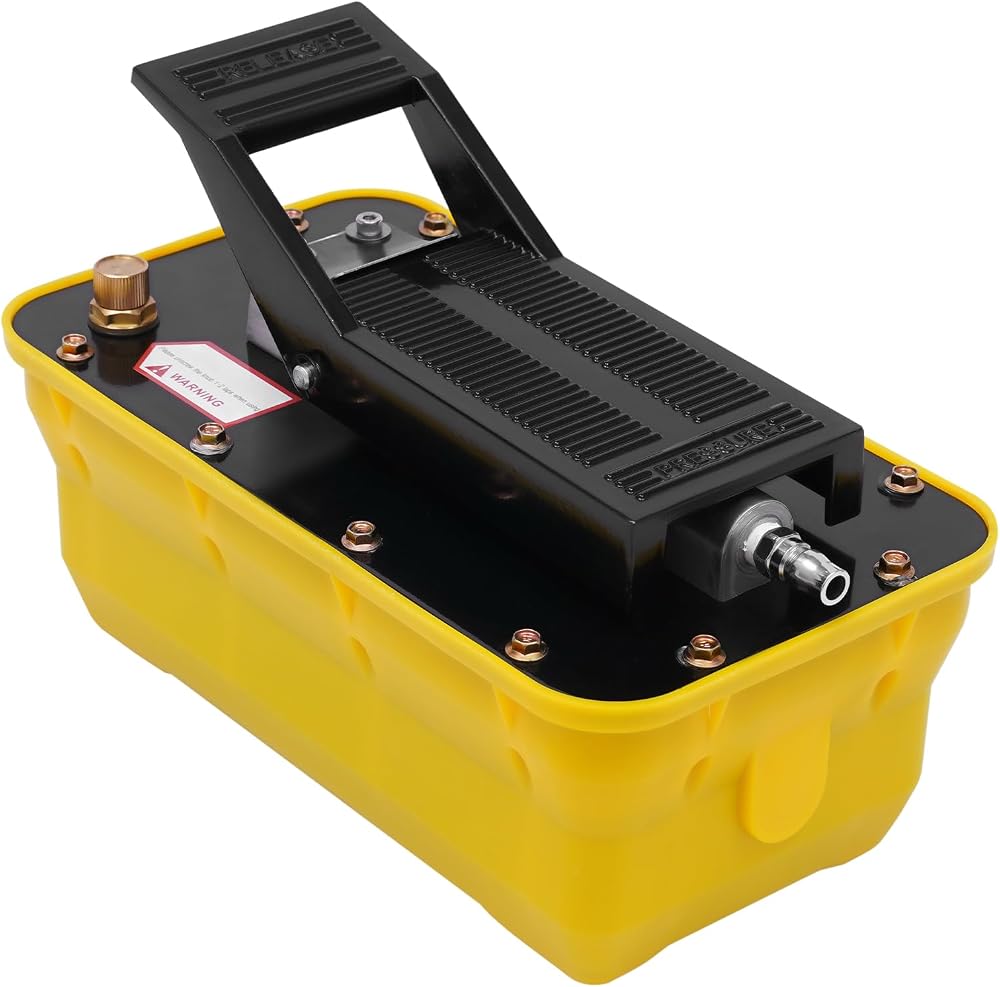

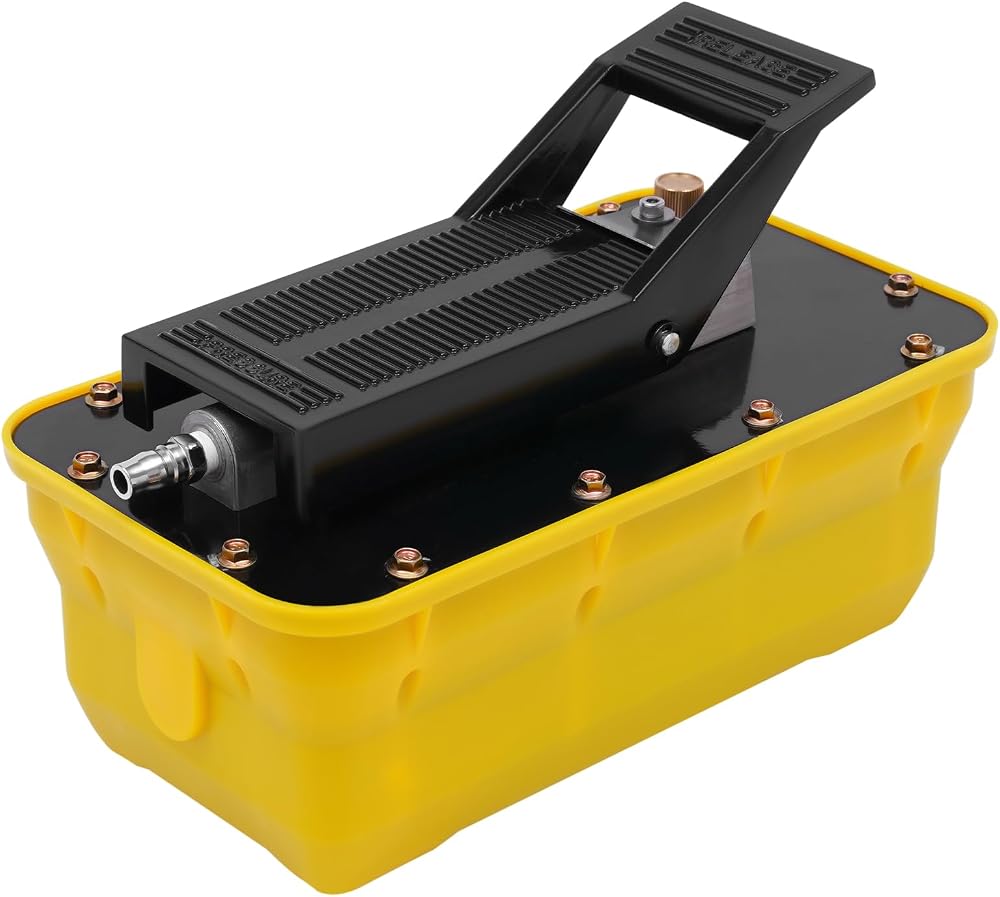

1* Hydraulic Foot Pump
Notes
1. Please be sure to clean the air pipe and oil pipe joints before connecting them, otherwise, impurities entering the pipeline will damage the cylinders and hydraulic components and greatly shorten the service life of the pneumatic pump.
2. The air source connected to the pneumatic pump must be de-watered. Air compressors and storage tanks should be drained daily. The end of the air source of the pneumatic pump is best to add a separate filter to ensure that the air source is clean, which will greatly extend the service life of the pneumatic pump.
3. Please change the 32# hydraulic oil every 350 hours (not included).
4. Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.
