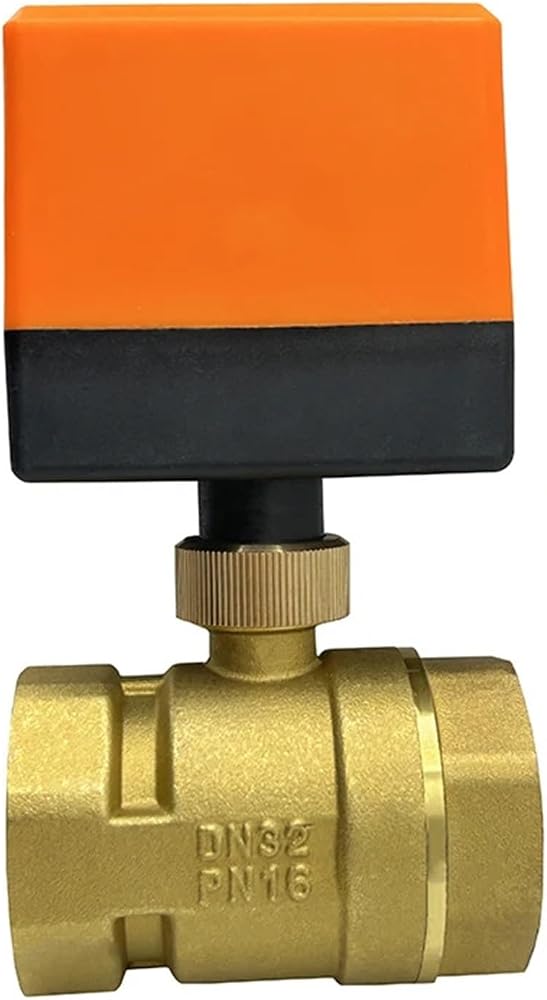

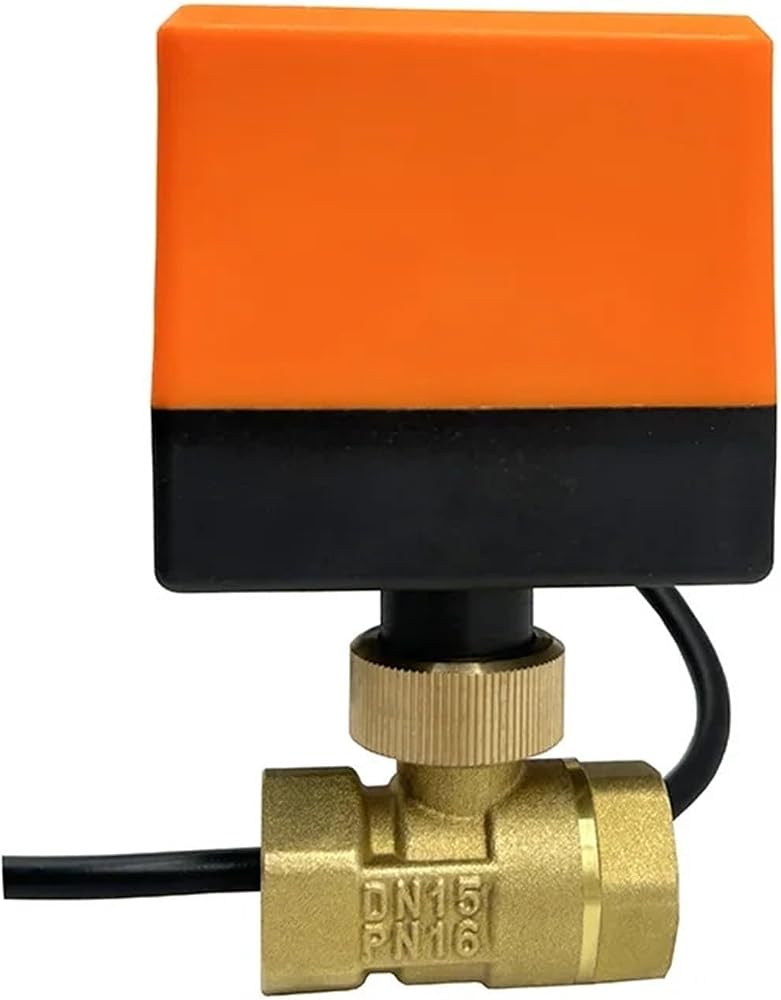

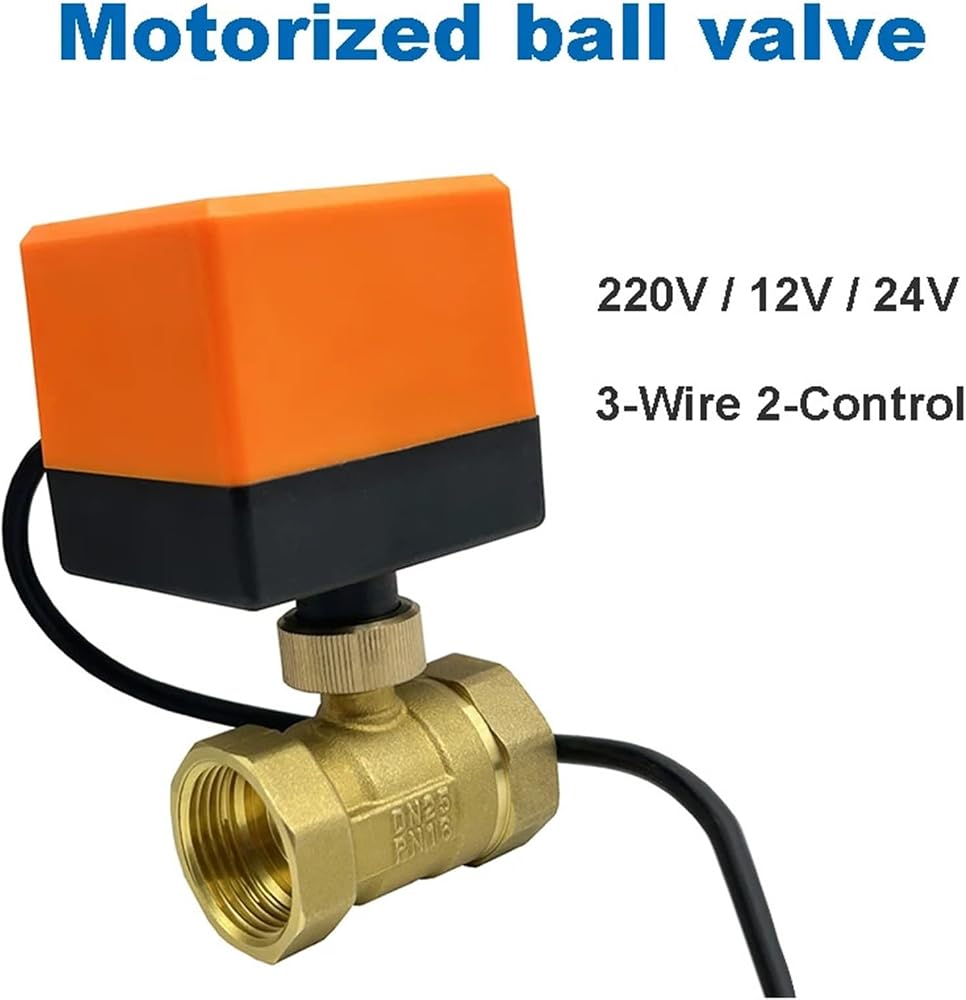

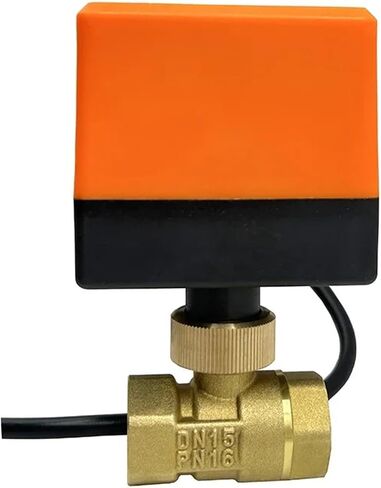

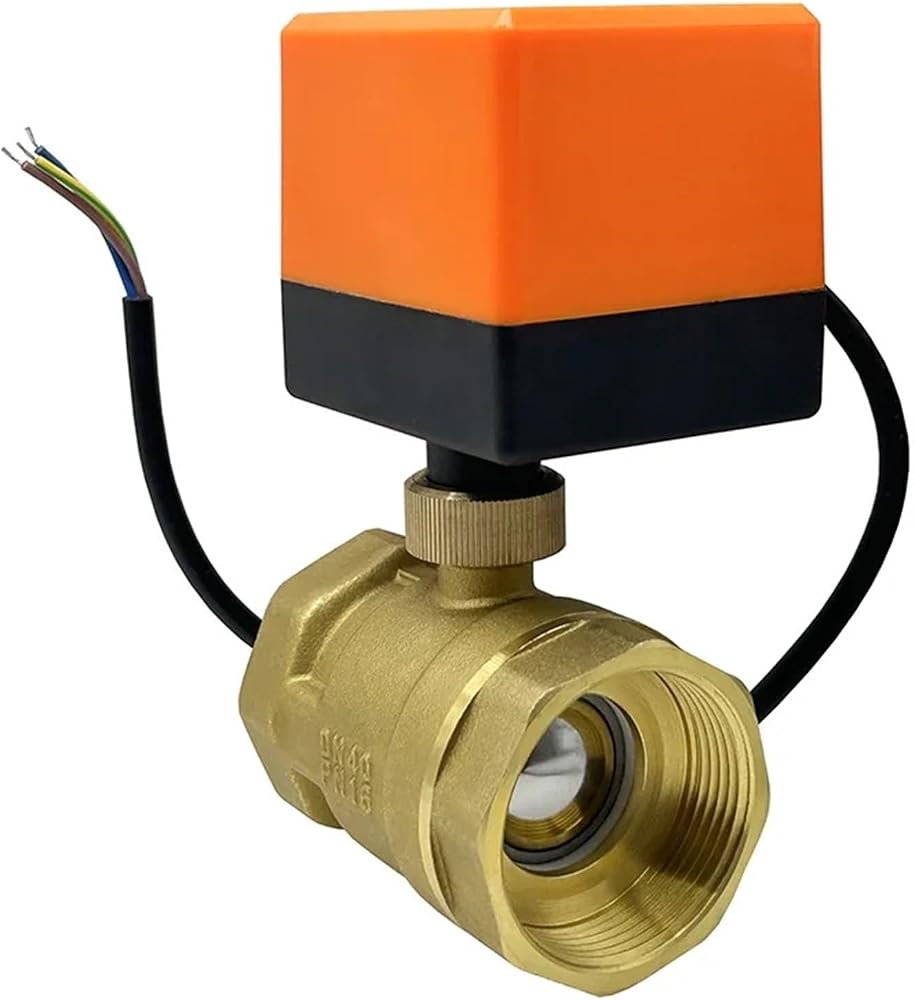

Check Valves

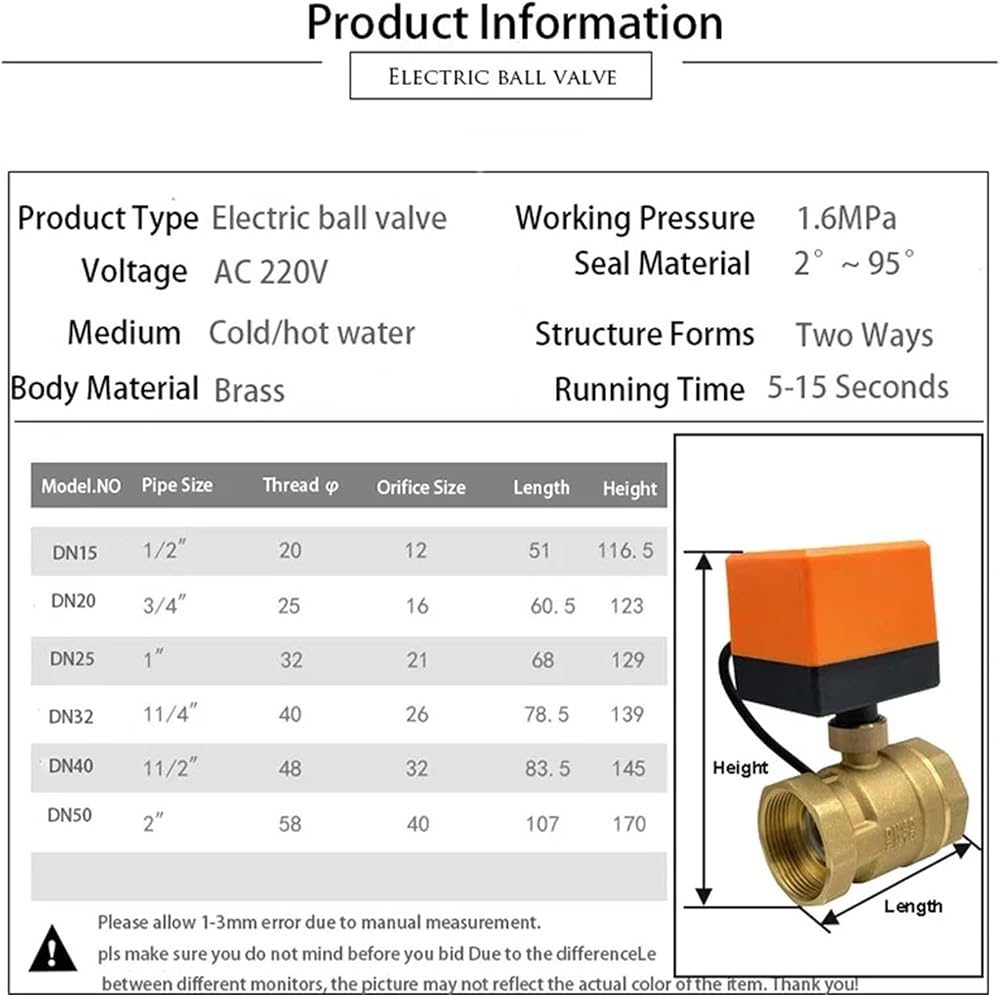

Specification
Material: Brass
Power Supply: DC12V/DC24V/AC24V
Structure Forms: Two Ways,
Operation Mode: 3-Wire 2-Ways Control
Power: 6W (Only when the valves open and close)
Running Time: 8-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque:220V 6 N.M, DC12/24V 6 N.M
Waterproof level:IP54

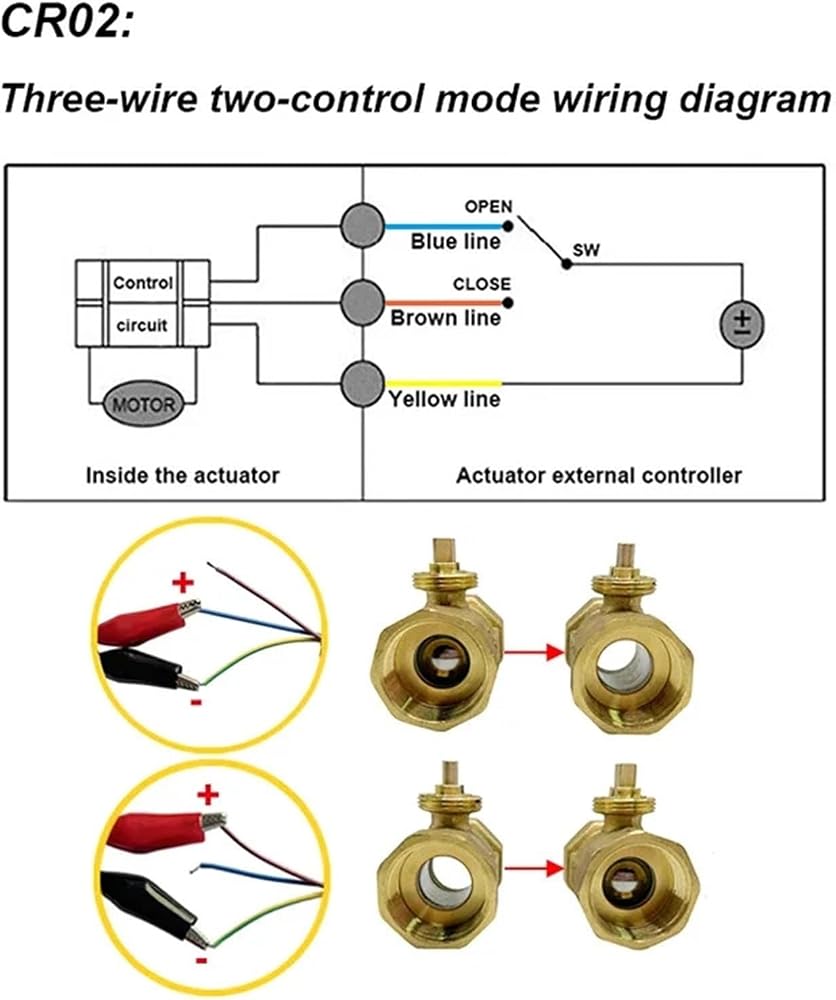

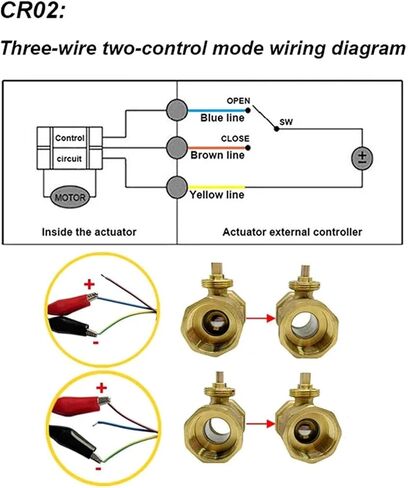

CR02:3-wire 2-control mode
1.When the SW connect the blue line,the valve open;
2.When the SW connect the brown line,the valve closed;

High-concerned chemical : None
Structure : Ball
Media : Water
Material : Brass
