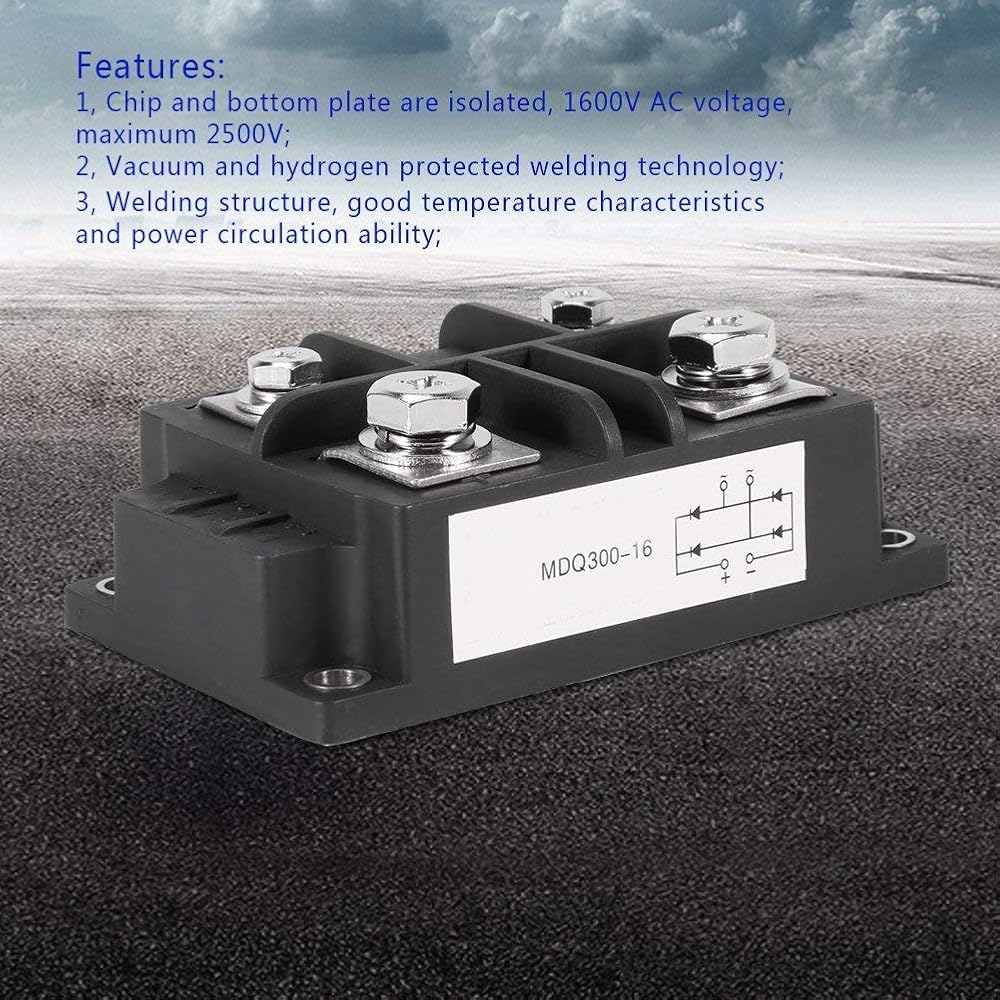

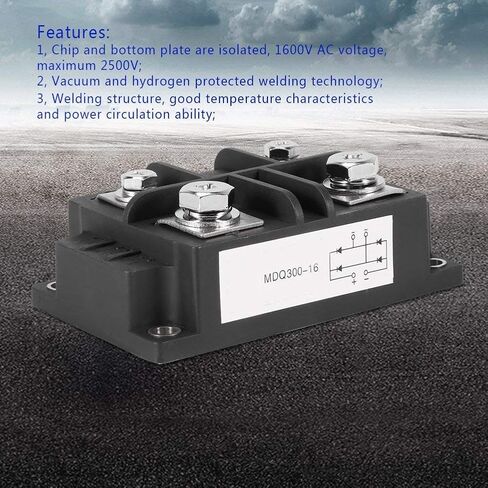

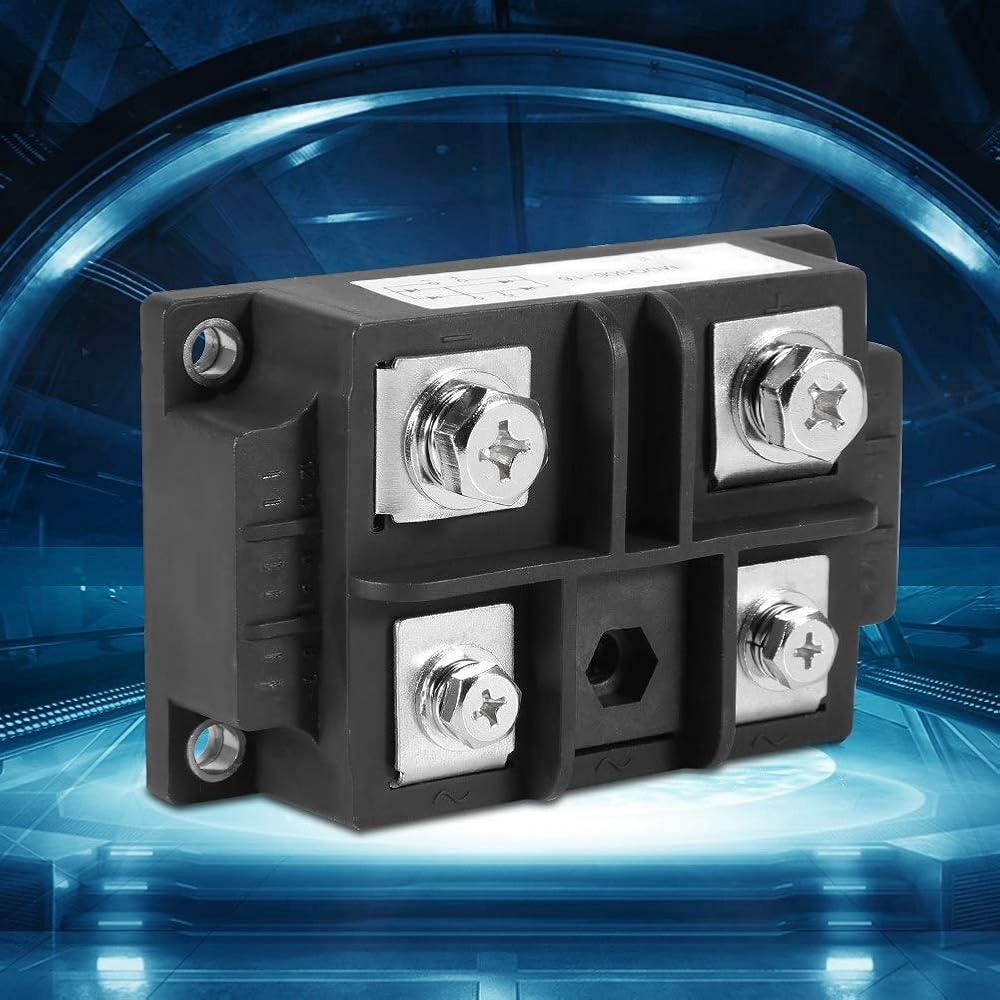

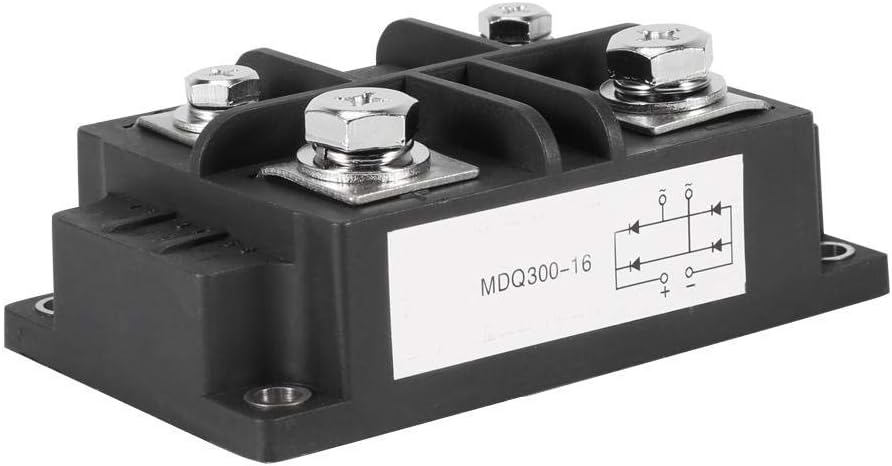

Features:
High quality bridge rectifiers used for conversion of an alternating current input into a direct current output.
Well welded structure with good temperature and power cycle ability ensures a more stable performance.
Designed for single phase rectification, output DC current is 300A.
It has a large over-current capacity, good heat dissipation and low voltage drop.
This high power bridge rectifier can be widely used for power supply.

Specifications:
Output Current: 300A
Three Phase Input Positive Average Current: 100A
Repetitive Peak Reverse Voltage(VRRM): 1600V
Repetitive Peak Inverse Current(IRRM): 10mA
Isolation Voltage(Viso): 2500VAC
VTM: 1.5V
ITM: 300A

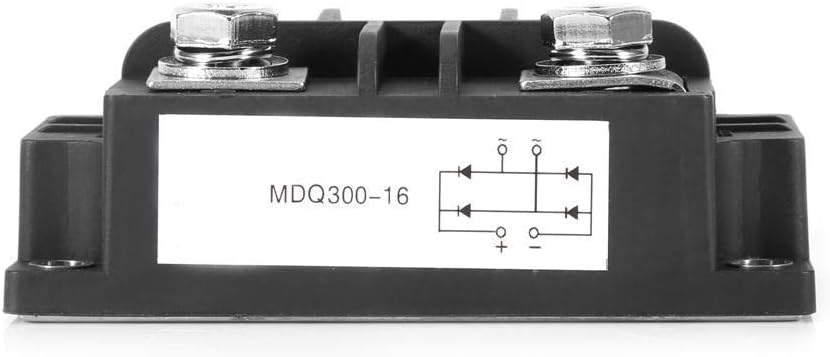

Phase: Single Phase

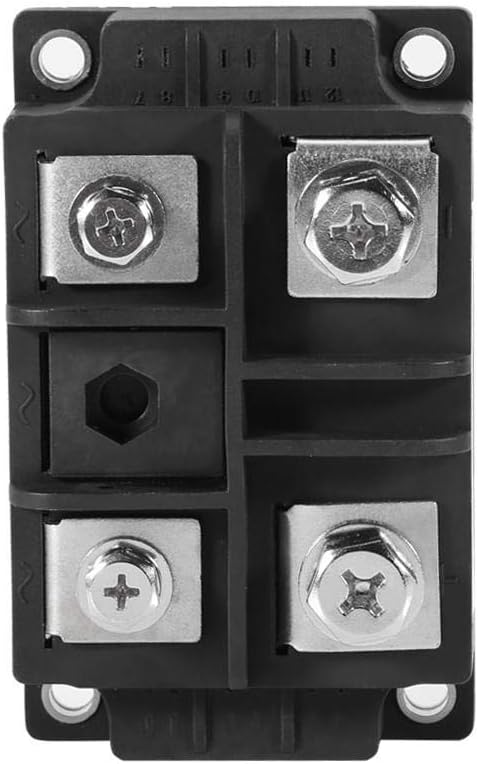

Terminals: 4

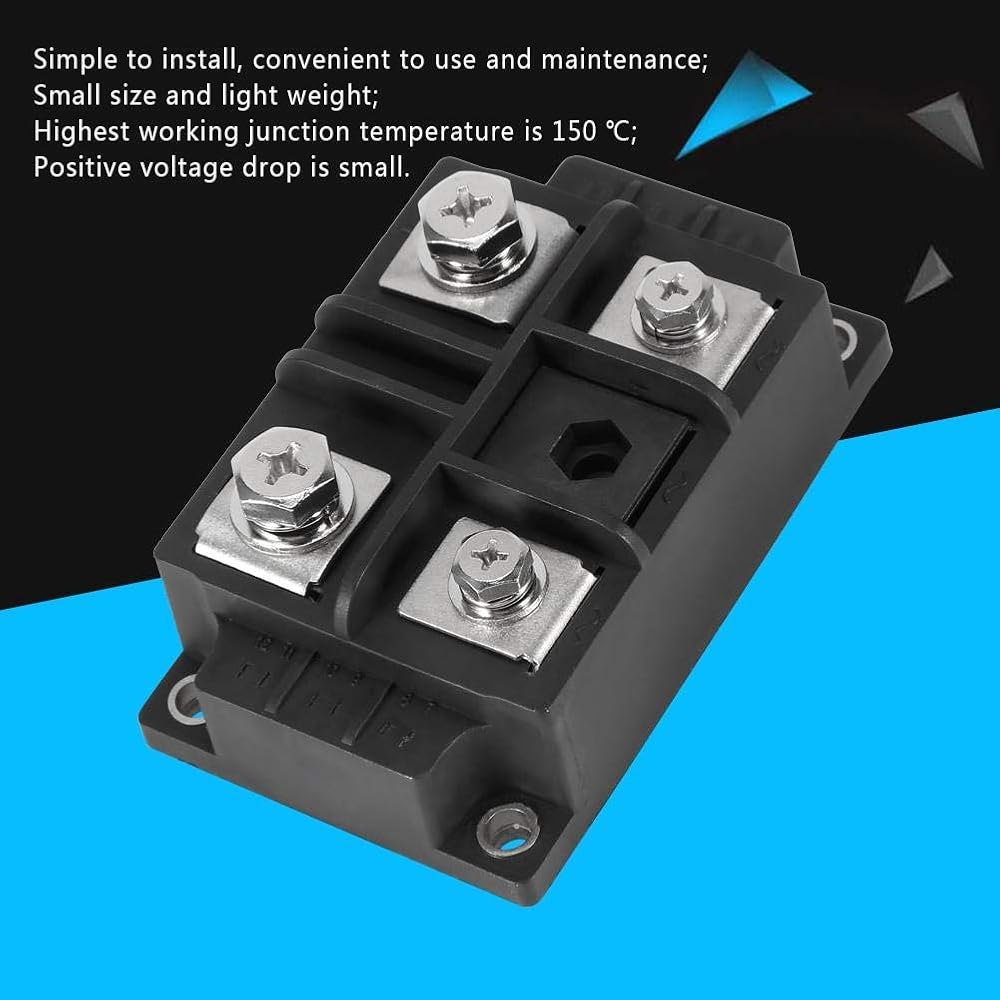

Max. Junction Temperature: 150℃

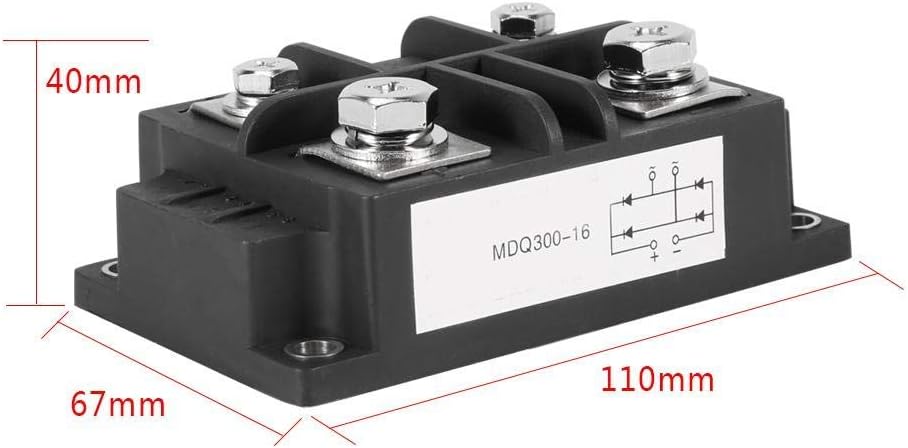

Size: 110*67*40mm / 4.33*2.63*1.57"
Quantity: 1

Package Includes:
1 x Bridge Rectifier
