مميزات خاصة

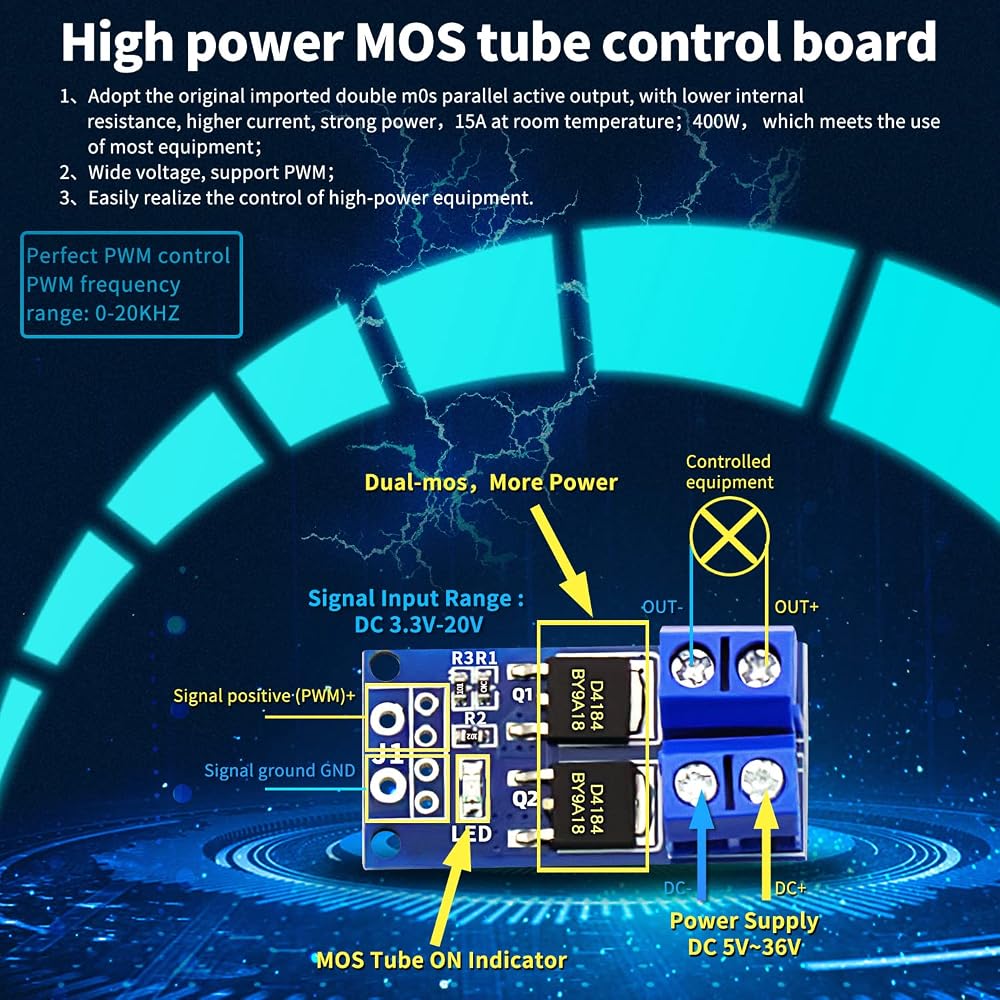

The internal resistance is lower, the current is larger, the power is strong, 15A at room temperature; 400W, which meets the use of most equipment.
Wide voltage, support PWM; easily realize the control of high-power equipment; the signal voltage is 3.3~20V.
PWM control, PWM frequency range 0~20KHz.
Signal positive long-pass, can be triggered at low level; signal negative long-pass, can be triggered at high level.
Application: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, lamp brightness, etc.

وصف

Technical Specifications:

Working voltage: DC 5V--36V

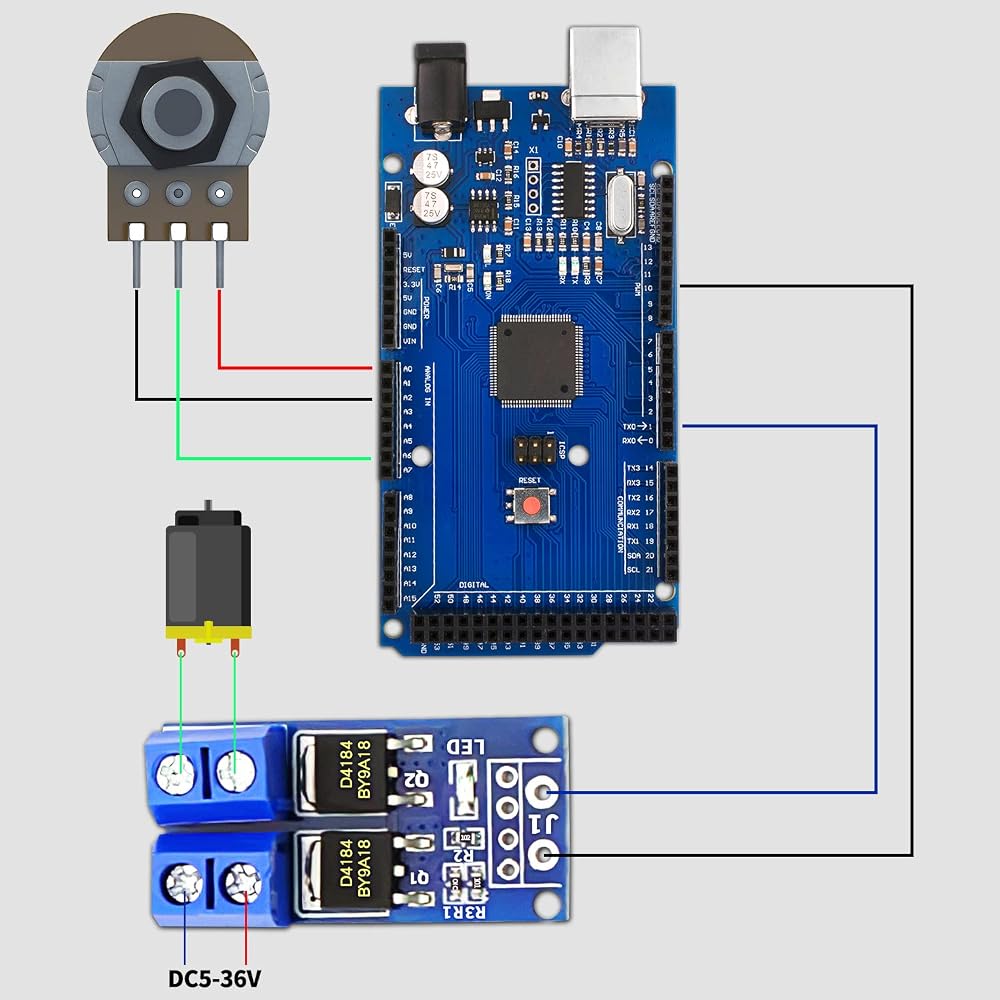

Trigger signal source: digital high level (DC3.3V-20V) can be connected to I0 port of single-chip microcomputer, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0-20KHz support.

Output capacity: DC 5V-36V, continuous current 15A at room temperature

The power is 400W! The lower limit of the maximum current under auxiliary cooling conditions can reach 30A.

Application:

The output terminal can control high-power equipment, motors, light bulbs LED strips, DC motors, micro water pumps, solenoid valves, etc., can input PWM to control the speed of the motor and the brightness of the lights.

Service life: unlimited switch

Operating temperature: -40-58°C

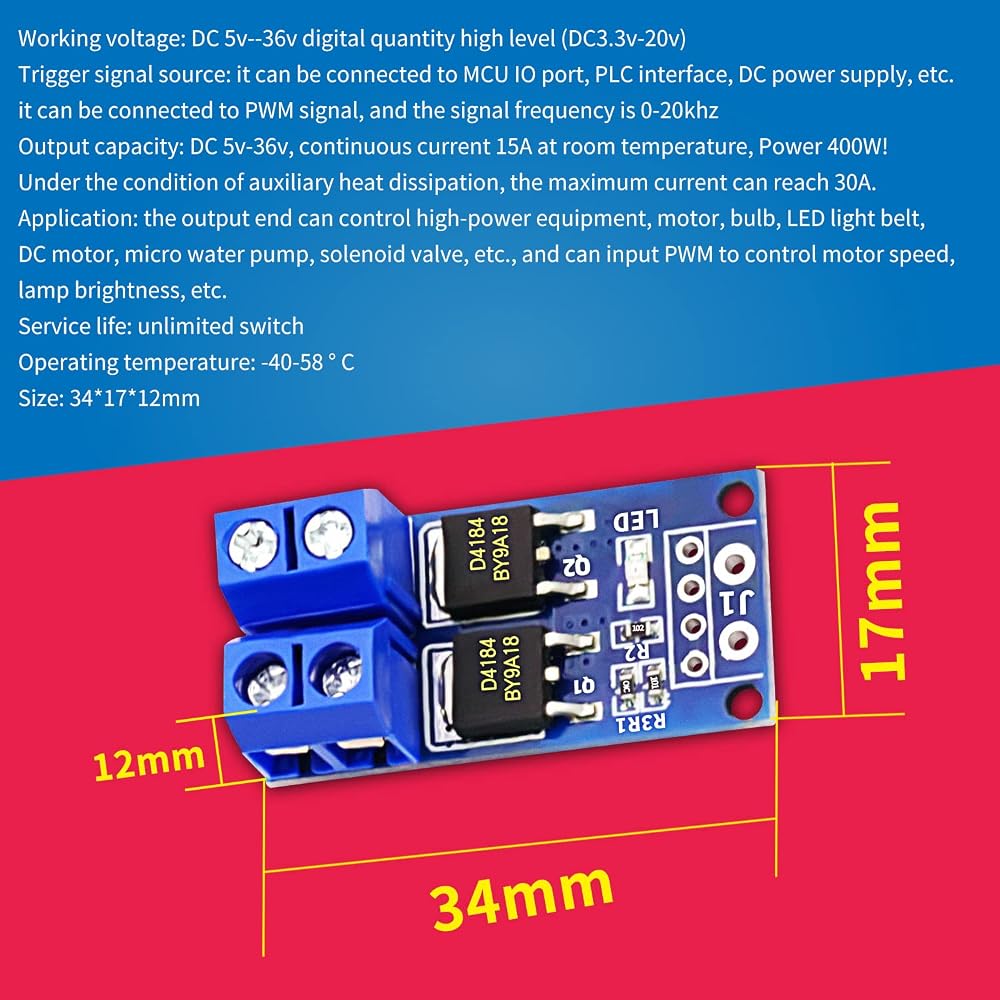

Size: 3.4*1, 7*1 .2cm

Package includes:

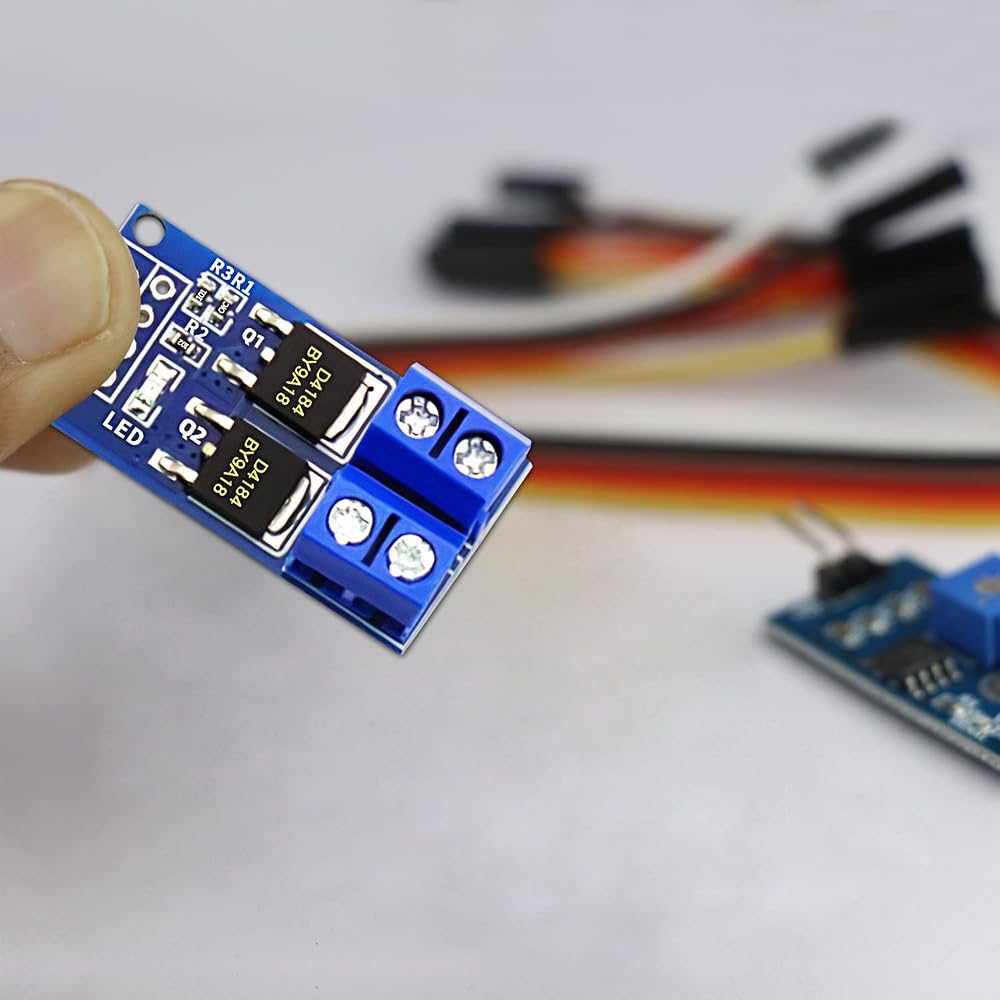

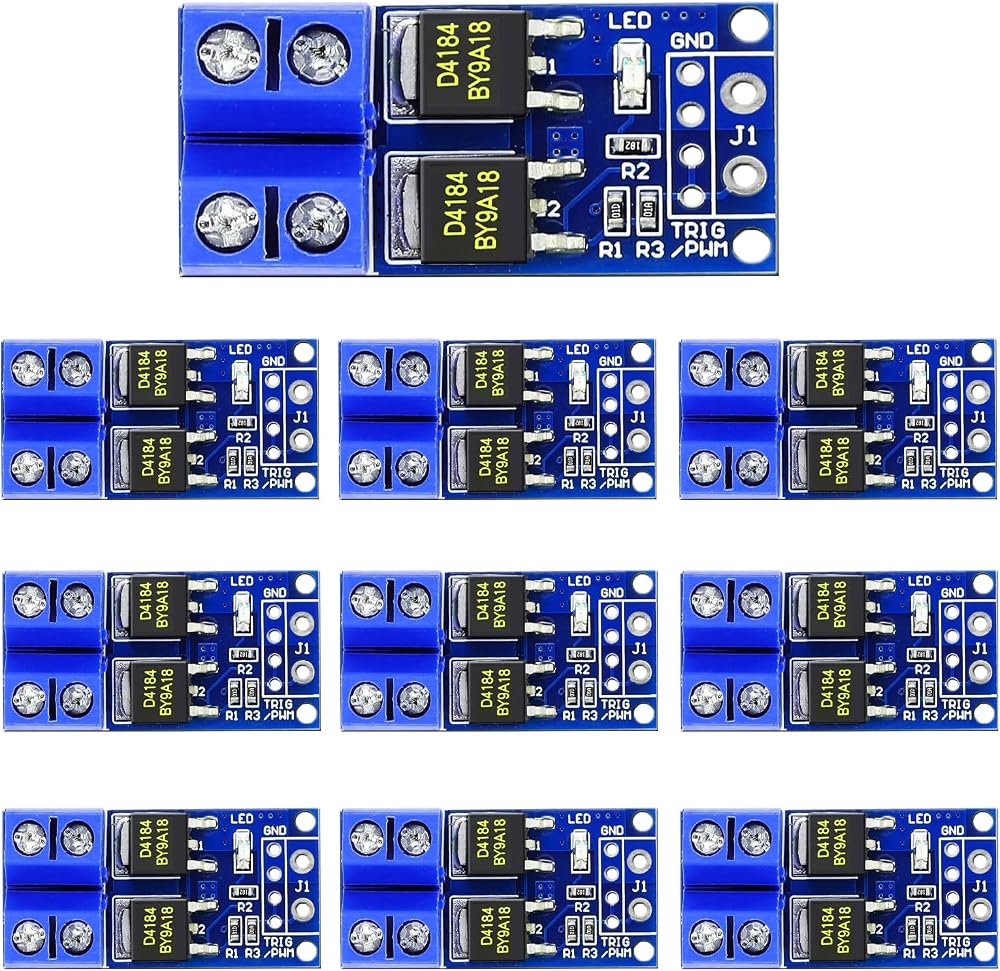

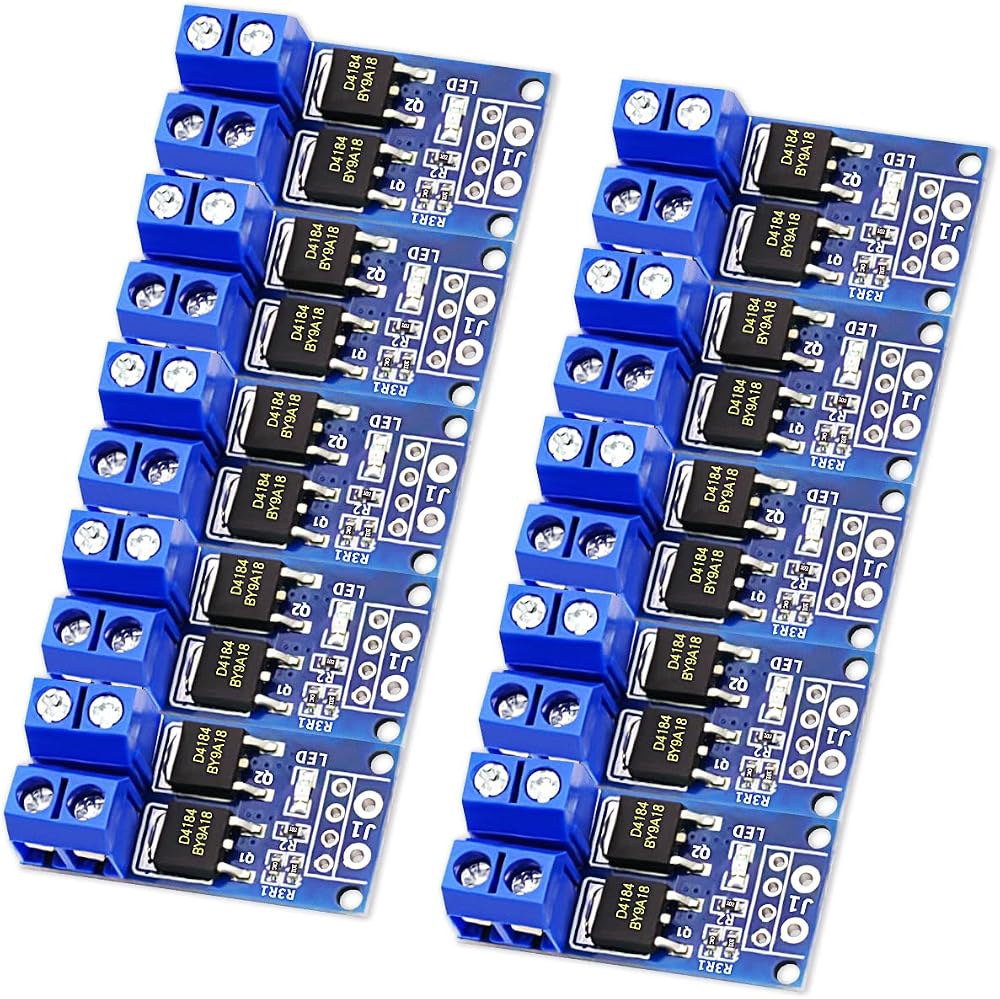

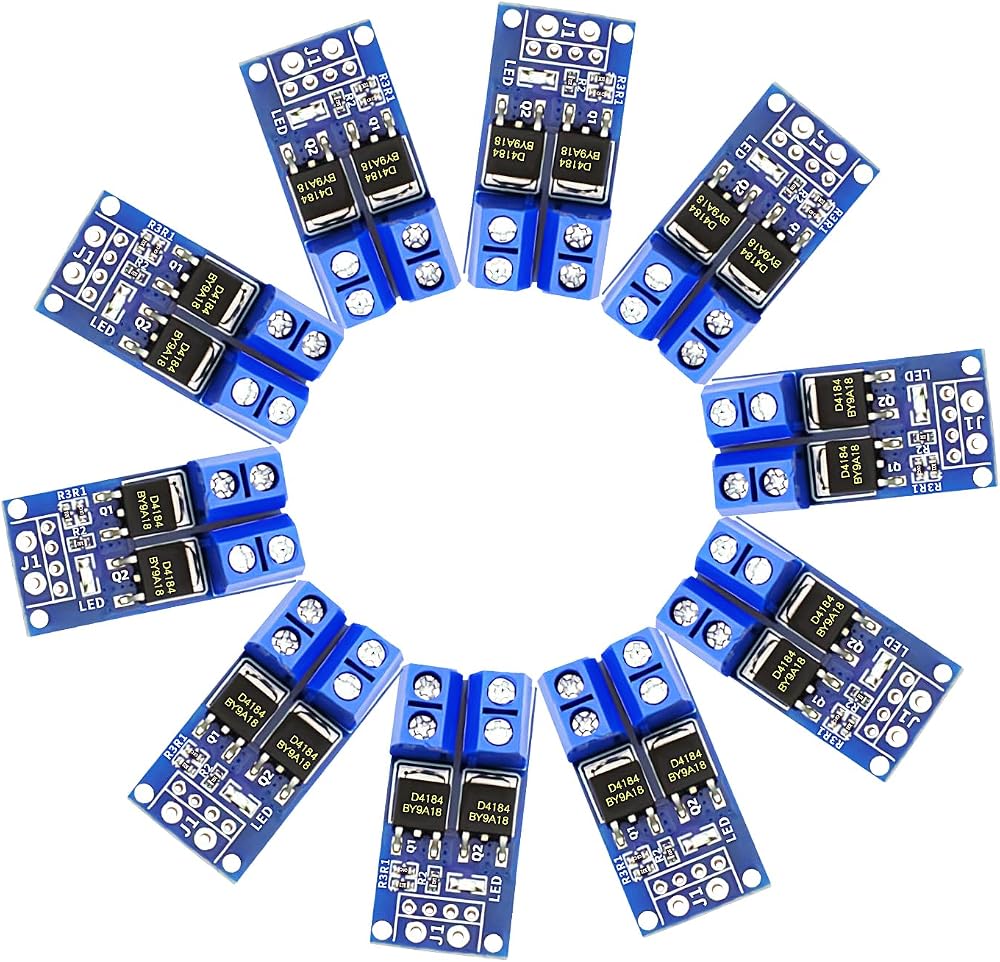

10 X MOS FET Trigger Switch Drive Module

مرحبًا،

بحث

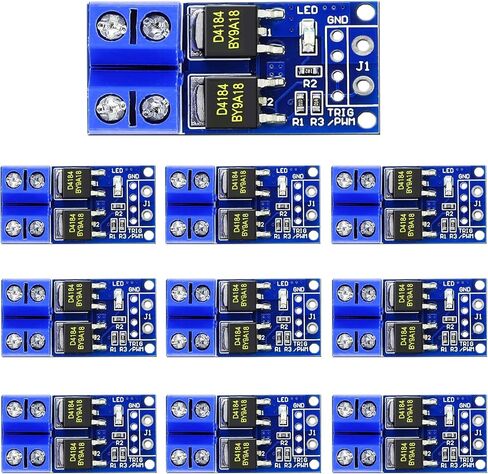

وحدة محرك تبديل CenryKay MOSFET، 10 قطع DC 5V-36V 15A (بحد أقصى 30A) 400 واط مزدوج عالي الطاقة 0-20 كيلو هرتز PWM لوحة تحكم بمفتاح التشغيل
