VERSATILE DESIGN: 3-pole AC contactor with 1NO auxiliary contact, rated for 50A current and 380V operational voltage, perfect for motor control applications
PERFORMANCE RATING: Delivers 32A AC-3 operational current with 15KW power handling capability, ideal for industrial and commercial installations

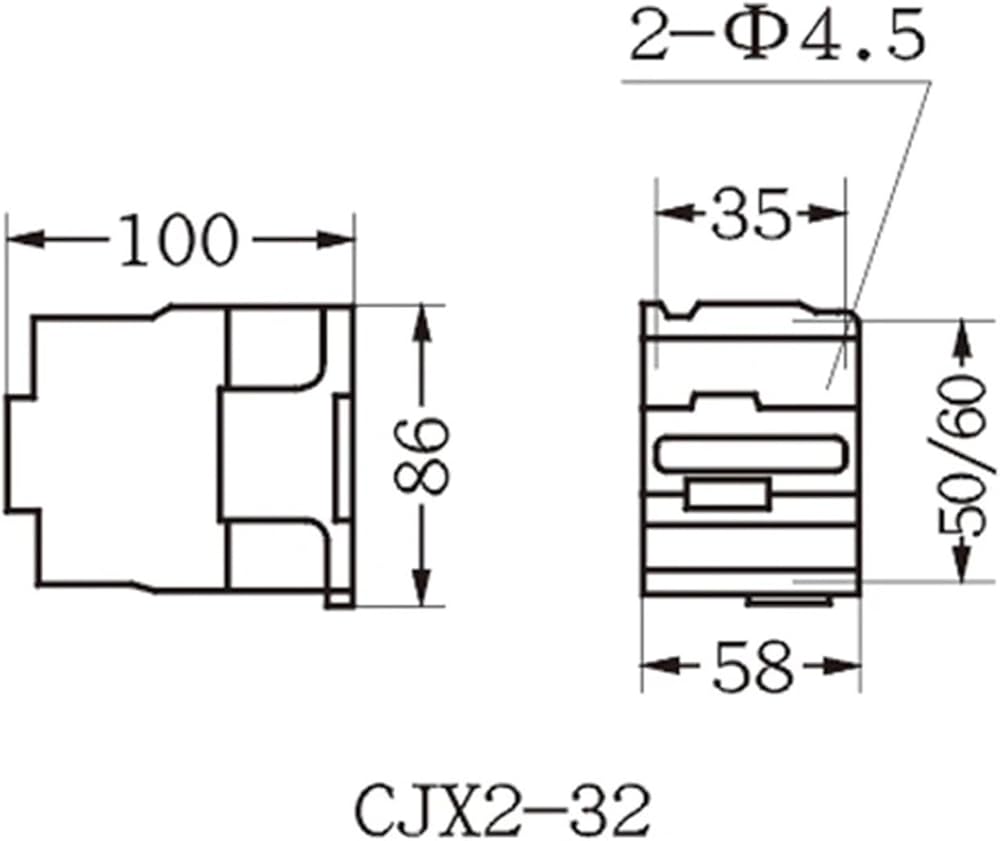

MOUNTING SYSTEM: Features standard 35mm DIN rail mounting design with compact dimensions of 3.6" x 2.2" x 3" for easy installation
ELECTRICAL SPECS: Operating voltage up to 660V insulation with 220V/50Hz control coil, suitable for various power systems and control circuits

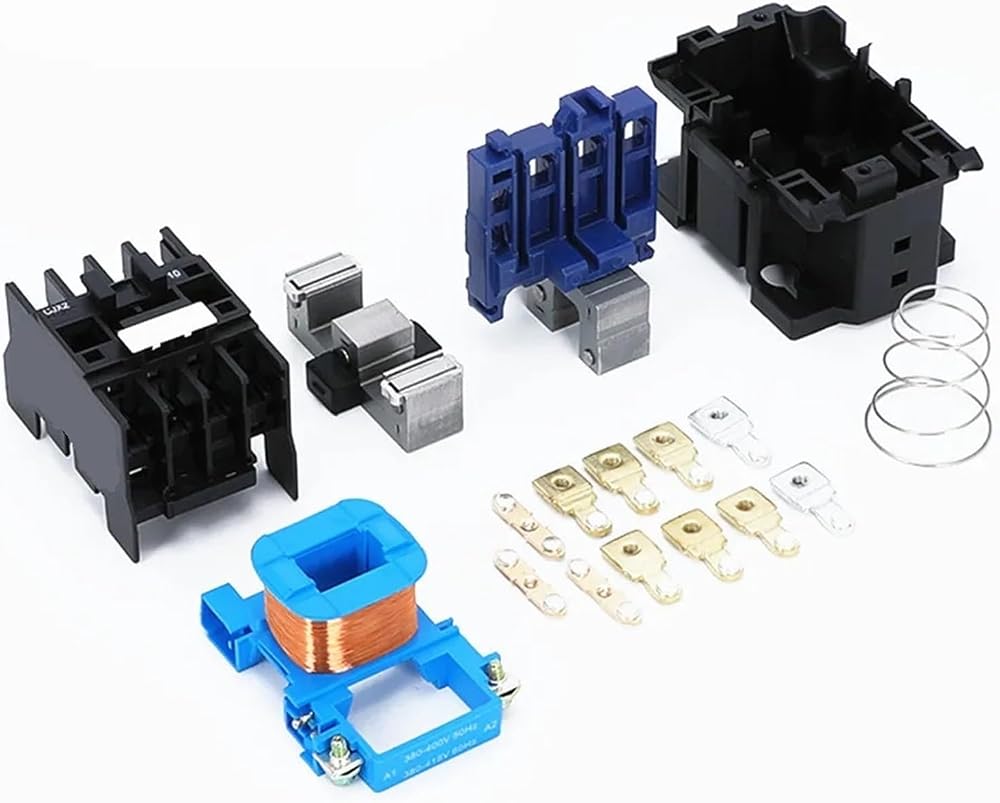

CONSTRUCTION: Durable plastic and metal construction with clear terminal markings (L1/L2/L3) for straightforward wiring and maintenance
Description

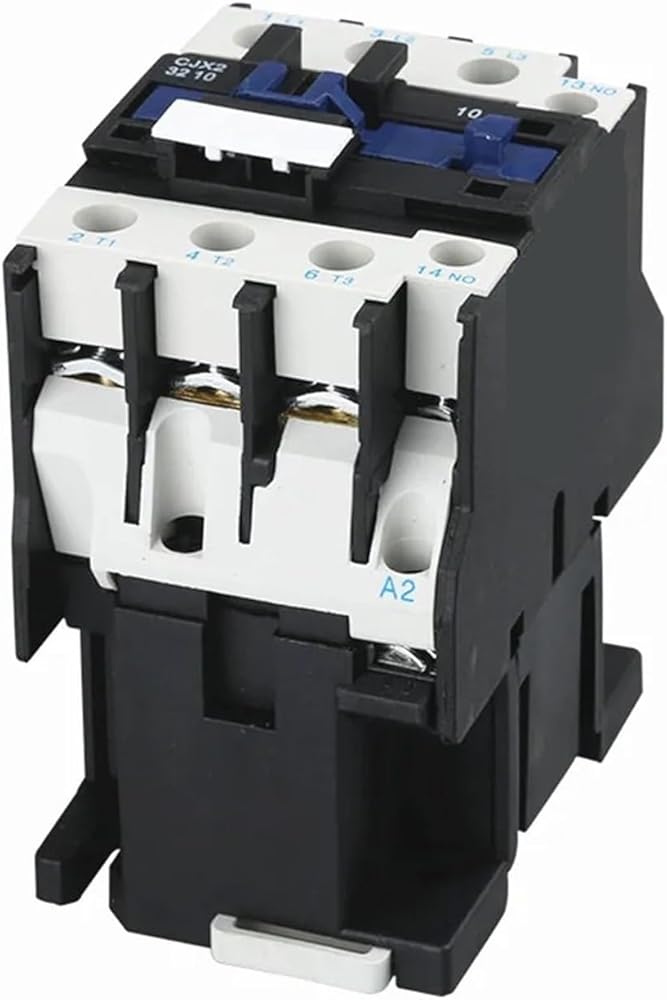

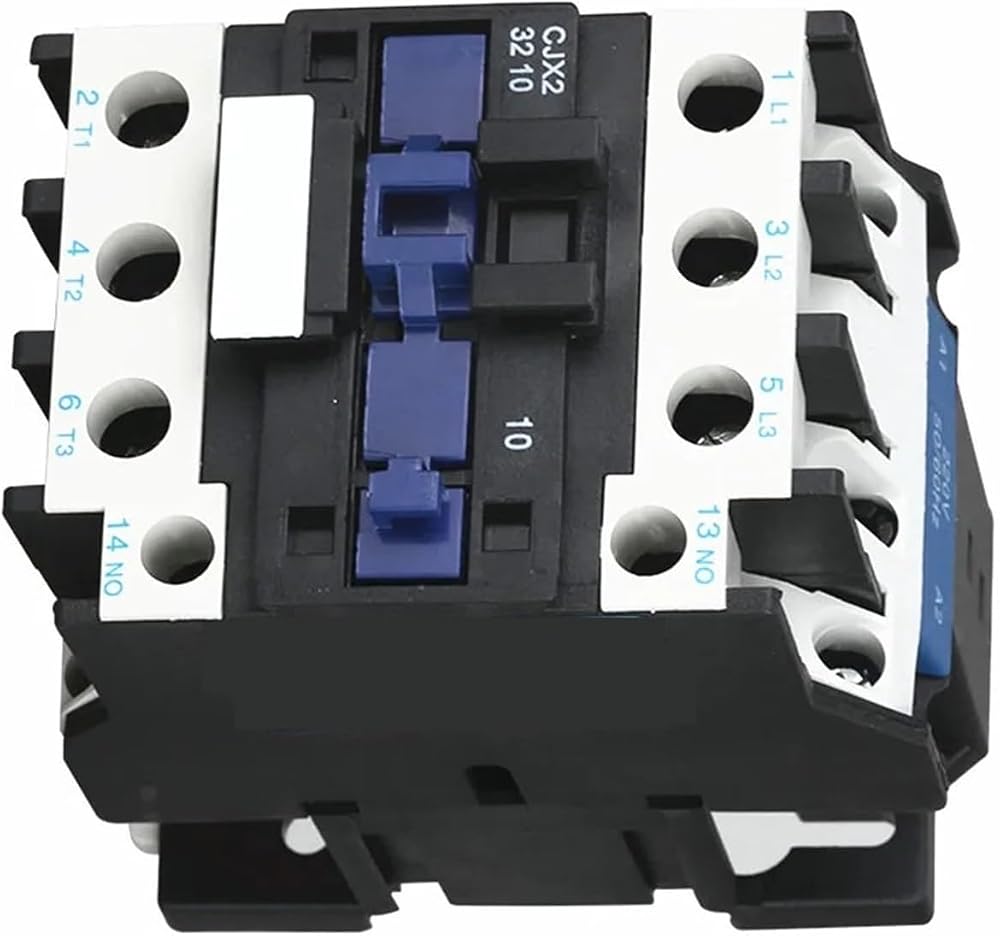

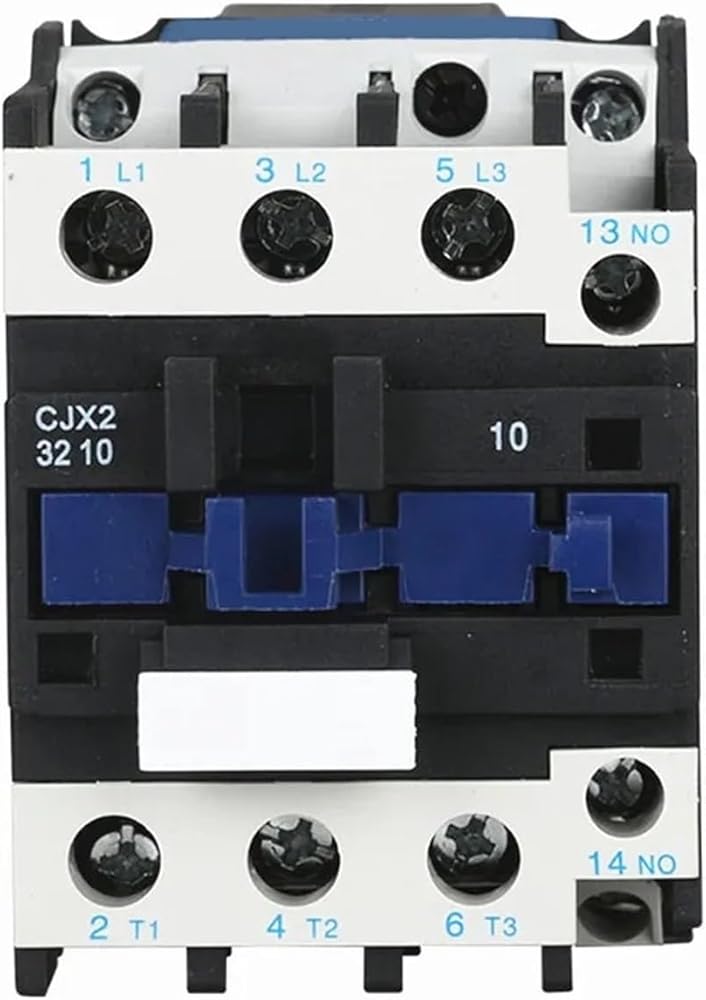

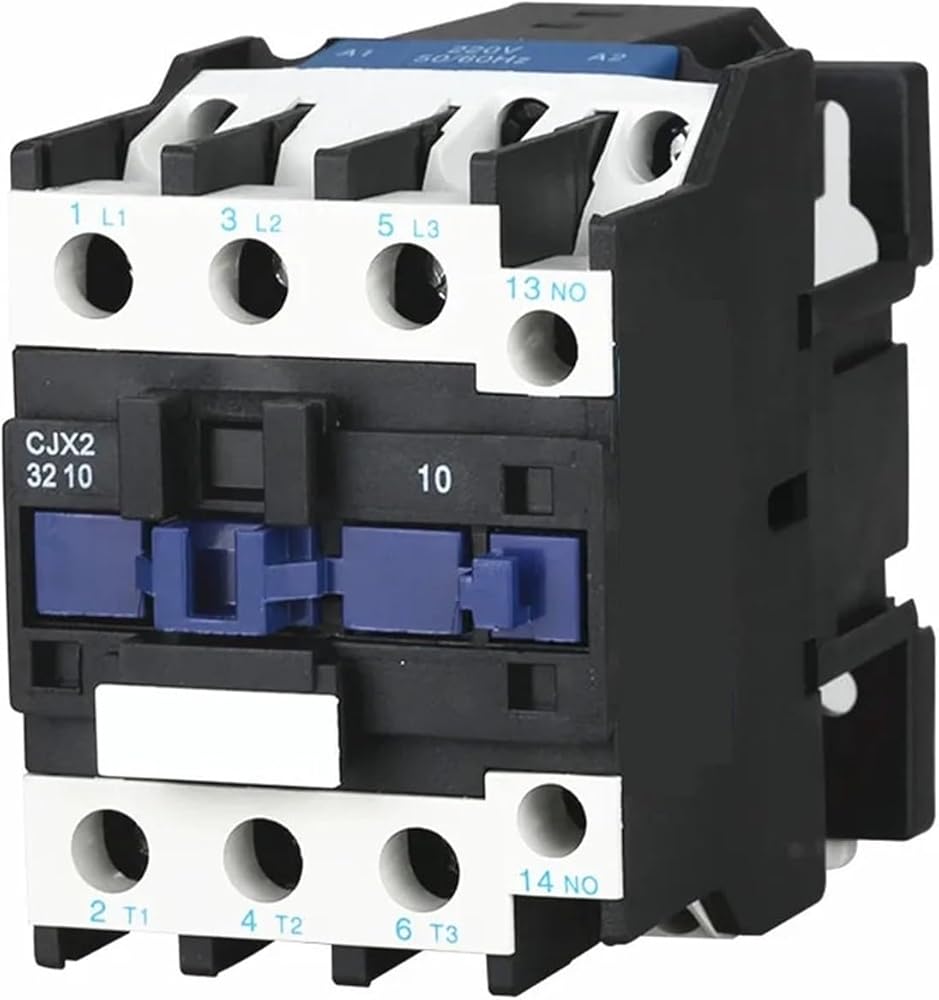

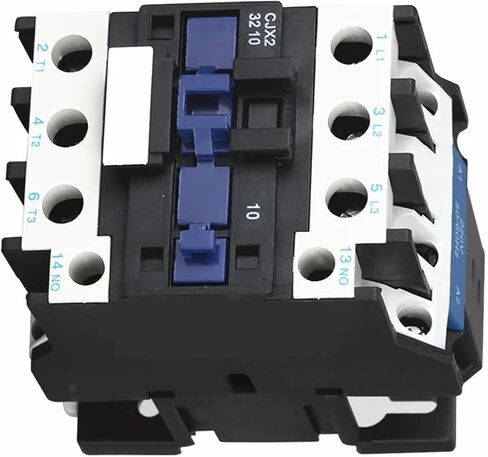

This CJX2-3210 AC Contactor is a robust electrical control device designed for power systems and motor applications. With a rated operational current of 50A and voltage rating up to 660V, it's perfectly suited for controlling motors up to 15KW and various household appliances. The contactor features 3 main poles plus 1 NO auxiliary contact, providing versatile control options for your electrical systems. Its compact design mounts easily on standard 35mm DIN rails, measuring just 3.6 inches long, 2.2 inches wide, and 3 inches high. The device operates on 220V 50Hz coil voltage and is constructed with durable plastic and metal components. Ideal for long-distance breaking and circuit control in industrial and commercial applications, this contactor delivers reliable performance for both motor loads and low inductance applications. The black and white housing ensures professional integration into any electrical panel, while the clearly marked terminals (L1-L3, T1-T3) facilitate proper installation and wiring.
