1. The adapter card uses differential line alignment to support PCI-E 3.0 1X signal.
2. Supports M.2 solid-state hard drives for M Key only, please confirm the NVMe specification identification.
3. Supports for PM961, 960 , SM961, PM951, sm951, 600P, LITE-ON T10 NVME protocol M.2.
4. Configuration of metal baffle to fix the adapter firmly.
5. Standard version supports for NVME M.2 of 2230 2242 2260 2280.

Spec:
Features:
The adapter card uses differential line alignment to support PCI-E 3.0 1X signal.
Supports M.2 solid-state hard drives for M Key only, please confirm the NVMe specification identification.
Supports for PM961, 960 , SM961, PM951, sm951, 600P, LITE-ON T10 NVME protocol M.2.
Configuration of metal baffle to fix the adapter firmly.
Hot-swapping feature allows you to connect/disconnect.
Standard version supports for NVME M.2 of 2230 2242 2260 2280.
Specification:
Material: PCB
Color: Black

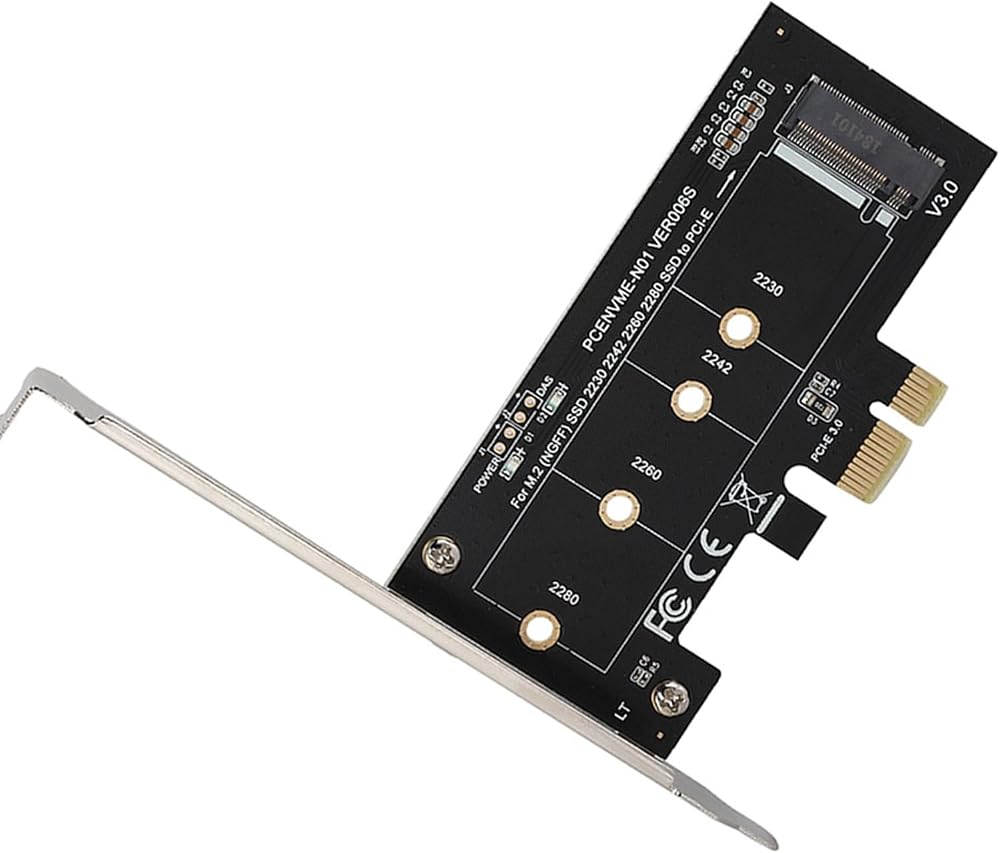

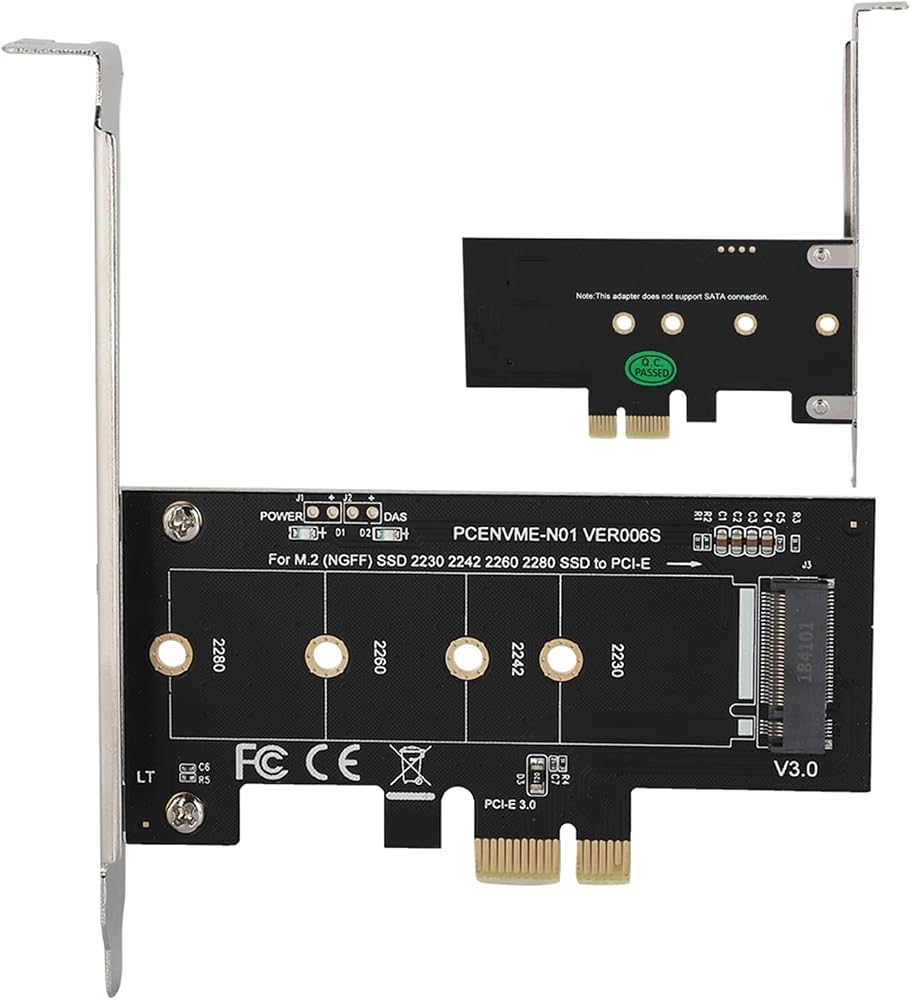

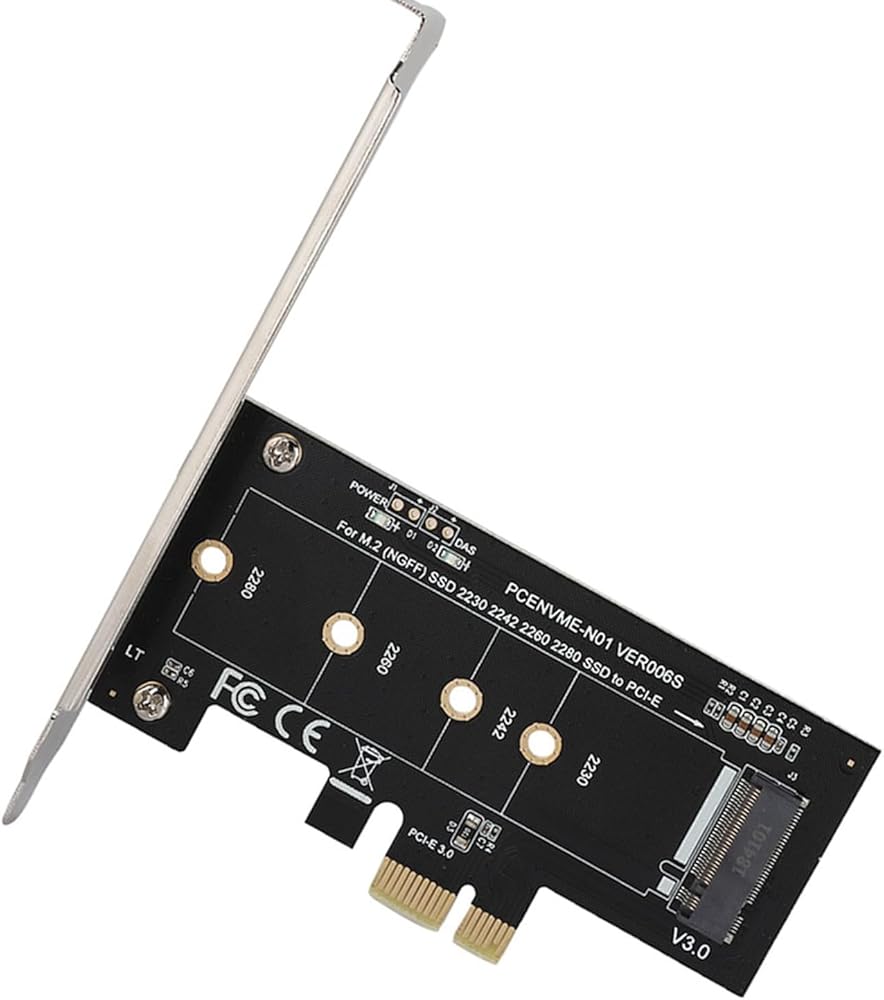

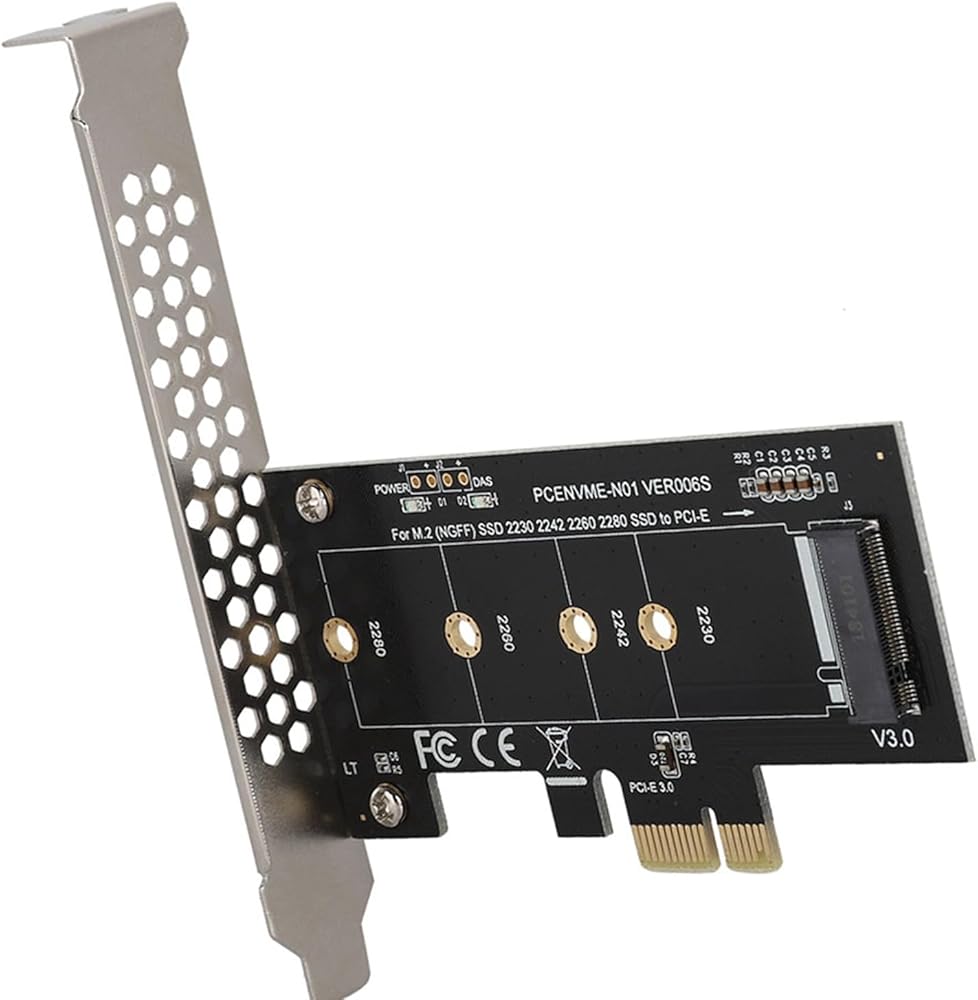

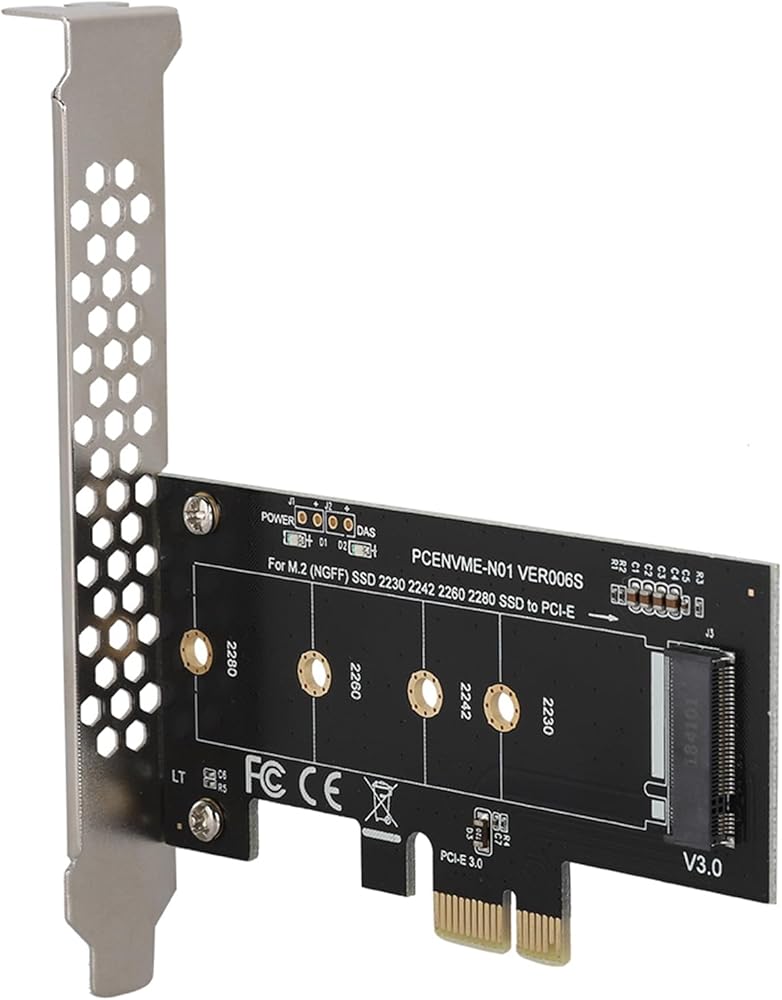

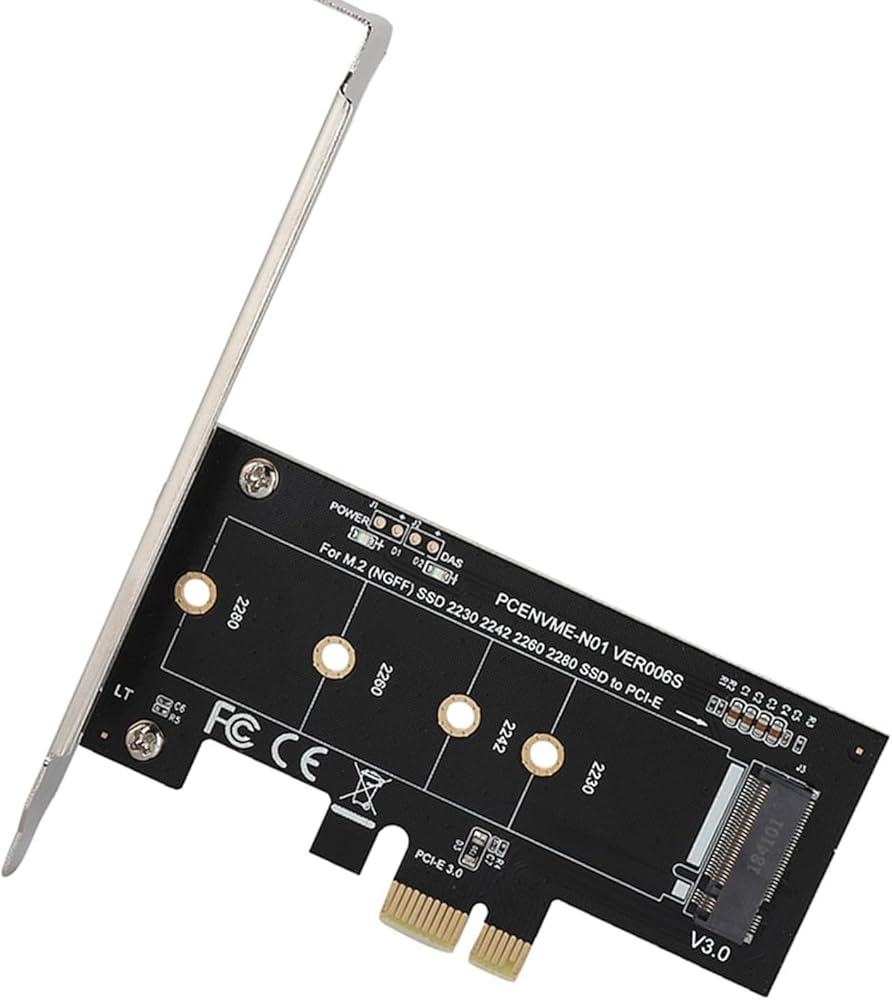

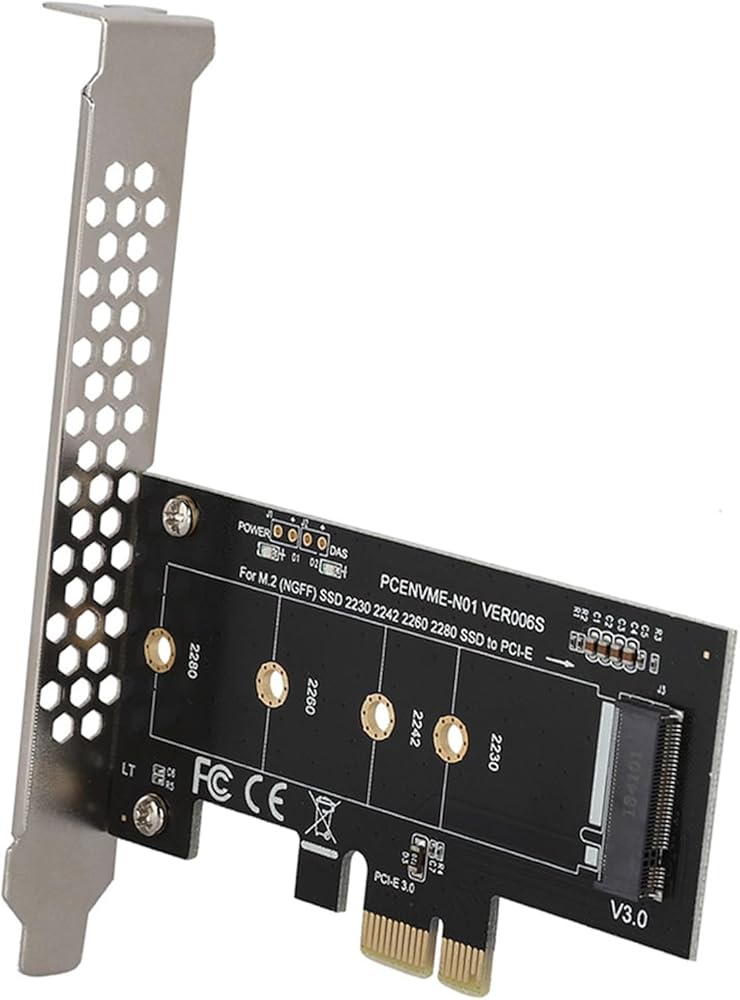

Name: PCI-E to M.2 expansion card
Interface: PCI, PCI Express
Size: approx. 12 * 9.2* 1.8cm/4.7 * 3.6 * 0.7in
Package Weight: Approx. 69g / 2.4oz
Support System: compatible with for system

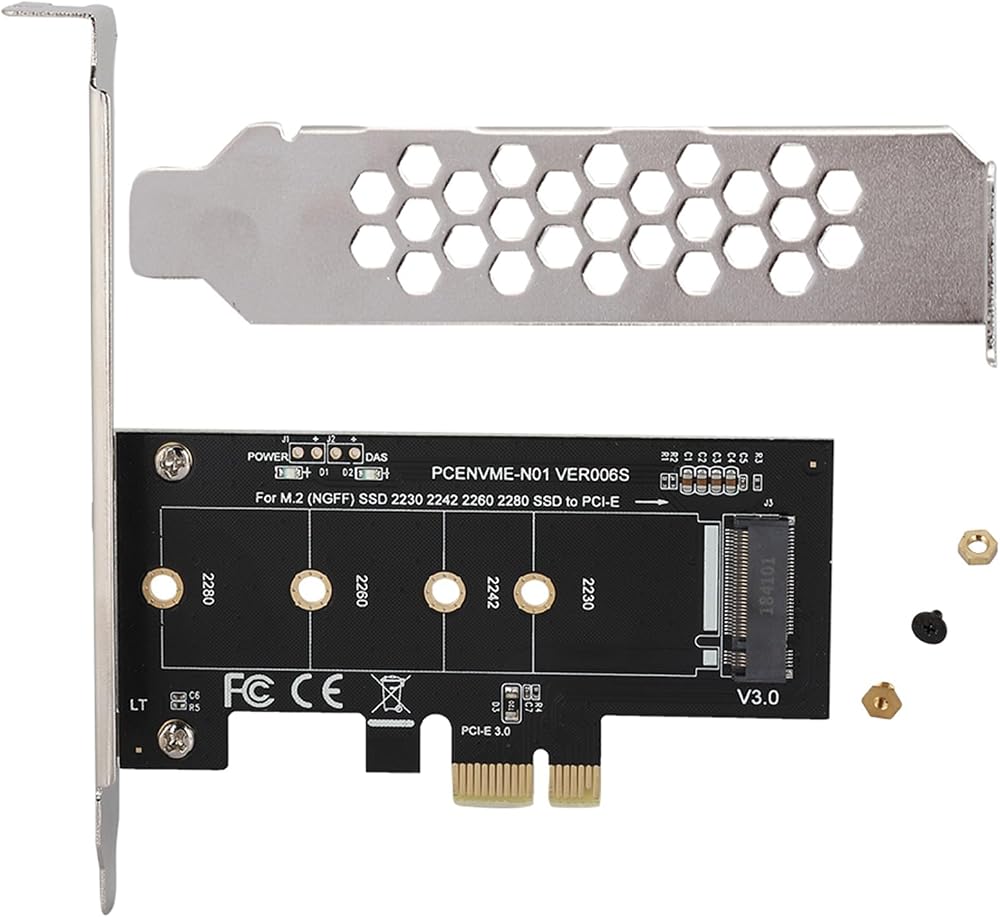

Package list:
1 * M.2 to PCI-E3.0 X1 Expansion Card
1 * Screw Pack
1 * Half-height Baffle
Note:
1. M.2 NGFF to PCI-E 1X expansion card. Using this adapter, ordinary PCI-E 1X interface can be converted to M.2 NGFF interface.
2. There are four fixed holes on the board, 22*32 mm, 22*42 mm, 22*60 mm and 22*80 mm, respectively.
3. Supports for PM961, 960 , SM961, PM951, sm951, 600P, LITE-ON T10 NVME protocol M.2. does not support protocol M.2.
4. Standard version supports NVME M.2 of 2230 2242 2260 2280
