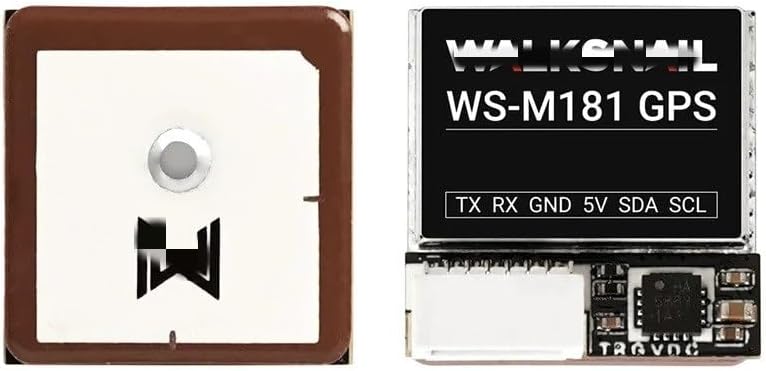

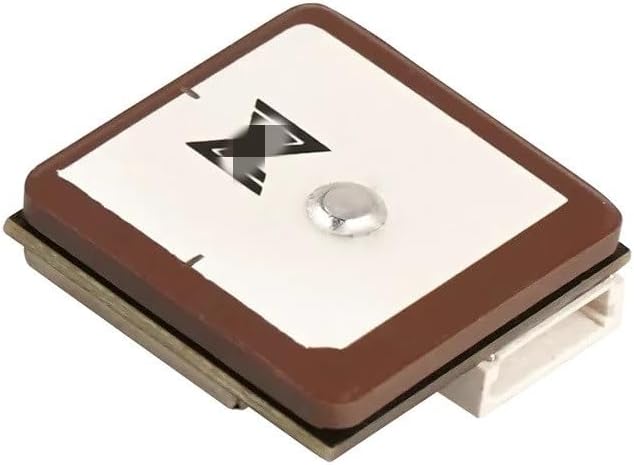

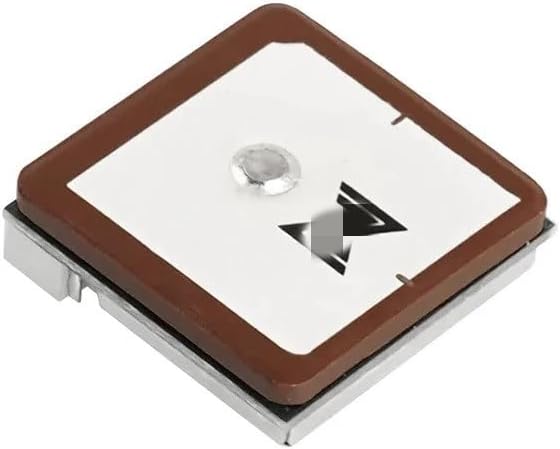

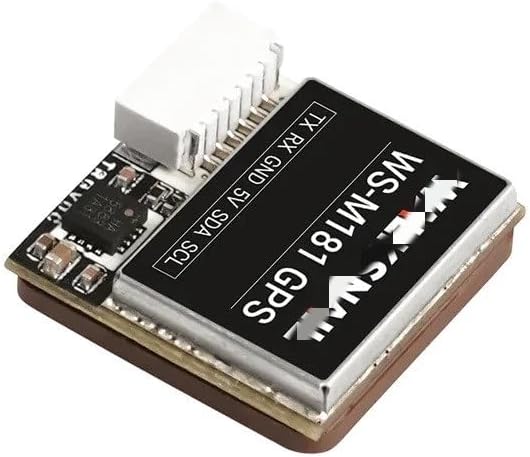

For Walksnail-WS-M181 GPS M10 GNSS BUILT-IN QMC5883 Compass Ceramic-Antenna for RC PV Freestyle Long Range DIY Drone

Specification
name
For Walksnail WS-M181GPS
Chip:
M10 (ten generation chip)
Frequency:
GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
Power:
5V
Size:

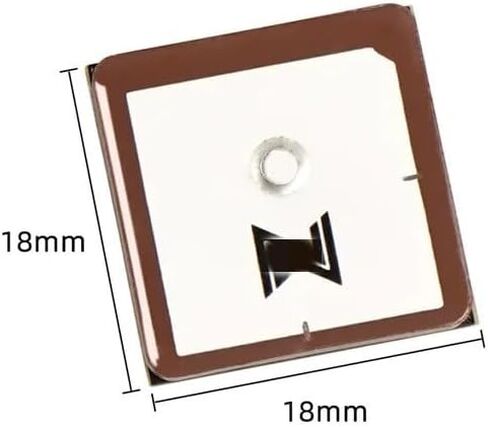

18mm*18mm*4.6mm
Antenna:
ceramic antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels:
72 search channels
Compass:
QMC5883
Baud rate:
115200dps
Output protocol:
NMEA For UBX (dual protocol)
Output frequency:
1Hz-10Hz, Default 10Hz
Speed accuracy:
0.05m/s
Horizontal positioning accuracy:
2D ACC1.5m(open air)
Receiving sensitivity:
Trace-162dBm
Capture -160dBm
Dynamic characteristics:
Altitude:
50000m
Speed:
500m/s
Acceleration:
4G
Operating temperature:
-40-+85
Storage temperature:
-40-+105
