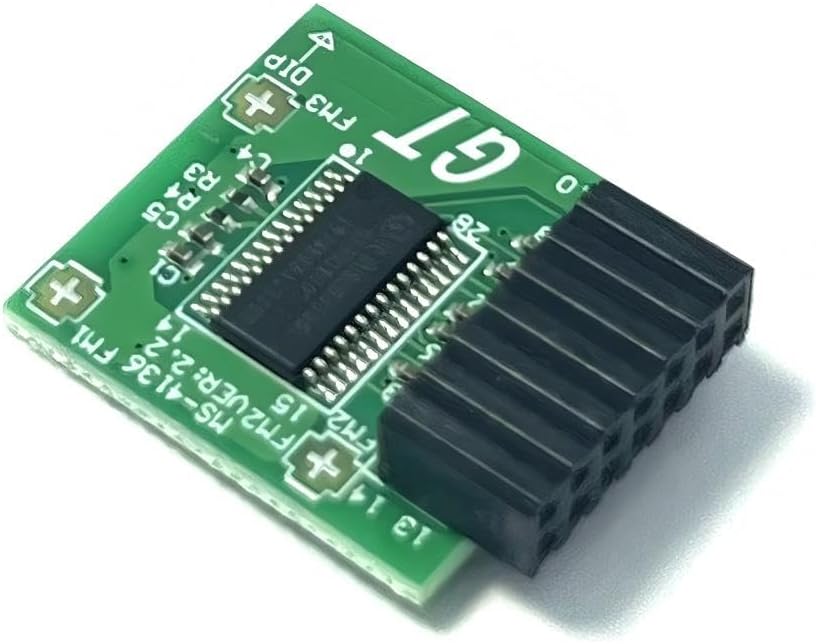

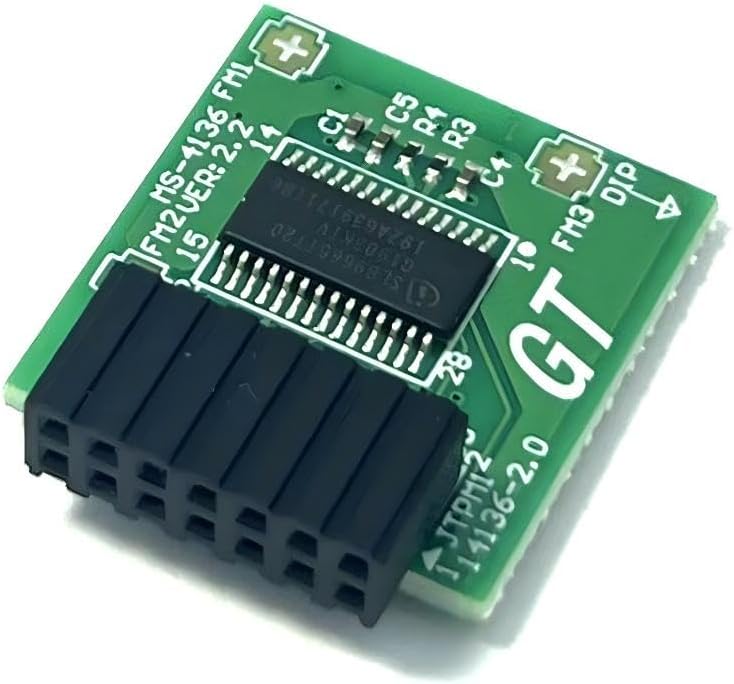

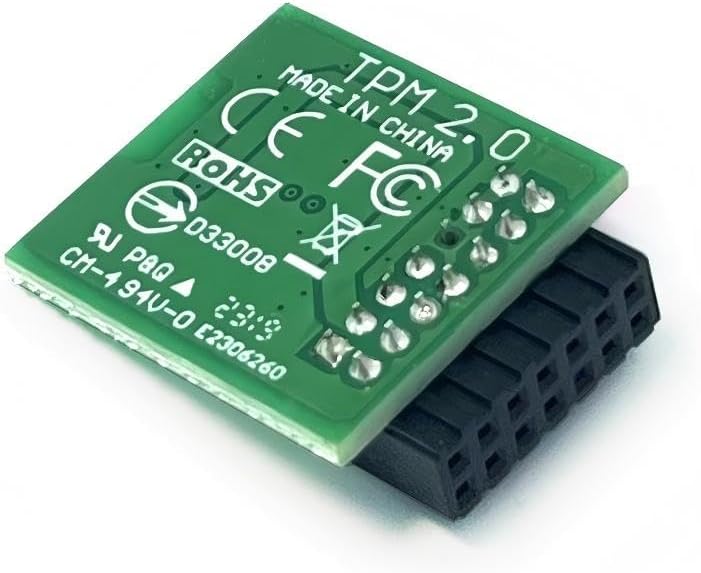

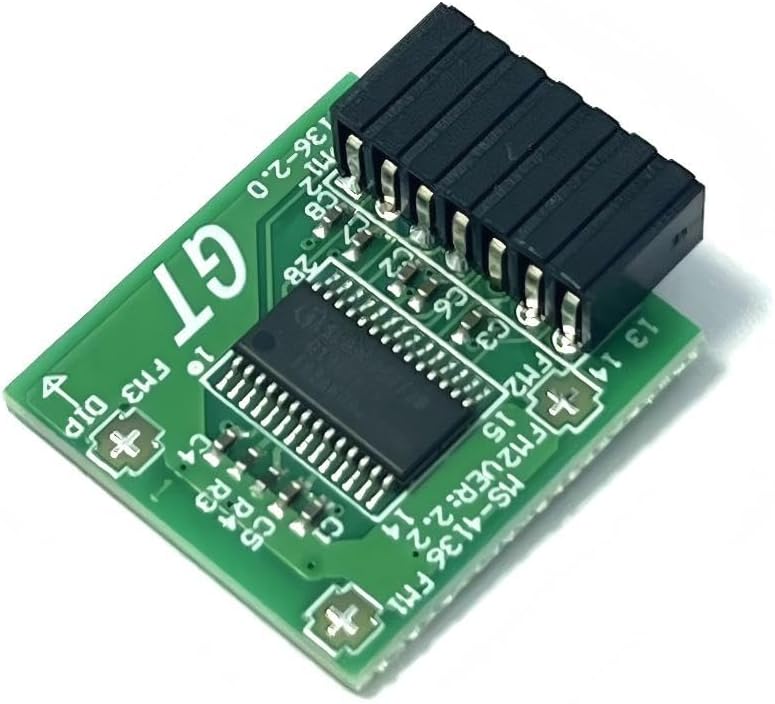

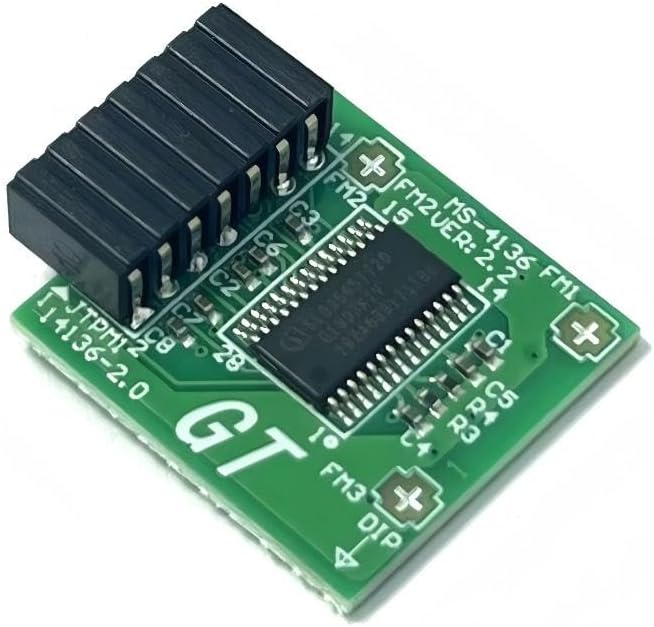

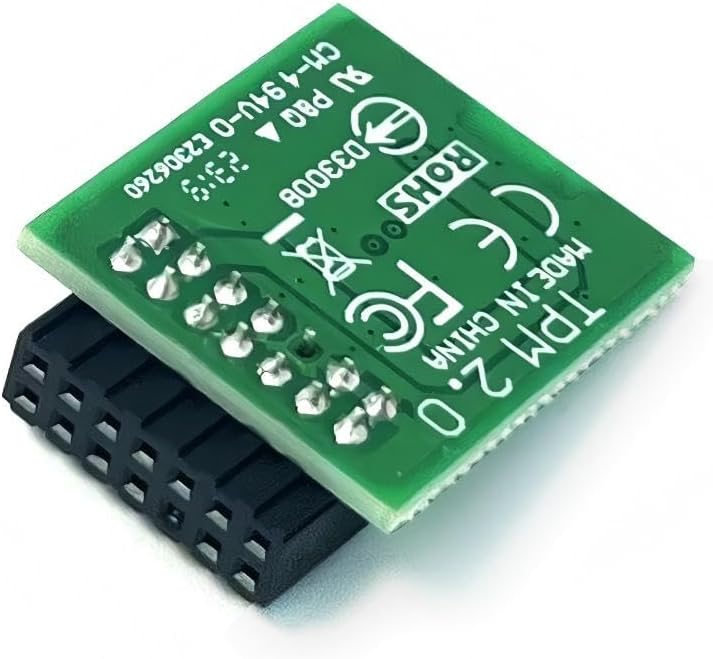

Package Includes:1PCS TPM 2.0 Module LPC 14pin with Infineon SLB9665 Windows 11 Upgrade

Compatible with MSI Intel X299, AMD 300 400 X570 X399 TRX40 series motherboards

Compute Securely Bus Header KeyImportant Notes:

1. This product is only compatible with older motherboards such as Intel and AMD. It is not compatible with newer motherboard models featuring firmware TPM, all-in-one PCs, or laptops.

2. The minimum hardware requirements for upgrading to Windows 11 via TPM 2.0 are as follows: a 1 GHz or faster 64-bit processor (dual-core/multi-core), 4 GB of memory, 64 GB of storage space, firmware supporting UEFI Secure Boot and TPM 2.0, a DirectX 12-compatible graphics card, and a display with a resolution of 720p or higher.

3. This product has a 14-pin-1 connector. Please carefully check the pin positions in the image to ensure compatibility with your motherboard before purchasing.

Compatible with MSI motherboards MS-4136
B450 TOMAHAWK
B450 TOMAHAWK MAX
B450 TOMAHAWK MAX II
B450 GAMING PRO CARBON AC
B450 GAMING PLUS
B450 GAMING PLUS MAX
B450 GAMING PRO CARBON MAX WIFI
B450-A PRO

How to select and install a security module:

1. Confirm whether the host has TPM 2.0 or if TPM 2.0 is enabled.

2. Click “Run,” enter: tpm.msc (Win+R keys), and check if the TPM version is ready.

3. If version 2.0 is displayed but not ready, you need to configure settings in the BIOS; consult the motherboard manufacturer's customer service.

4. Open the host and inspect the TPM pins on the motherboard.

5. When installing the module, ensure the chip-side faces inward, align with the pins, and insert fully to prevent loosening. (See image for direction)

Product Performance

Compatible with: TPM2.0

Chipset: SLB9665

Interface: LPC

PIN DEFINE: 14pin-1

Core Applications:

1: Seamless upgrade to Windows 11: Resolve TPM 2.0 verification issues and easily upgrade to the latest operating system.

2: Enhanced hardware-level security: Provides an independent secure encryption chip specifically designed for securely storing sensitive data (such as encryption keys, digital certificates, and login credentials), thereby enhancing overall system security.

3: Hardware encryption acceleration: Reduces CPU load by accelerating encryption operations via dedicated hardware, indirectly improving system response speed and enhancing the smooth operation of certain encryption-dependent applications (such as games and security software).
