Description

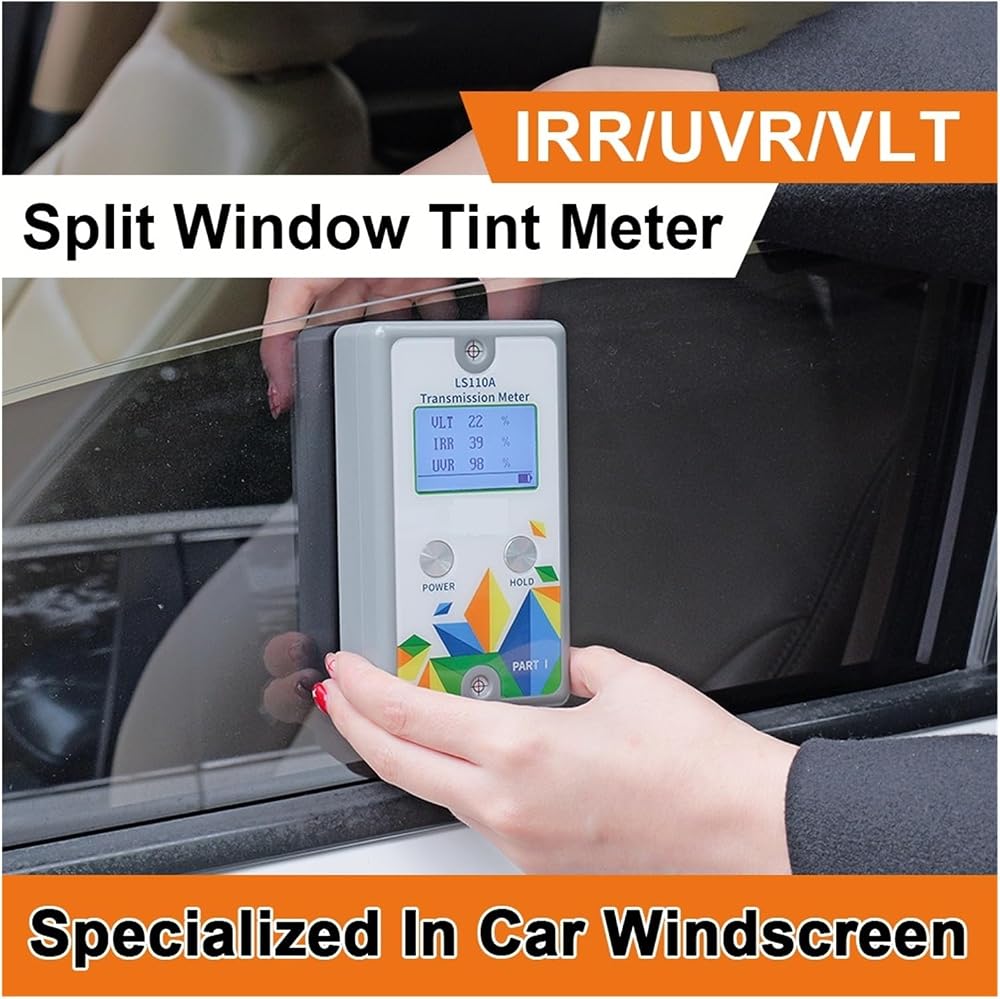

LS110A split transmission meter can test light transmittance, infrared barrier rate and UV barrier rate simultaneously. It is suitable for testing automobile solar film, automobile glass, architectural glass and other materials. The instrument consists of two parts, the main unit and the secondary unit, and adopts the split design, which is especially suitable for testing already installed glass or materials with larger size. With data lock function, take away the test sample data can be kept on the display screen, convenient to view the test data

Specifications
1. UV peak wavelength: 365nm
2. IR peak wavelength: 940nm
3. Visible light: 380-760nm, conform to CIE photopic luminosity function
4. Resolution: 0%---10%: 0.1%; 10%---100%: 1%

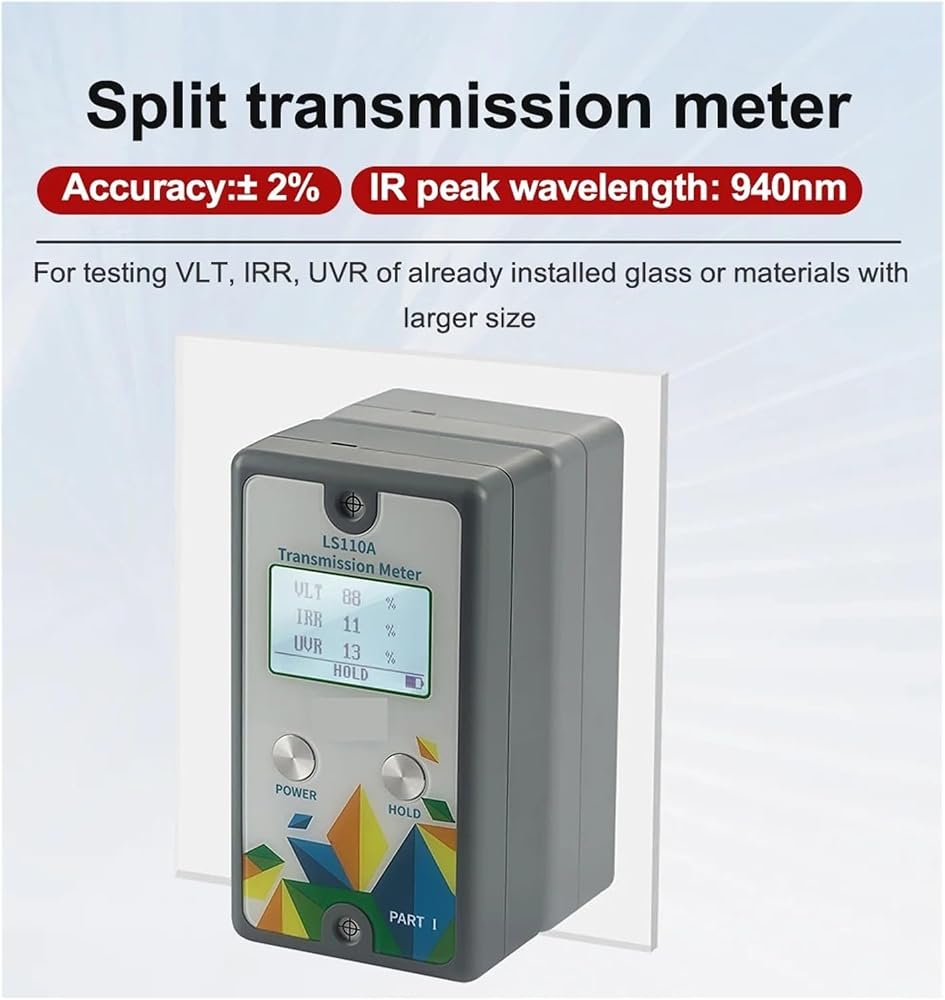

5. Measurement accuracy: ± 2% (colorless and uniform transparent materials)
6. Test sample size: Great than 40mm * 40mm
7. Weight: 630 g

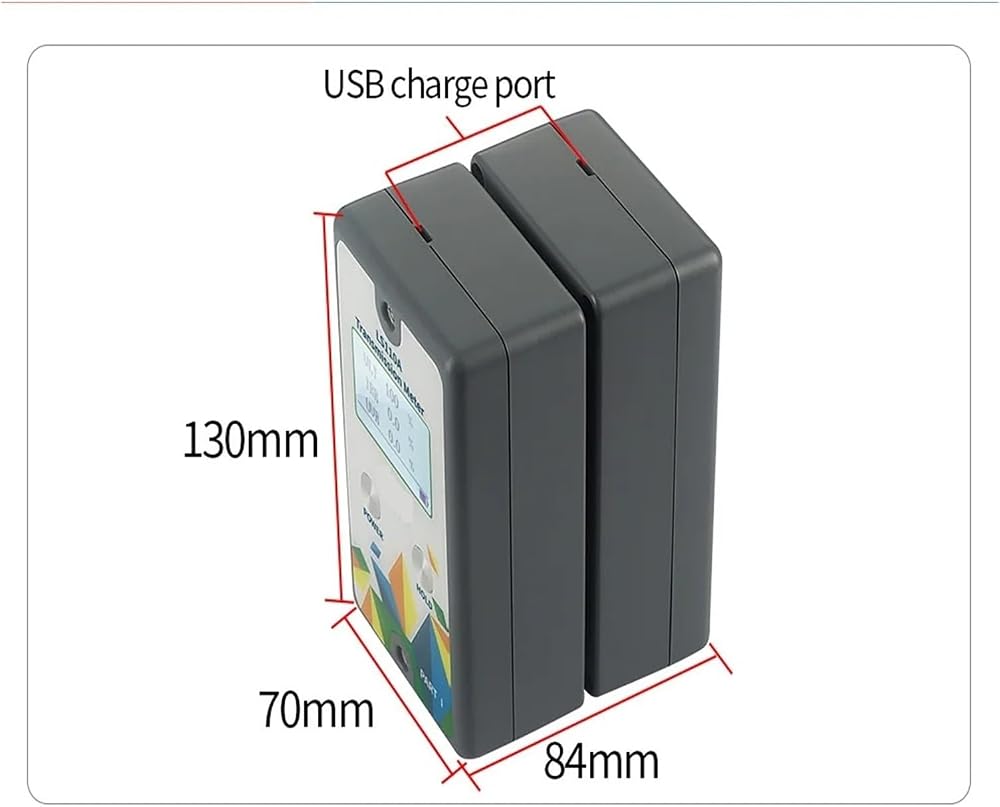

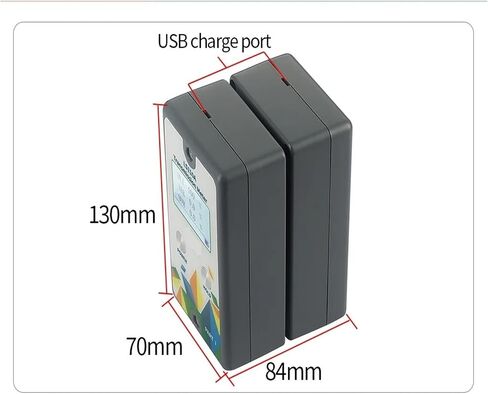

8. Dimension: 130mm * 70mm * 84mm
9. Power supply: Built-in lithium rechargeable battery

Features

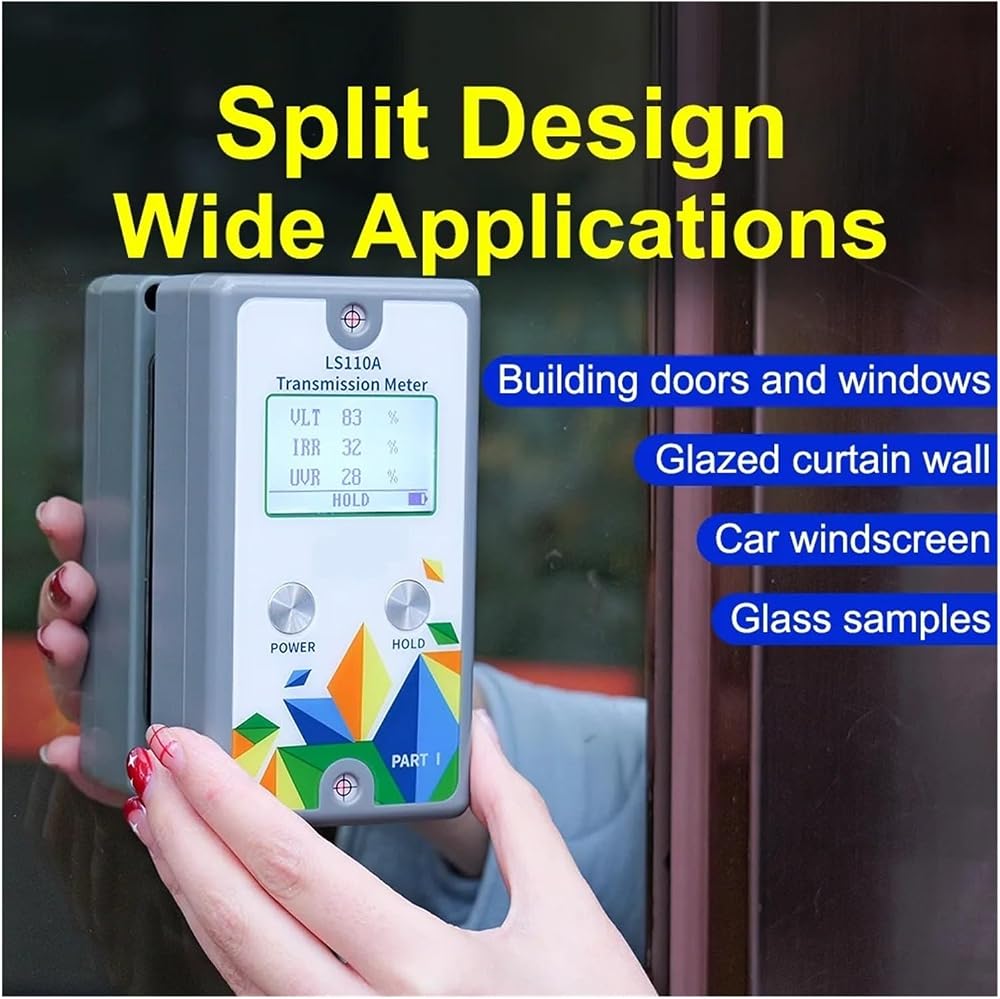

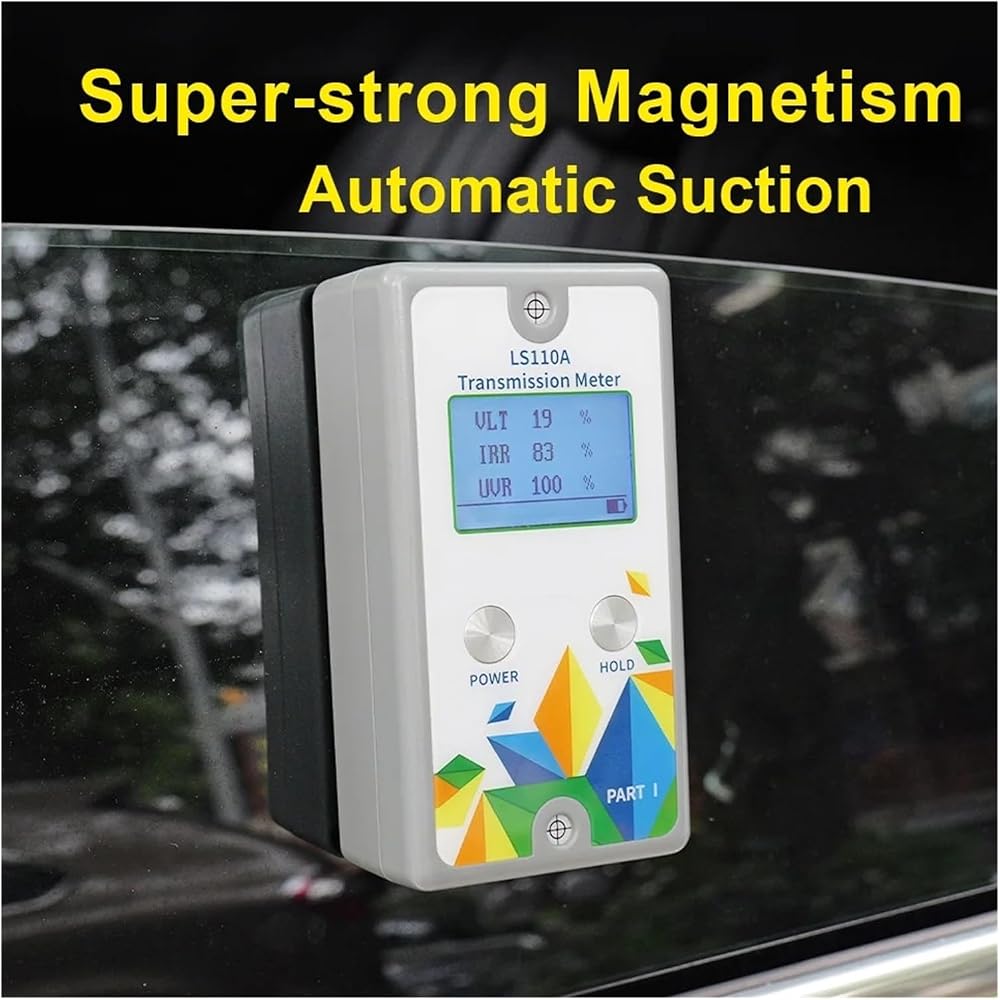

1. Split design, main unit and auxiliary machine in the middle of the self-super-strong magnetic force

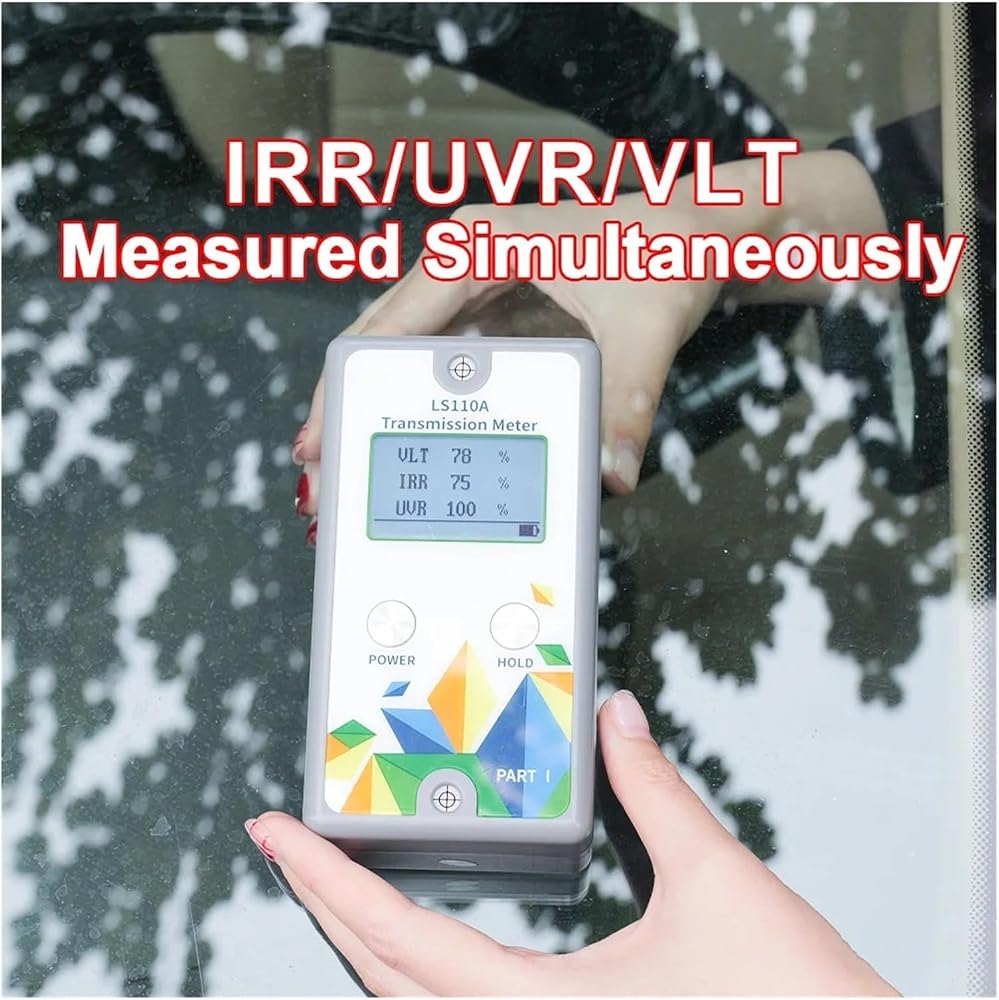

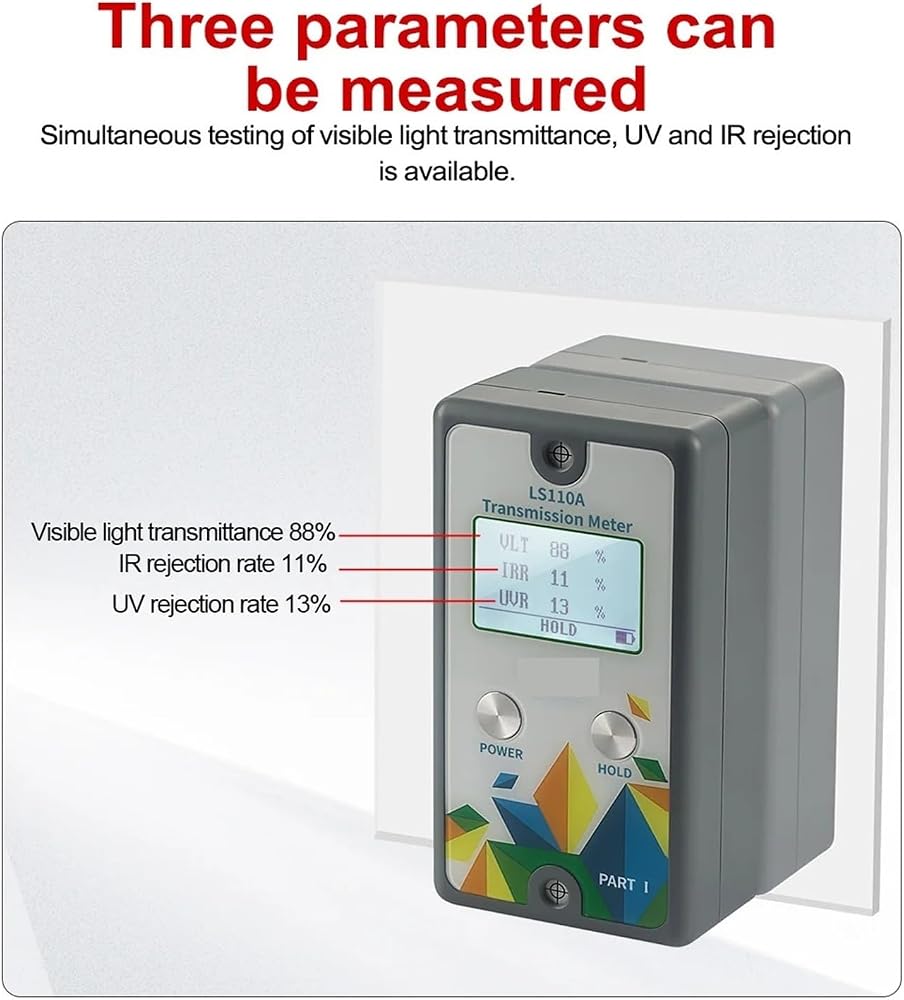

2. Simultaneous testing of light transmission, UV and IR rejection is available
3. With data lock function, take away the test sample data can be maintained on the display screen

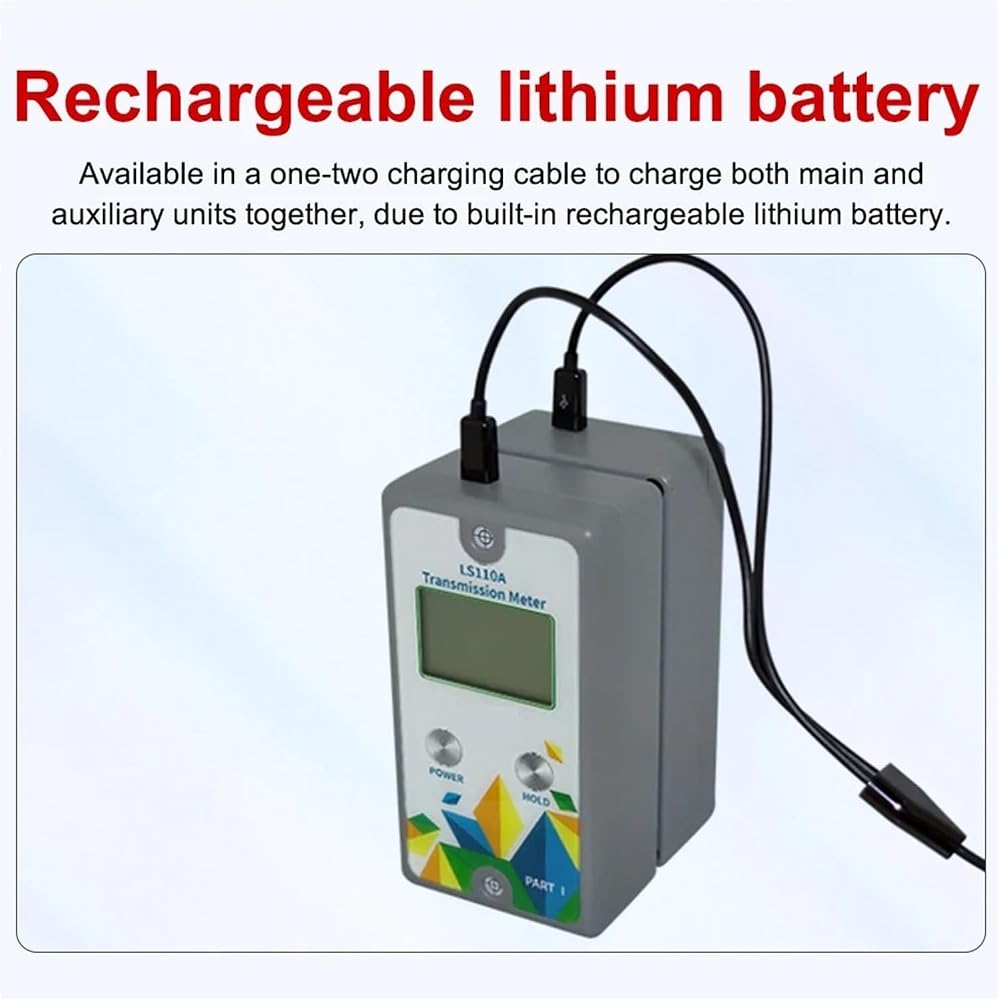

4. Available in a one-two charging cable to charge both main and auxiliary units together, due to built-in rechargeable lithium battery
5. It can test large thickness of glass with parallel light path design

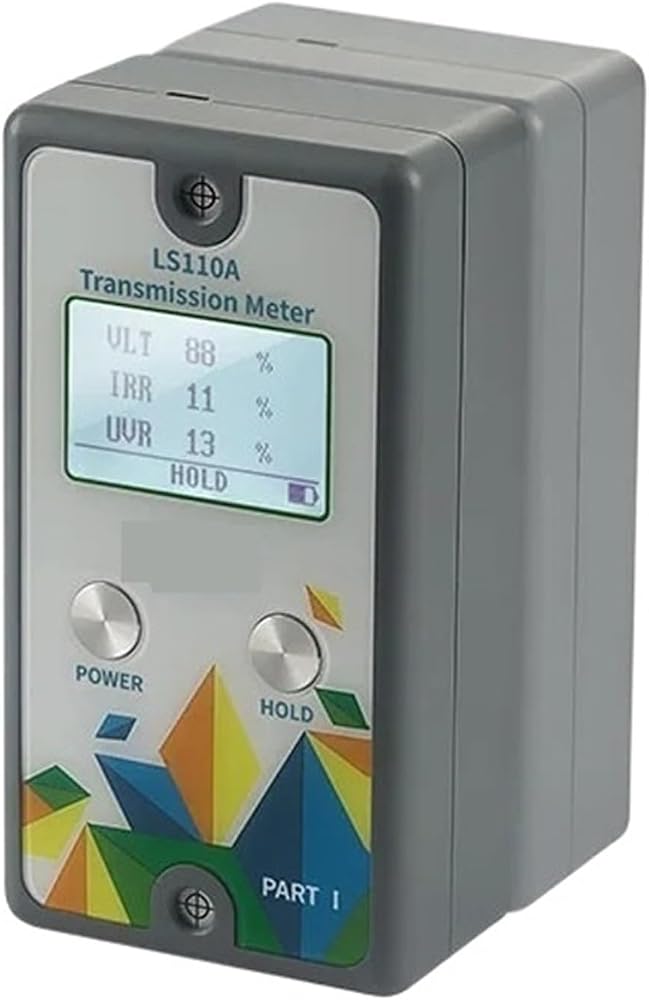

1. LS110A split transmission meter
2. Charger
3. User Manual
4. Packing box dimension 25*21*7 cm(L*W*H)
