Description

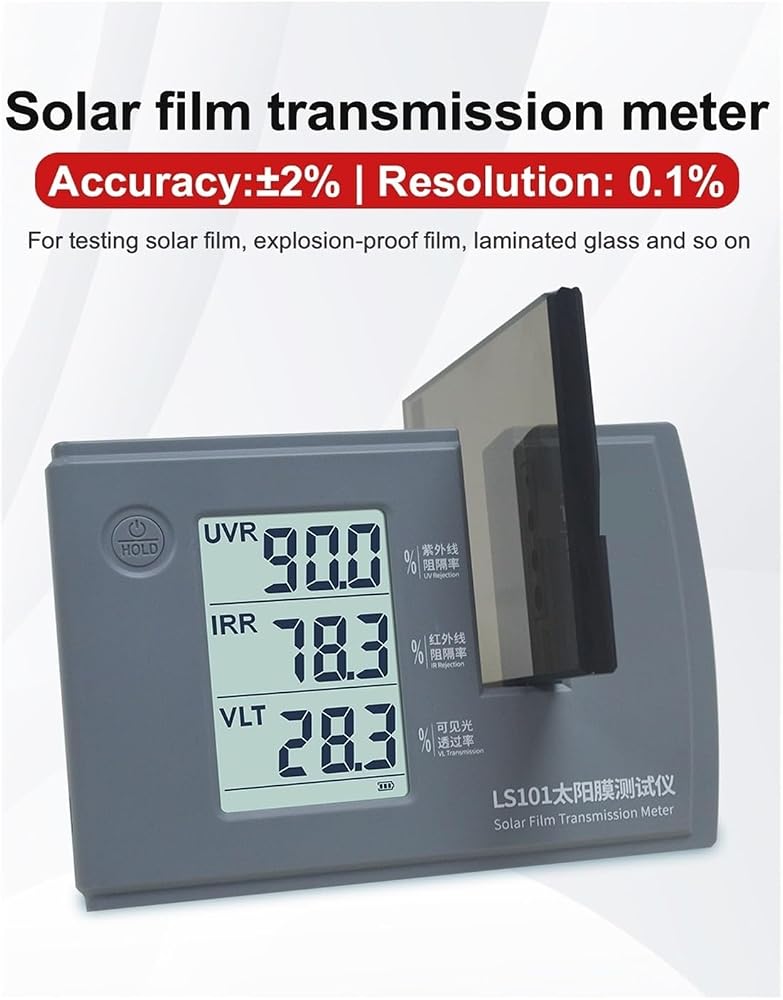

LS101 solar film transmission meter with parallel light path design, is very suitable for optical performance testing of automotive film, architectural film, heat insulation film, laminated glass and other materials. It can simultaneously measure UV rejection rate, infrared rejection rate and visible light transmittance, with a large LCD screen display for easy reading. It can measure large thickness of material with 20mm test slot. After HOLD is pressed, the data remains on the screen for easy reading, even when the material is removed

Specifications

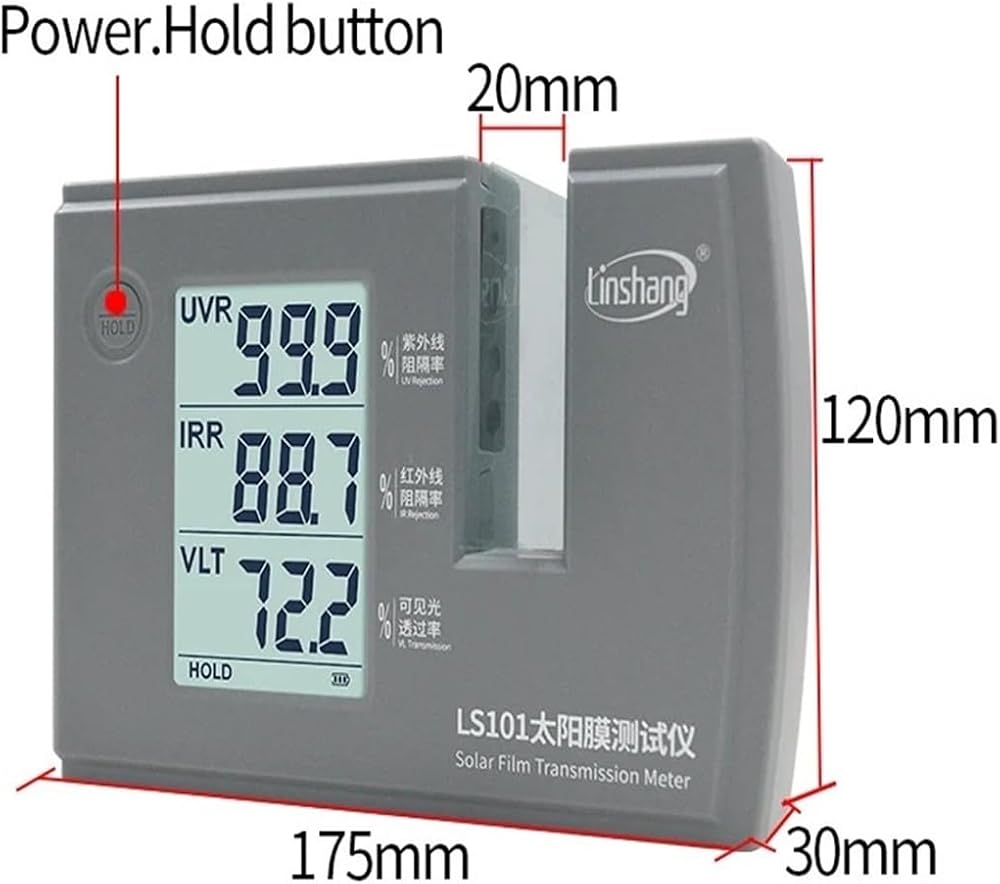

1. Size: 175mm*120mm*30mm (L*W*H)
2. Test slot: 20mm * 70 mm (W*H)
3. Weight: 360g
4. Resolution: 0.1%
5. Accuracy:±2% (Colorless and transparent material)
6. UV Peak wavelength: 365nm
7. Visible light: 380-760nm, conforming to the CIE photopic luminosity function
8. IR Peak wavelength: 940nm
9. Display: Segment LCD

Features

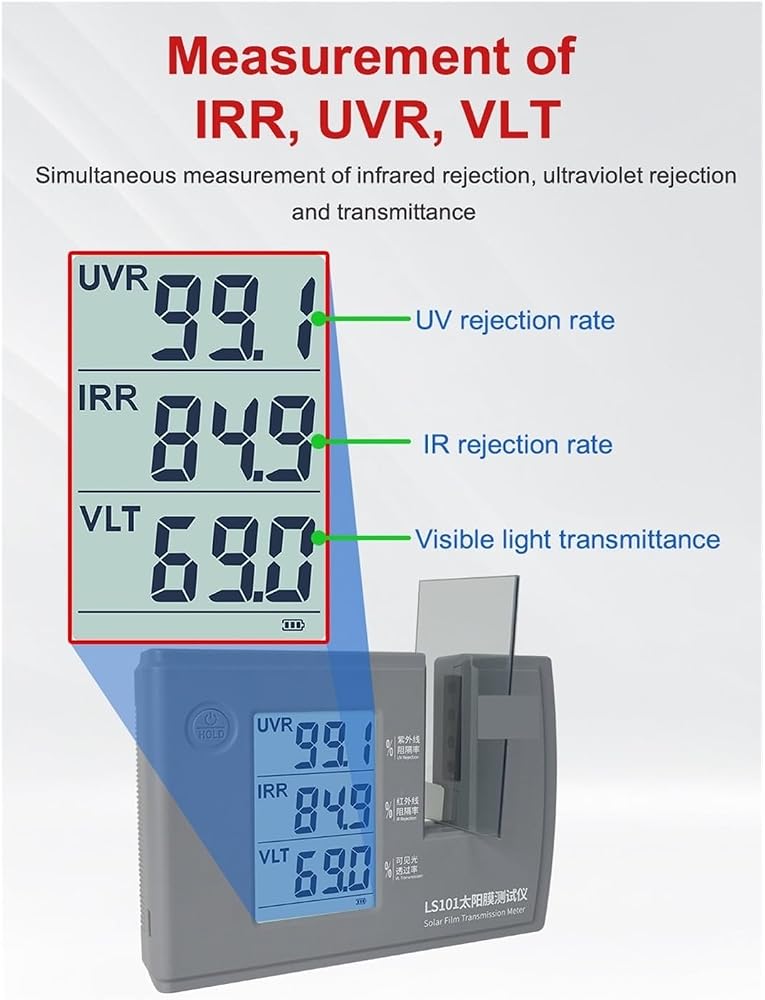

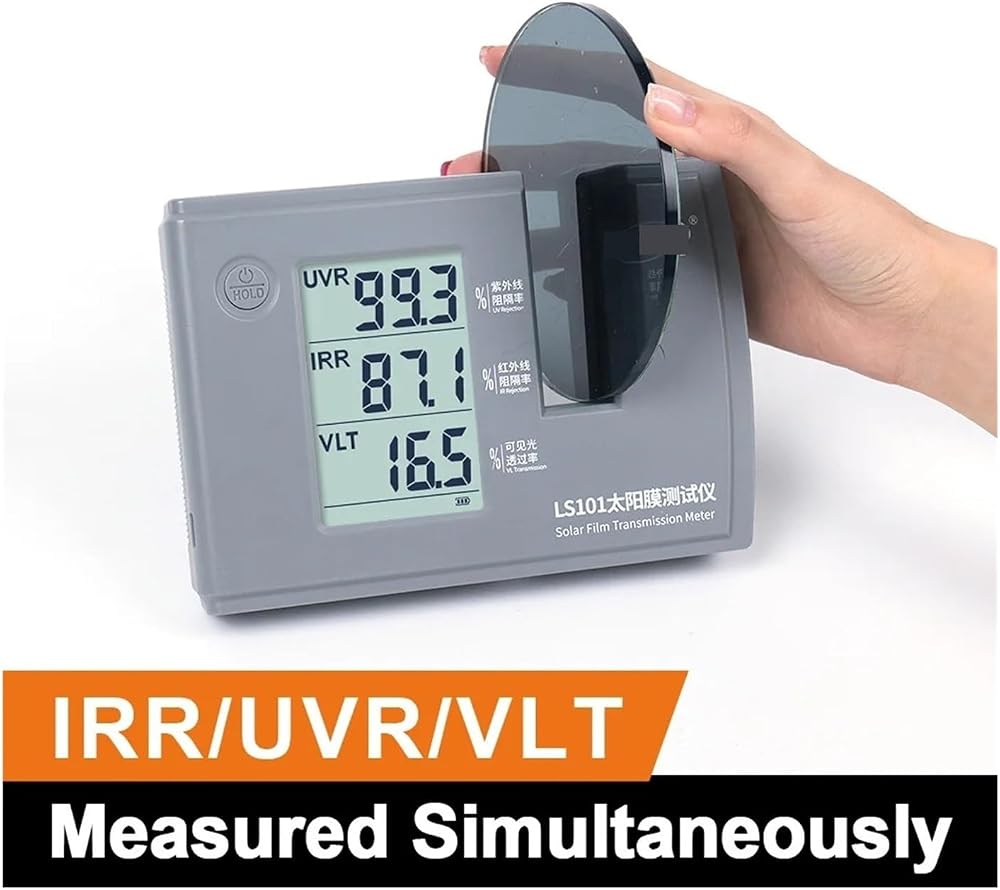

1. Simultaneous measurement of infrared rejection, ultraviolet rejection and transmittance.

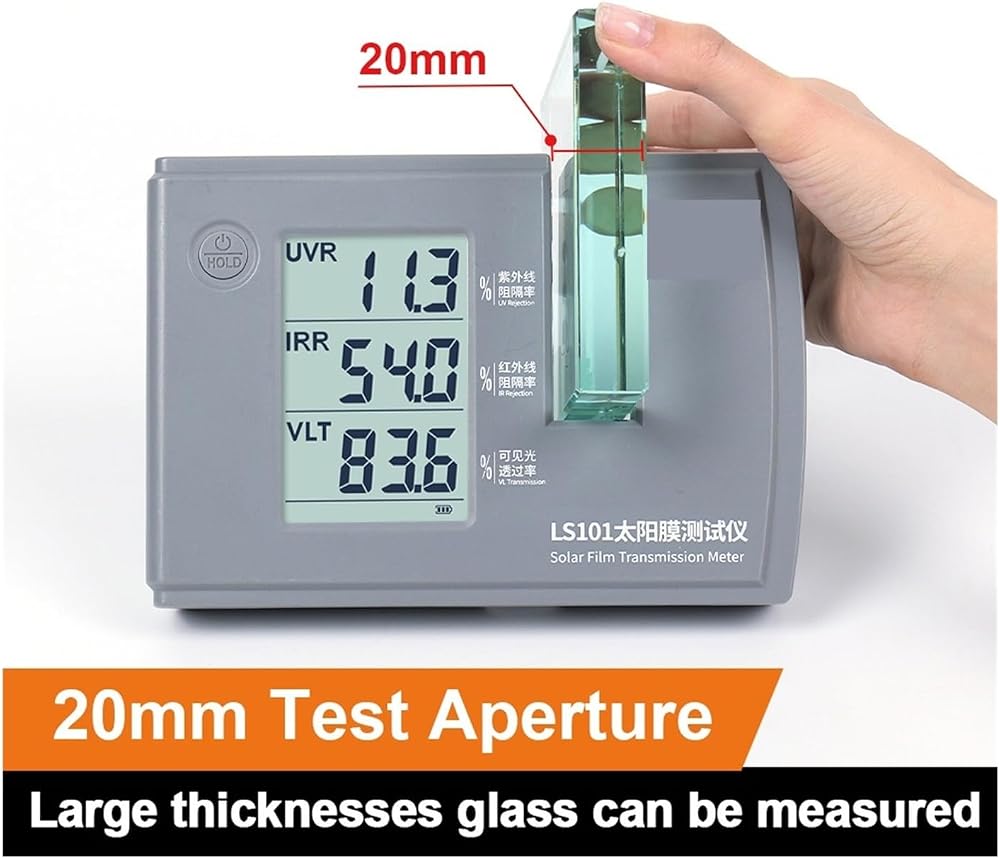

2. It can measure large thickness of material with 20mm test slot.

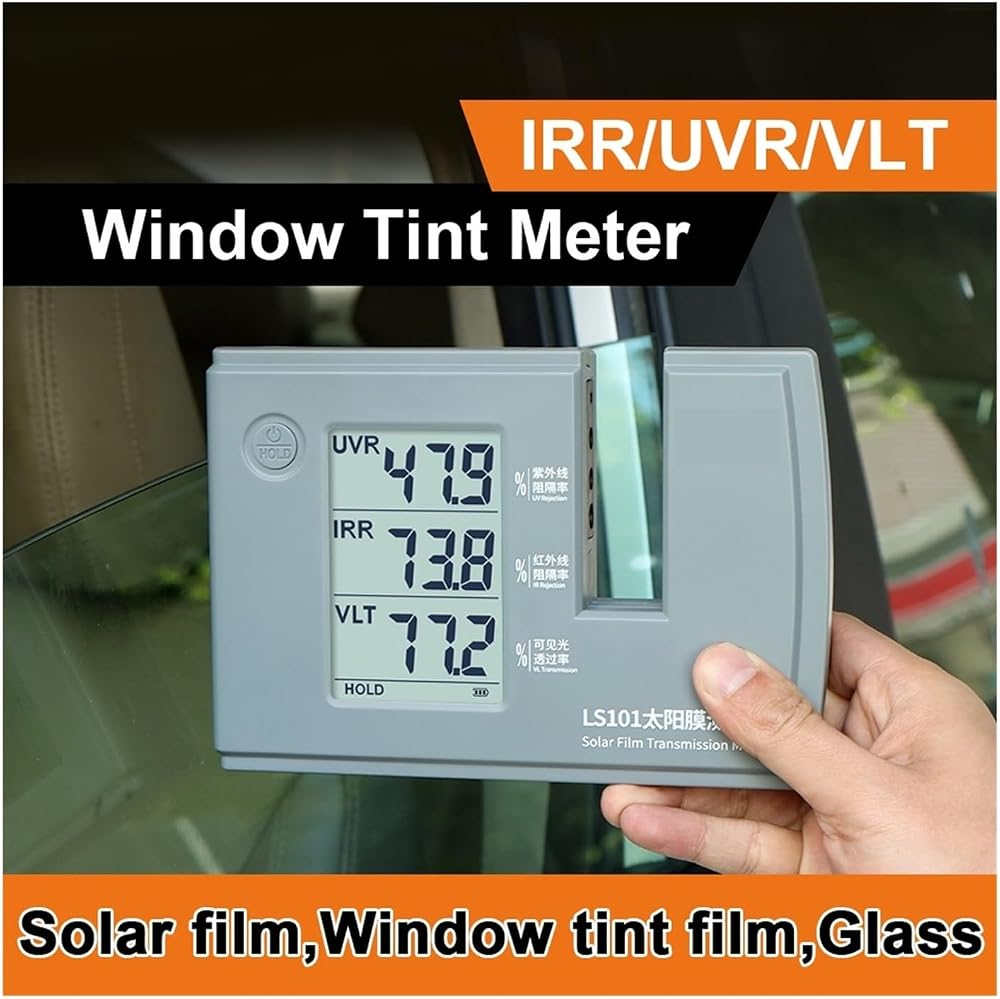

3. It is suitable for optical performance testing of solar film, laminated glass and so on.

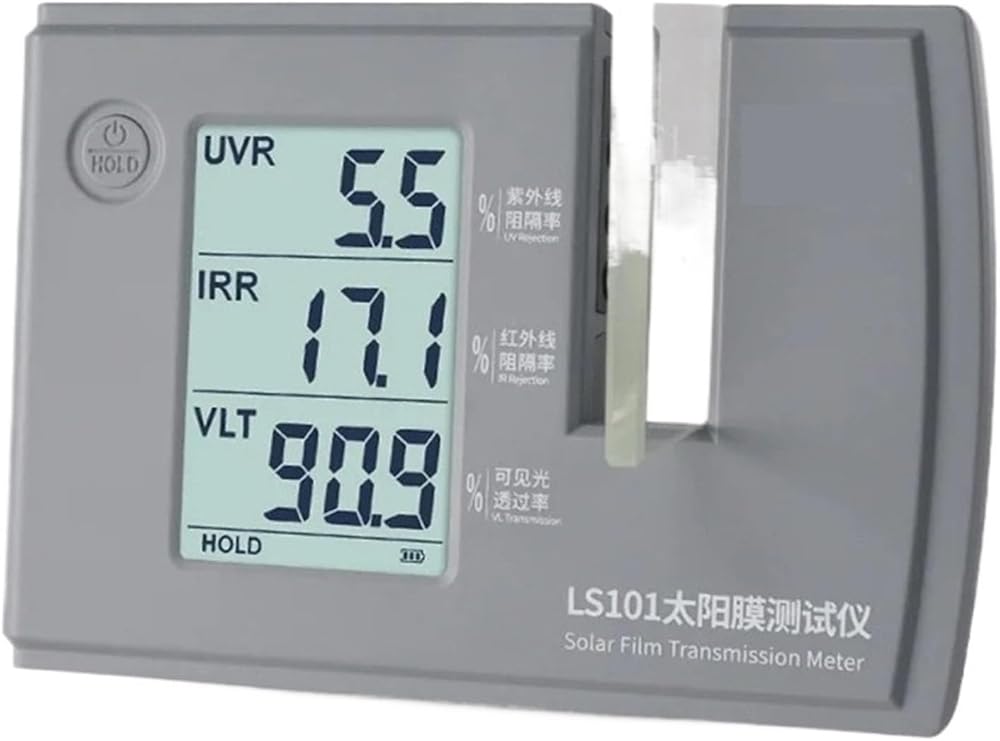

4. After HOLD is pressed, the data remains on the screen for easy reading, even when the material is removed.
5. The instrument comes with a support stand, more convenient reading.
