Description

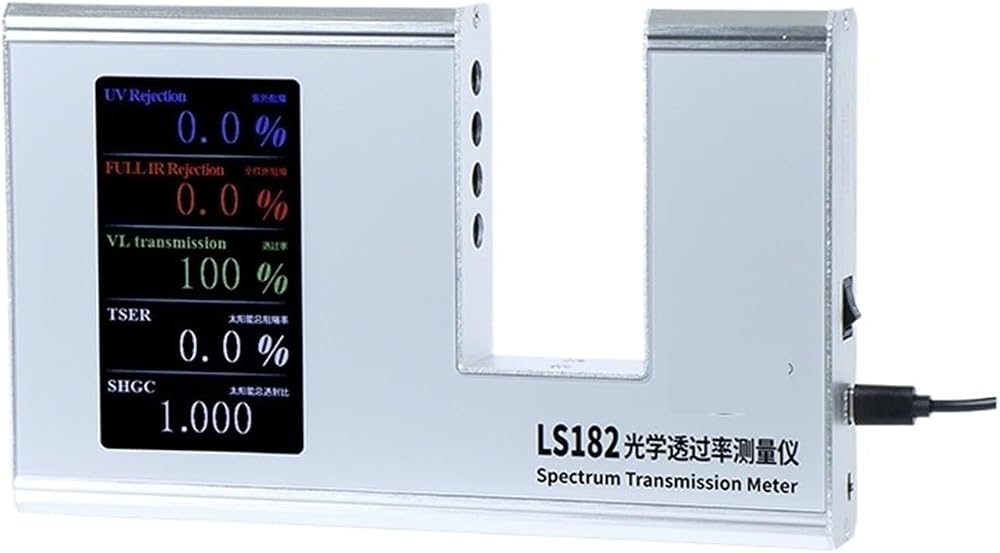

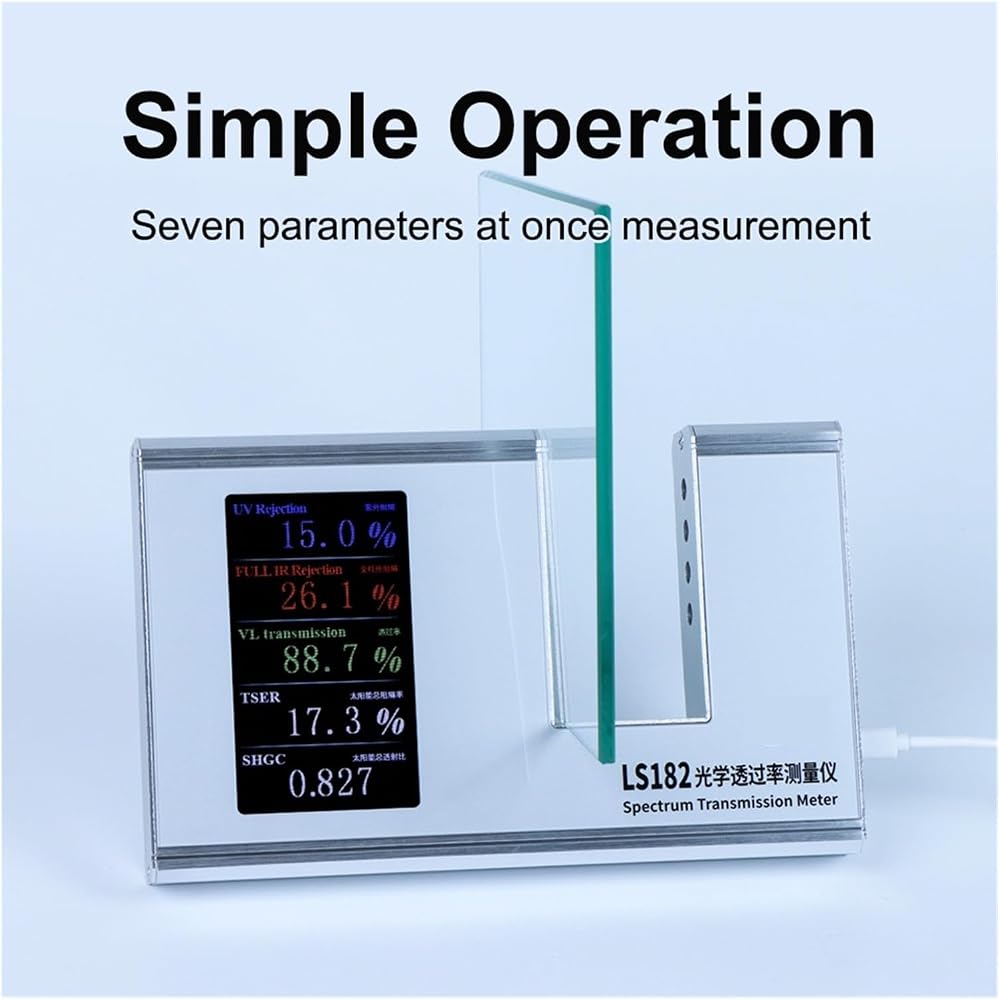

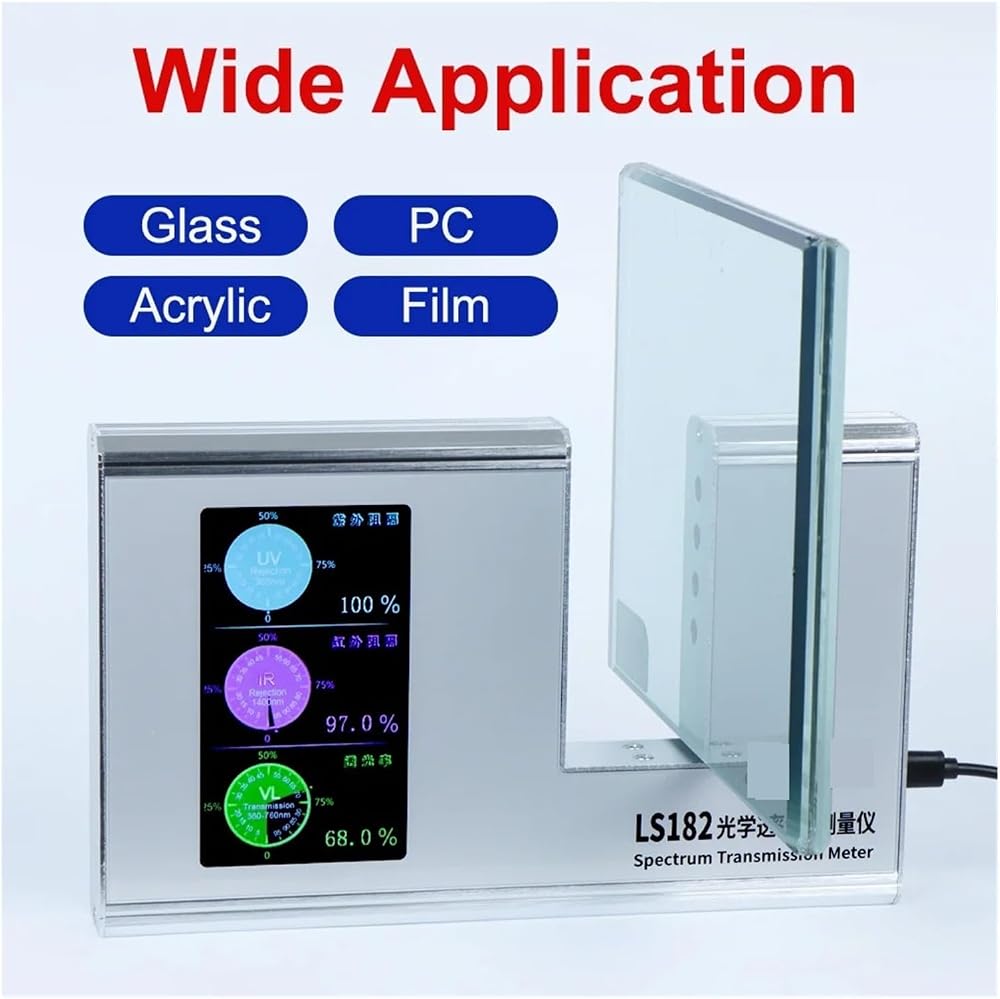

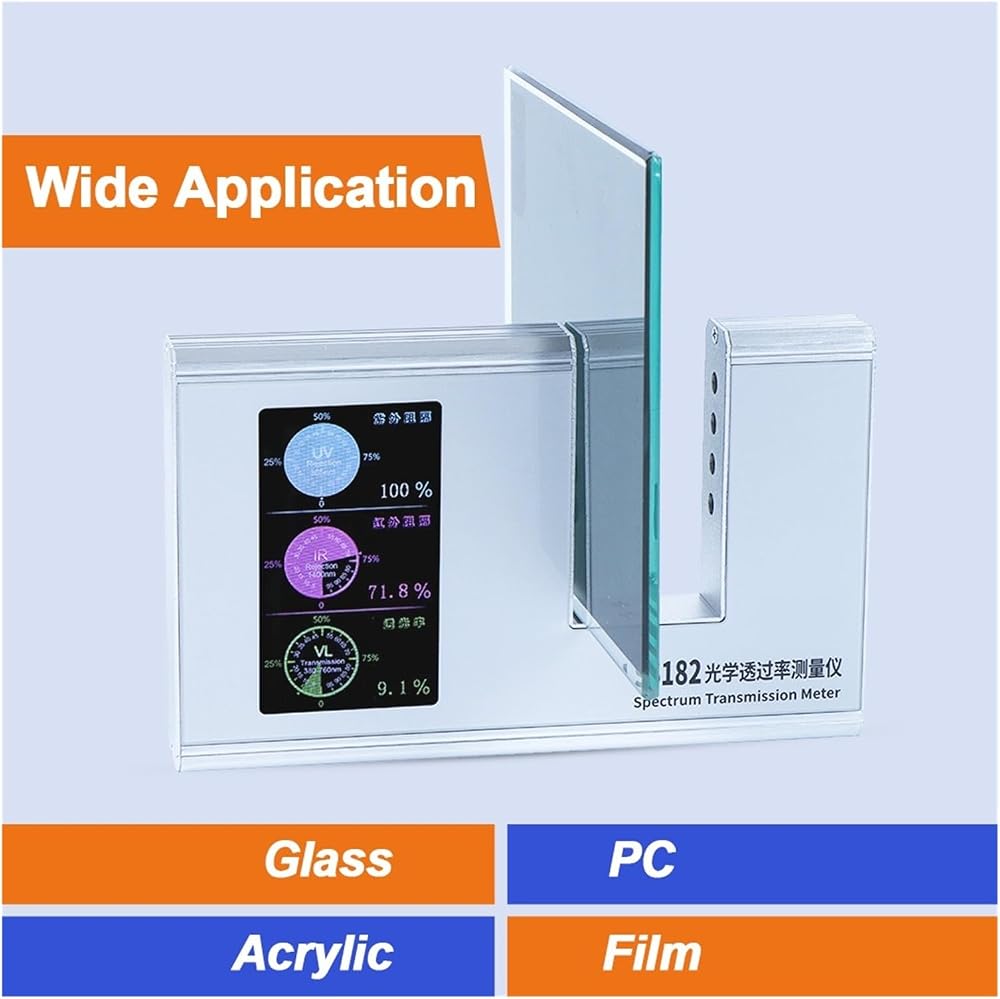

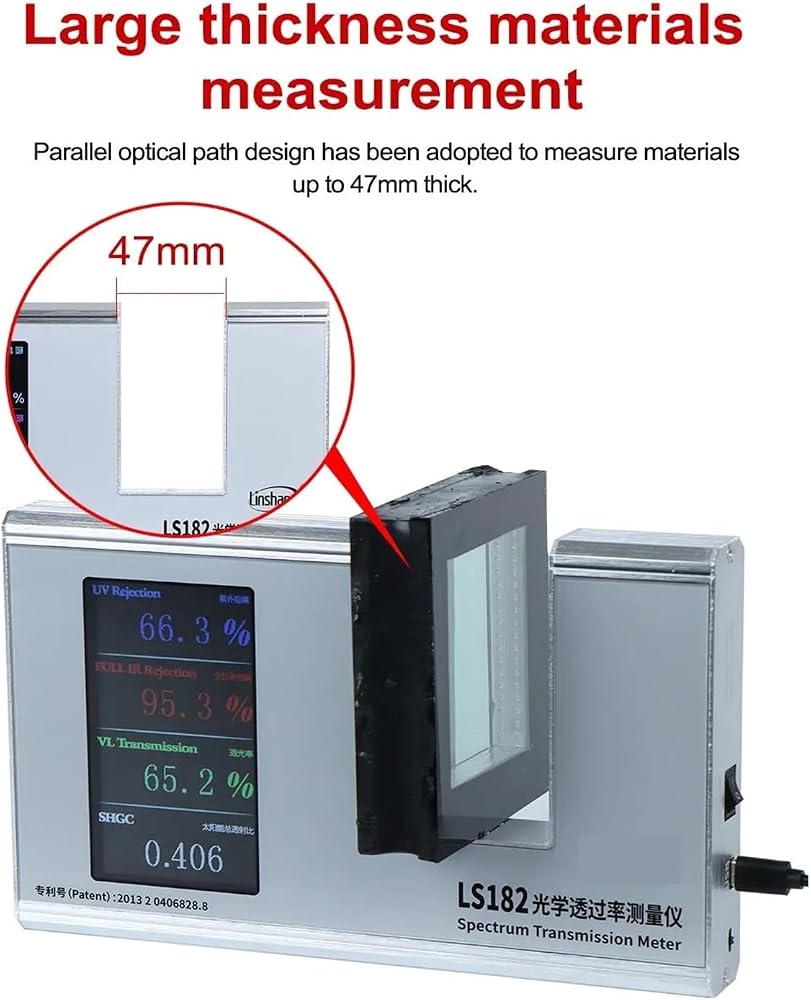

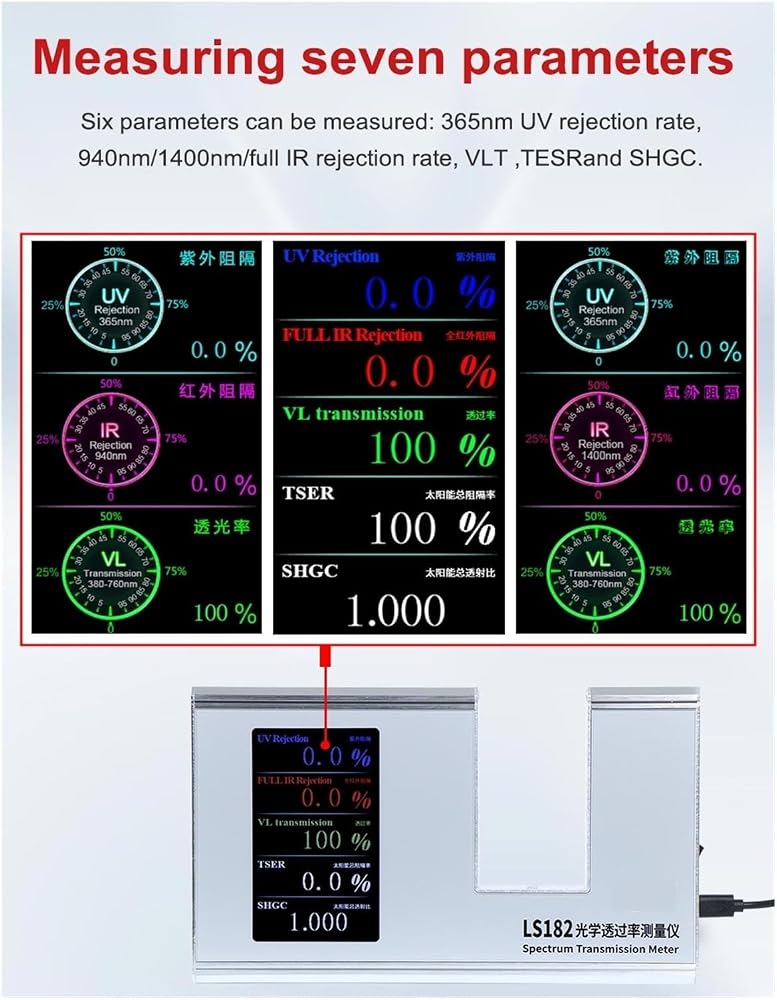

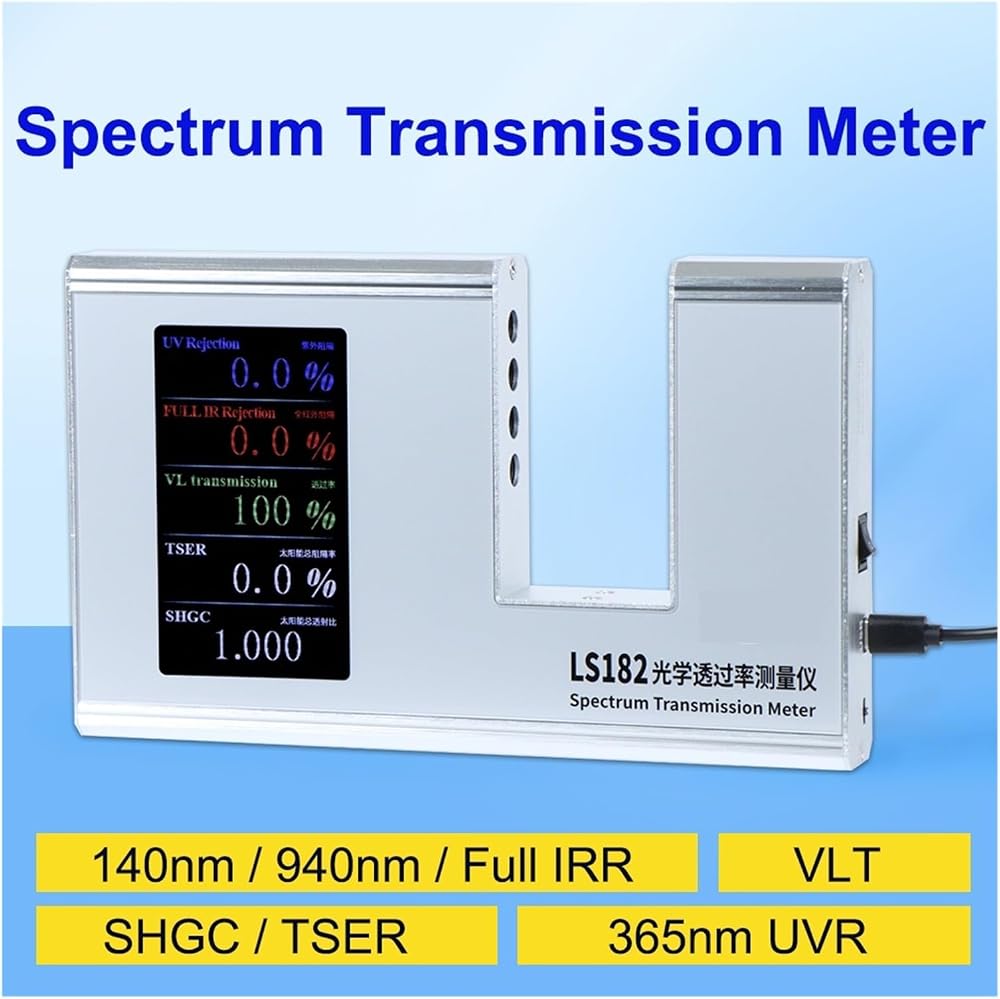

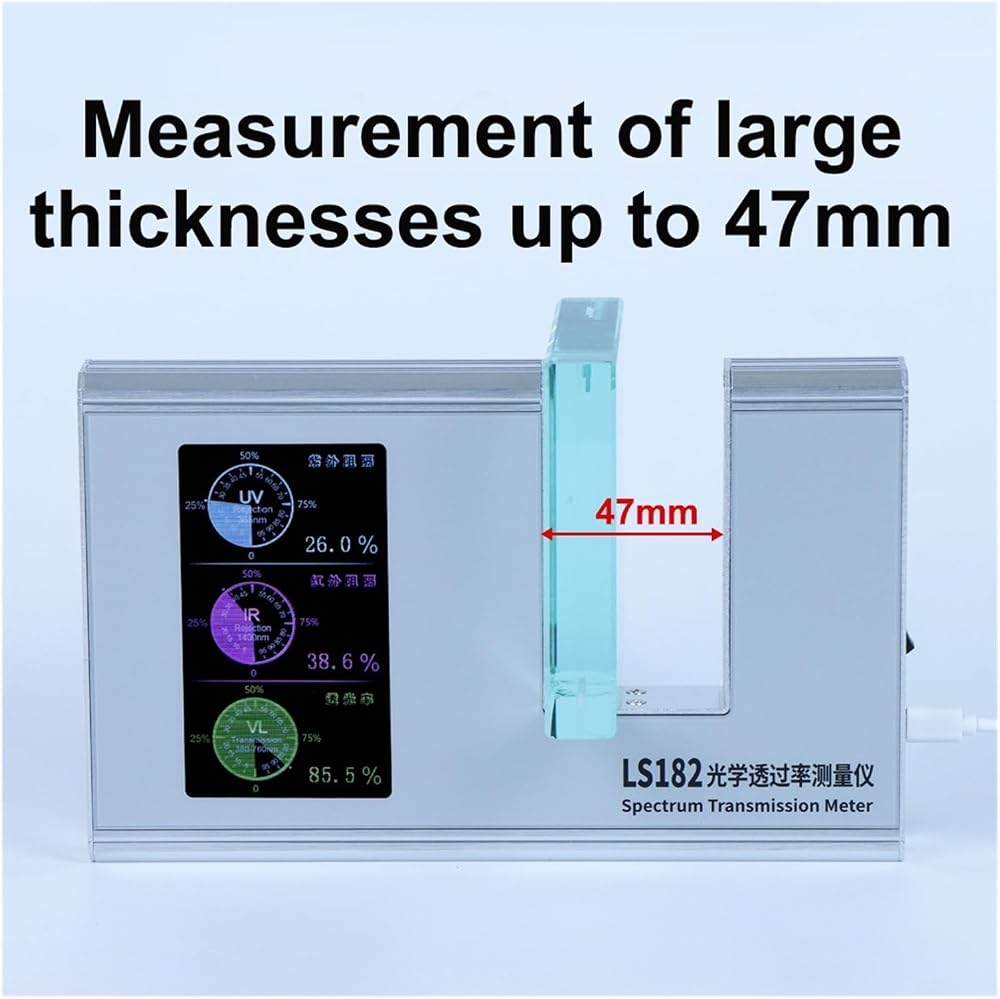

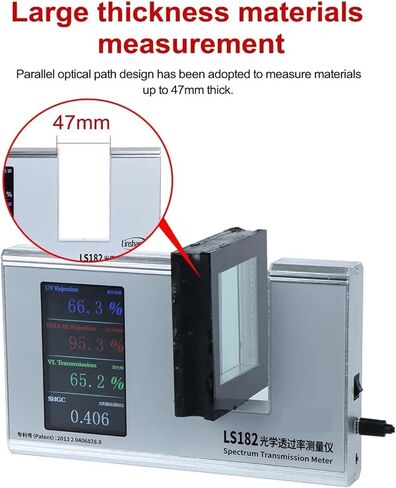

LS182 spectrum transmission meter can measure SHGC (Solar Heat Gain Coefficient), 940nm, 1400nm, and full infrared rejection rate, 365nm ultraviolet rejection rate, and 380nm-760nm visible light transmittance. It employs parallel light path design and can measure materials up to 47mm in thickness. The LCD screen provides convenient reading with three selectable modes. It features real-time dynamic self-calibration, automatically calibrating upon startup. It operates on 5V power supply and can be directly connected to a mobile power source. Commonly used in industries such as window film, glass, and architectural doors and windows

Specifications
1. UV peak wavelength: 365nm
2. IR peak wavelength: 940nm, 1400nm, Full IR and SHGC
3. Visible light: 380-760nm (conform to CIE photopic luminosity function)
4. Resolution: 0.1%
5. Measurement accuracy: ± 2% (colorless and uniform transparent material)
6. Test card slot: 47mm×91mm (W*H)
7. Weight: about 590g

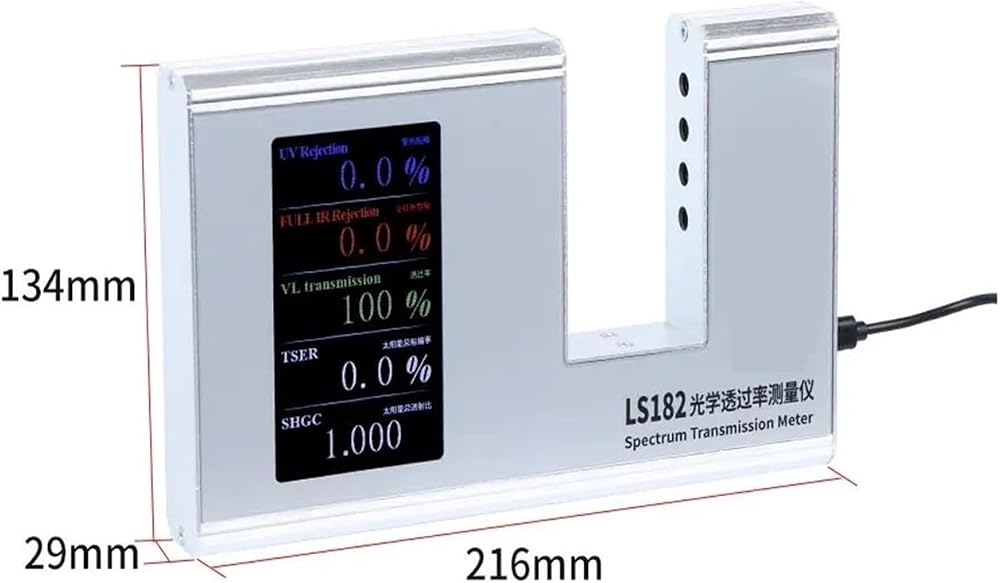

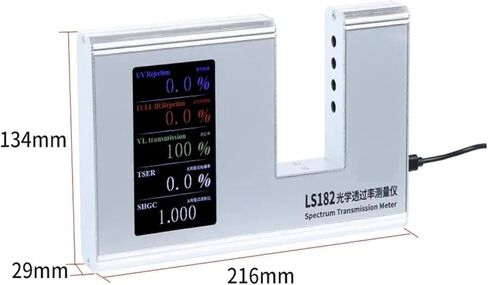

8. Dimension: 216mm × 134mm × 29mm (L*H*W)
9. Power supply: 5V DC/1A (Type-C)

1. LS182 spectrum transmission meter*1
2. DC5V Adapter*1
3. User Manual*1
4. Support pillar*1
