Wire Material: Tinned Copper. Made of Soft with braid patterned cables

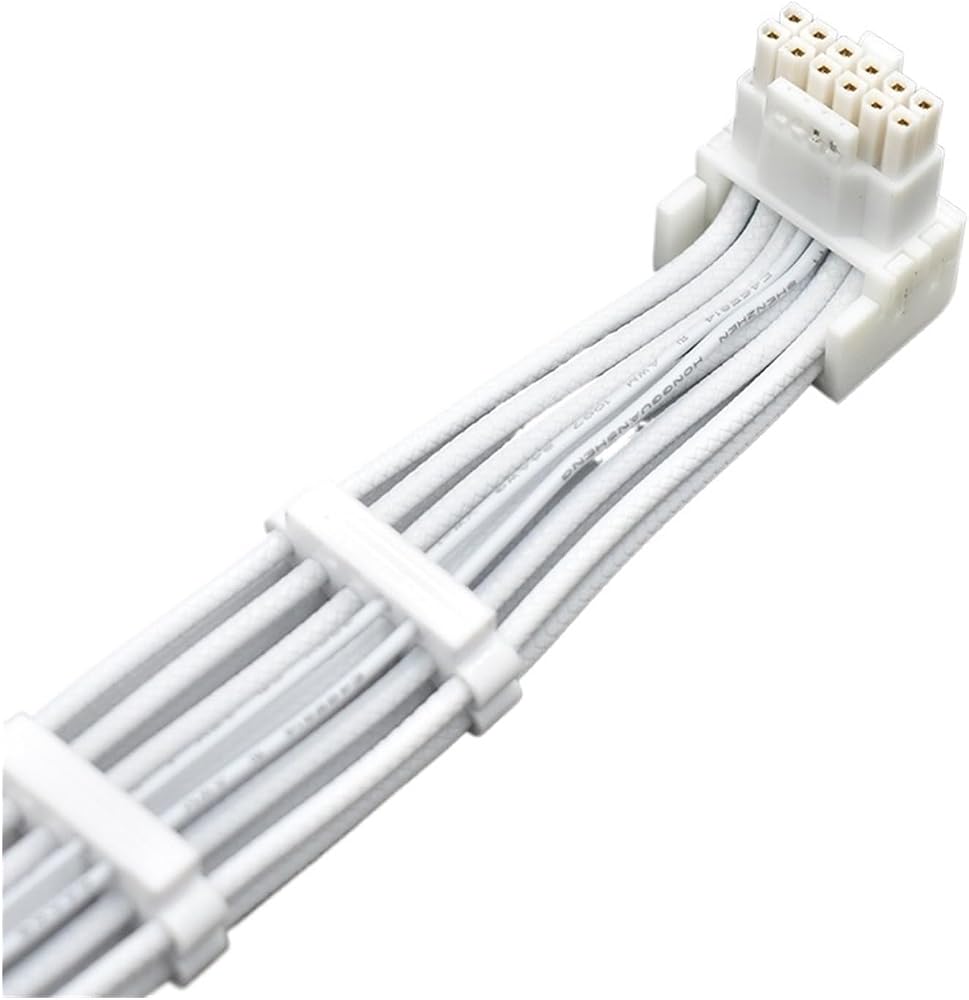

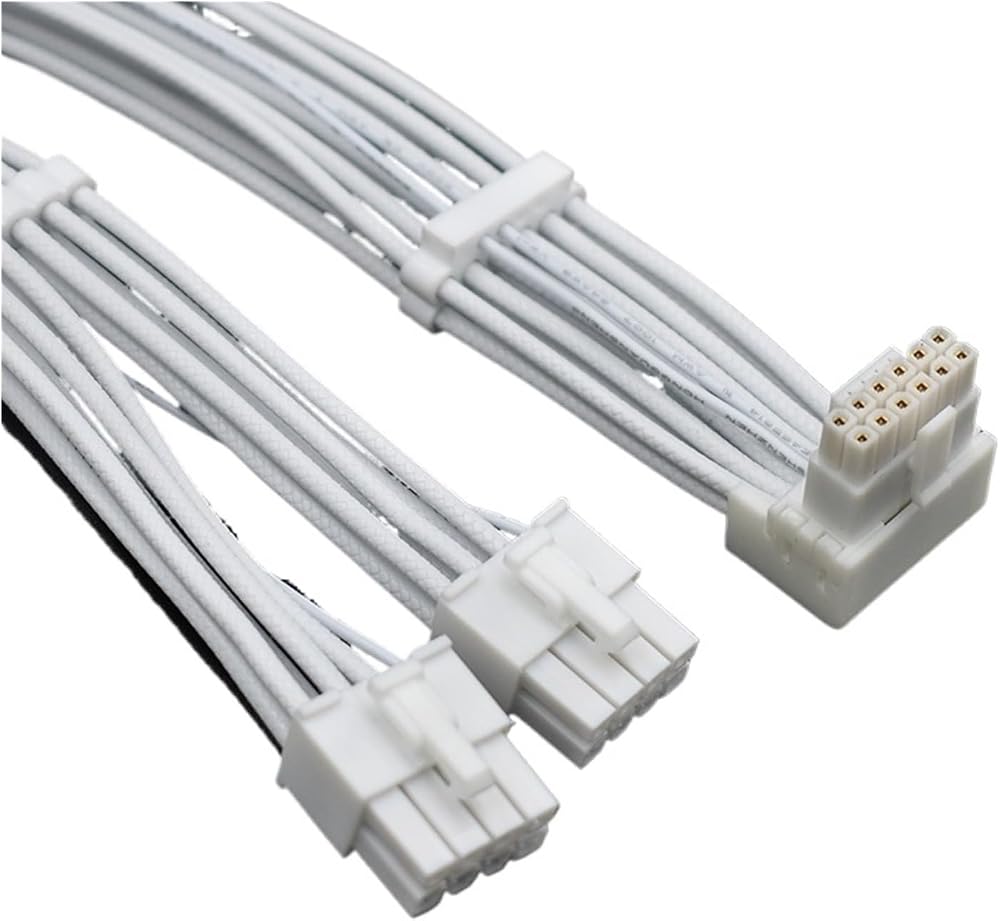

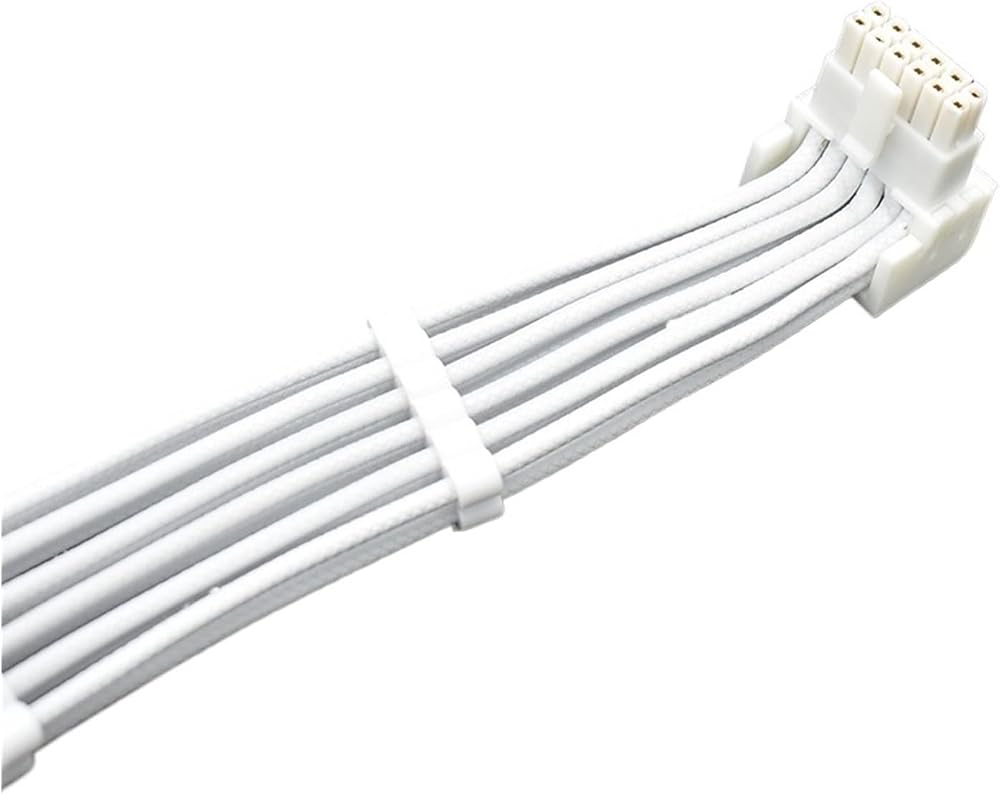

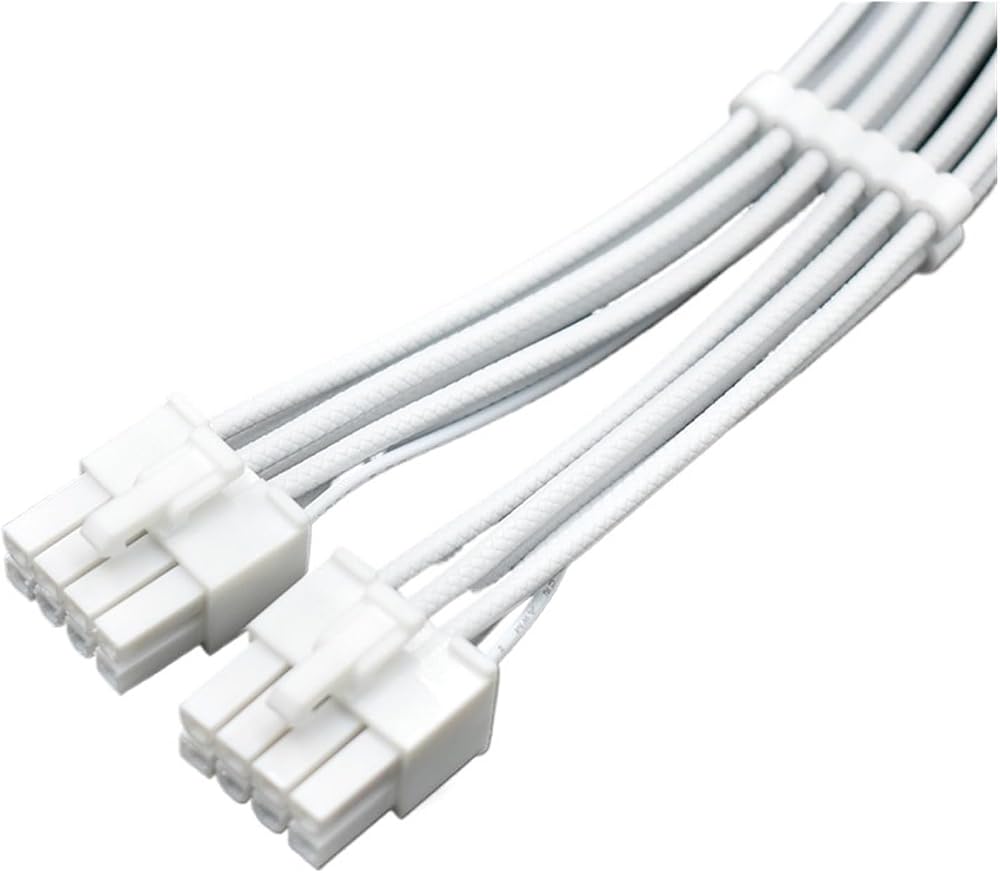

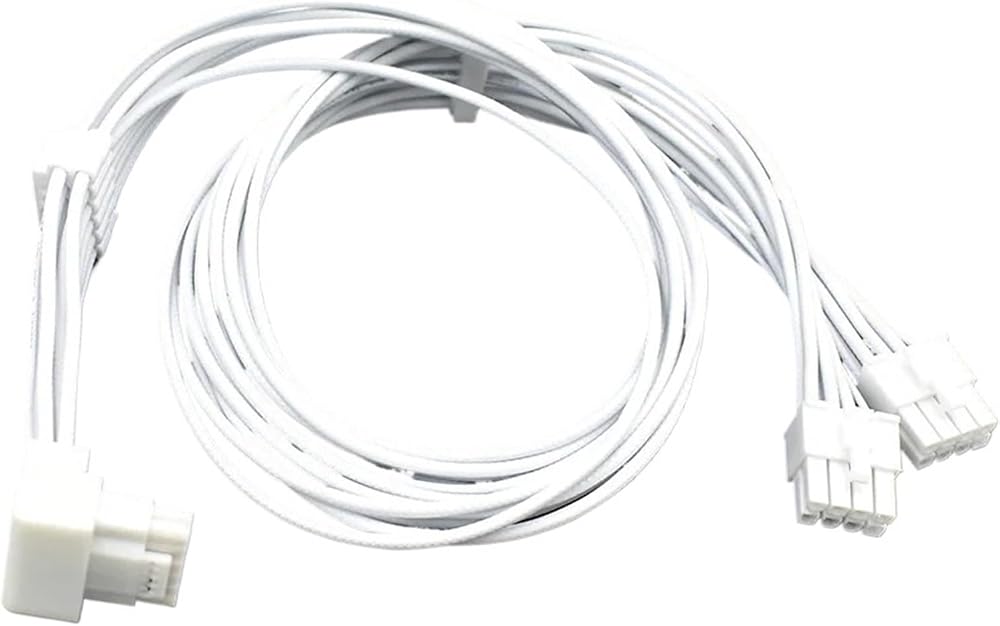

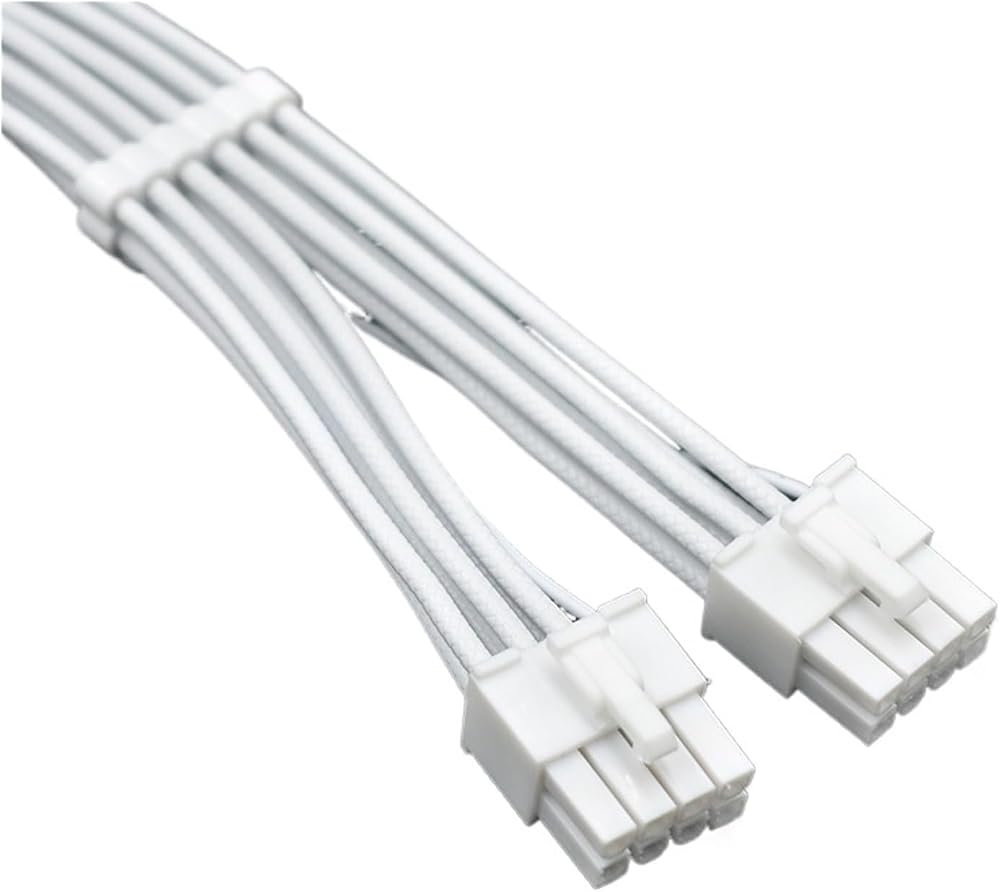

1.PCIE 5.0 Series 2x8 Pin to 16 Pin 12+4Pin sleeved extension cable is designed for 3090 Ti 4070 Ti 4080 40xx Series Gracphis Cards. Please check the orientation of your GPU before purchase.
2.There are 2 Directions of the connector, please check your gpu interface and our picture to choose correct Way(UP Bend or Down Bend)
3.Made by standard tinned copper wire 16AWG , supports up to 600W output. The pl-ug terminals of the graphics card cable are made of alloy copper and tinned material, which can bring stable and higher currents
4.This extension cable requires 2 unoccupied 8-pin PCI-e ports on your power supply to properly function. it won't work if fewer than 4 connectors to your power supply.
Use suggestion: RTX3090ti more 850W Power Supply; RTX4080 more 1000W Power Supply
Compatible with :
for AX1600i, AX1000 , AX850 ,AX860. AX860i
for HX1200 Platinum, HX1000 Platinum, HX850 Platinum, HX750 Platinum,
for RM1000i, RM850i, RM750i
for RM1000x, RM850x, RM750x
for (Black Label) RM850, RM750
for SF750
for CX750F RGB
NOTE: Do not work with AX1200
RECOMMENDED INSTALLATION OF 12VHPWR CABLE
All connectors must be INSERTED, CLICK-LOCKED and SEATED properly.
DO NOT bend or apply force to the cable after it is plugged into place.
Please Check the 16pin connector of your GPU, and choose the right direction of cable.
NOTE: This cable was only designed for modula .If you use it to with other incompatible PSUs or types, it will definitely burn or damage the PSUs or graphics cards and we won't take any responsibility for wrongly using or installing. Please carefully check the compatible types or us if you are not sure if it supports your power supply
Hign-concerned Chem/*ical : None
Package : Yes
Model Number : SL16PMM-CW1
TY>pe : Power Adapter Cords
Origin : China
