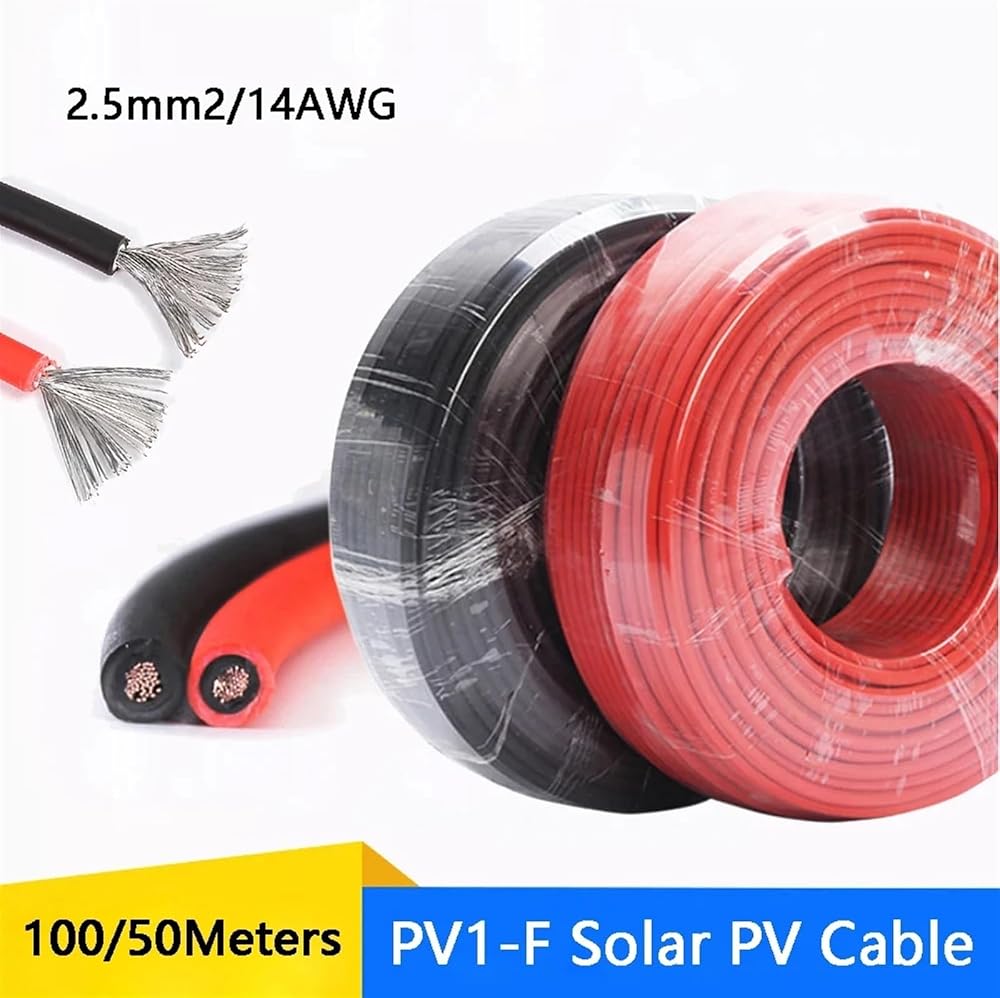

100/50meters 2.5 mm2 14 AWG TUV Solar Panel Extension Cable Tinned Copper Double Sheathed Wire for Solar Photovoltaic System
Products Description:
1.Executive Standard:
PV cable(solar cable) refers to draft made out by PV system cable work team of Standard Committee
2.No-haogen PV-Cable Type:
PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable
3 Application:
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor .
Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
PV1-F Solar PVCable
INTRODUCTION
specifications:2.5mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black

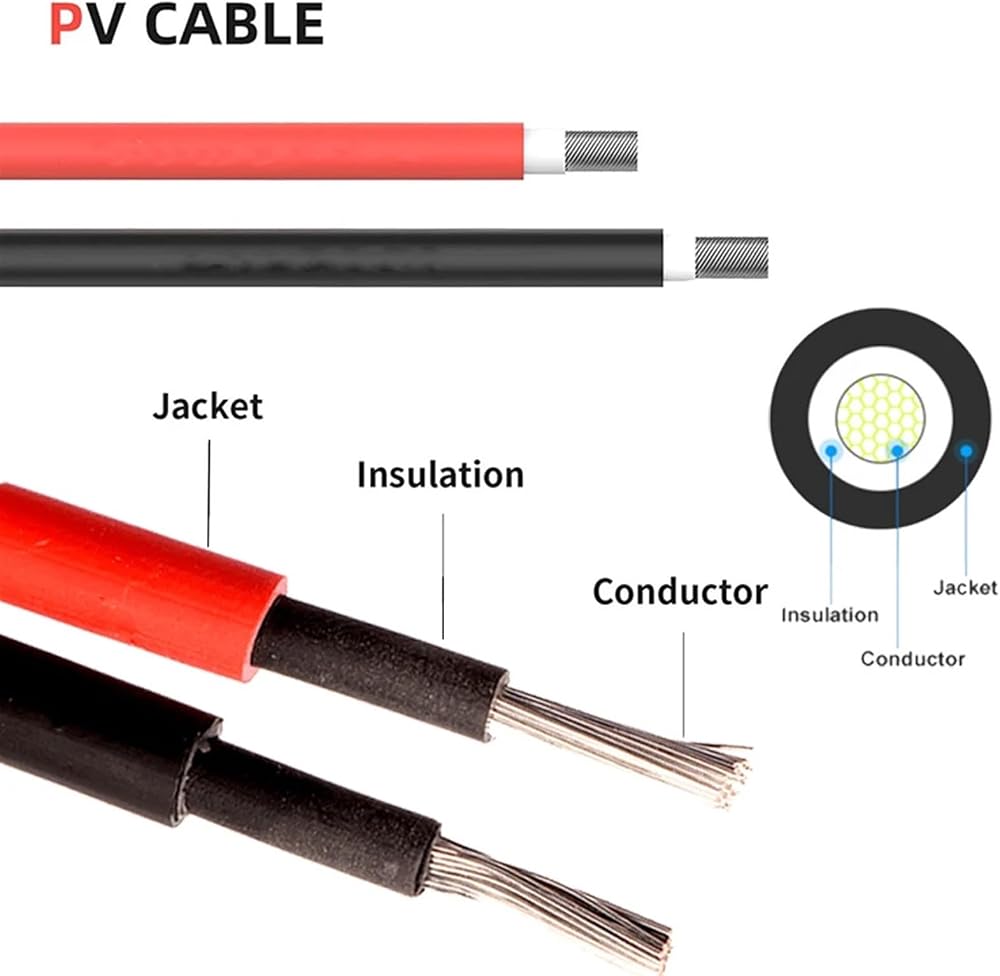

Feature:Double insulation cover,TUV approved

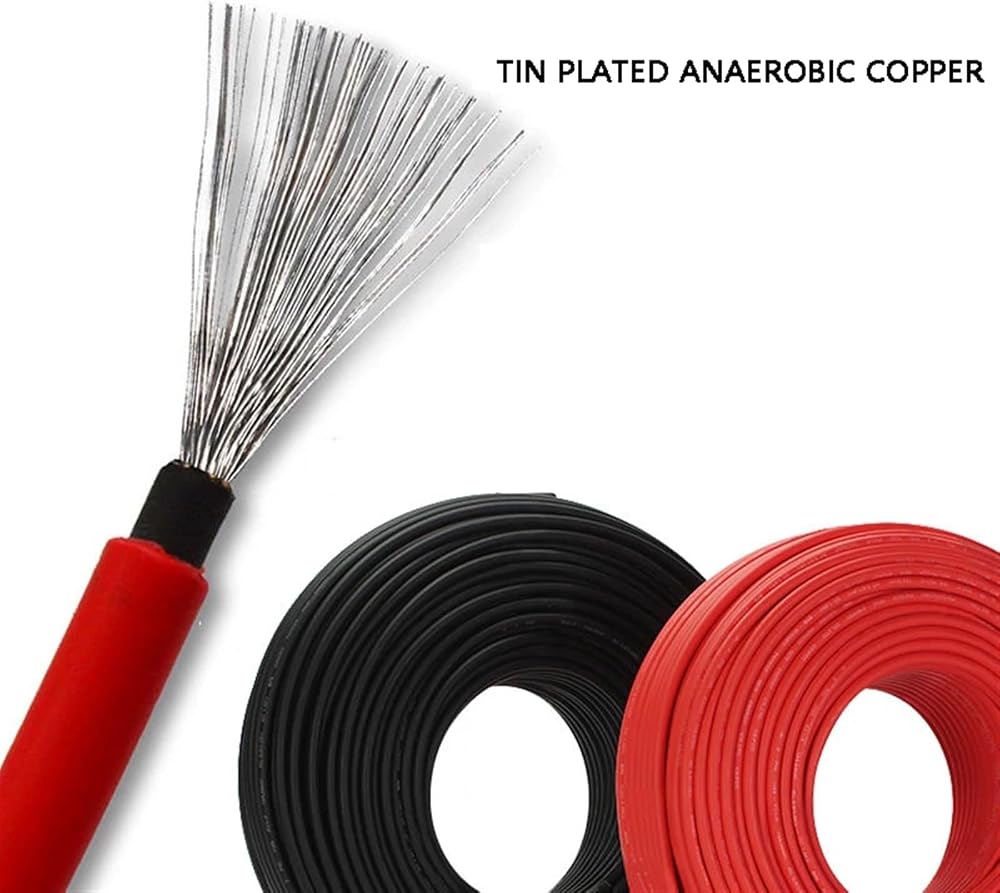

Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 +90 )
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinction
Specification
Model
Specifications(mm2)
Conductors(MM)
outer diameter (mm)
Conductor outer diameter (mm)
Safe current(A)
PV1-F 1*16
16
126/0.4
10.04
5.8
95
PV1-F 1*10
10
84/0.4
8.82
4.9
65
PV1-F 1*6
6 84/0.3
7.52
3.6
48
PV1-F 1*4
4 56/0.3
6.38
2.9
36
PV1-F 1*2.5
2.5
49/0.25
5.63
2.15
28
PV1-F 1*1.5
1.5
30/0.25
4.98
1.5
19

==========
Model Number : PV1-F2.5mm2
Application : Overhead
Type : Insulated
Conductor Type : Stranded
Conductor Material : Copper
Insulation Material : PVC
Rated voltage : AC 0.6/1KV, DC1.5KV
Certification : TUV approved
Conductor material : stranded tin-plated ~ 99.95% oxygen-free copper
Color : Red / Black
