10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG)

INTRODUCTION

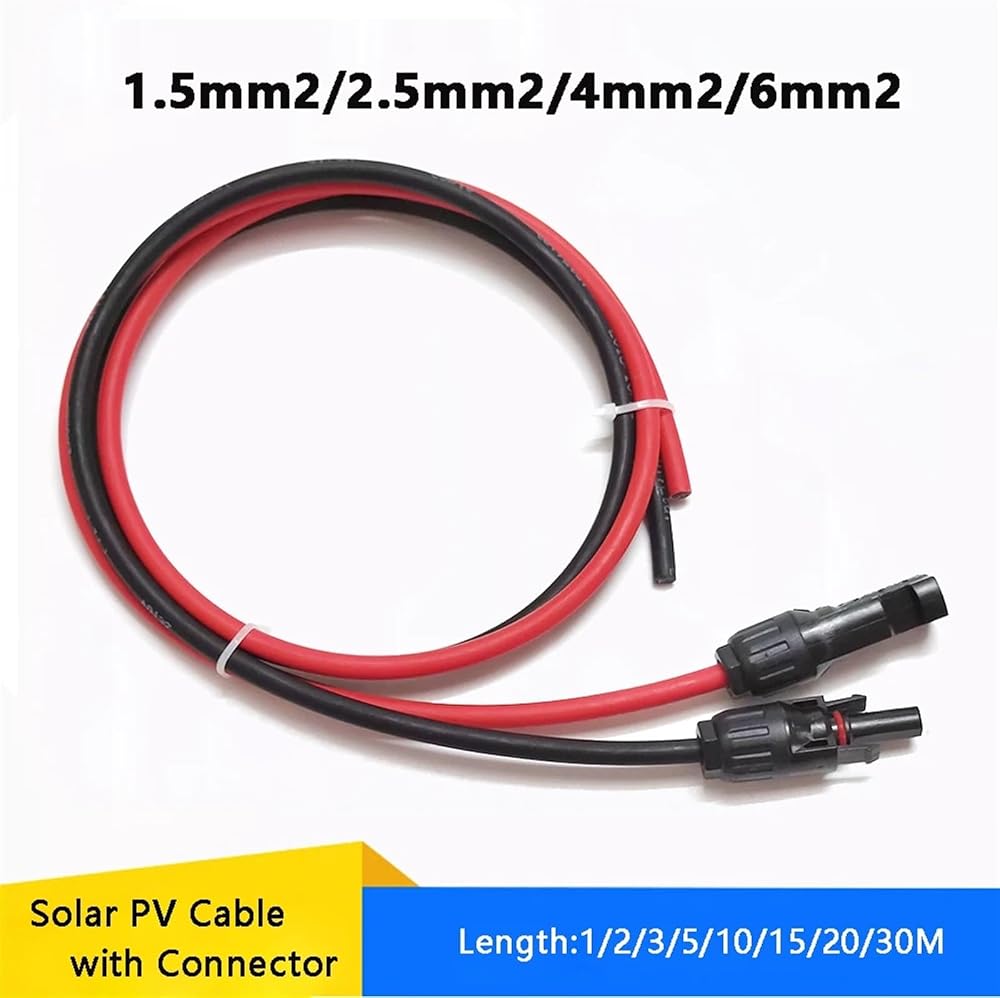

specifications:1.5/2.5/4/6mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black
Feature:Double insulation cover,TUV approved

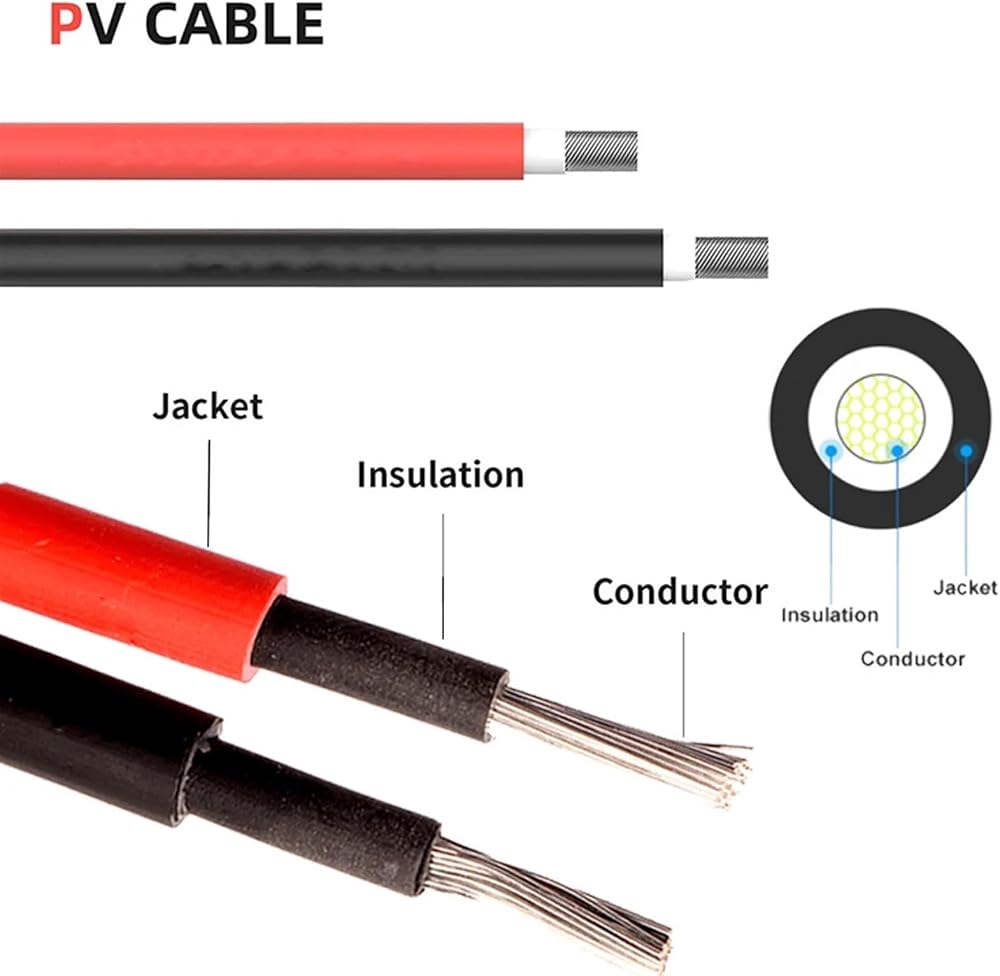

Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 +90 )
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinction
Specification
Specifications
(AWG)
Sectional area (mm²)
Outer Diameter
(mm)
Sheath thickness (mm)
Conductor diameter (mm)
packing
(M/coils)
6AWG
16
8.9
0.8
5.5
100
8AWG
10
7.4
0.8
4.1
100
10AWG
6 6.4
0.8
3.17
100
12AWG
4 5.7
0.8
2.58
100
14AWG
2.5
5 0.7
2.02
100
16AWG
1.5
4.5
0.7
1.58
100

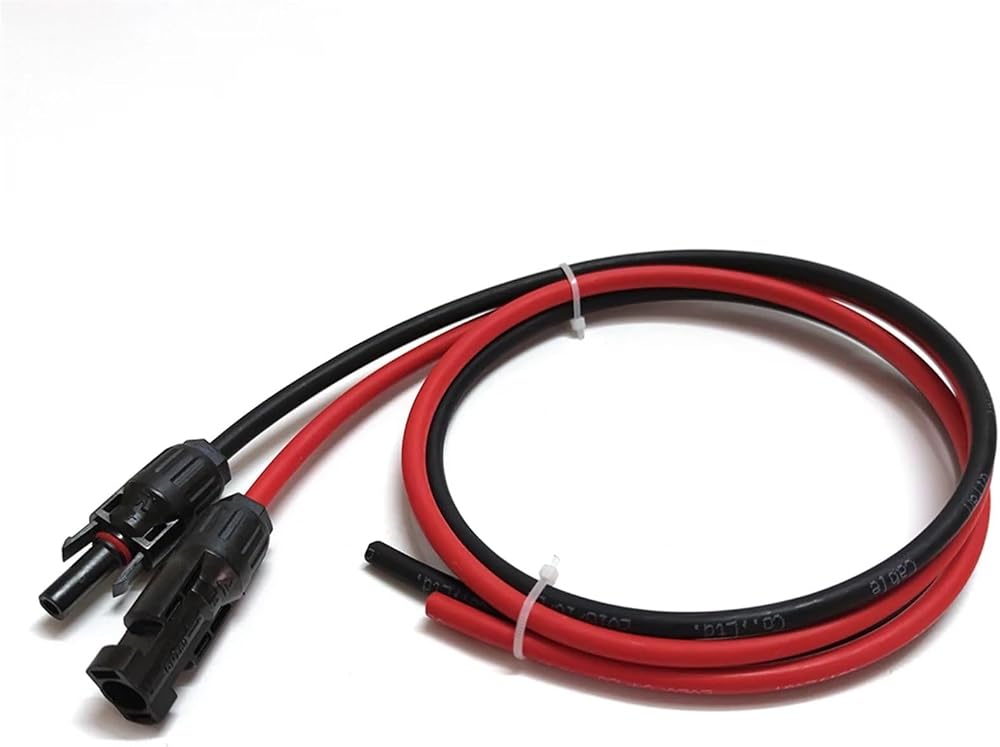

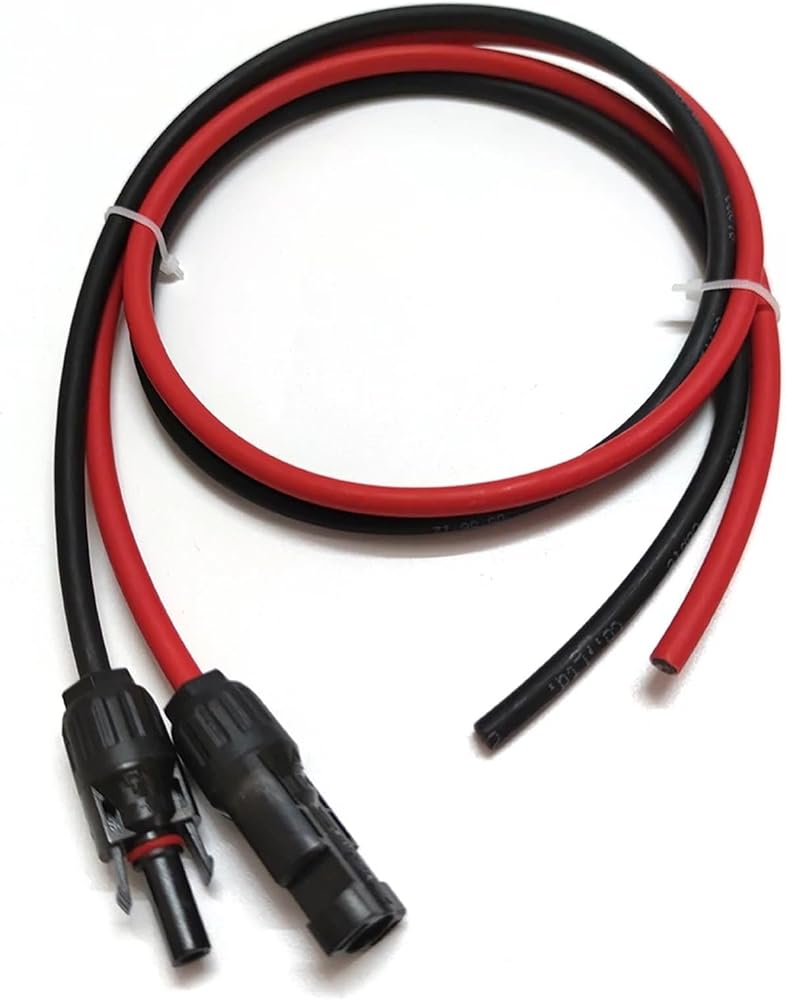

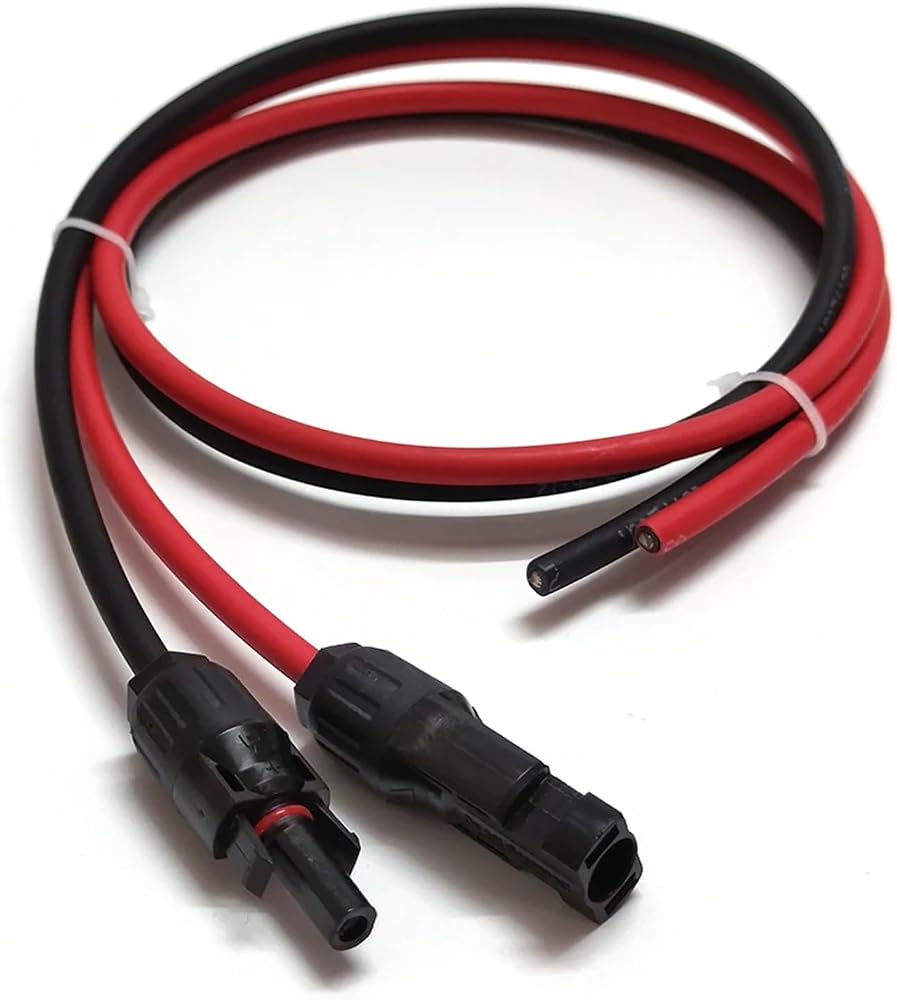

MC: Solar Connector(30A)

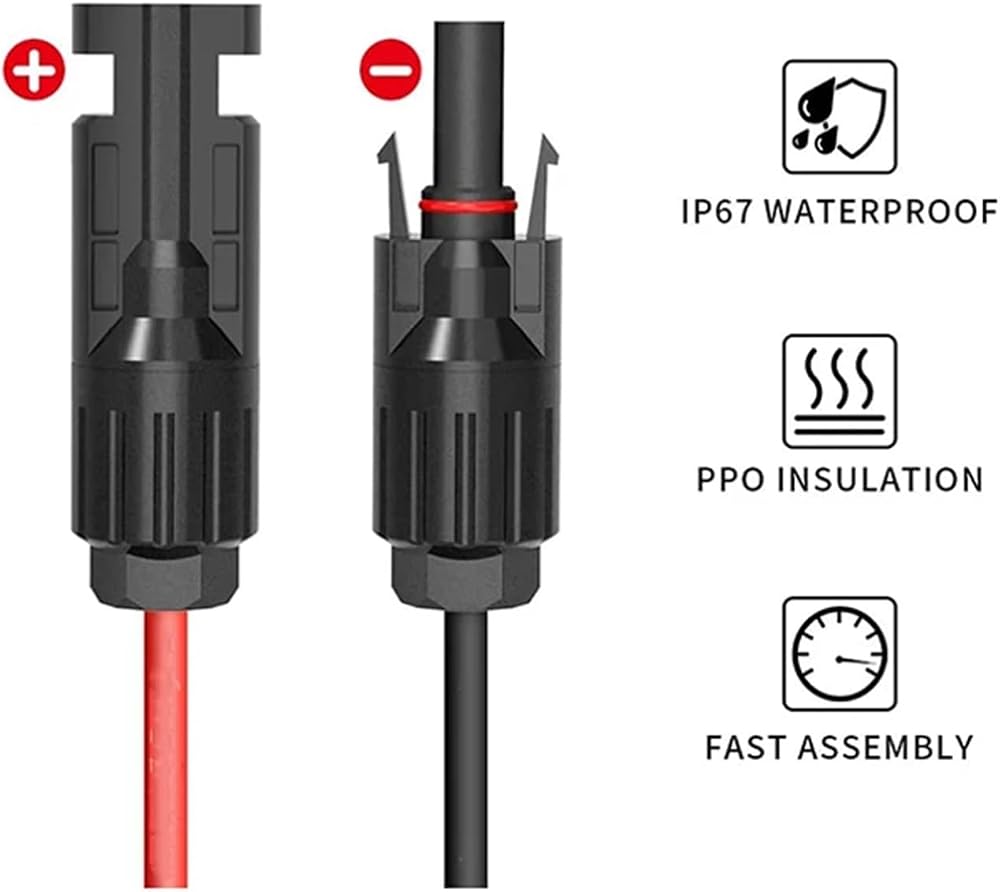

HOUSING : PC Flame retardant;High heat resistance, wear resistance, pollution resistance, strong toughness
CORE : Tinned copper;Open type, material, wear-resistant, corrosion-resistant, prevent rust
High-strength waterproof ring : Product uses high-strength waterproof ring;Dust-proof, waterproof and IP67 protection grade
Stable self-locking structure : The joints are connected by pressing and restraining. The male and female heads have self-locking mechanisms to open and close freely.
Insulation and waterproof : Built-in locking head, exquisite and firm, sealed and insulated, which plays a role of guiding and preventing electric shock


==========
Model Number : 6/4/2.5/1.5 mm2 10/12/14/16 AWG
Application : Underground
Type : Insulated
Conductor Type : Stranded
Conductor Material : Copper
Insulation Material : PVC
