Product Description

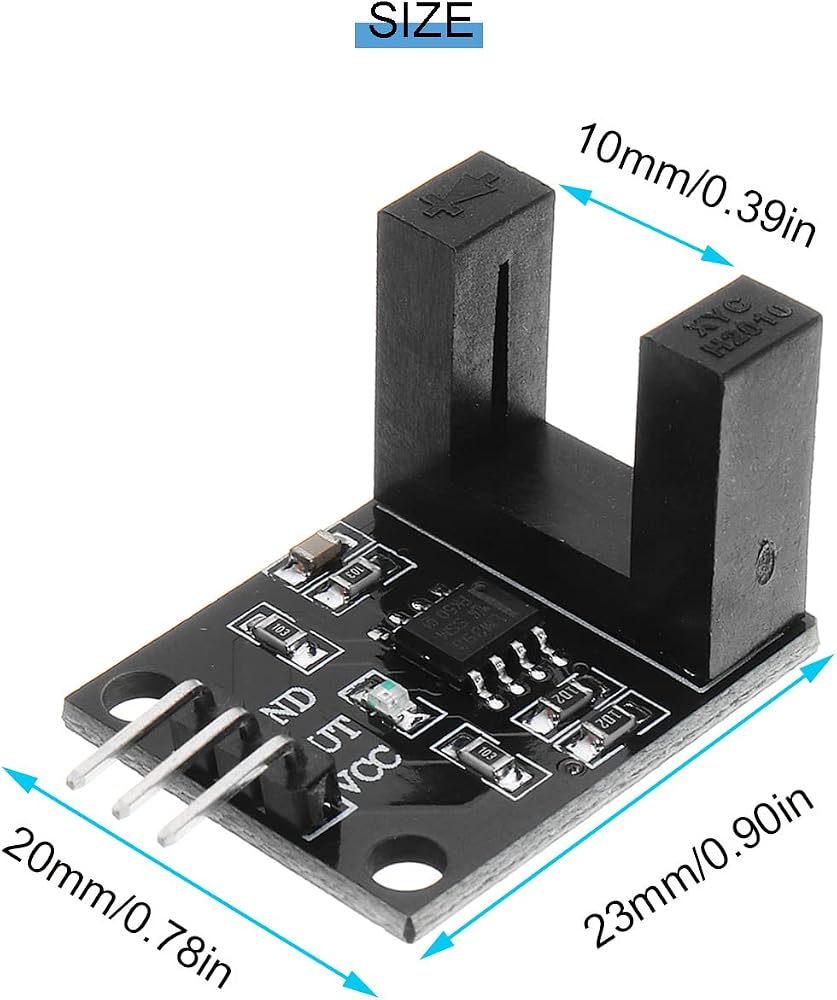

1. The two circular holes of the PCB (the distance from the point to the center of the point) are 1.5cm, and the aperture is 0.3cm
2. Slot type optocoupler slot width 10mm
3. Main chip: LM393, slot optocoupler H2010
4. The working voltage: DC 5 volts
5. Main chip: LM393, through-beam infrared head

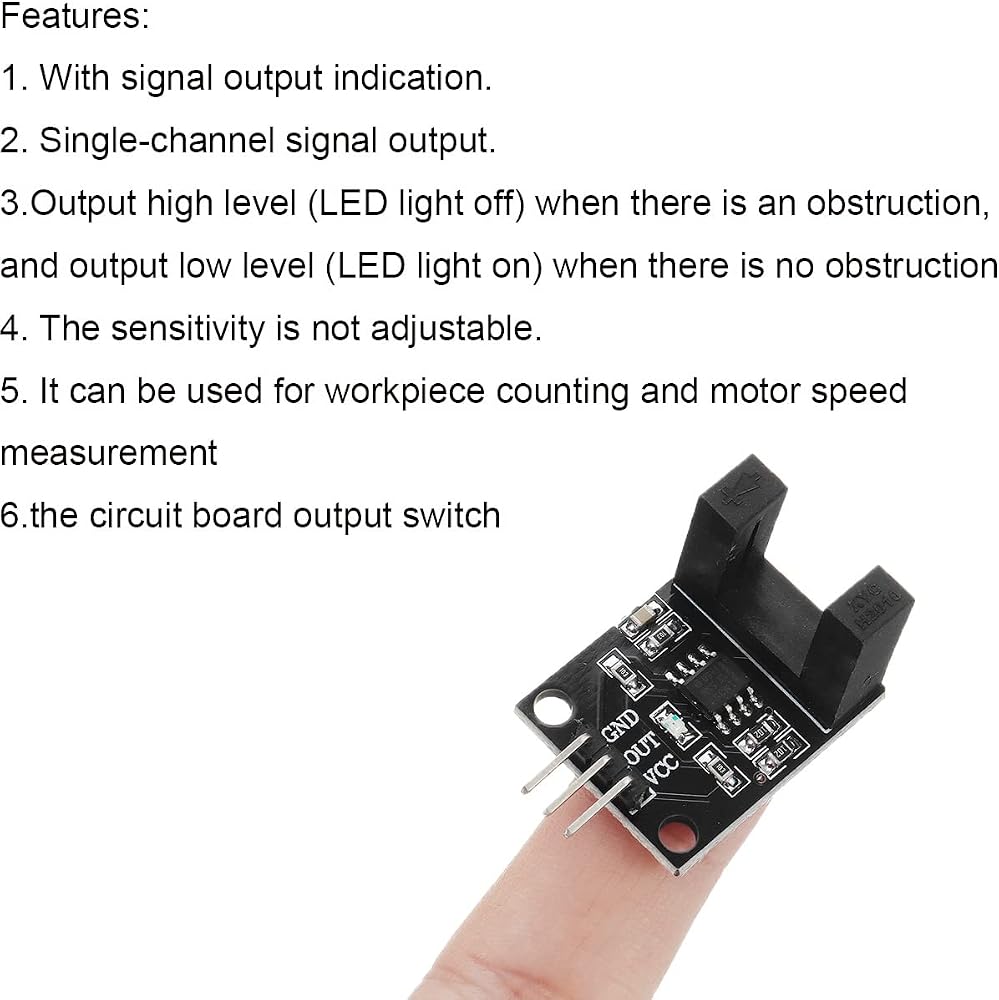

Features:
1. With signal output indication.
2. Single-channel signal output.
3.Output high level (LED light off) when there is an obstruction, and output low level (LED light on) when there is no obstruction
4. The sensitivity is not adjustable.

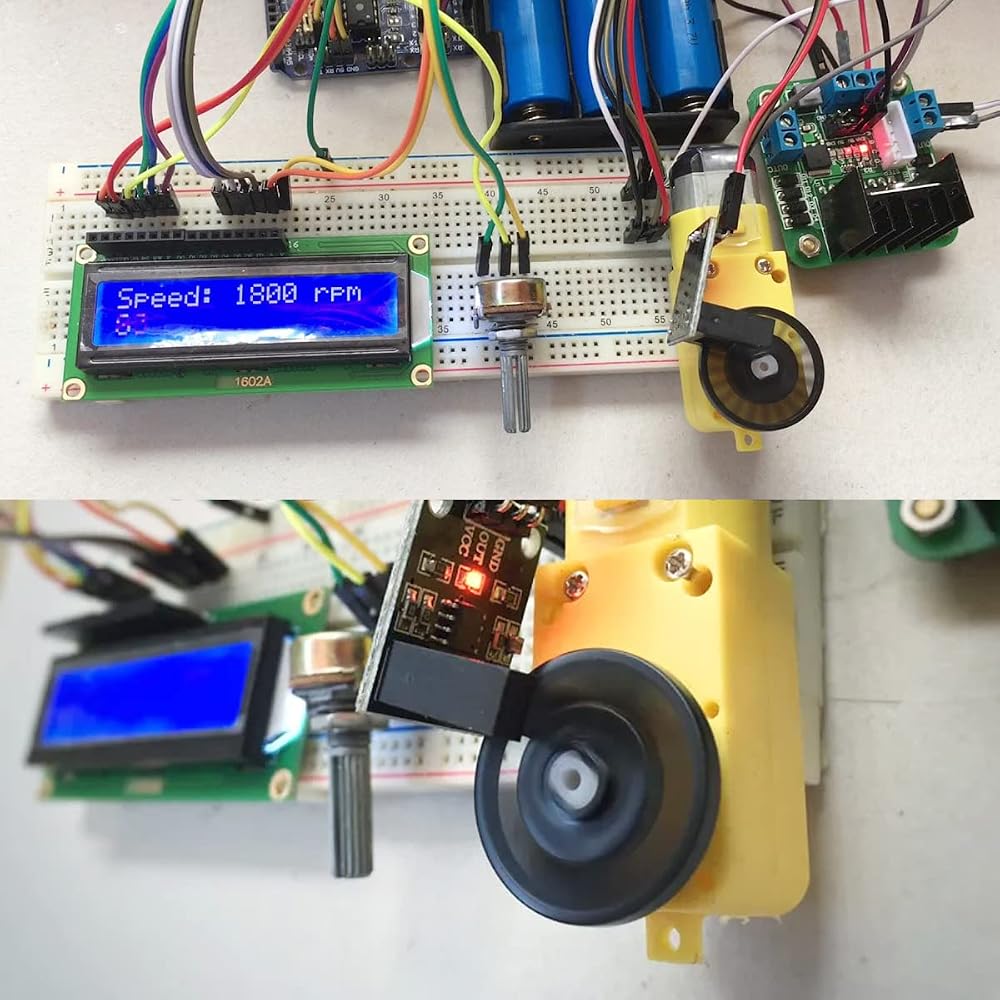

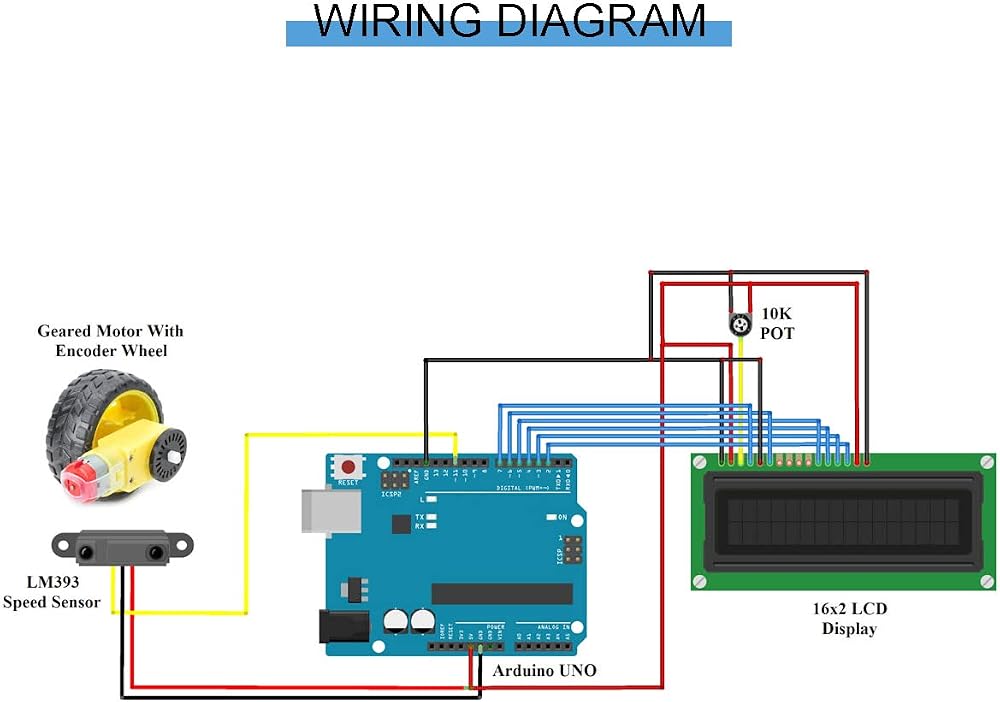

5. It can be used for workpiece counting and motor speed measurement
6.the circuit board output switch

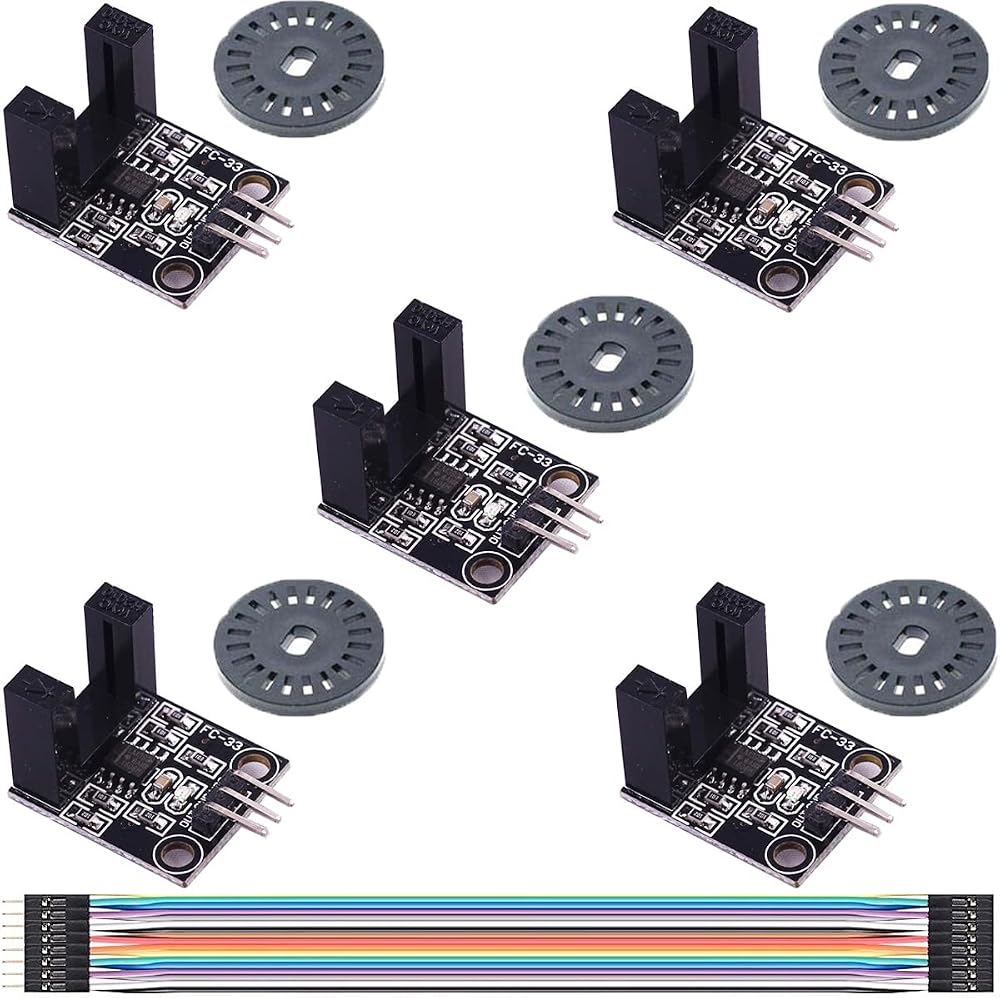

Package Includes:

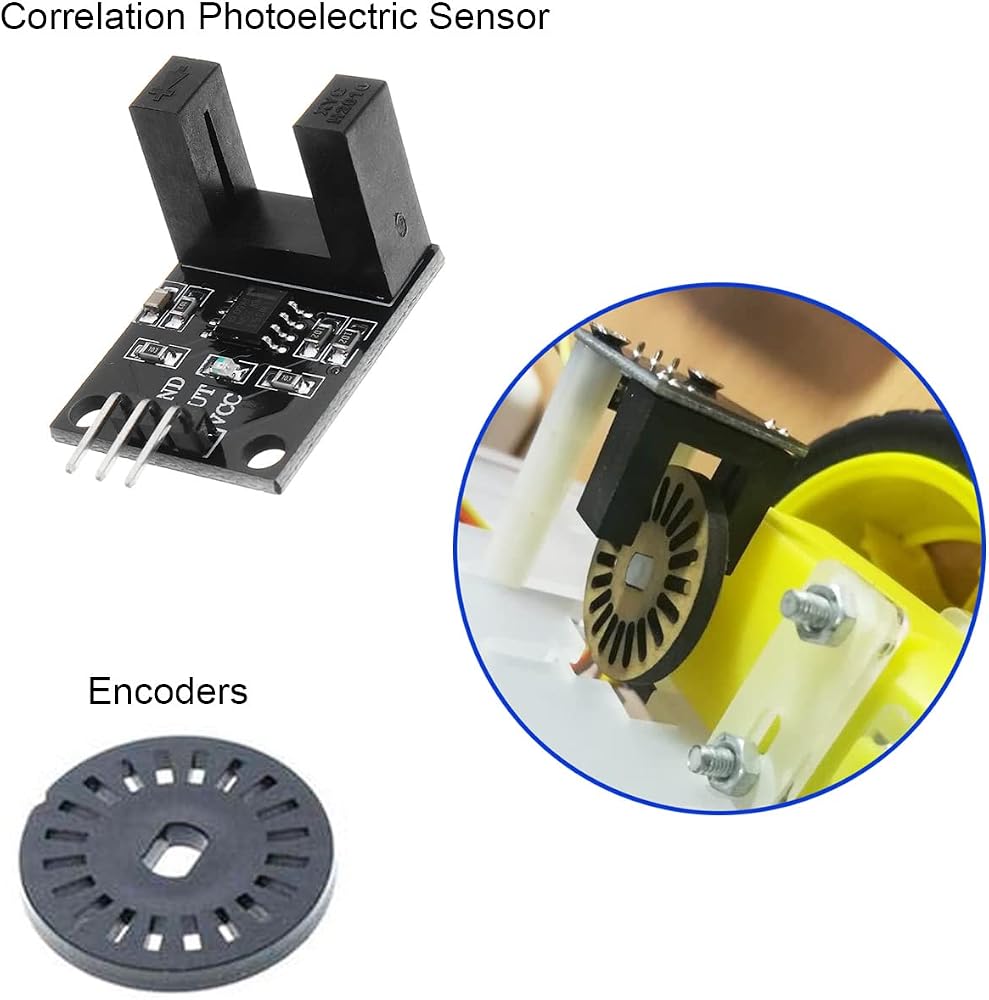

5 x Correlation Photoelectric Sensor
5 x Encoders
1 x 15-pin male and female DuPont cable
