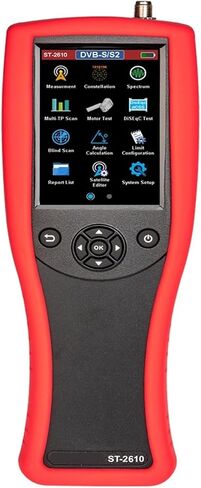

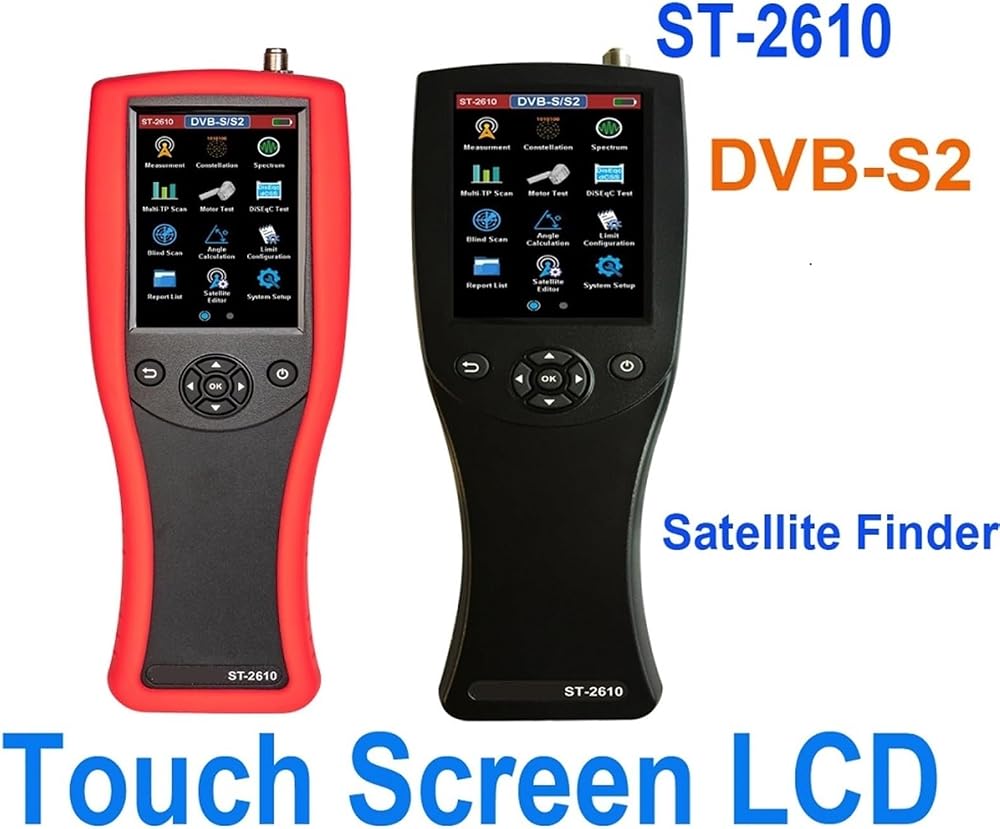

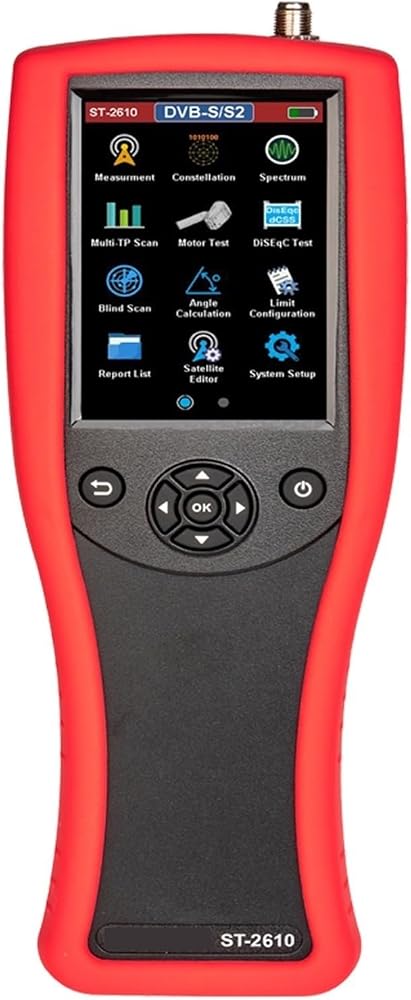

Features:
Support DVB-S/S2, QPSK/8PSK/16APSK/32APSK, ACM/CCM
Supports DisEqC 1.0/1.1/1.2,USALS
Audible signal status alarm, adjustable volume
Comparison of satellite spectrum curves
High Precision Constellation Diagram
Built-in high quality date processor
Short circuit protection and fine adjustment of LNB voltage
Support satellite database editing and USB upgrade
Support button control and touch screen, excellent user interface

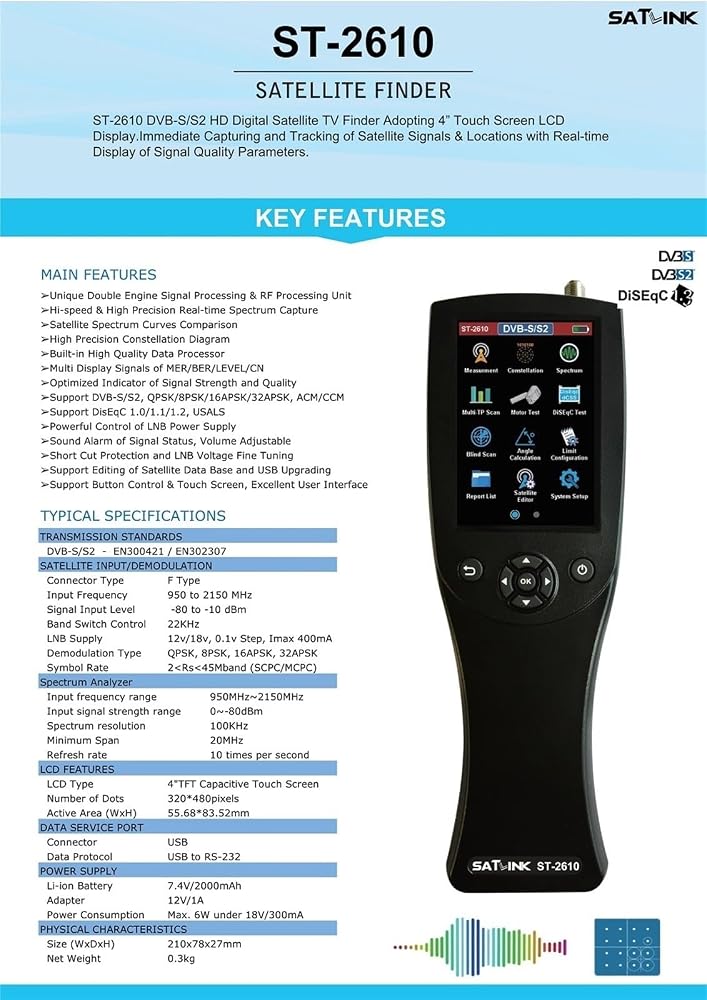

Specification:
Transmission standards: DVB-S/S2
Satellite input/demodulation:

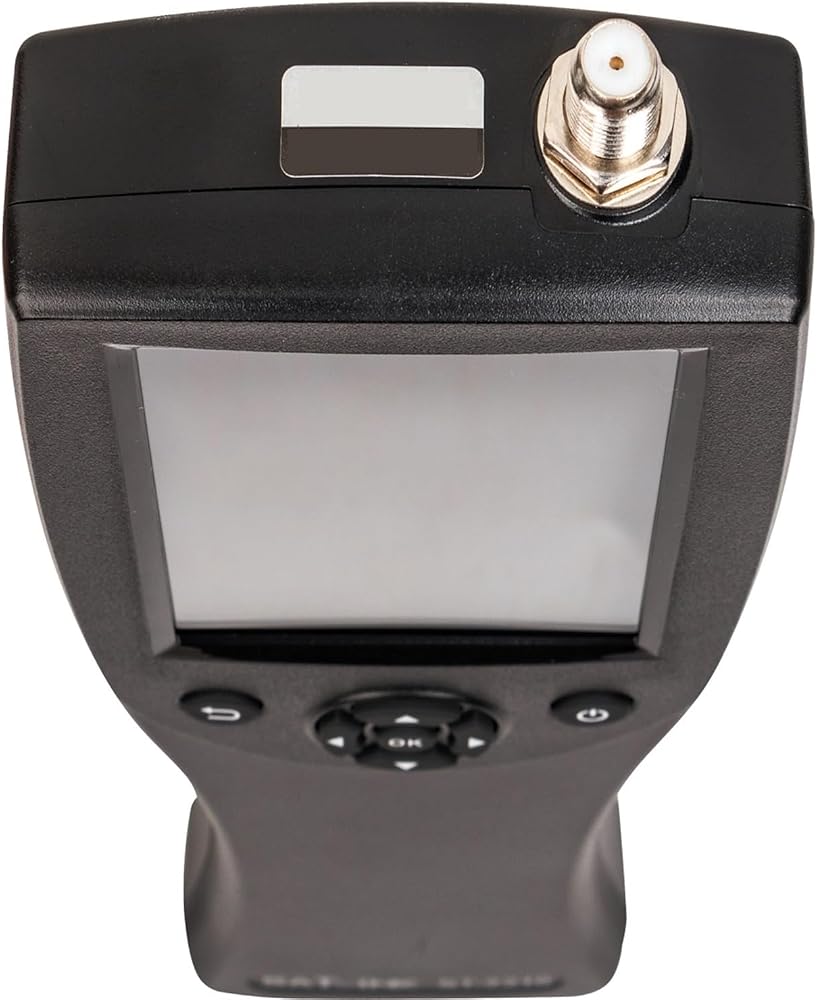

Connector Type: F Type
Input frequency: 950 to 2150 M
Signal input level: -80 to -10dBm
Band switch control: 22K
LNB power supply: 12V/18V, 0.1V pitch, Imax 400mA
Demodulation Type: QPSK,8PSK,16APSK,32APSK
LCD FEATURES:
LCD Screen Type: 4" TFT Capacitive Touch Screen
Number of dots: 320*480 pixels
Active area (L x H): 55.7 mm x 83.5 mm.
DATA SERVICE PORT:
Connector: USB
Date protocol: USB to RS-232
CURRENT SOURCE:
Li-ion battery: 7.4V/200mAh.
Adapter: Output: DC12V/1A.
Power consumption: Max. 6W under 18V/300mA.
Physical characteristics:
Size (W x D x H): 210 mm x 79 mm x 27 mm.
Net weight: 0.3 kg
Package includes:

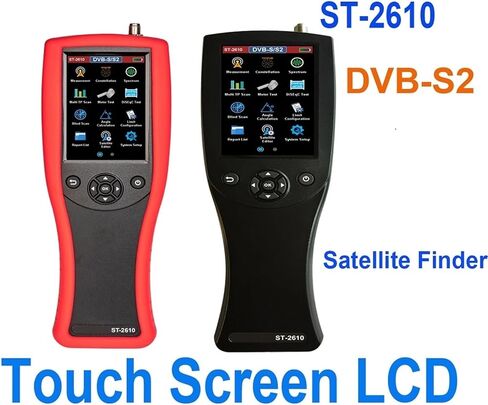

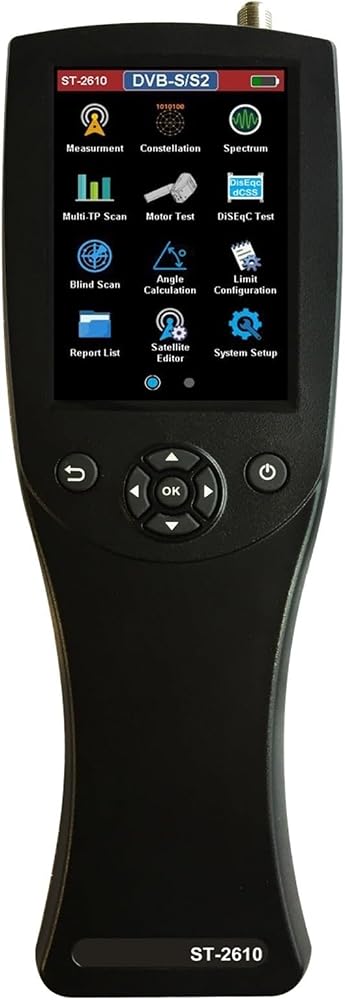

1 x satellite finder
1 x silicone case.
1 x USB Upgrade Cable
1 x power adapter
