Special Features

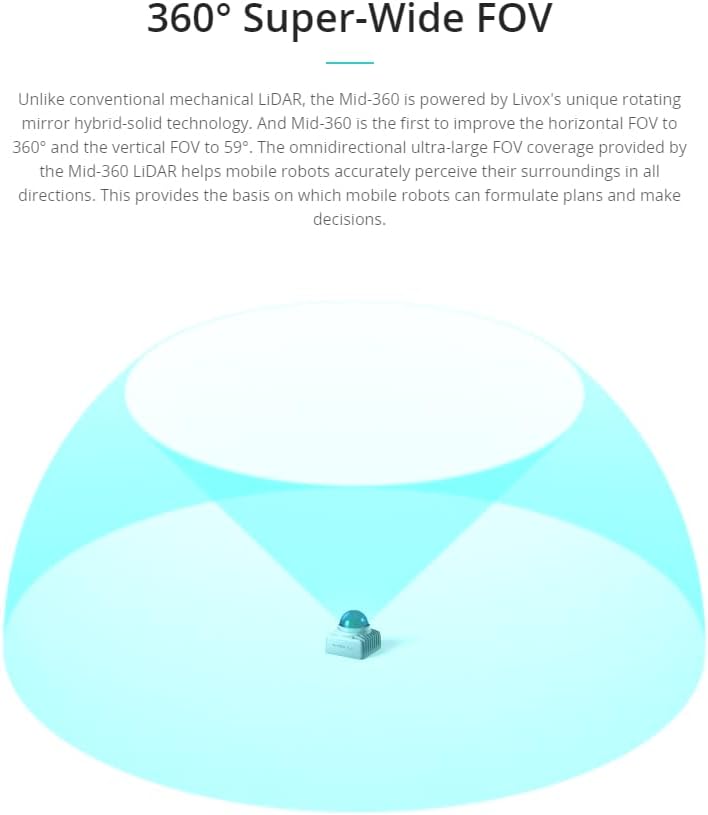

360° Super-Wide FOV:mobile robots accurately perceive their surroundings in all directions

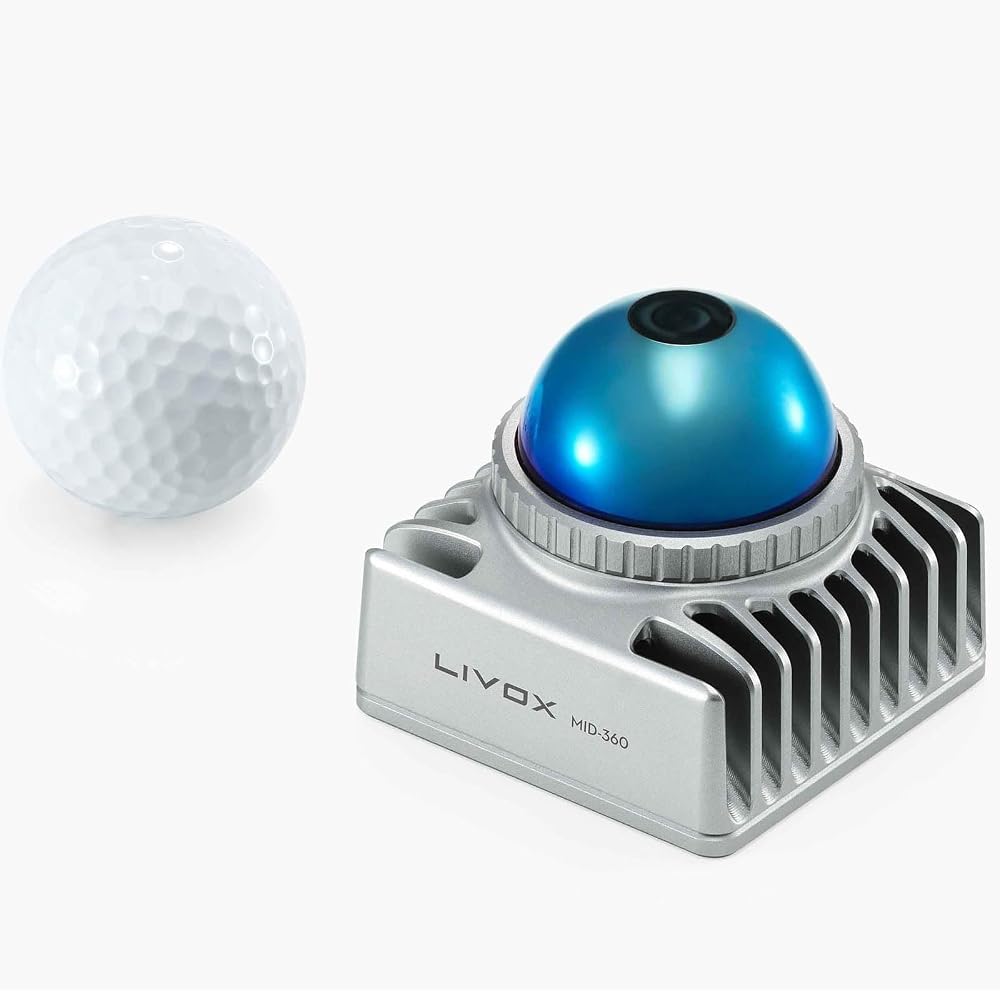

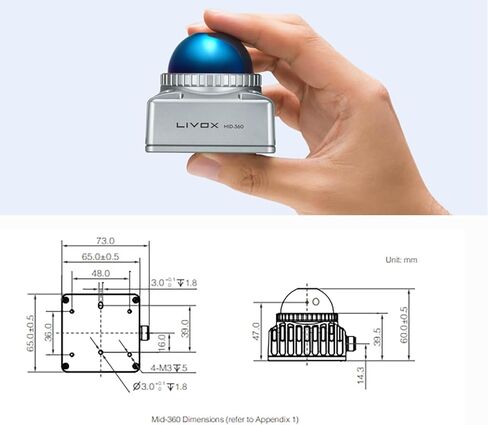

Smaller and Lighter: 65*65*60 L × W × H (mm);265g Weight.
Short minimum detection range of 10cm:It can detect objects as close as 10 cm. Its compact size makes it easy to mount and eliminate blind spots.
Active anti-interference:Reliable performance without disruption from multiple lidar signals, even in indoor environments.
Light or Dark:Unaffected by bright or low-light environments. The Mid-360 offers consistently excellent performance, detecting 80% reflective objects at a distance of up to 70m.

Description

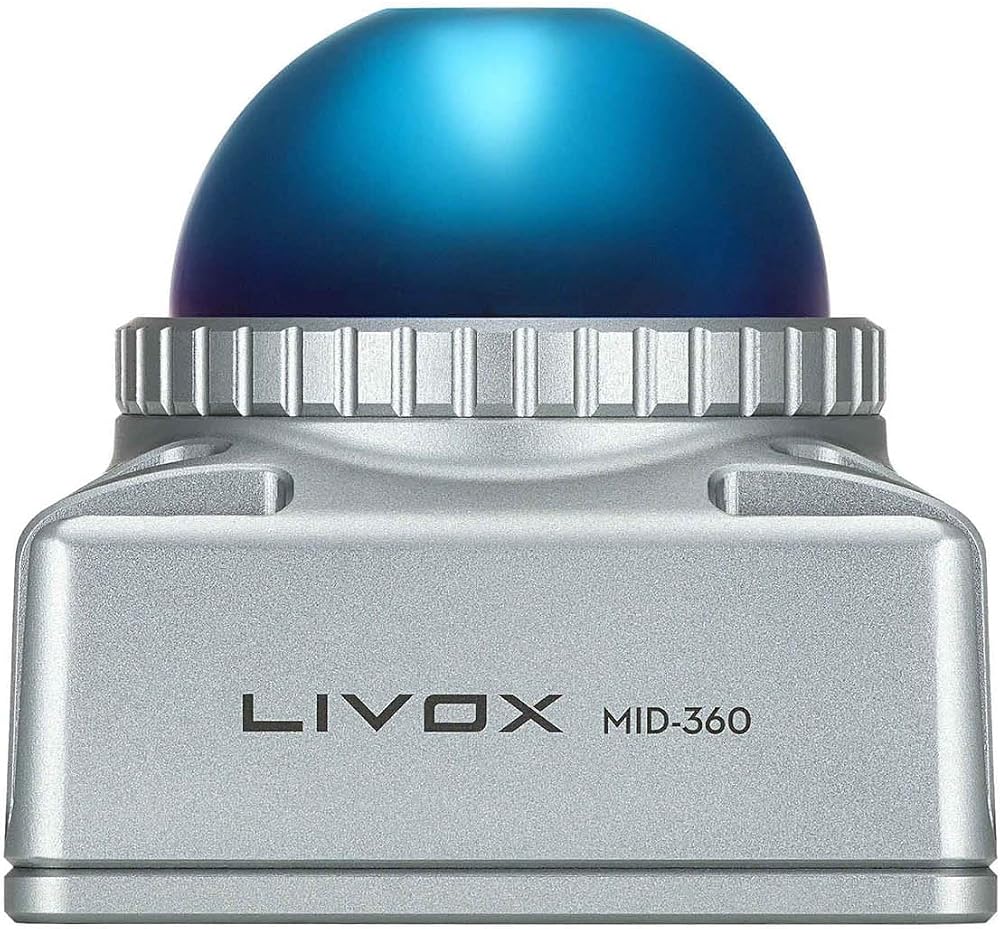

Mid-360 is the latest generation of Livox LiDAR for low speed robotics. This new product inherits the cost-effectiveness of the Livox Mid series and delivers 3D perception in 360 degrees. Compact and lightweight, this LiDAR module is easy to install. The Mid-360 is optimized based on the navigation and obstacle avoidance requirements of mobile robots. This allows you to use the LiDAR with algorithms to deliver a wide range of functions such as SLAM and obstacle avoidance.

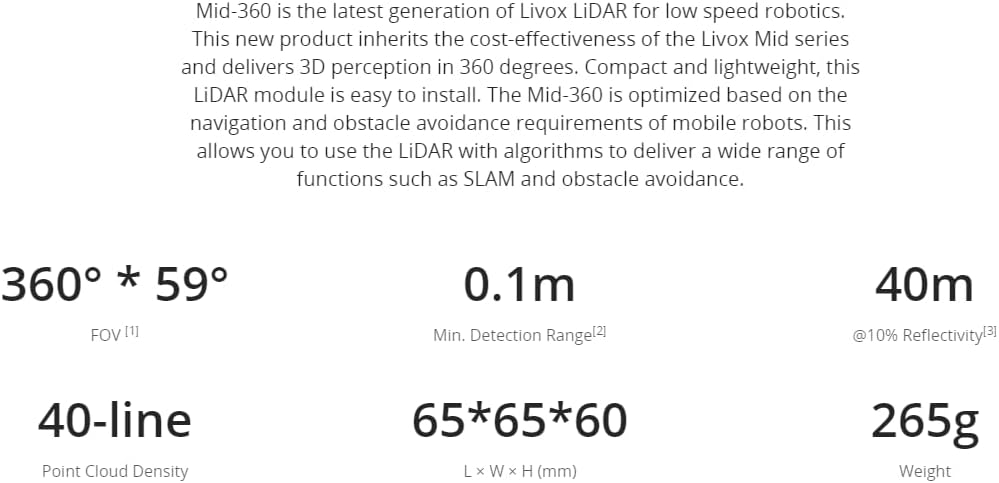

Parameter

FOV:360° * 59°

Min. Detection Range:0.1m

@10% Reflectivity:40m

Point Cloud Density:40-line

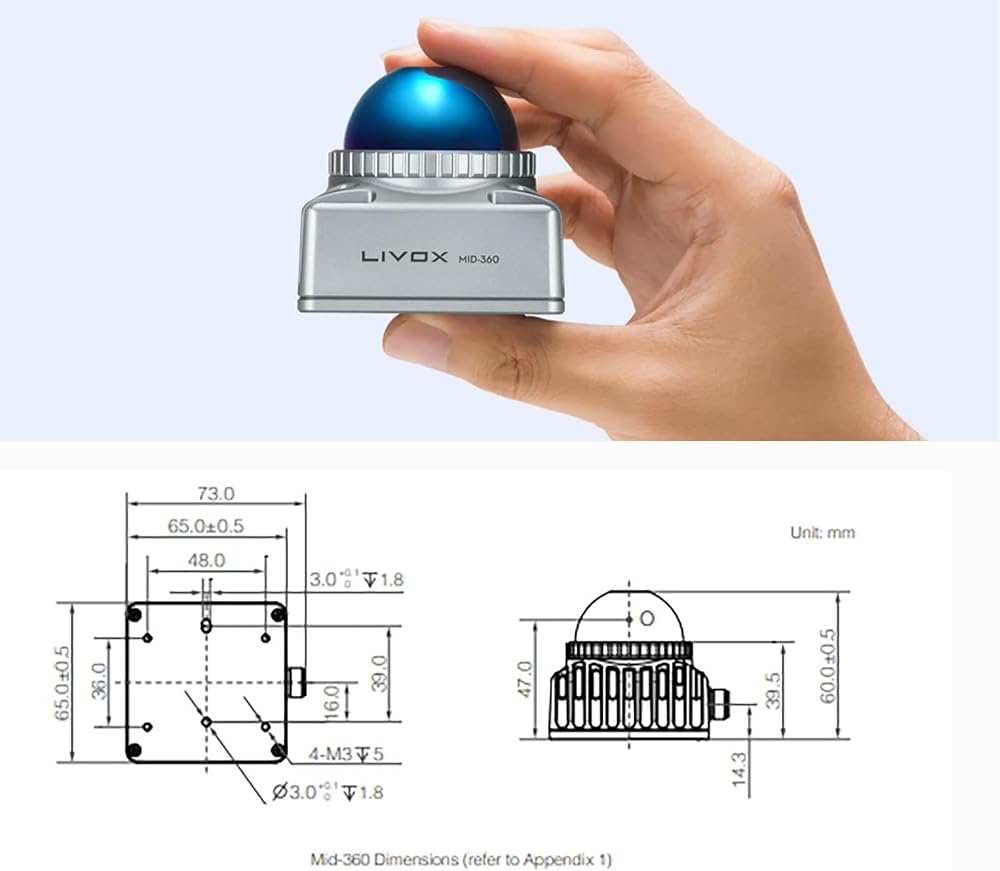

L × W × H (mm):65*65*60

Weight:265g

Built-in IMU: 3-axis accelerometer + gyroscope (200Hz output)

Point Rate:200,000 pts/s

Angular Random Error:≤0.15°

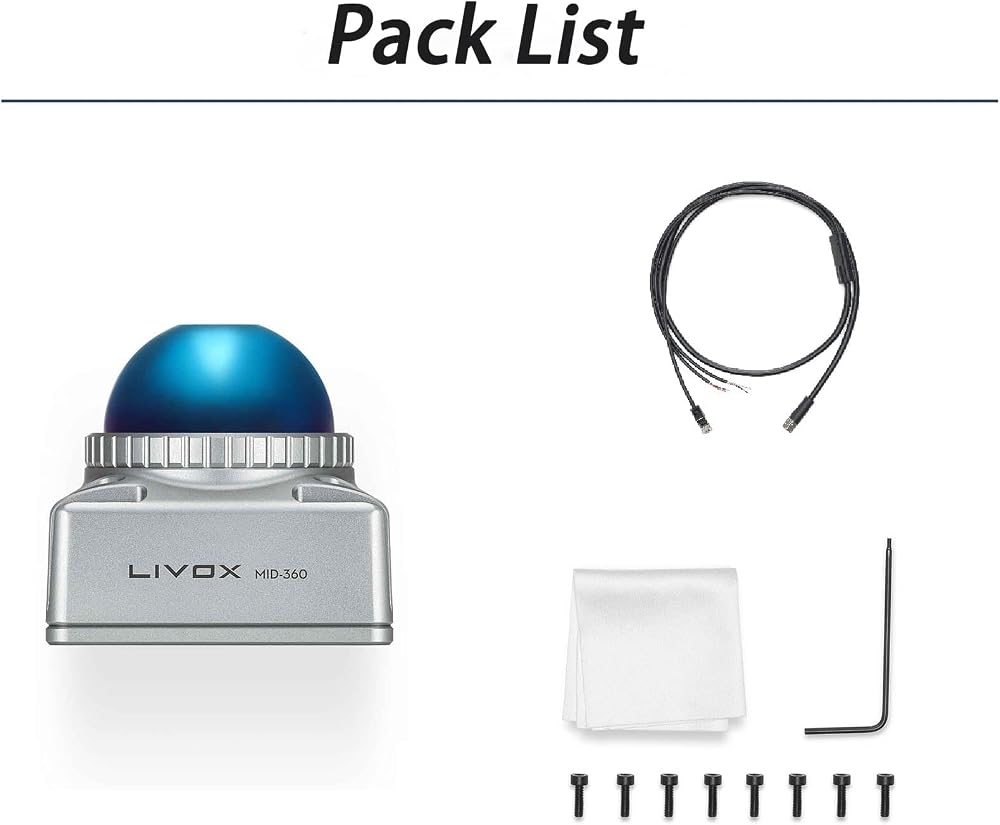

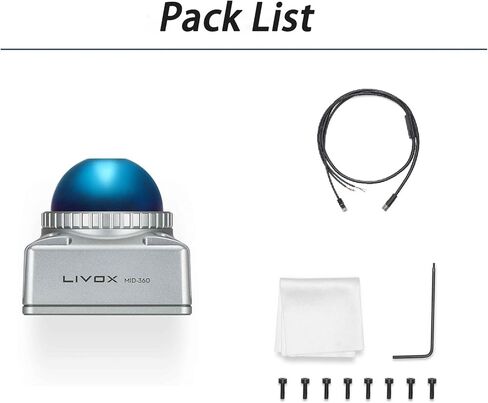

In the Box

Livox Mid-360× 1;Optical Window Cleaning Cloth× 1;L-Shaped Hex Screwdriver× 1;M3 Screws Package × 1
