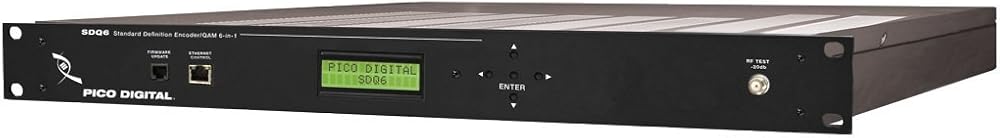

The Pico Digital SDQ6 is a high-performance MPEG2 video encoder that allows the encoding of six composite video and Dolby stereo inputs into a multiplexed QAM and ASI outputs. The single rack spaced SD encoder offers PSIP virtual channel mapping of each channel in addition to EAS and closed captioning. With up to 40 dB of RF output and the ability for remotely controlled access, all these standard features make the SDQ6 the most cost effective encoder in the marketplace. Ideal uses for the SD encoder include commercial residential properties, academic and medical facilities, local area network applications for both CATV and broadcast as well as the hospitality industry.Features:Front panel controls allow program selection from the multiple program transport stream on ASI input.With the optional IP input, the front panel controls allow program selection using IP address and port numberThe BNC ASI input is looped to a BNC ASI output to support additional downstream transport stream processing applications.19 inch 1 RU size for standard rack mounting.Efficient Internal switching mode power supply of fers universal power input from 103 to 250 VAC.Will encode up to six composite video and stereo audio inputs into one QAMQAM modes supported: Annex B, 64, and 256Codec: MPEG 2 MP@ML video compressionFrequency range 54 to 864 MHzMaximum output level 40 dbMv1 RU 19" Rack MountEAS and Closed Caption equippedRemote control via web browserPSIP tables allow user to configure virtual channel map for each channelSpecifications:INPUT INTERFACEVideo In1 Vvp-p, 75Connector6 x RCAAudio Input2 Vrms max.Connector6 X RCA left and rightEAS Video and Audio3 RCA (video, audio L/R), Terminal stripENCODER PROFILEVideo Output FormatMPEG 2 SD MP@ML (ISO13818-2)Video Chroma4:2:0Video Resolution NTSC720 x 480Video Resolution PAL720 x 576 Tags: pico macom, pico digital, sdq6 encoder, qam modulator, rack mount, standard definition
