مميزات خاصة

8 PTC Protected Outputs for Reliable Power Distribution: This access power controller module is equipped with 8 PTC (Positive Temperature Coefficient) protected outputs, guaranteeing a safe and stable power supply to various access control devices (such as maglocks, electric strikes, magnetic door holders). PTC protection safeguards against overloads, enhancing the reliability and lifespan of the connected equipment
Flexible Operational Modes and Trigger Options: It supports both fail safe and fail secure operation for each output, catering to a wide range of access control security requirements. It can be triggered by open collector sink inputs or dry contact signals from access control panels, card readers, keypads, and other control devices, facilitating versatile system integration
Fire Alarm Integration and Intuitive Monitoring: Each output allows for individual configuration for fire alarm disconnect (latching or non-latching). It features a Form “C” relay for integration with the fire alarm control panel (FACP) and LED indicators for output status, enabling seamless integration of fire safety measures and easy visual monitoring of the system
Simplified Installation and Maintenance: Removable terminal blocks simplify wiring and reduce installation time. Clear labeling and LED status indicators make troubleshooting and routine maintenance uncomplicated, ensuring efficient system upkeep
Durable and Certified for Diverse Applications: Listed by UL (UL294) and ULC (ULC S319 05), this module is perfect for access control, CCTV, and security systems in commercial/industrial settings. It operates reliably within a temperature range of 0°C to 49°C, delivering consistent performance across various environments

وصف

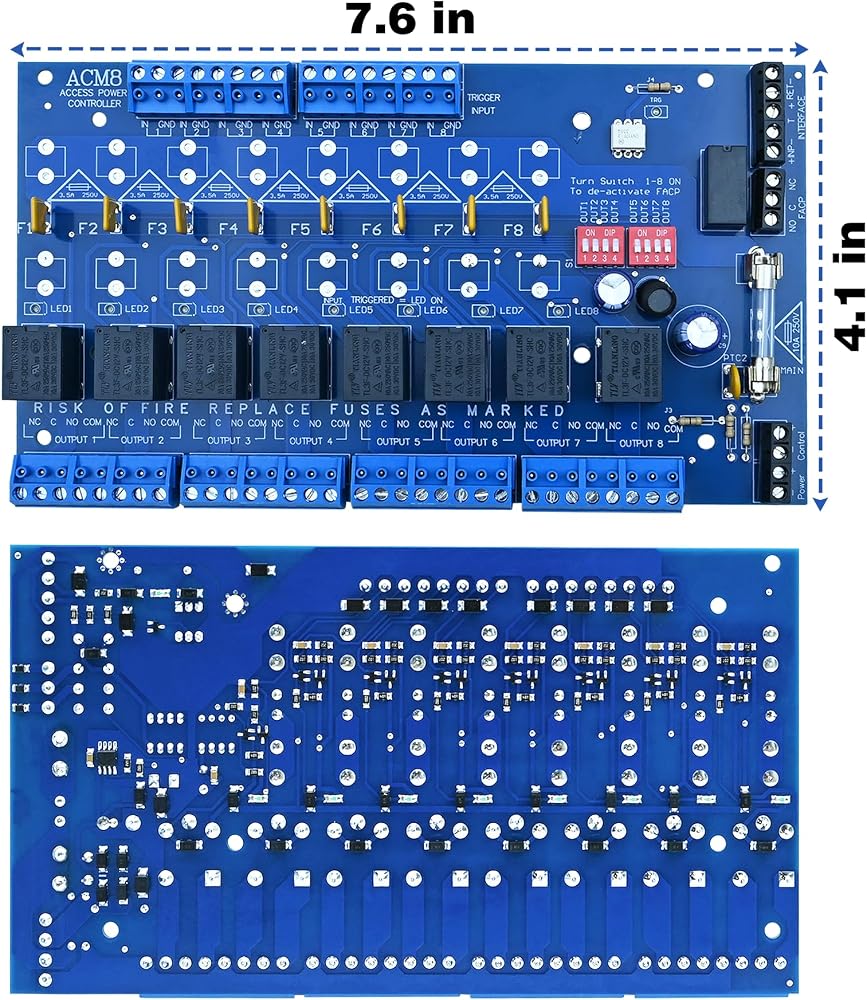

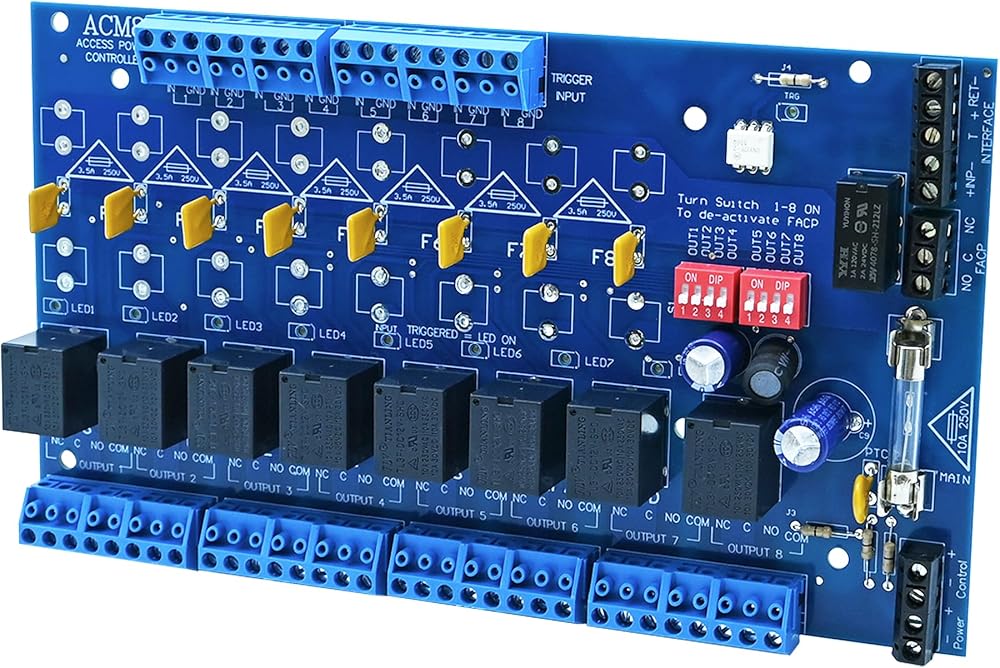

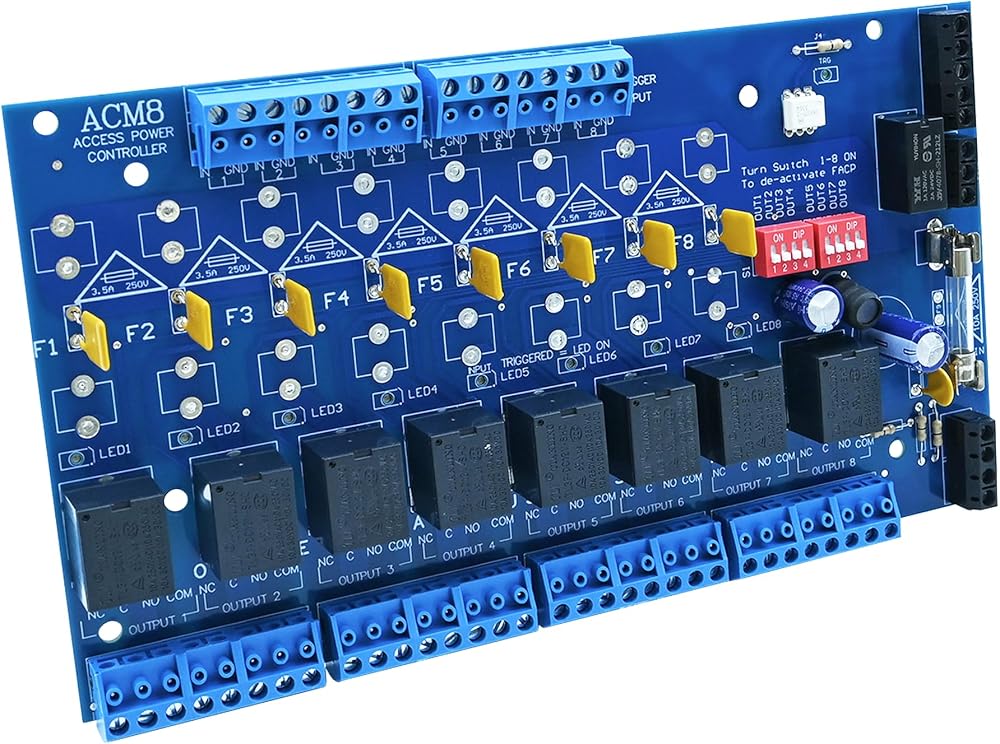

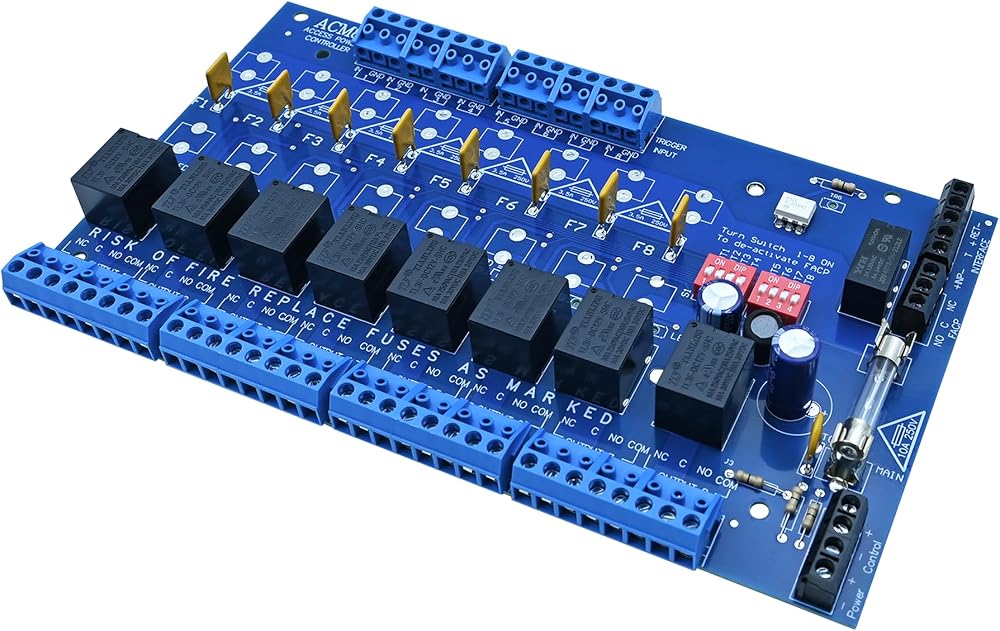

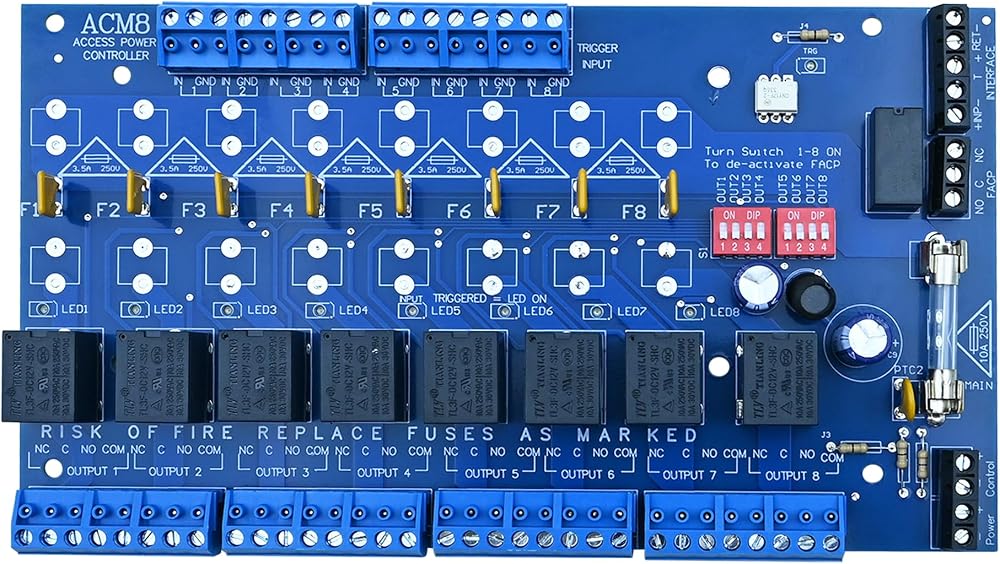

The ACM8 Series includes ACM8 and ACM8CB access power controllers, designed for access control systems. ACM8 has 8 fuse-protected outputs (3.5A each), while ACM8CB has 8 PTC-protected outputs (2.5A each); only ACM8 can convert outputs to dry form "C" contacts. Both convert 12-24V DC input into 8 independently controlled outputs, activated by open collector sink or normally open (NO) dry triggers from devices like card readers or PIR sensors. They power hardware such as mag locks and electric strikes, supporting Fail-Safe and Fail-Secure modes. Power supply options: one common source (for board and locks) or two isolated sources (one for board, one for locks). Input current is 0.5A@12V and 0.3A@24V (all relays energized), with a 10A main fuse limiting total output.
