Main test parameters: color temperature (K), lx illumination, SDCM color capacity, Ra color index, color coordinates, wavelength nm, color purity, light/dark visual ratio (S/P), transmission.
(1) Main applications
1, Commercial lighting, sanitary lighting, home lighting, architectural lighting and other on-site testing.
2, Laboratory R&D validation test.
3, at home, in shopping malls, schools, factories, greenhouses, outdoor spaces such as on-site lighting measurement field;
4. Light source product development, production line quality control and other links
5, Online testing of light source products, sorting, real-time monitoring, etc.
(2) Product Benefits
1. Communication mode: USB.
2. Cross-platform operation: PC software control operation, IPS touch screen control operation.
(3) Main devices
1. TCD1254 CCD Detector, Band Response Range 380-780nm
2. Improved coating network: line number: 600 lines
3. Enhanced Collimator, Focus Lens
4. 16-bit high-speed AD sampling
5. High precision and stable computing circuit
6. High precision optical circuit, small stray light, elimination of higher-order diffraction spectra (cloud spectral filtering system)
(3) Benefits of testing

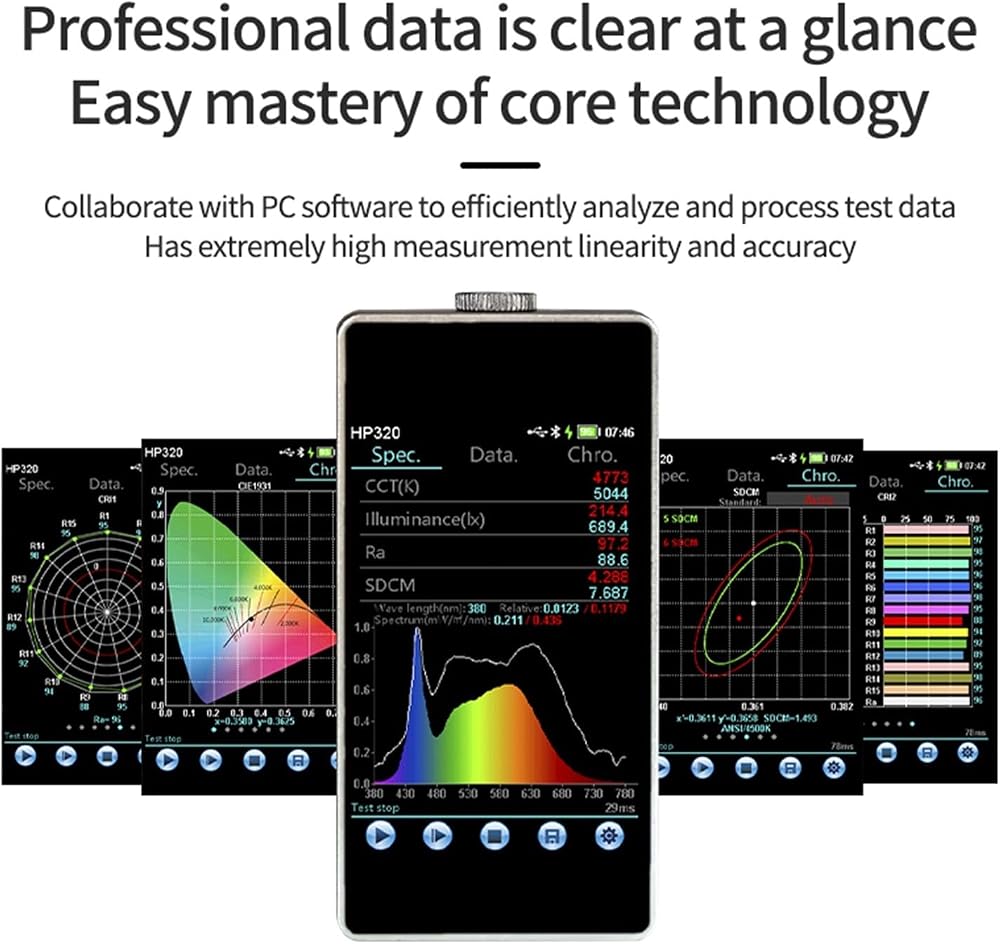

1. Comparison test, light transmission test, parameter comparison (scroll and lock mode)
2. Timing test, synchronization savings (can be checked by light attenuation test)
3. Adjustable wavelength, easy to query (single band easy to view and analyze)
4. Compensation of test results (compensation of test results coefficients for different scenarios and changes in
