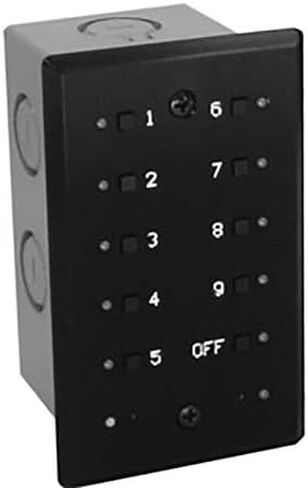

The Doug Fleenor Design PRE10A Preset 10 Architectural is a lighting control station capable of storing up to ten presets The PRE10A actionsRadio Button operation where only one preset may be active at time These presets are recorded by capturing the output of a DMX512 console Each preset can then be assigned a unique fade time from 0 to 999 seconds Presets are recalled by pressing one of the buttons Systems can be created by using one or more stations and a power supply The solid aluminum faceplate is designed to install over a standard single gang electrical box Connections to the Preset 10 Architectural are power 2 wires and DMX512 3wires Power for the Preset 10 can be supplied from a variety of sources including a 10V class 2doorbell transformerThe Preset 10 Architectural system can work in conjunction with a lighting console automatically switching between preset and console control W hen the console generates a DMX512 signal the Preset 10 Architectural goes offline The console then operates normally Upon loss of DMX512 from Features. PRE10A Preset 10 Architectural is a lighting control station capable of storing up to ten presets. Systems can be created by using one or more stations and a power supplySpecifications. Color Black anodized with silver engraved nomenclature. MSTB 255ST508 Order Number 17 57 04 8. Connector Phoenix Get through MSTB series 5 position two part terminal block. InputOutput circuit ESD protected EIA485 transceiver. Indicators Ten green preset indicator LEDs One red Lockout Record LED. User controls Ten preset push buttons One recessed record push button One recessed fade time push button. Option jumpers Master Slave mode selection Pervious preset Hold last look mode selection. Power input 9 to 15 volts AC or DC 200mA per station. Weight 01 lbs
