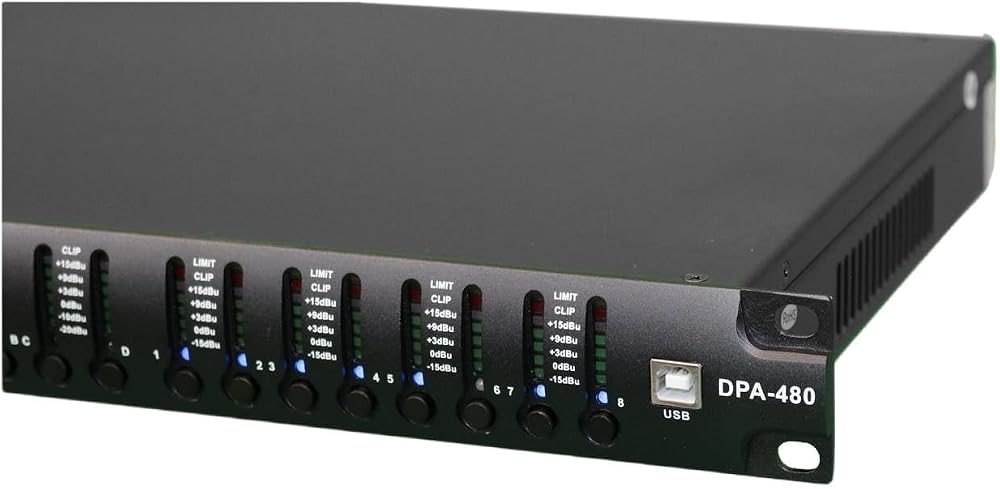

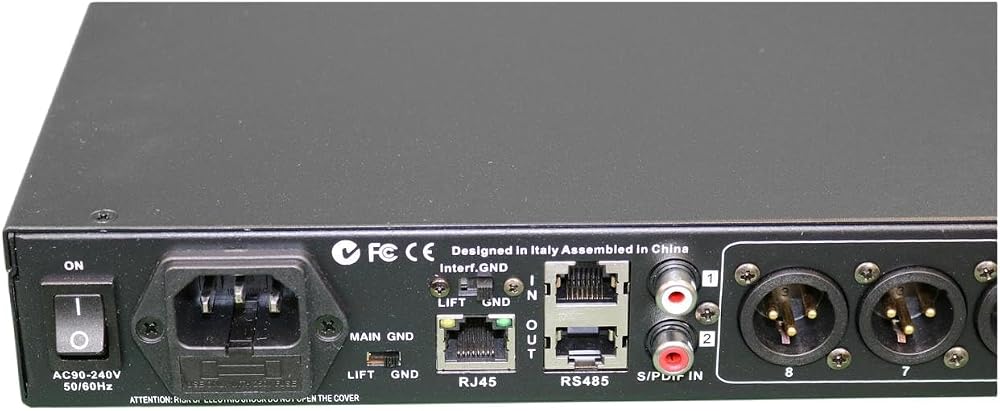

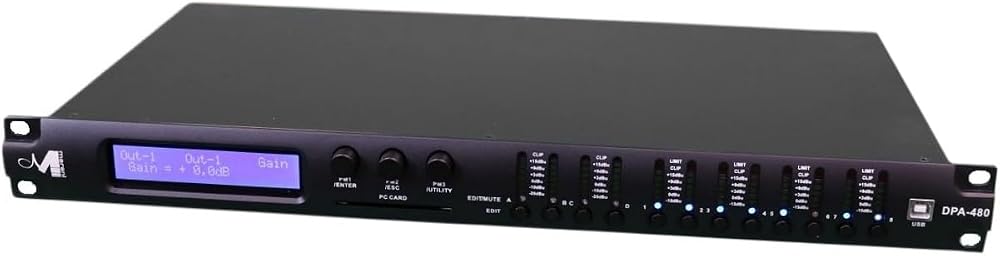

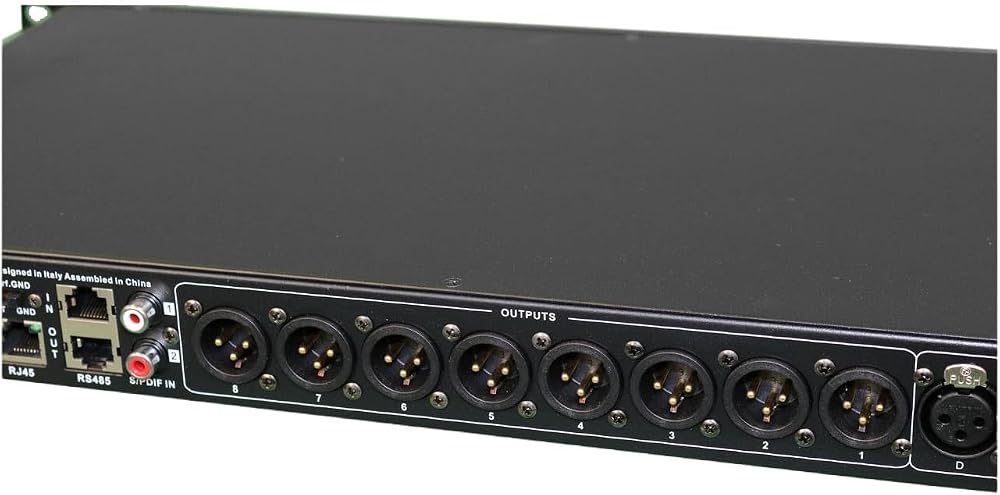

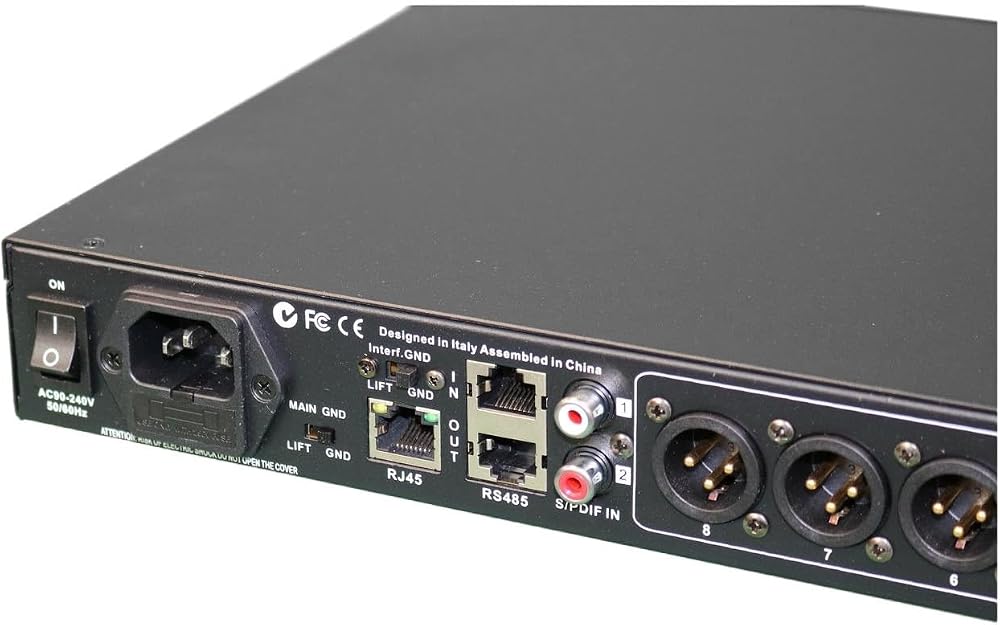

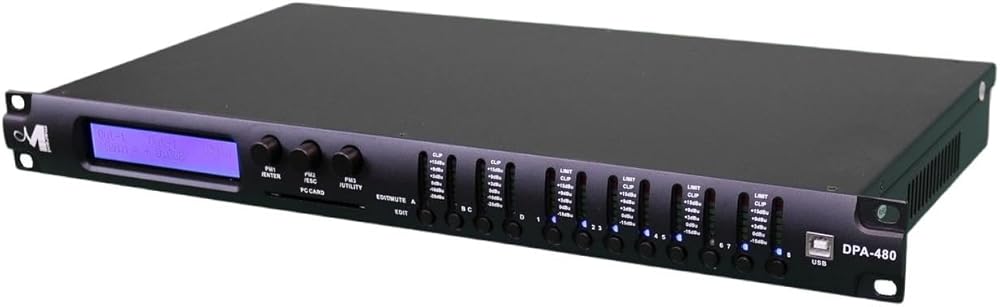

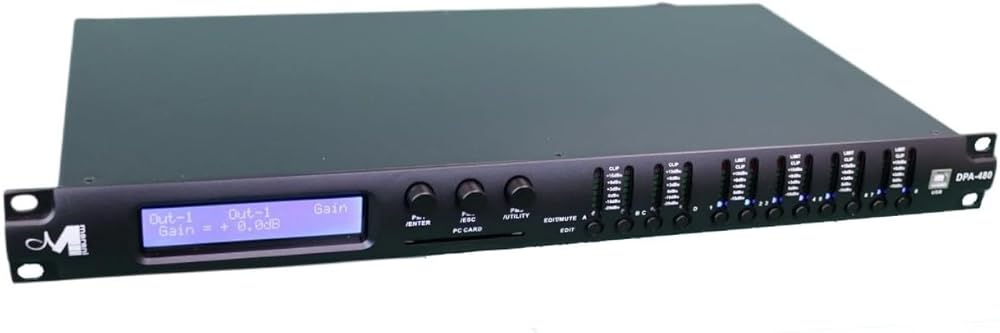

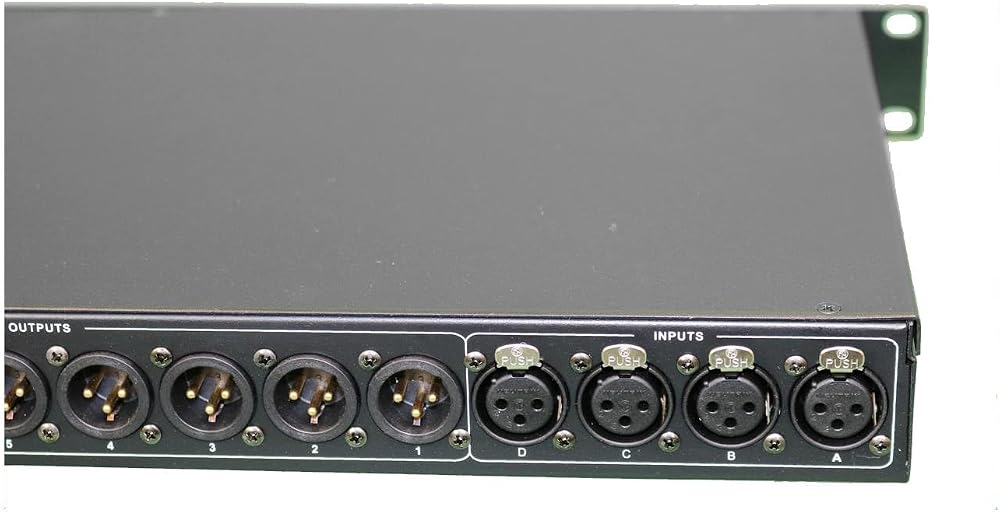

DPA480 is a High End 4-IN/8-OUT digital speaker management system which maintains the same high quality hardware present in former DPA480 versions. Designed for maximum versatility, it provides all the processing and control necessary for both live and fixed installation use. Providing for any crossover configuration, it offers 4 analog inputs, 8 analog outputs and 2 digital S/PDIF inputs, managed by a powerful MARANI® DSP Engine, for a full 96kHz processing, in addition to 24 bit AD/DA Converters. Each input channel provides a choice of EQ with 30-band Parametric EQ, Gain control, Noise Gate, RMS Compressor, Internal White/ Pink Noise Generator,and configurable Delay.Each output offers up to 11-band of parametric equalization, in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 48dB/Octave. Each output path also features Peak Limiter, RMS Compressor and configurable Delay. The DPA480 supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. For remote configuration and control the DPA480 can be connected via USB/RS485/TCP-IP connections. The control remote PC software allows simultaneous control up to 32 units, setting all parameters and showing real time levels. || Applications || Auditoriums | Convention Centers | Houses of Worship | Stadiums and Arenas | Theaters | Touring Musicians | Performing Art Centers | Stage Monitoring System digital || Specifications || Device Presets : 32 User Presets || Front Panel : 2x24 character LCD display with white/blue LED backlight | 7-LED meter per input / output channel -15dBu to +15dBu, clip and limiter mode | Red/Blue Led (Edit/Mute) per channel | PM1/ENTER, PM2/ESC, PM3/UTILITY rotary encoder push buttons | EDIT/MUTE push button per channel | USB type B connector || Rear Panel : 4 x XLR female connector (Input) | 8 x XLR male connector (Output) | 2 x RJ45 connection | 1x RS45 connection | IEC C13 10A connector; Power on/off switch || Main AC : 90-240VAC (50/60Hz) – 40W || Dimensions : 19”x 1.75”x 9.84” (483x44x250mm) 1RU || Weight, Net / Shipping : 7.71 lbs (3.5 Kg) / 8.82 lb (4 Kg) || Features || Outstanding Performance : Excellent sonic performance with 24bit high end converters coupled with 96kHz sample rate | 4 inputs, 8 outputs with full matrix mixing || Direct PC/Network Connection : Front panel USB connector for direct PC communications | Ethernet interface, RS485/TCP-IP connection for system setup, monitoring and control via manageable remote PC software || Control : Front panel interactive LCD display for local access and configuration | Front panel 7-LED level meter indicators per channel | Simultaneous control up to 32 units via PC software | Security Lockout
