Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Features:
Performance & Characteristics
Attenuation ratio: 1× and 10× optional.

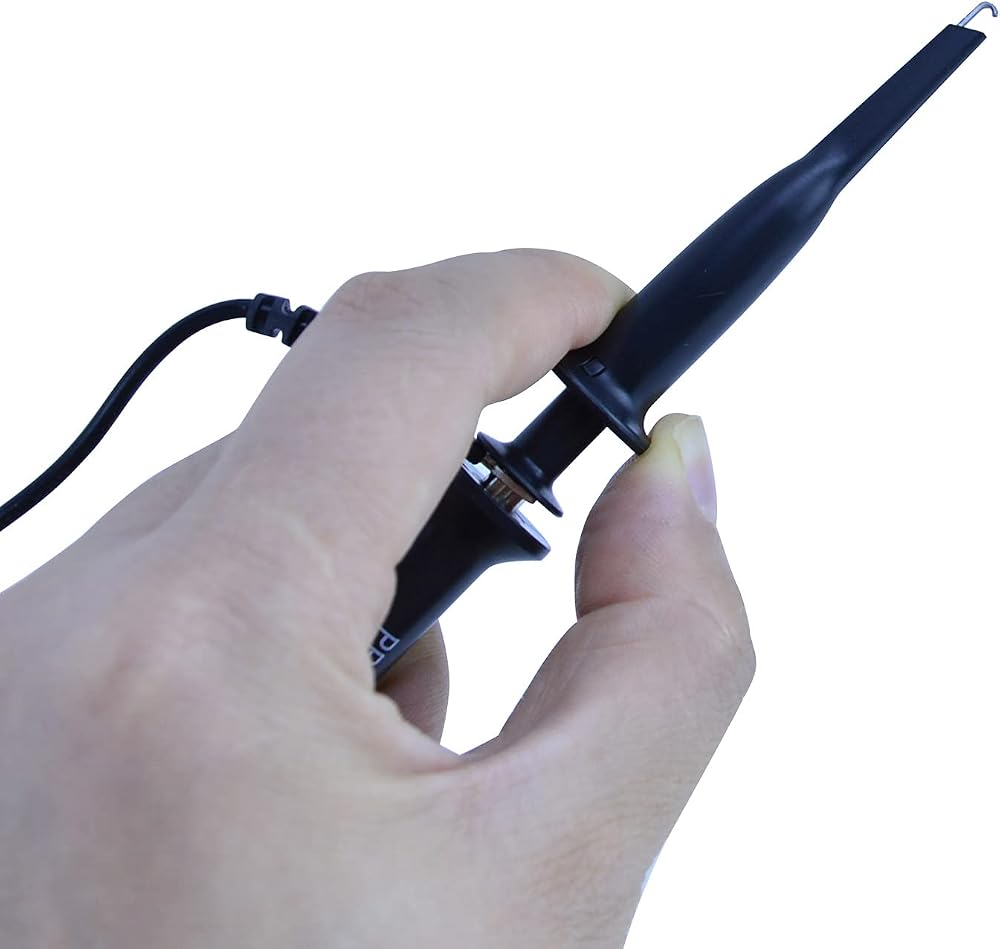

Portable design according with ergonomics.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Safety standards: it has passed the CE Attestation of European Community.
Specifications:
Attenuation:x1 x10
Input resistance:1MΩ: 10MΩ
Input capacitance: x1: 85pF-115pF x10: 18.5pF-22.5pF
Compensation scope: 15pF-35pF
System bandwidth: x1: DC-6MHz x10: DC-200MHz
Input voltage: x1: Cable length:120cm
Temperature scope:Operation: -10℃--+50℃ Not Operation: -20℃--+75℃ Humidity: ≤85% (Relative humidity)
Application Fields:
Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals. Package Including:

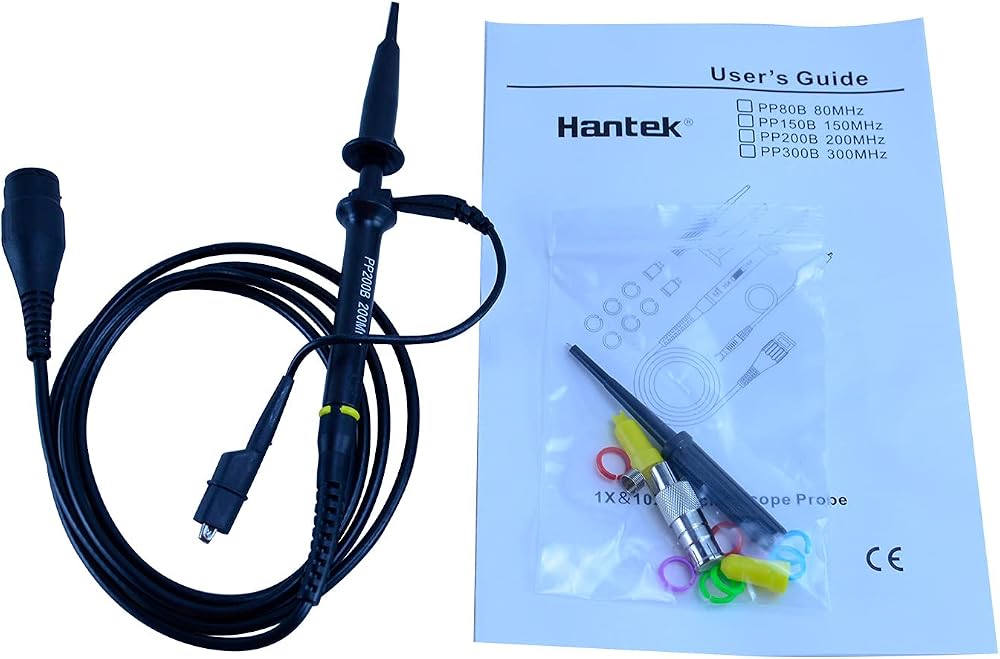

Accessories included by PP series passive voltage rapier
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
● Contractive-type acuminate hook
● 12cm earth wire with alligator clip
● 3 pairs of colorized cable markers
● Locating sleeve adapts to IC testing.
