M-01F Mic Preamplifier Module; Phantom Power for Condenser-Type Microphones; For Balanced, Used in Conjunction with the 900 Series Components and Other TOA's Equipment

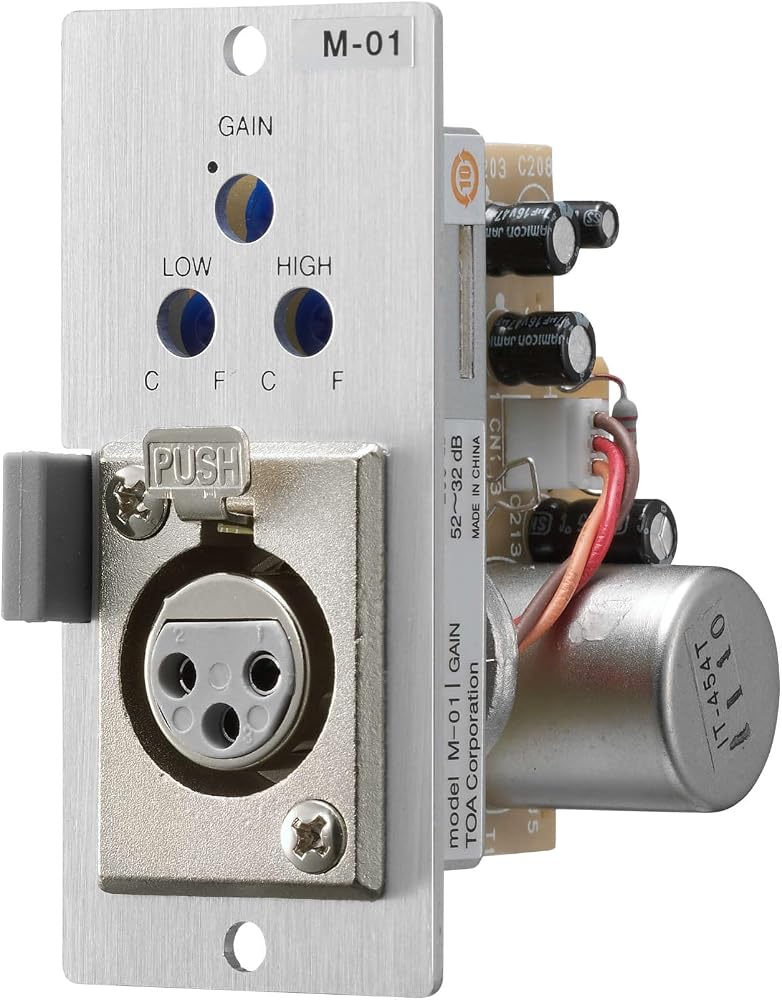

The M-01F is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with female XLR type connector, phantom power supply function, and gain and tone controls

Key Features:
- For balanced, low impedance microphone
- High and low cut filters for tone control
- Phantom power for condenser-type microphones
- Power Supply: 24 V DC
- Connector: female XLR

Specifications:
- Power Supply: 24 V DC (supplied from the main frame)
- Current Consumption: 9 mA
- Input Sensitivity: -60 dB (balanced transformer-isolated)
- Input Impedance: 600 Ohm, balanced
- Frequency Response: 25 Hz - 20 kHz +/- 2.0 dB
- Distortion: 0.05 percent or less (1 kHz, output: 0 dB)
- Noise Level: -86 dB (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB
- Gain: 32 - 52 dB
- Tone Control: 100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB
- Phantom Power: +22 V DC (active or disable selectable)
- Connector: Female XLR connector (XLR-3-31 equivalent
- Dimensions (WxHxD): 1.38 x 3.07 x 3.46 inches
- Shipping Weight: 0.26 lbs.
