StewMac Acoustic Guitar Necks
Save hours of work! Start with these precision machined necks, so you have more time to work on the details that make the guitar your own.

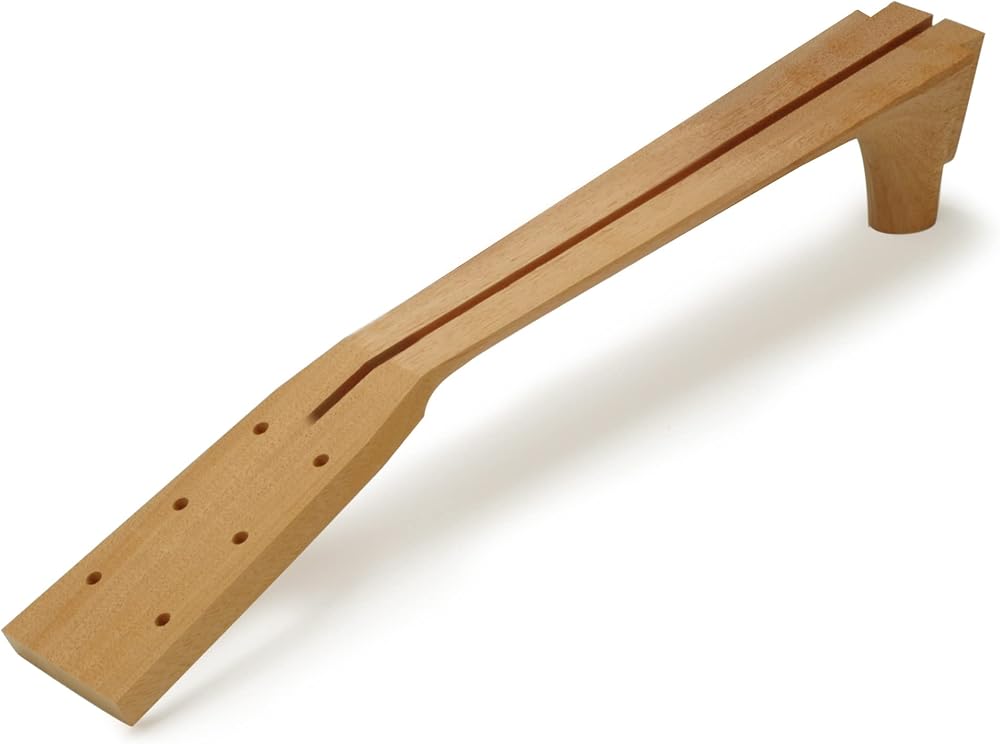

High quality one-piece quartersawn mahogany necks for Martin-style guitars. What's carved for you:
Tuner holes Neck heel
Truss rod slot Diamond contour at the peghead base
Dovetail necks have a traditional "V" mortise neck heel. Matching neck block sold separately.
14-fret neck with solid peghead for Dreadnought or other acoustic guitar with 14th fret at the body. Each neck is slotted for our Hot Rod Truss Rod (item #2551, 4mm Allen nut, 14-1/4" long).
Peghole diameter1/4"(6.35mm)
Peghole spacing1-5/8"(41.27mm)
Width at the nut1-3/4"(44.45mm)
Width at the body2-3/16"(55.56mm)
Truss rod slot width7/32"(5.56mm)
Truss rod slot depth7/16"(11.11mm)
Dreadnought neck
Heel Height3-3/4"(95.25mm)
Dovetail Height3-3/16"(80.96mm)
Tenon Height3-1/32"(76.99mm)
A short mahogany filler insert is included for truss rod installation. Final sanding and finishing are required.
