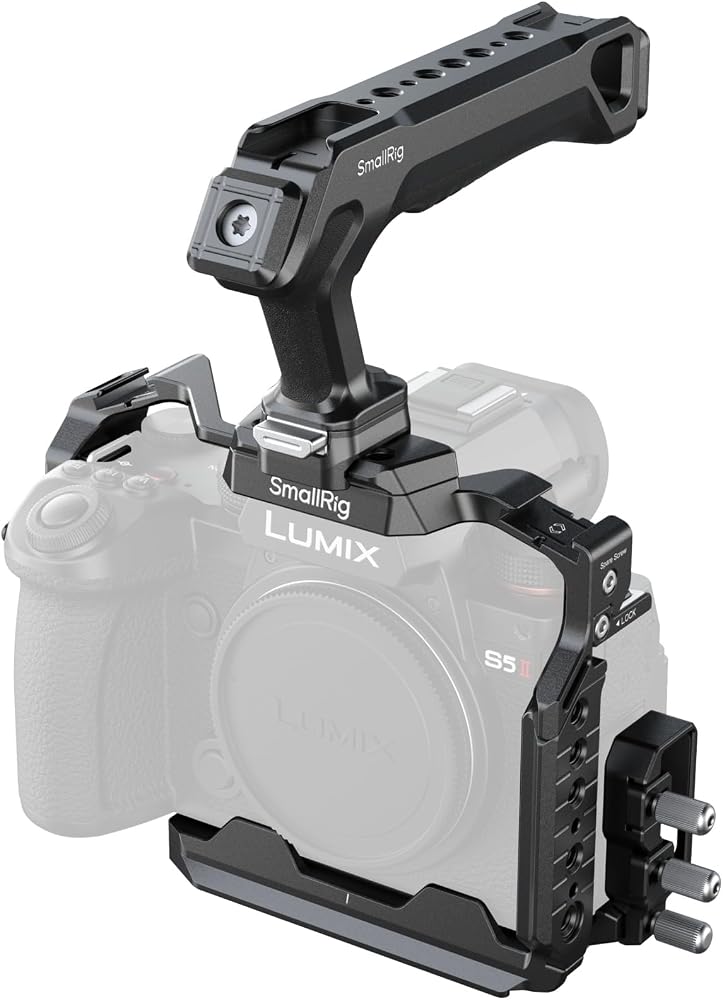

I. Product Title: SmallRig Expansion Frame Kit (for Panasonic G9 II / S5 II / S5 IIX) 5752

II. Features:
1. Dedicated handheld kit for easy camera movement and portability.
2. Fast Eagle slide-type lifting handle for quick assembly and disassembly, switching between horizontal and vertical shooting modes.
3. Cable clips secure both cables for HDMI and USB-C, using thumb screws for quick, no-tools-required setup assembly and disassembly.
4. Multiple accessory mounting ports on the expansion frame and handle allow for expansion of monitors, microphones, fill lights, and other accessories.
5. Built-in quick release for Arca plate on the expansion frame base allows for versatile shooting and quick switching: Compatible with camera tripods for Arca and for DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, and RS 4 Pro stabilizers.

III. Description

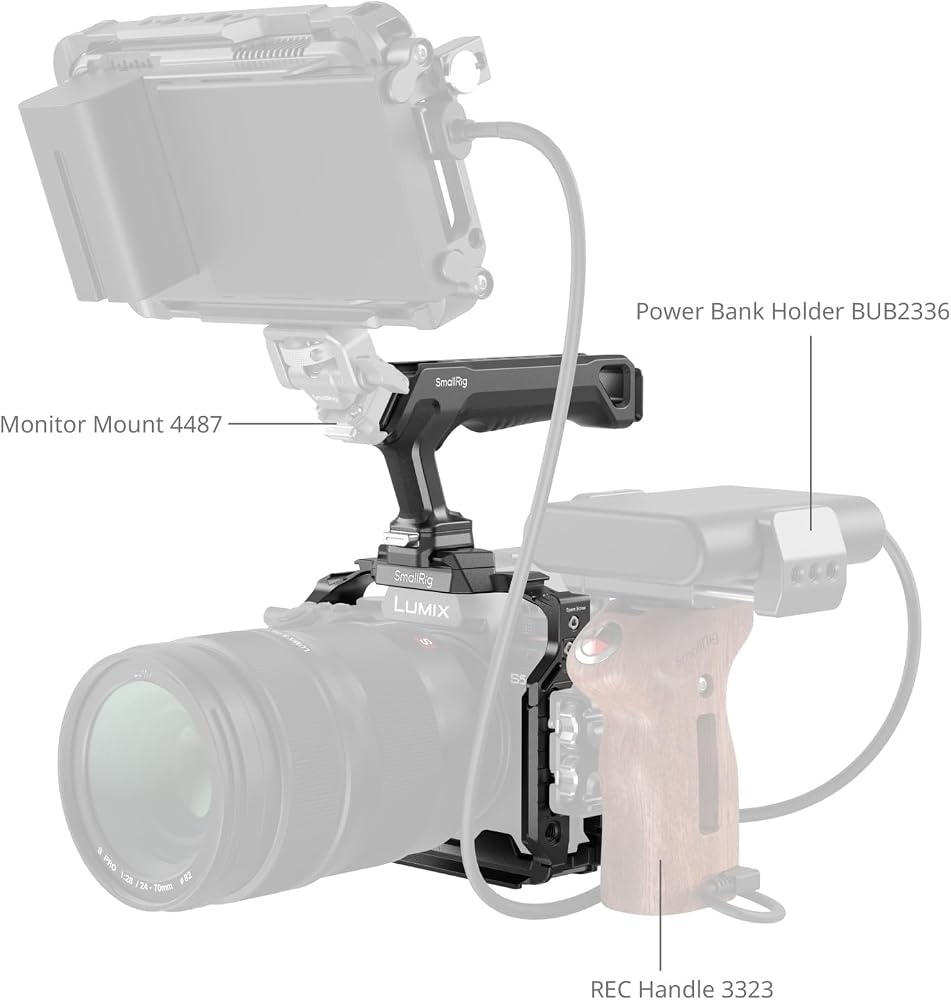

The SmallRig Expansion Frame Kit (for Panasonic G9 II / S5 II / S5 IIX) 5752 is designed to facilitate handheld shooting, camera movement, portability, and accessory expansion. The kit includes the expansion frame, cable clips for HDMI & USB-C, and a top handle. The top handle attaches to the expansion frame via a Fast Eagle slot interface, allowing for quick assembly and disassembly, and switching between landscape and portrait shooting. The ergonomic design provides a comfortable grip. The clip secures both HDMI and USB-C cables and features thumbscrews for quick, no-tools-required setup assembly and disassembly. The expansion frame and top handle feature multiple 1/4"-20 threaded holes for expanding the electronic side handle 3323. The kit also includes multiple cold shoes for mounting accessories such as SSD mounting clips 5196, microphones, lights, and monitors. Multiple 3/8"-16 locating holes support expansion of the monitor bracket 2903B. The Fast Eagle slider on the left side of the expansion frame allows for expansion of the sliding slot rotating handle 4485. The expansion frame also features wrist strap ports on both sides for attaching a wrist strap, and a built-in magnetic double-ended wrench on the bottom for easy assembly and disassembly, ensuring ready access.

Notes:
1. Before installing the expansion frame, use the wrench on the bottom to remove the locking clamps on both sides.
2. The expansion frame is compatible for Panasonic DMW-XLR1/XLR2, but the included handle is not. If you need to use a camera for Panasonic DMW-XLR1/XLR2, we recommend using the camera for Sony XLR-K1M/K2M/K3M for Panasonic DMW-XLR1/DMW-XLR2 Handle 3082. Before using the 3082, please remove the XLR cable clip on the bottom.

IV. Compatibility:
for Panasonic LUMIX G9 II
for Panasonic LUMIX S5 II
for Panasonic LUMIX S5 IIX

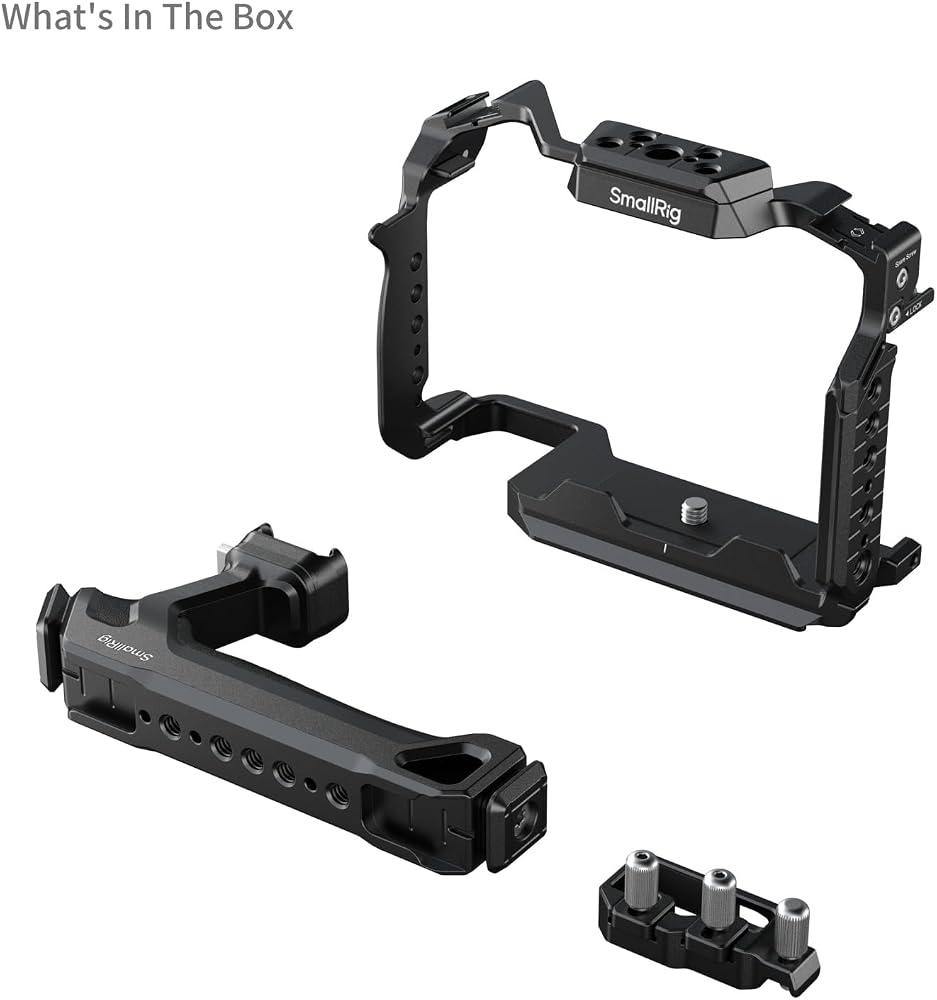

V. Packing List:
Expansion Frame × 1
Cable Clip for HDMI & USB-C× 1
Handle × 1
Instructions × 1
Warranty Card × 1

VI. Product Specifications

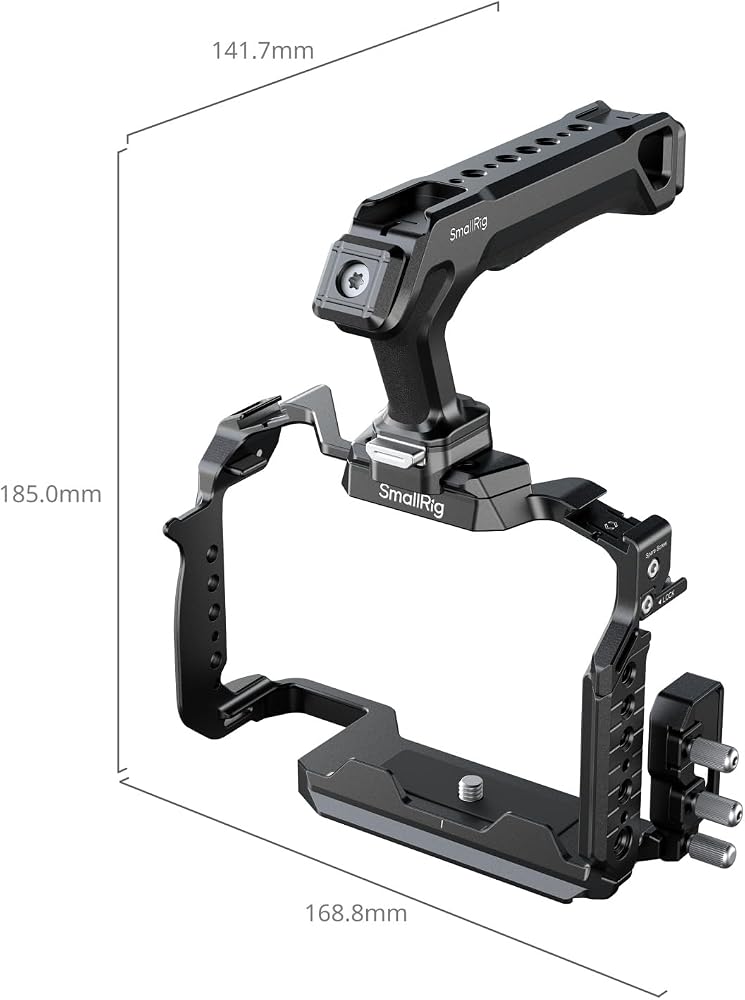

Product Dimensions: 168.8 × 185.0 × 141.8mm
Packaging Dimensions: 180.0 × 138.0 × 67.0mm
Product Weight: 356.0g
Packaging Weight: 459.0g
Material: Aluminum Alloy, Stainless Steel, Silicone

VII. Related Products
4902, 5147, 4702, 3322, 3082, 4485, 5196, 4903
