Specification:

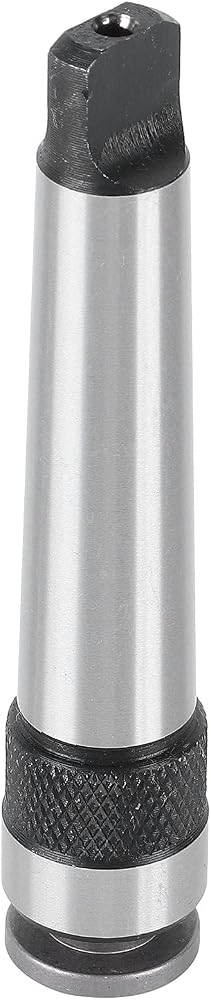

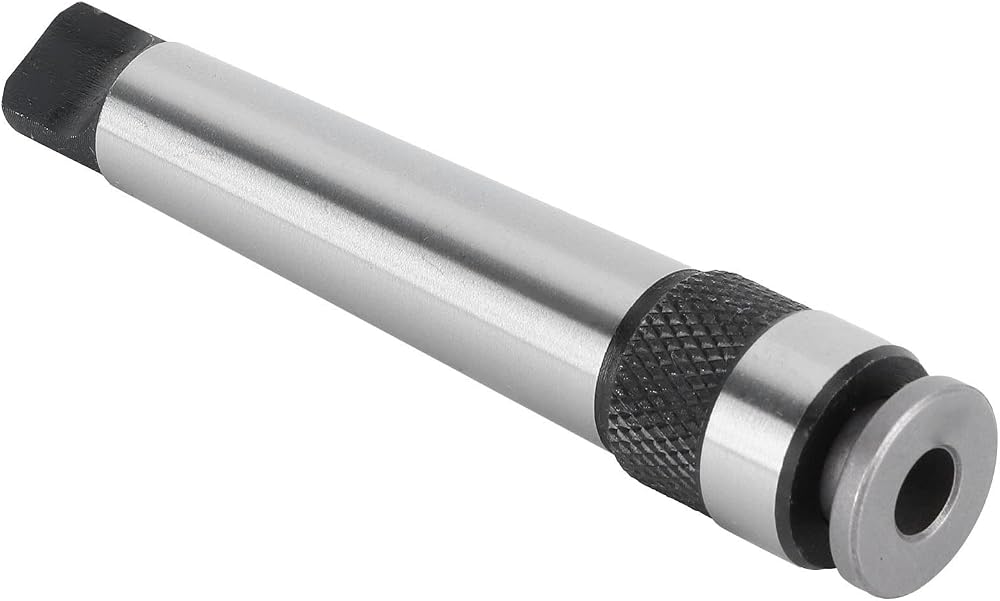

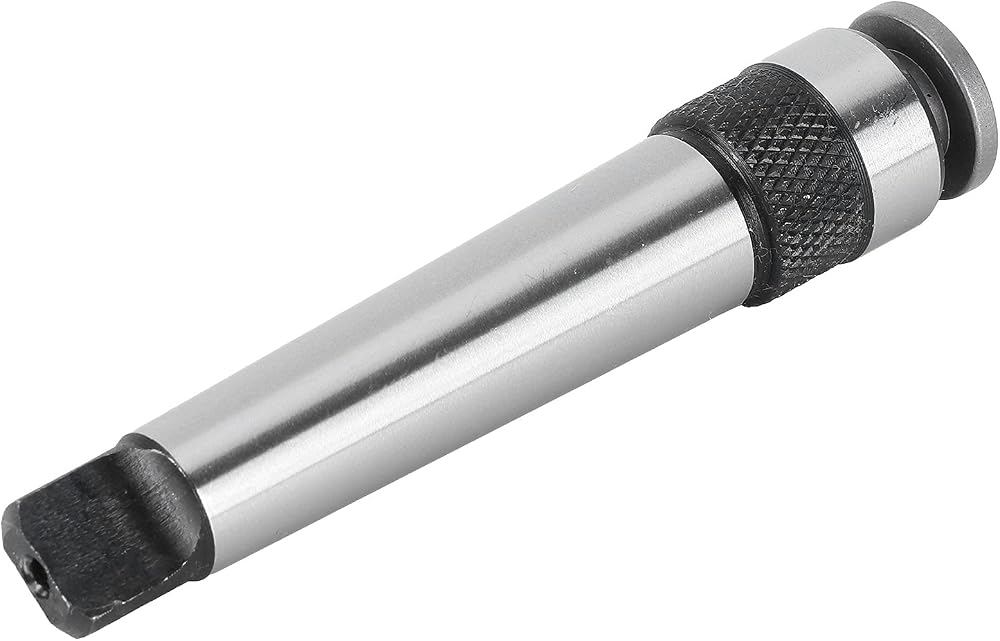

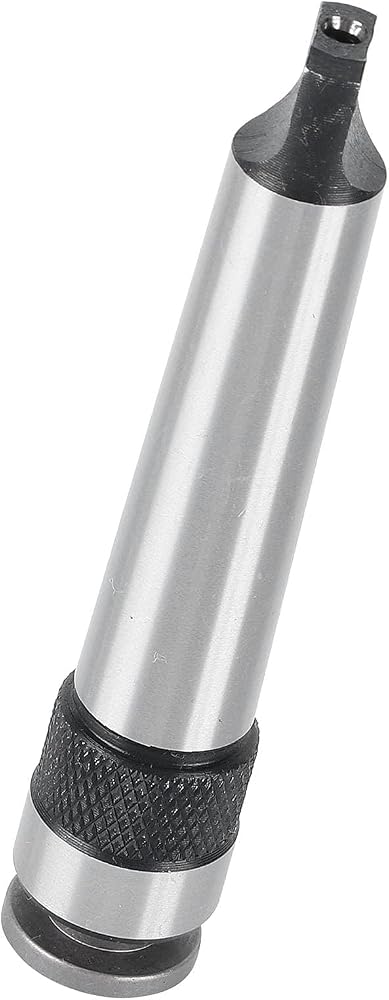

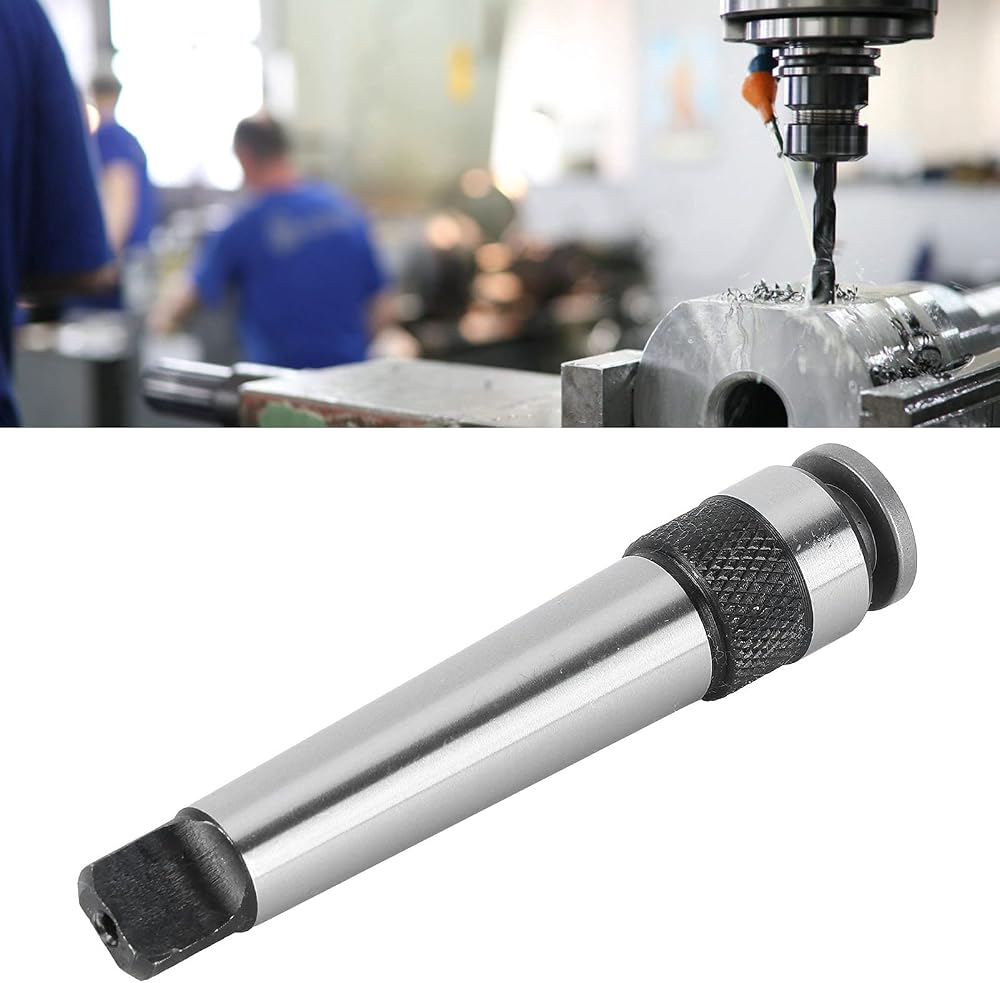

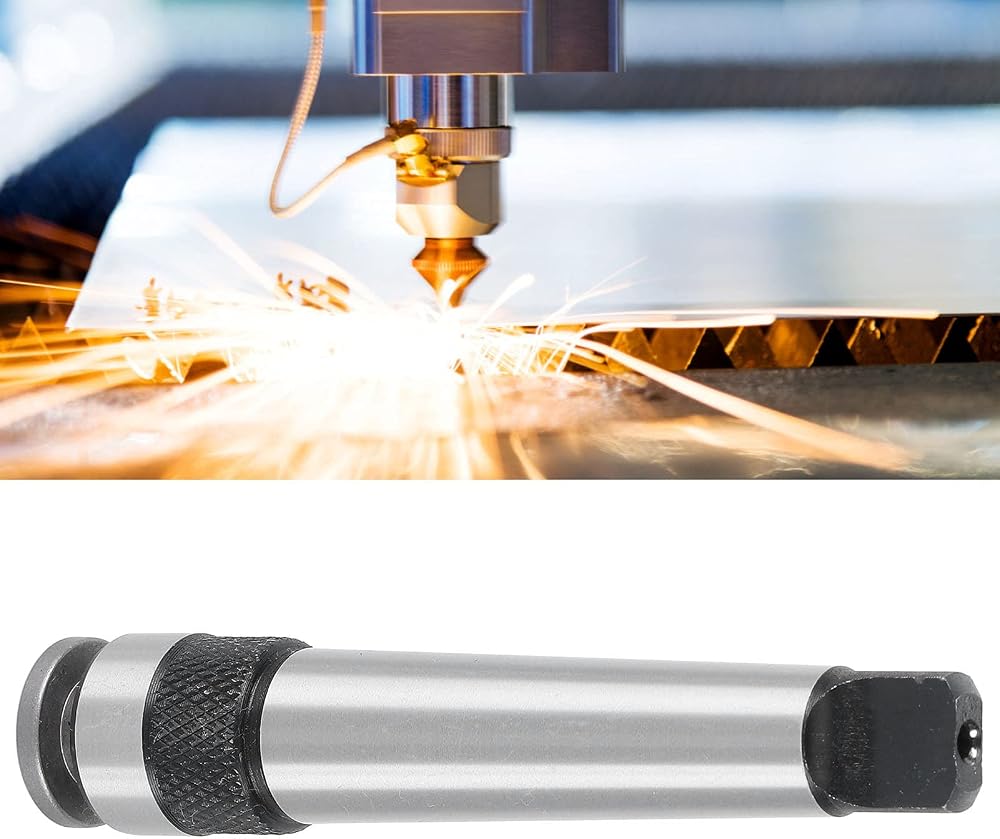

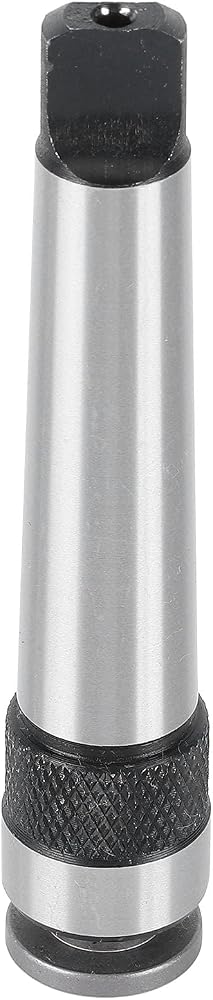

Item Type: Tapping Chuck
Specification: MT2
Model Example Description: MT2-M10
MT2 Means: The model of the tool holder is Morse taper conversion tool holder
M10 Means: The clampable taps are M10 type
Material: 40Cr
Uses: Used for tapping hole of spindle hole of the lathe, tail hole of the lathe, drilling machine, milling machine, and various cutting machine tools
Model D1(approx.) d(approx.) w(approx.)
MT2-M6-8 17.780mm / 0.7in 6.3mm / 0.2in 5mm / 0.2in
MT2-M10 17.780mm / 0.8in 8mm / 0.3in 6.3mm / 0.2in
MT2- 17.780mm / 0.9in 9mm / 0.4in 7.1mm / 0.3in
MT2-M14 17.780mm / 0.10in 11.2mm / 0.4in 9mm / 0.4in
MT2-M16 17.780mm / 0.11in 12.5mm / 0.5in 10mm / 0.4in Tap Handle Diameter(D): Approx. 17.780mm / 0.7in

Package List:
1 x Tapping Chuck

Notice:
1. Install the correct type of taps, and do not blindly install over‑travel and damage the chuck.
2. After use, please clean up the remaining impurities on the chuck in time to avoid affecting the accuracy of the chuck.
