Wide Compatibility - Suitable for various lead-acid batteries (including open, sealed, AGM, etc.). The controller automatically recognizes 12V/24V. When installing for the first time, please ensure that the battery has sufficient voltage so that the controller can recognize it as the correct battery type. b1 is lead-acid battery (12V/24V automatically recognized); b2 is lithium-ion battery(3 series of 11.1V lithium batteries); b3 is lithium iron phosphate battery(4 series 12.8V), and the factory setting is by default b1.
Tracking Charging - The MPPT controller continuously detects during the charging process, conducts bidirectional focusing tracking, and automatically focuses and tracks charging. The MPPT tracking efficiency can reach up to 99.9% at most. The charging efficiency is 15% to 20% higher than that of general controllers. Bidirectional moss tube anti-backflow circuit, high-power charging mode, ultra-low heat generation.
Industrial-grade Main Control Chip - 30A MPPT controller adopts an industrial-grade main control chip. High sampling accuracy, with precise and real-time display of temperature, charging current and discharging current, making the power generation clear at a glance. The complete 3-stage charging management effectively protects the battery and makes your battery last longer.

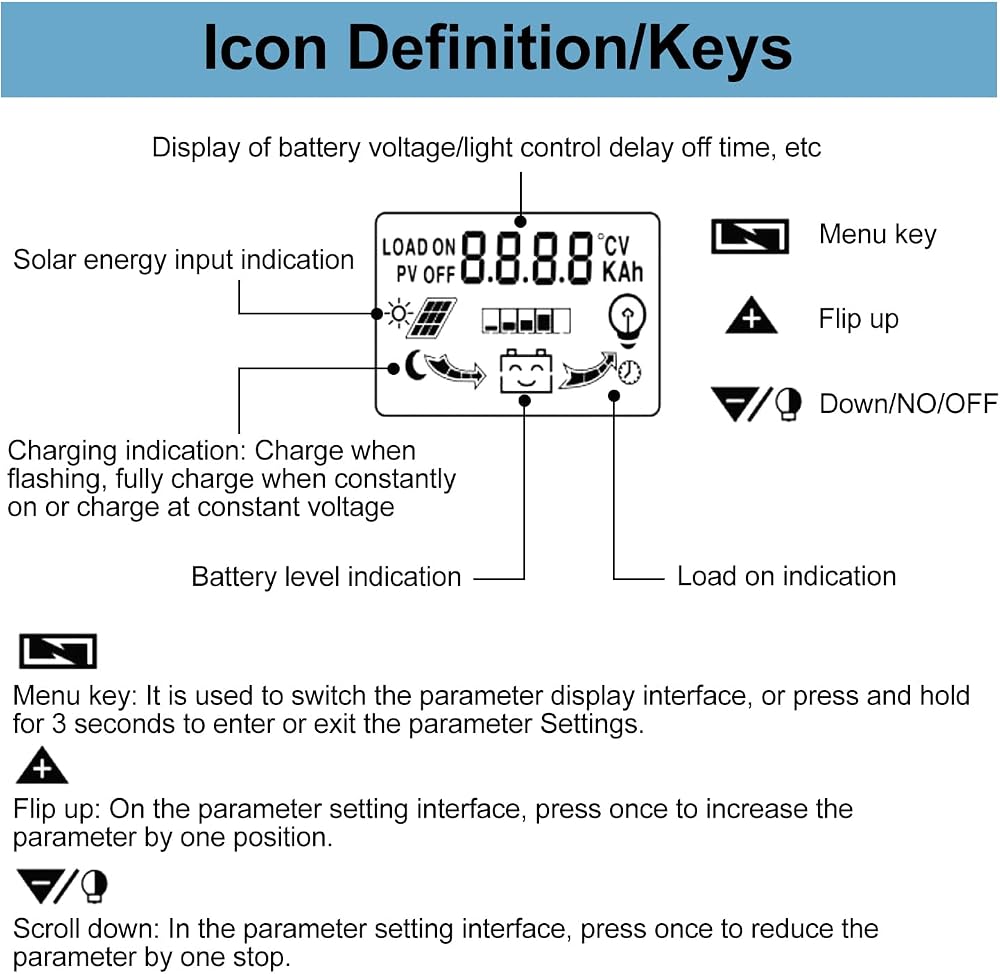

LCD Real-time Display - Large-screen LCD display that can show charging and discharging currents; Cumulative generated and discharged electricity; Temperature; Light control + delay control; Moreover, the charging and discharging parameters are adjustable. It has functions such as power-off memory. There is no need to reset the battery when it runs out.
Reliable Protection - The controller is internally equipped with overcurrent, short circuit, open circuit, reverse connection, overcharge, temperature control, reverse current prevention, overload, low voltage and other protections, all of which are self-recovering types and will not damage the controller. This ensures the stable operation of the system and extends the battery's service life.

وصف

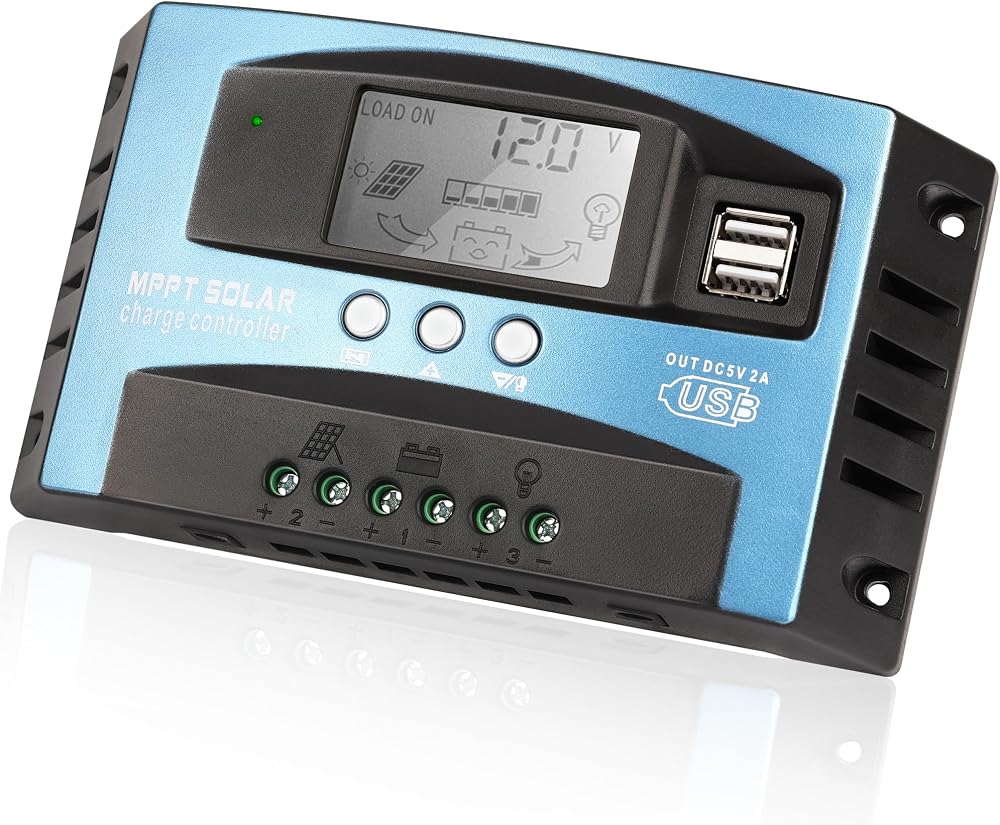

30A MPPT Solar Charge Controller Technical Specifications:

Batt voltage: 12V/24V auto
Charge current: 30A
Discharging current: 10A
Max solar input: For 12V batteries: 15-23V solar panels, for 24V batteries: 30-46V solar panels
Float charge: 14.2V (default, adjustable)
Discharge stop: 10.5V(default, adjustable)
Discharge reconnect: 12.6V (default, adjustable)
Voltage of open light: Solar panel 8V(Light lights delay)
Voltage of close light: Solar panel 8V(Light off delay)
USB output: 2 way USB output, 5V/2A(MAX)
Self-consum: Operating temperature: -35~+60°C

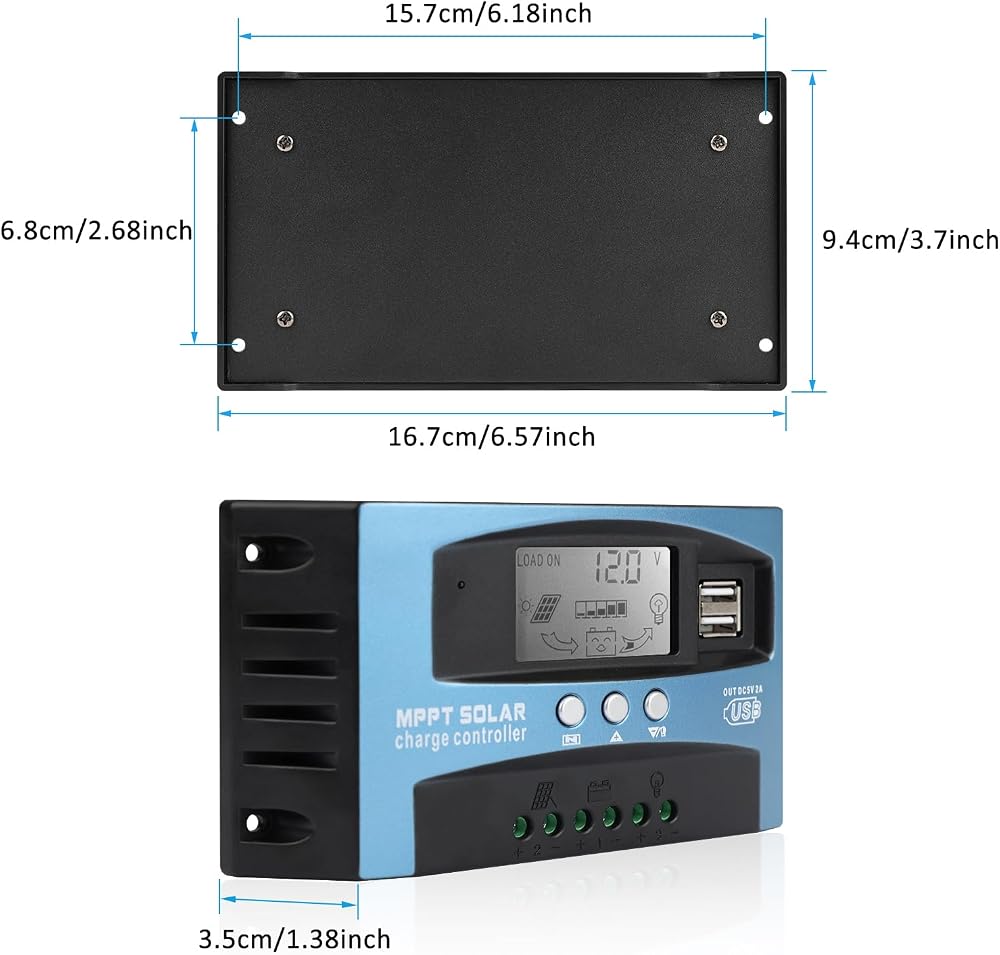

Size/Weight: 168*95*45mm/300g

Features of 30A MPPT Controller:

1.Adopt industrial-grade main control chips;
2.Large-screen LCD display;
3.Temperature display;
4.Light control + delay control;
5.The charging and discharging parameters are adjustable;
6.Functions such as power-off memory;
7.Charging and discharging current display;
8.Cumulative power generation and discharge volume inquiry;
9.Complete 3-stage charging management effectively protects the battery and makes your battery last longer;
10.Dual USB output, with a maximum current of 2A, supports charging for mobile phones, headphones, tablets and other devices;
11.Bidirectional focusing tracking, bidirectional moss tube anti-backflow circuit, high-power charging mode, ultra-low heat generation;

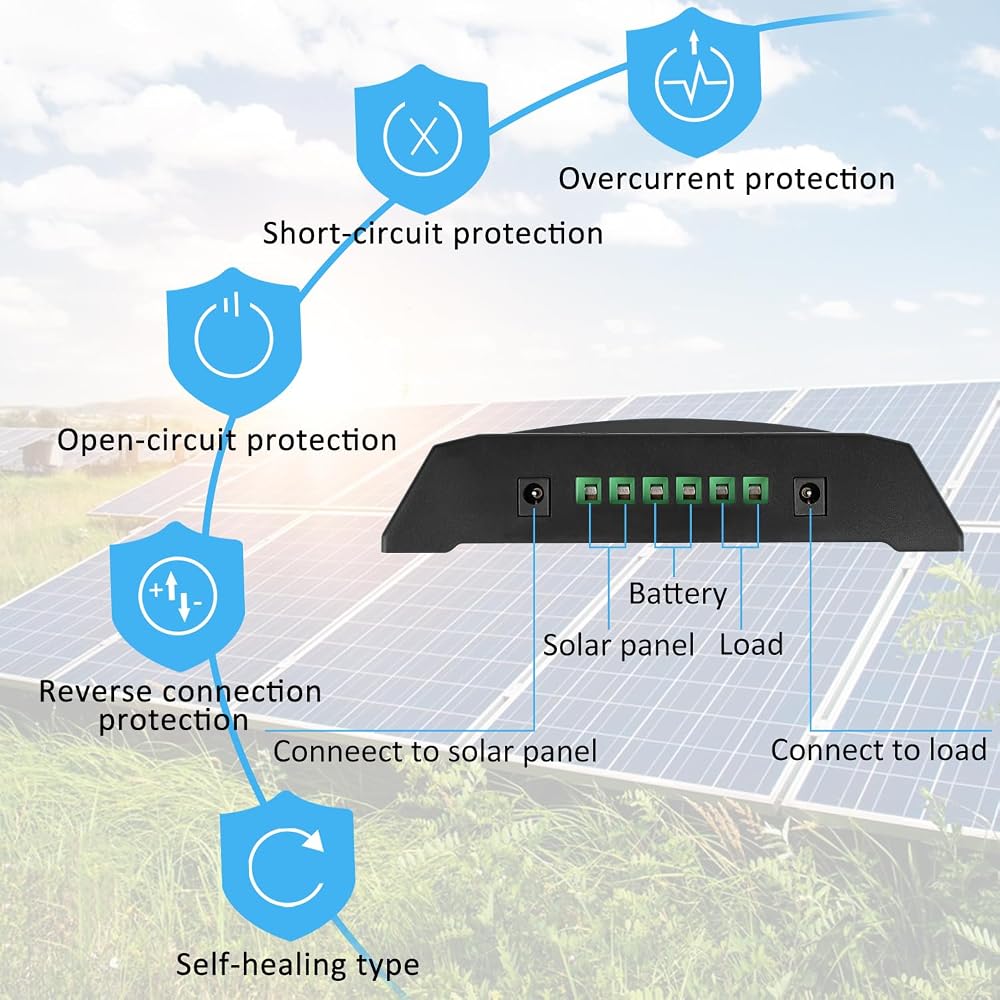

12.It is equipped with built-in overcurrent protection, short-circuit protection, open-circuit protection and reverse connection protection, all of which are self-recovering types and will not damage the controller;

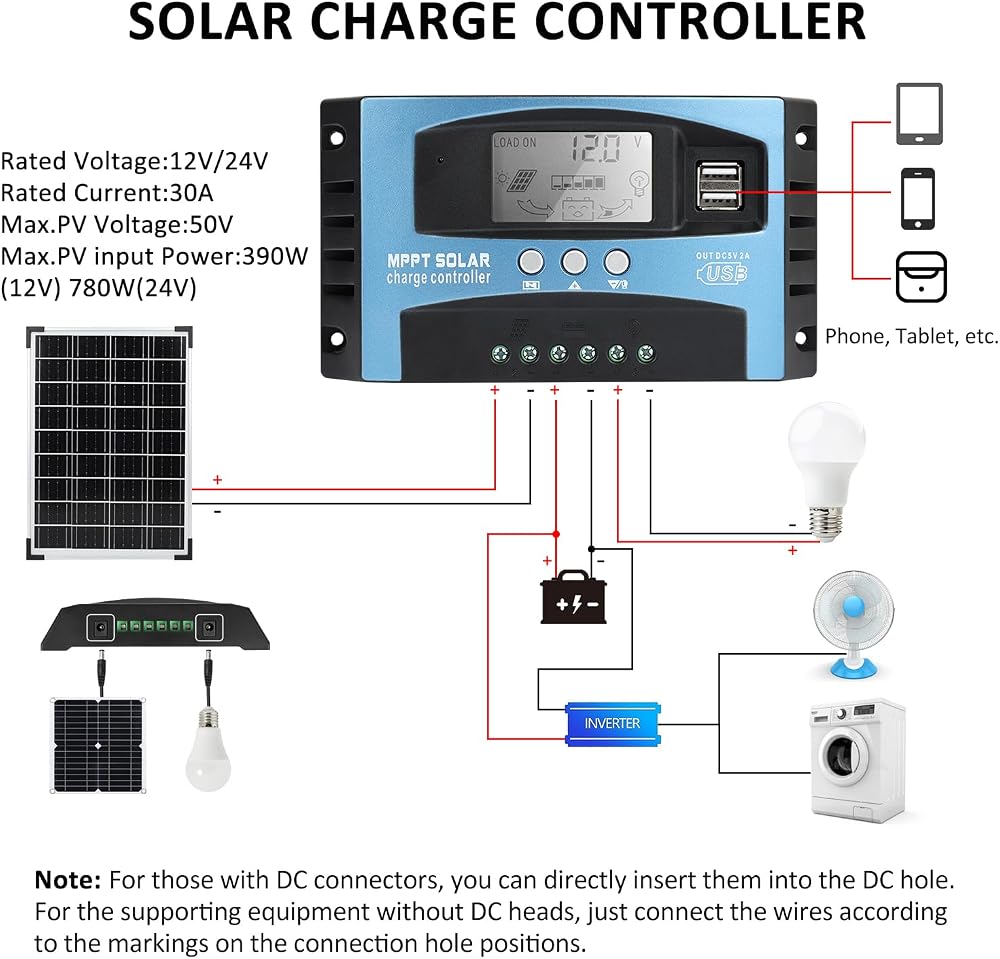

13.Dual DC interfaces, including a solar charging DC socket and a DC lamp output DC socket, can be connected to products with DC connectors;
14.Solar panel power plants, DC load equipment, lighting fixtures, digital products, charging equipment for mobile phones and tablets, power-consuming equipment for camera tools, etc.

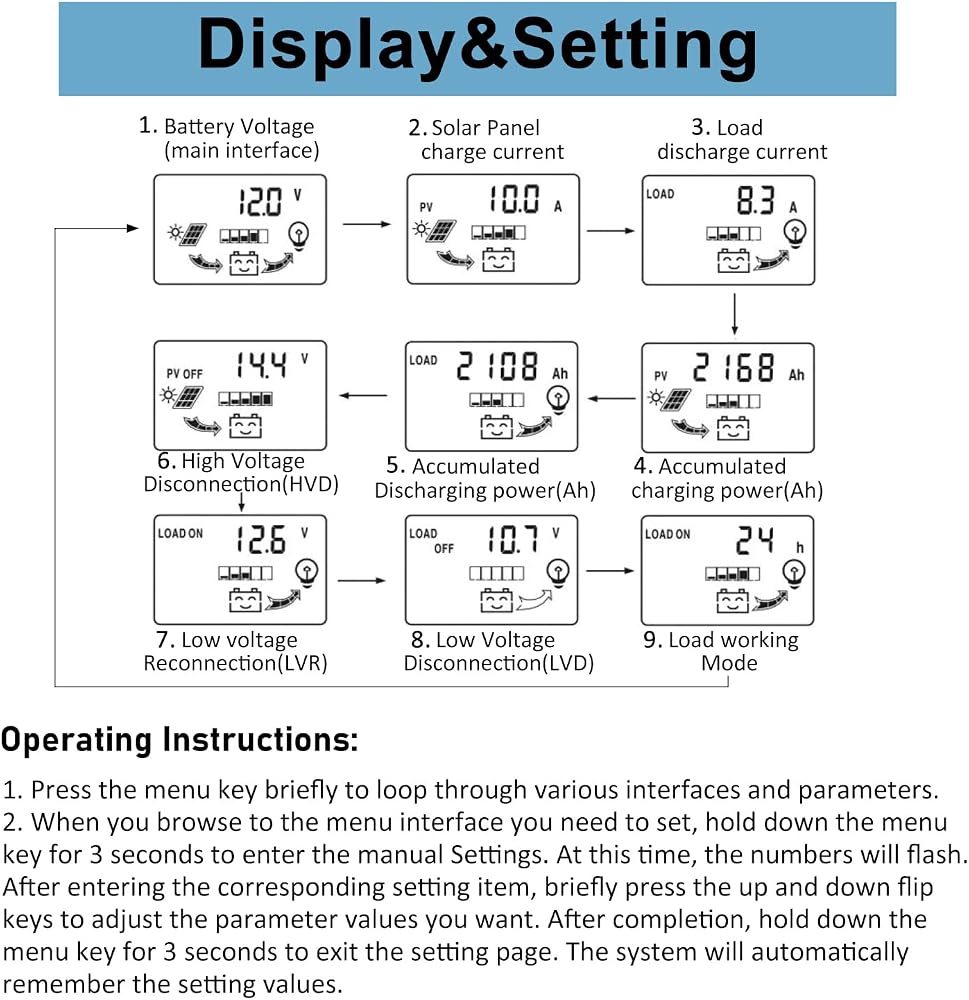

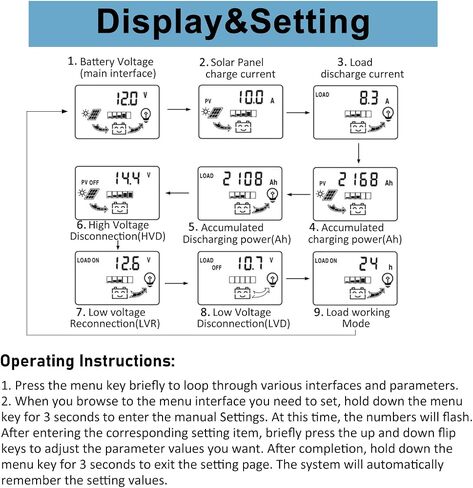

Function Declaration:

1.Discharge recovery voltage: refers to the battery discharge. Protection, the battery voltage to restore voltage, open the output.
2.The discharge cut-off voltage: refers to the battery discharge to the voltage when the load off, to protect the battery, to prevent the battery over discharge damage.
3.Load operation mode:
【24H】Load output 24Hours (except for battery under voltage)
【1-15H】Load on after sunset and closed after setting hours
【0H】Dusk to dawn

What You Get:

1* 30A MPPT solar controller
1* English operation manual

Quality Service:

We provide 12 months replacement and warranty after-sales service. If you have any questions, please feel free to find us, we will do our best to solve your problems.
