Vehicle Fitment:
For 60-62 Chevrolet Chevy Truck
For Chevrolet C/K Series 60-62
For Chevy C10 V8 Pickup Truck
For GMC Chevy Suburban Panel Truck 60-62
For 60-62 GMC Chevy Apache Pickup Truck
Interchange Part Number: MC6062
Other Part Number: 6062 CC6062, EC6062, MC6062 ,KKS6062
Manufacturer Part Number: RA-CHEVYT60-3, RA-CHEVYT60-2

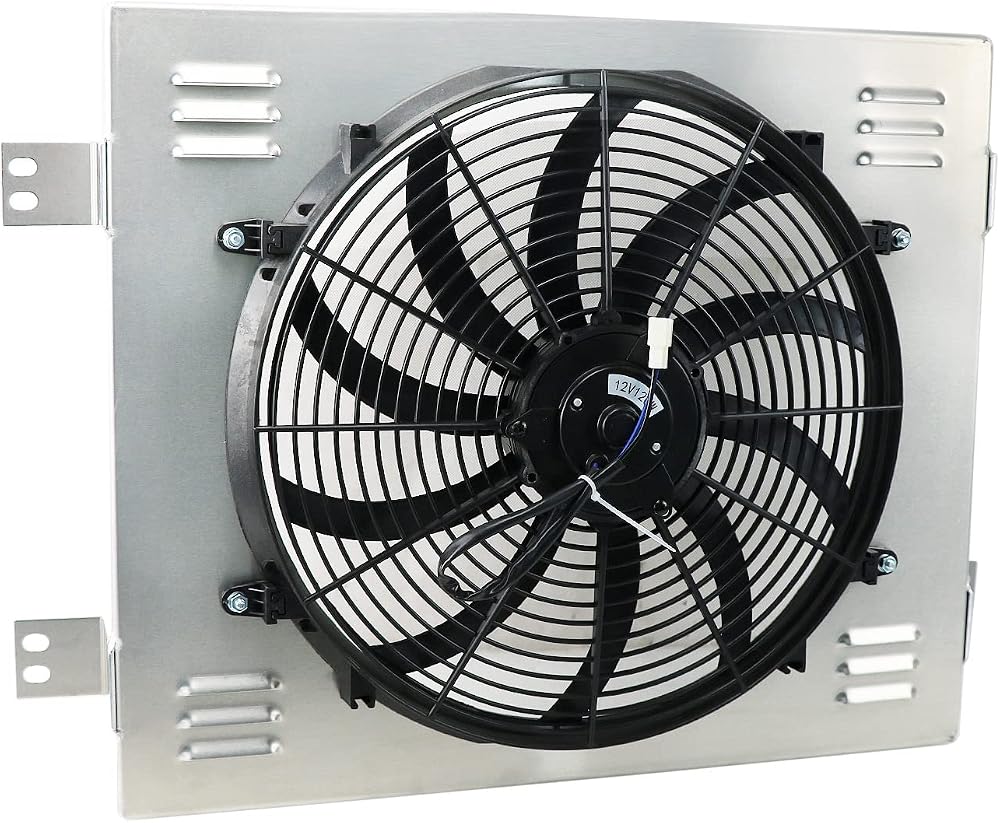

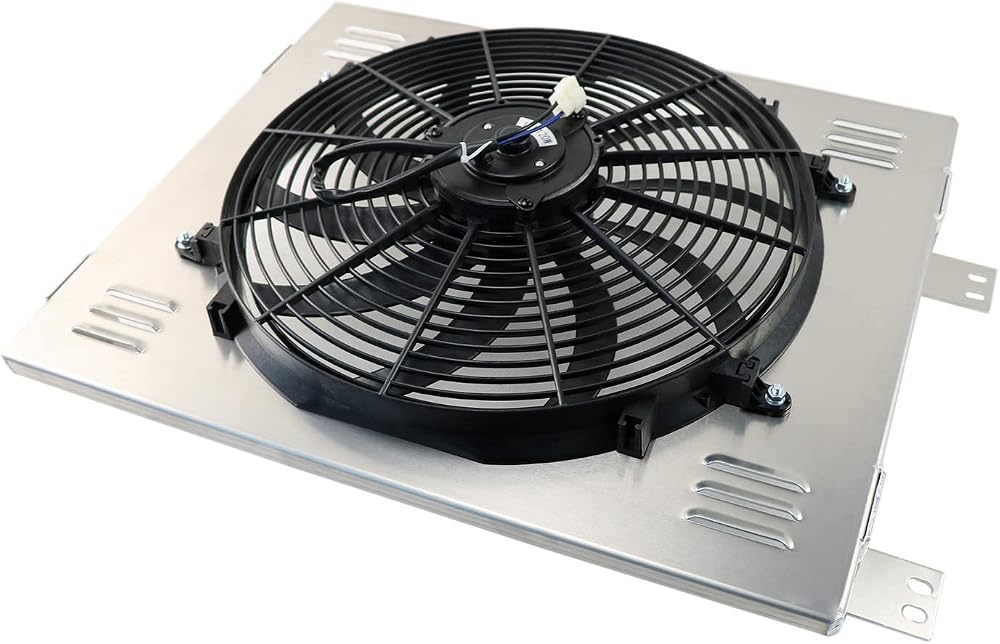

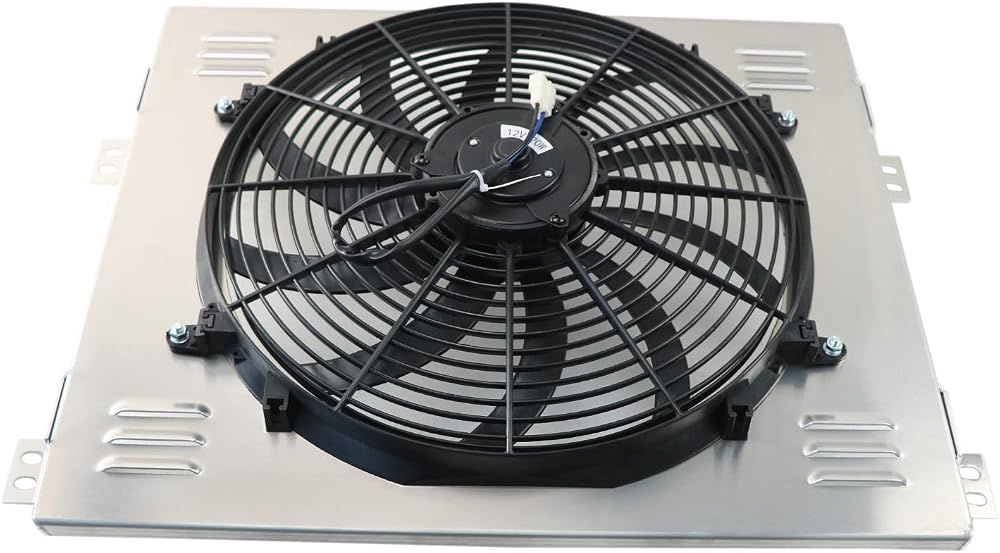

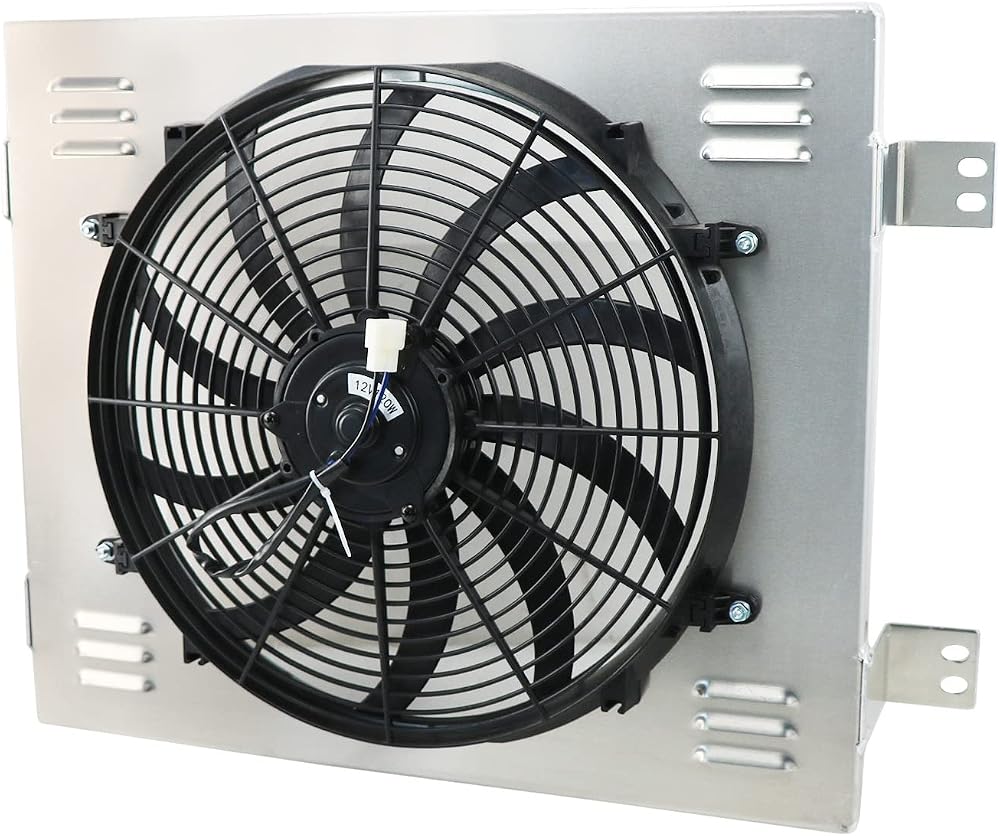

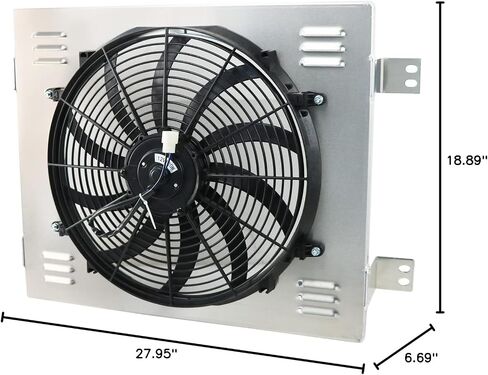

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps

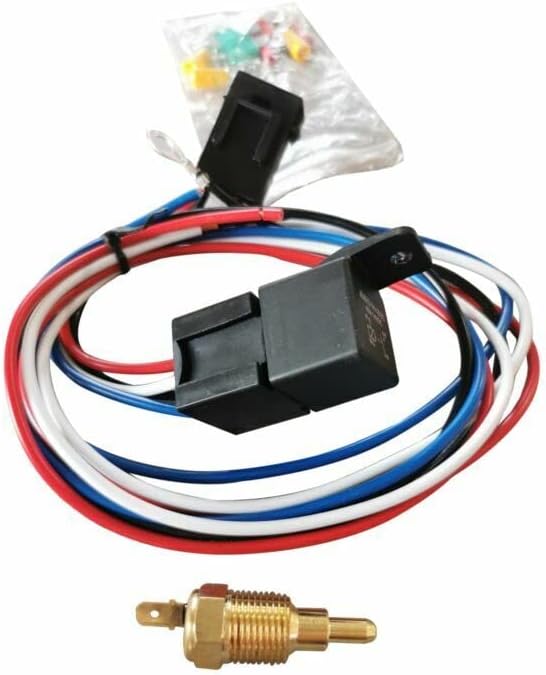

Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe
Probe typically threads into radiator, water outlet or manifold.

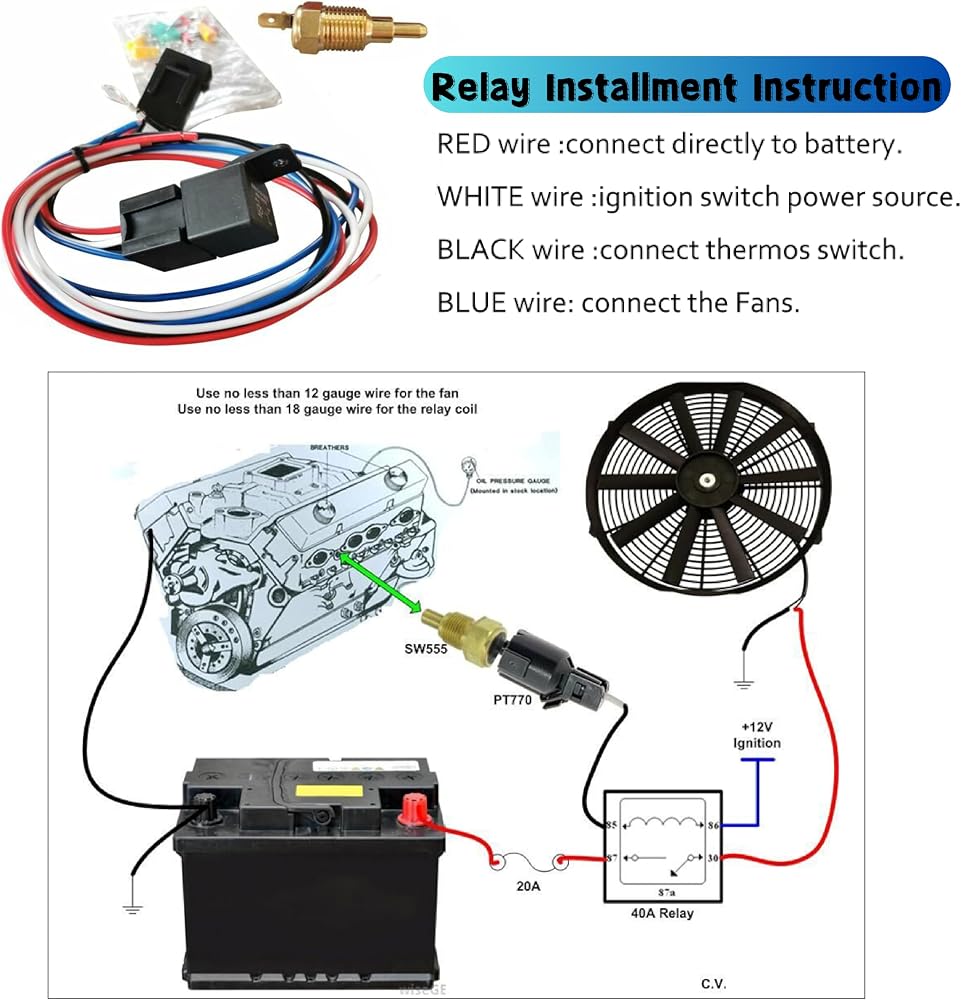

RELAY KIT INSTRUCTIONS:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
