Compatible with Polaris models:
General 1000 EPS 2016-2023
General 4 1000 EPS 2017-2022
RZR 4 900 EPS 2017-2018
RZR S 900 EPS 2017-2020
RZR Trail S 900 Sport 2021-2024
RZR S 1000 EPS 2017-2021
RZR S4 1000 EPS 2019-2021
RZR Trail S 1000 2021-2024

Part Number and Dimensions:

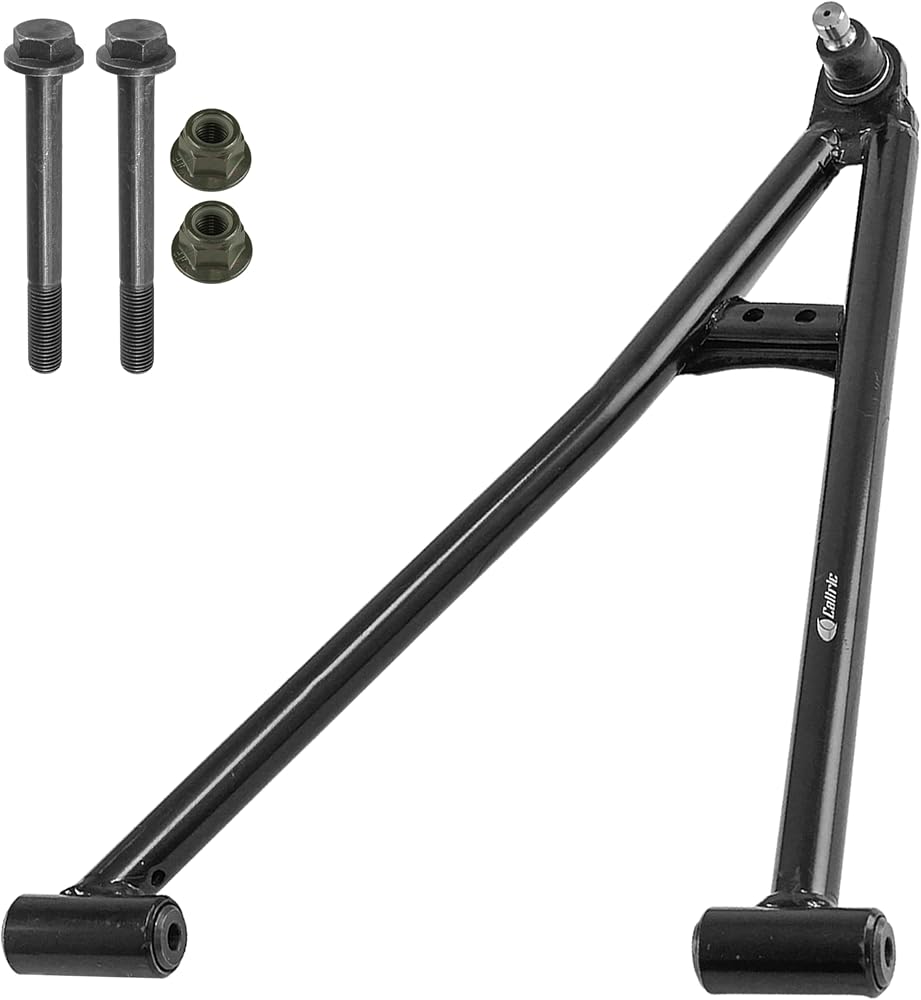

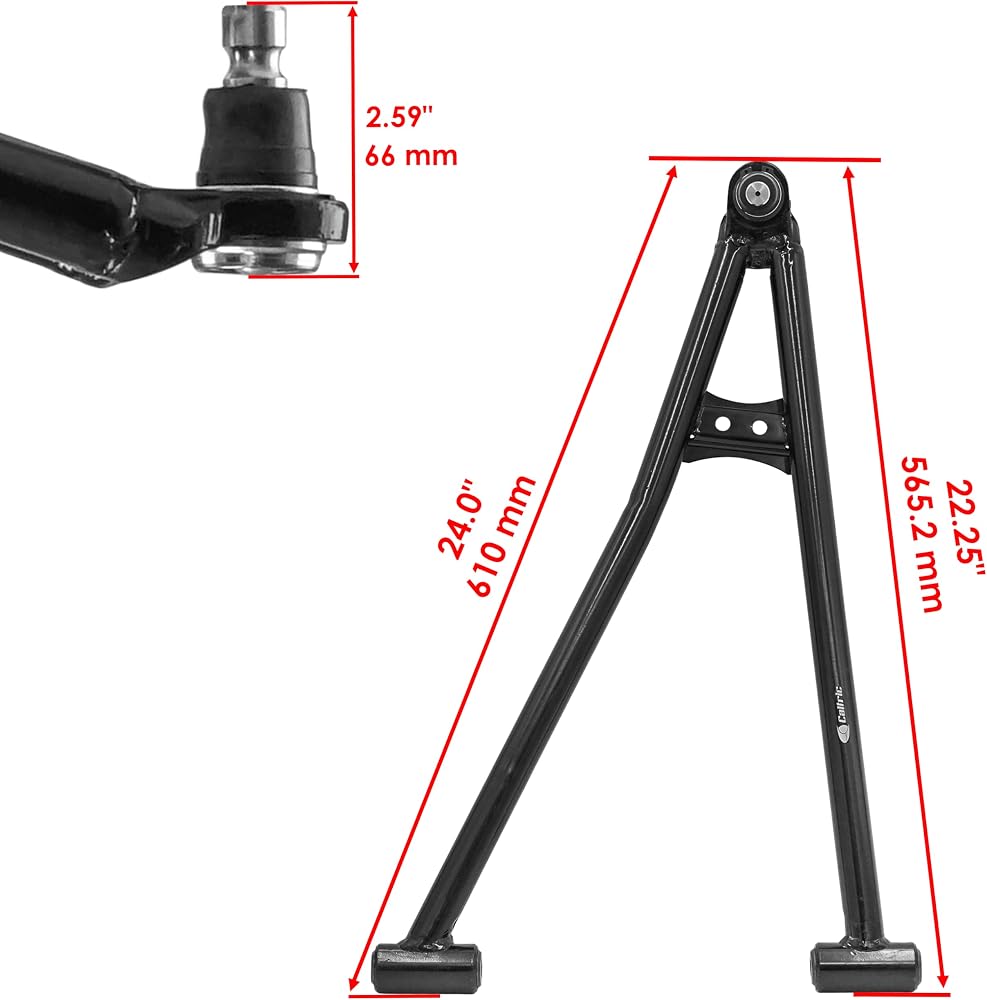

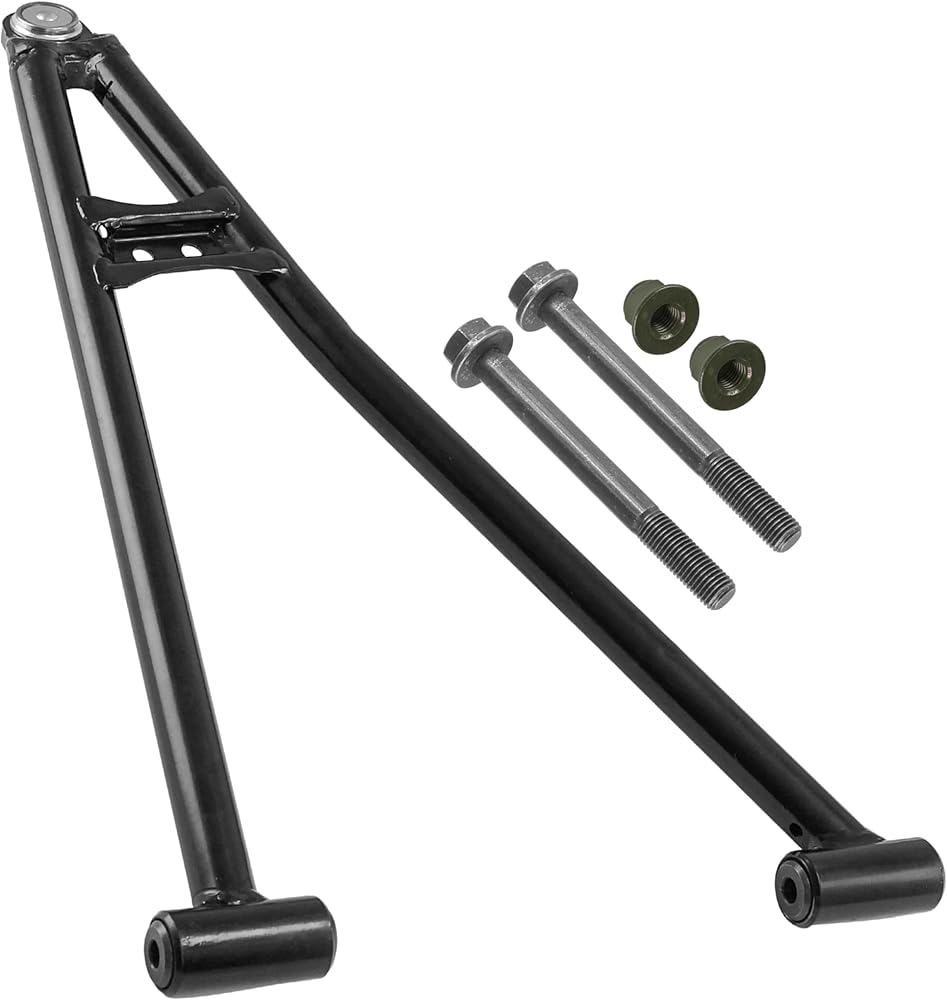

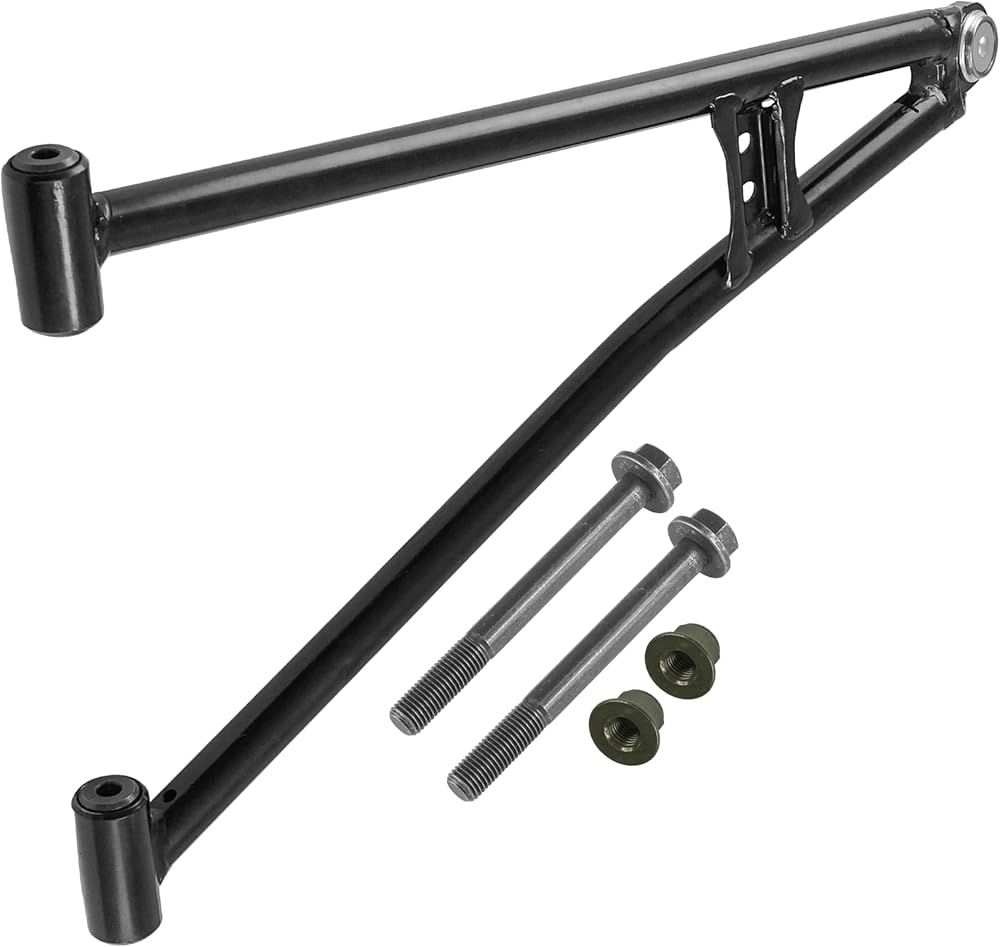

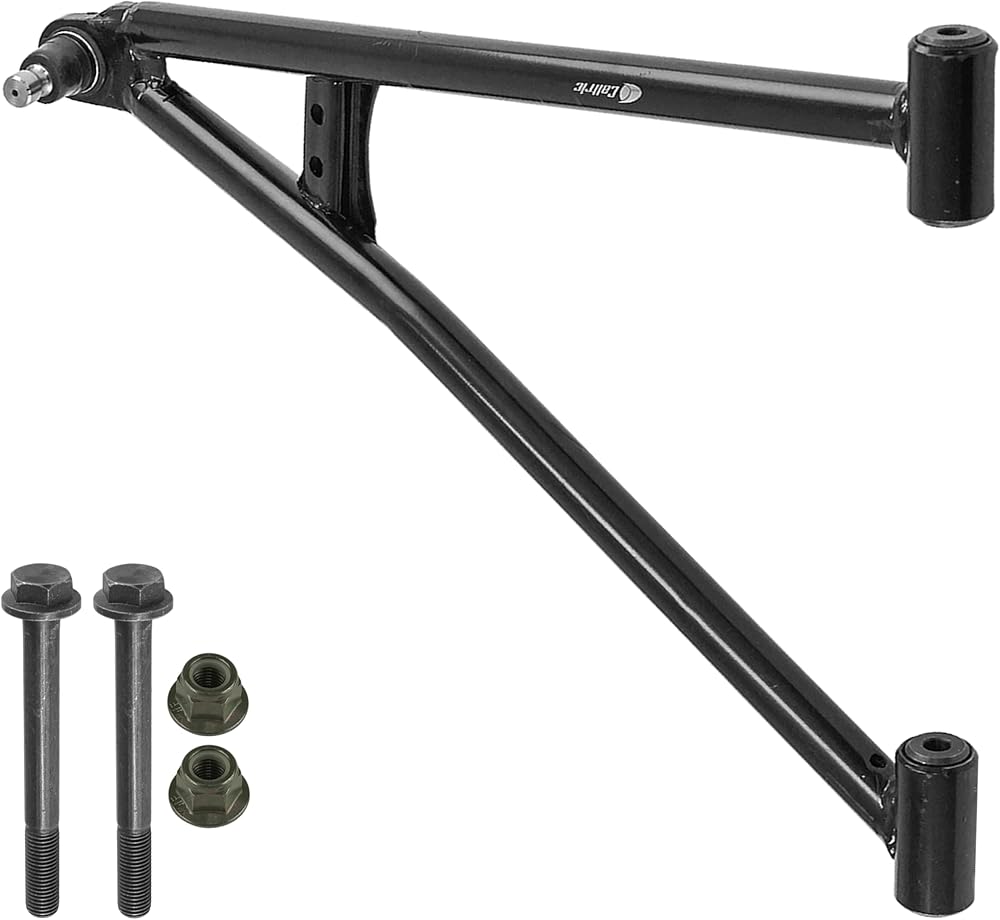

Control Arm Left: 1021416-458, 1021416-133, 1021416458, 1021416133
Length: 565.2 mm - 22.25 in
Height: 610mm - 24 in
Width: 66 mm - 2.59 in
Material: Hot Rolled Steel Seamless Tubing

Pivot Shaft: 5139966
Length: 51mm - 2 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 16mm - 0․62 in
Material: Steel

Bushing: 5452233
Width: 15․5mm - 0․61 in
Inner Diameter: 16․5mm - 0․64 in
Outer Diameter: 26mm - 1․02 in
Material: Plastic

Flange Washer: 7556153
Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal

Sealed Pivot Cap: 1543611, 5139968
Width : 10.1mm - 0.39 in
Inner Diameter : 10.4mm - 0.41 in
Outer Diameter : 26.4mm - 1.04 in
Material: Metal

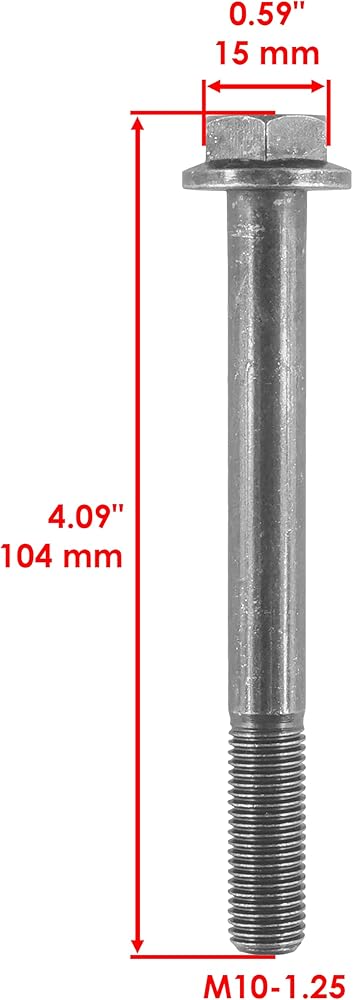

Bolt: 7519043, 7518560
Length: 104mm - 4․09 in
Head Diameter: 15mm - 0․59 in
Threads Size: M10-1․25
Material: Iron

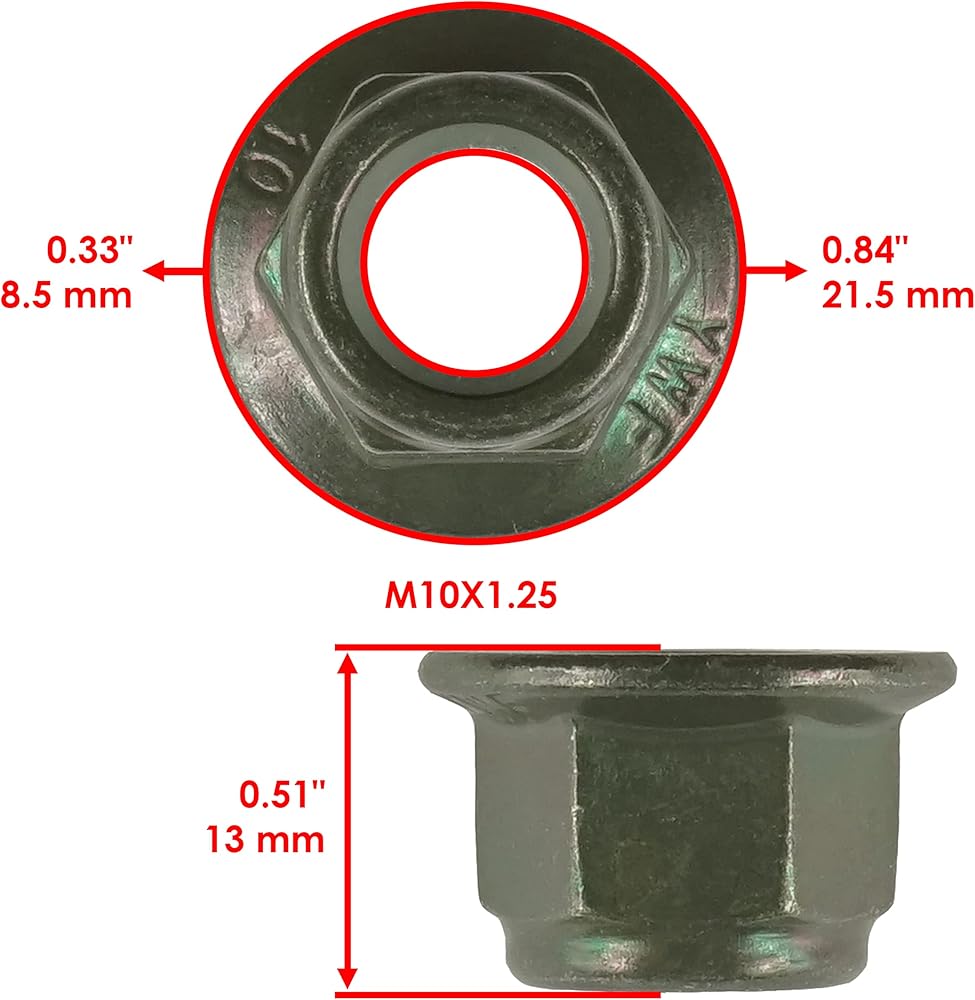

Nut: 7547333
Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron
