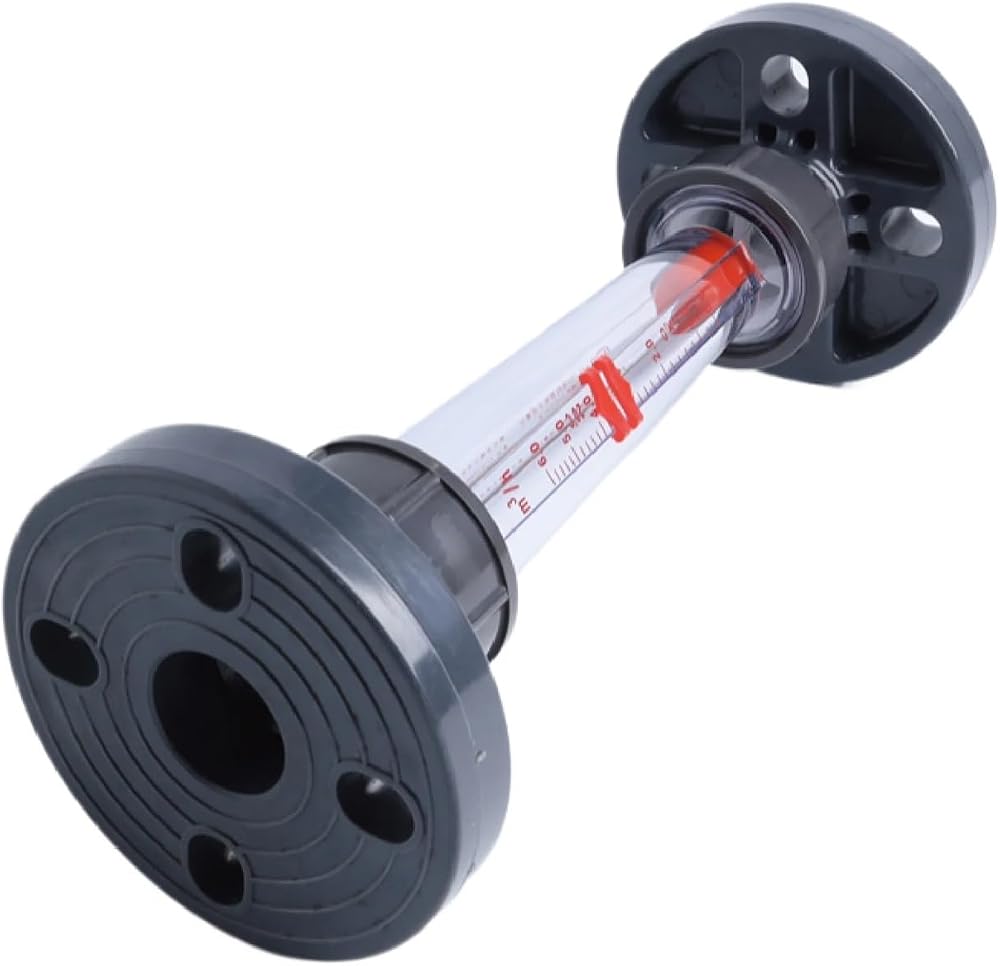

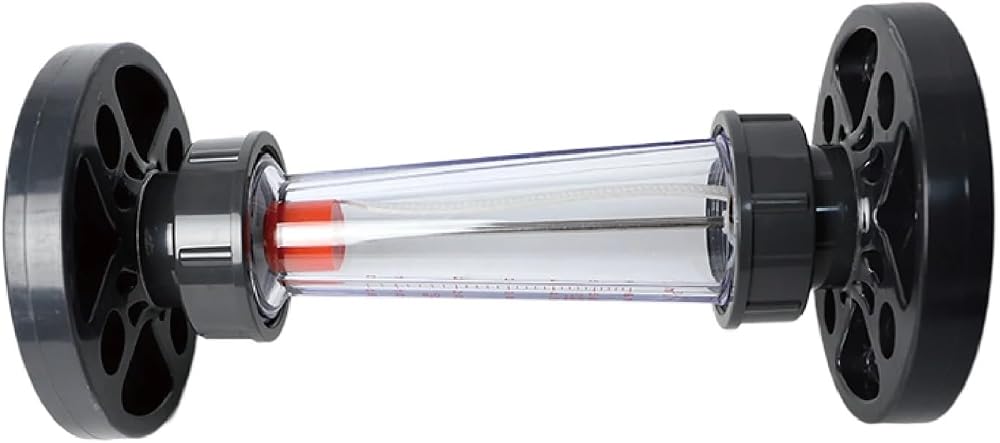

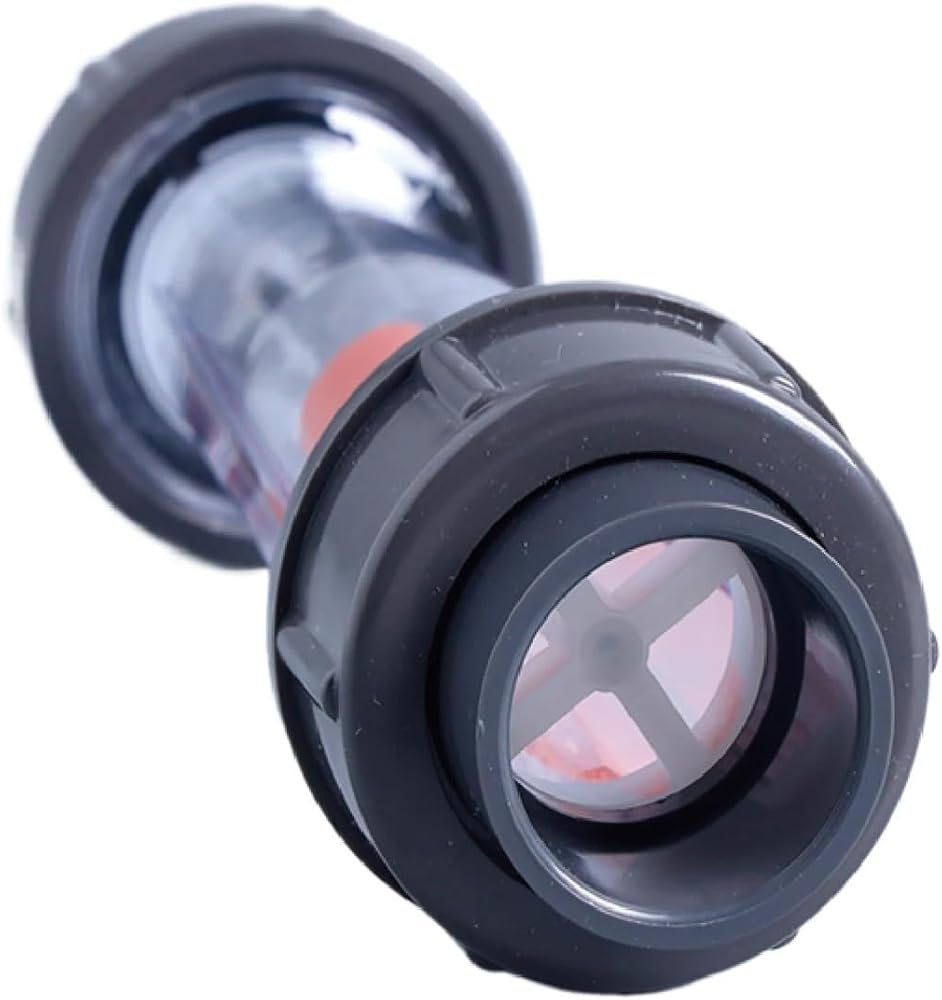

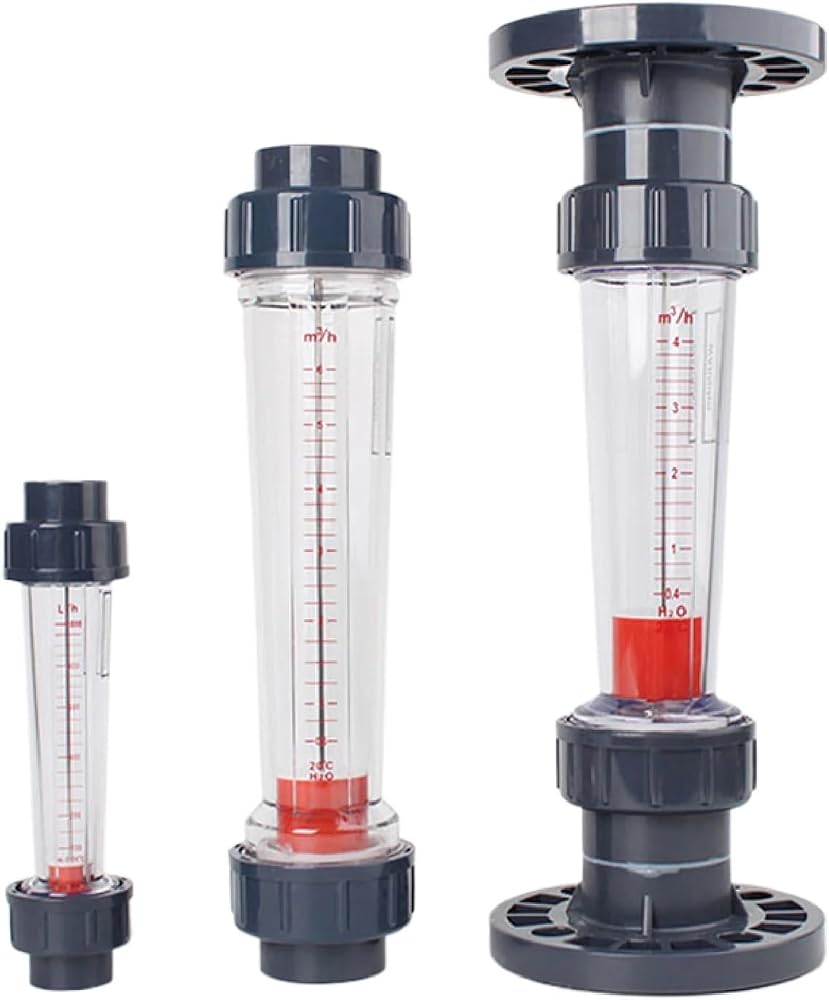

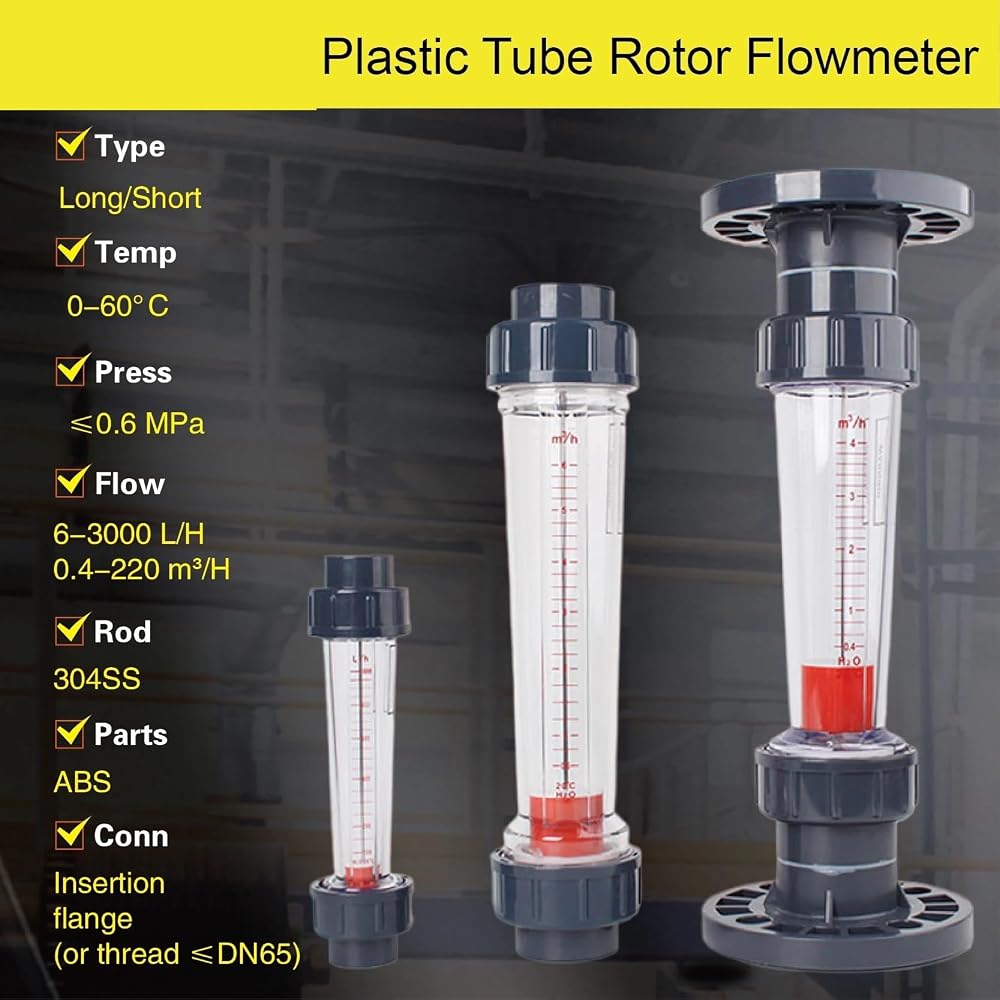

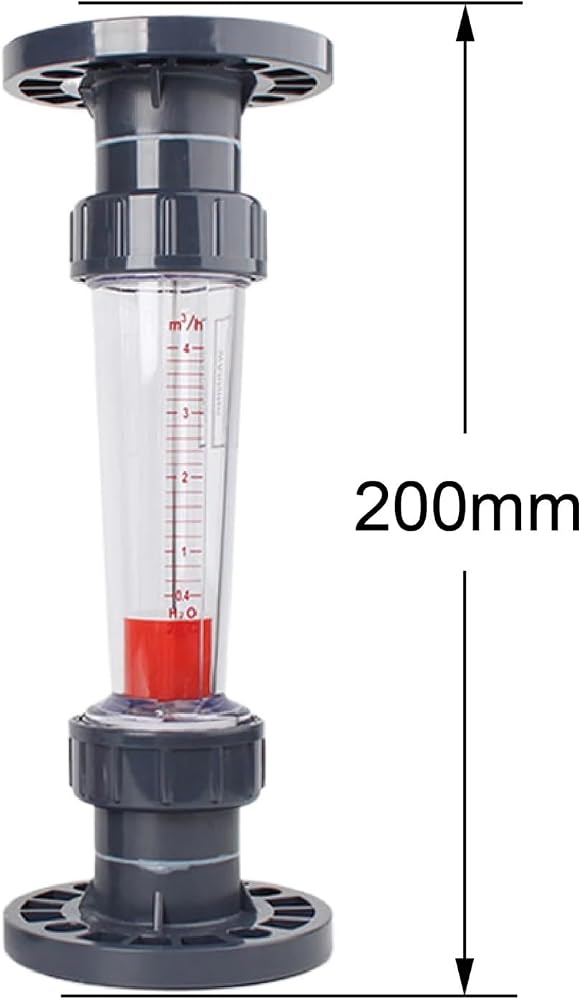

Air Flow Meters
Default Configuration Includes:
.Model Range:LZS-15 to LZS-150
.Flow Range:Customizable
.Tube Type:Short / Long Tube Style
.Connection Type:Plug-in, Thread (Optional: Flange Connection)
.Tube Material:AS Plastic
.Rod Material:304 Stainless Steel
.Parts Material:ABS (Customizable)
.Temperature Range:060°C
.Pressure Range:0.6MPa
Order Information:
.Confirm the model (LZS-15 to LZS-150).
.Specify the flow range.
.Select connection type(Plug-in, Thread, or Flange).
.Confirm material requirements(AS, 304SS, ABS).
==========
Hign-concerned Chemical : None
Structure : Plug
Material : Plastic
Origin : Mainland China
Type : Long tube/short tube insertion connection
Accuracy : ±4%
Temperature : 0-60°C
Pressure : 0.6 MPa
Material : Tube body AS, guide rod 304, others are ABS
Connection : Below DN65, flowmeter can be connected with flange or threaded connection
