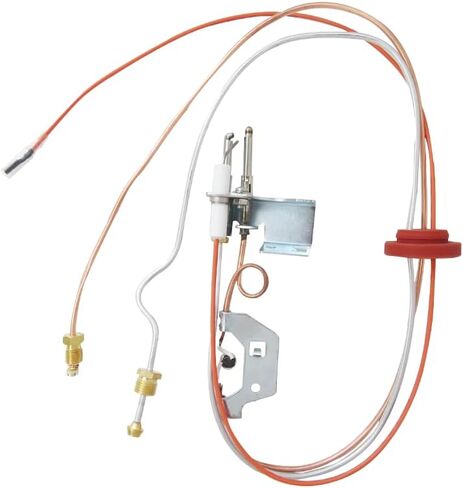

9003542 Pilot Assembly Replacement for Natural Gas Water Heater, Compatible for Reliance/A.O.Smith/Kenmore/State GS and GSX, Repl.# 100109295, 9003542005

SAR 193
– 1 +

Special Features

  • ✎ The 9003542 Water heater pilot assembly Made from premium material and have a super long service life. It's designed for Natural gas water heaters and has a temperature setting of 190 degrees, have stable performance. It's a perfect replacement for your natural gas water heater, make your water heater work normally again.
  • ✎ Replace Part Numbers: 9003542, 9003542005, 100109295, AP4867015, 183824-190.
  • ✎ Compatible for Kenmore: 153333315HA, 153333316HA, 153333345, 153333346, 153333347, 153333415HA, 153333416HA, 153333445, 153333446, 153333447, 153333547, 153333850, 153333950, 153336162, 153336262, 153336300HA, 153336301HA, 153336320, 153336360, 153336361, 153336362, 153336500HA, 153336501HA, 153336560, 153336565, 153339210HA, 153339211HA, 153339211HA, 153339260, 153339261, 153339261, 153339262, 153339320, 153339360, 153339360, 153339361, 153339361, 153339362, 153339411HA, etc Models.
  • ✎ Compatible for A.O. Smith FCV40, FCV50, GCV30, GCV40, GCV50, GCVH30, GCVT40, GCVT40L, GCVT40Q, GVR40, XCV30, XCV40, XCV50, XCVH30, XCVL40, XCVT40, XCVT40L, XCVT40Q and XVR40; for State Gs, GSX GS665HRRT100, GS6B5YRRT100, G9665YRRT101, GSX65HRRT100, GSX65YRRT100 , GS640YBRS, GS650YBRS, GS650YBRT and GS650YOCT, etc.
  • ✎ Compatible for Reliance 6-30-YORS, 6-30-YORS-D, 6-30-YORT (Ace no. 4199873）6-30-YORT-D, 6-40-YOCT ,6-40-YORT 6-40-YORT-D, 6-50-YORT-D, 9-40-YKRS-D, HRN4940S, HRN4940T(Ace no. 4203006) and HRN4950T(Ace no.4202446), etc.

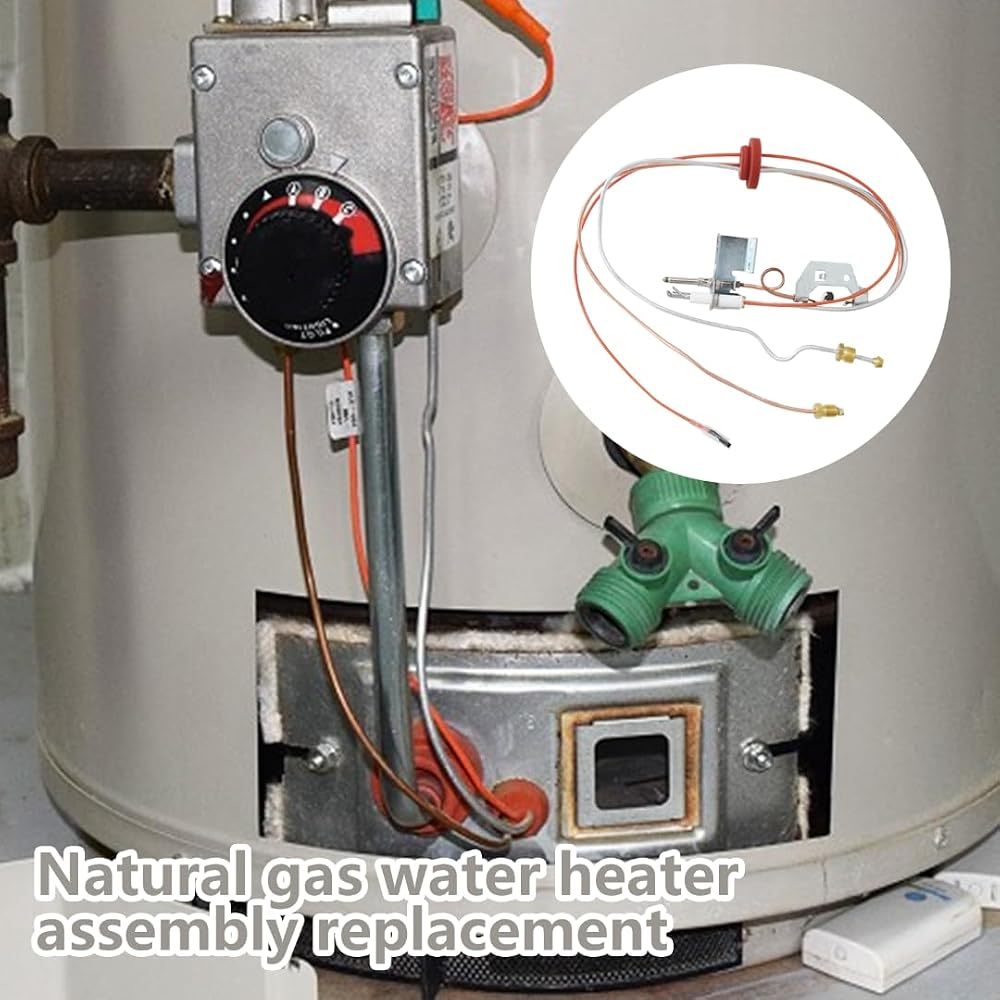

  • ✎ How to Replace: Remove cover plate: Use screwdriver and pliers to remove the combustion kit cover plate of the water heater; Take out combustion kit: Unscrew the connecting wire and gas pipe with pliers, and gently take out the whole combustion kit; Replace pilot assembly: Replace the original pilot assembly, and ensure that the installation position is accurate and completely fixed; Check the installation: After installation, check the connection of each part to ensure safety.
  • ✎ Note: Before you replace the NAT gas water heater pilot assembly, you should cut the gas supply, and take necessary protection measures. Please notice that do not bend the gas pilot tube repeatedly to avoid break it.

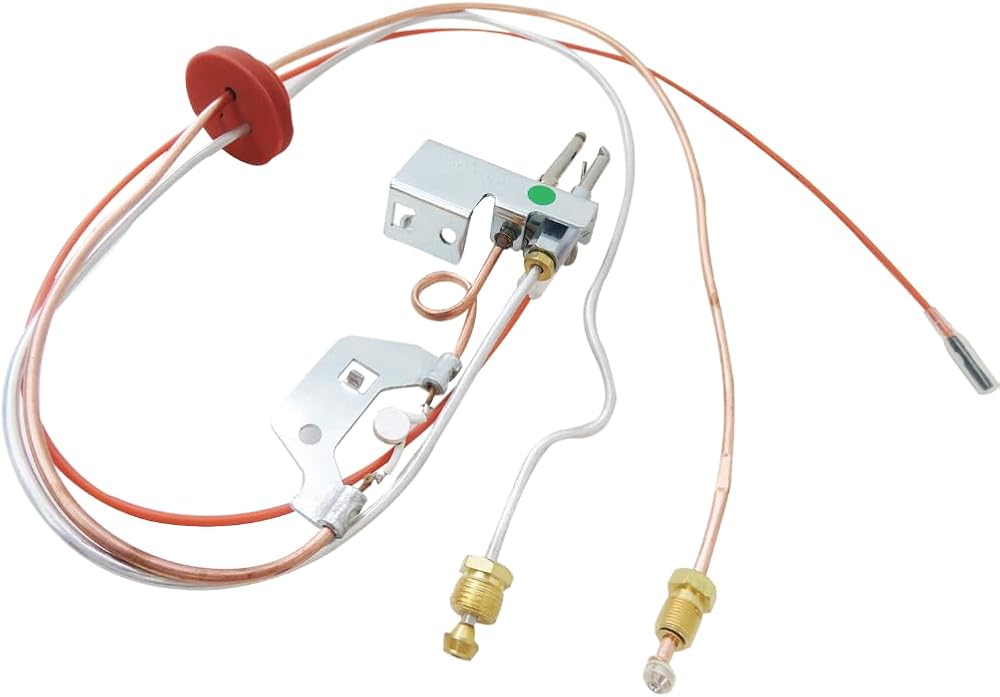

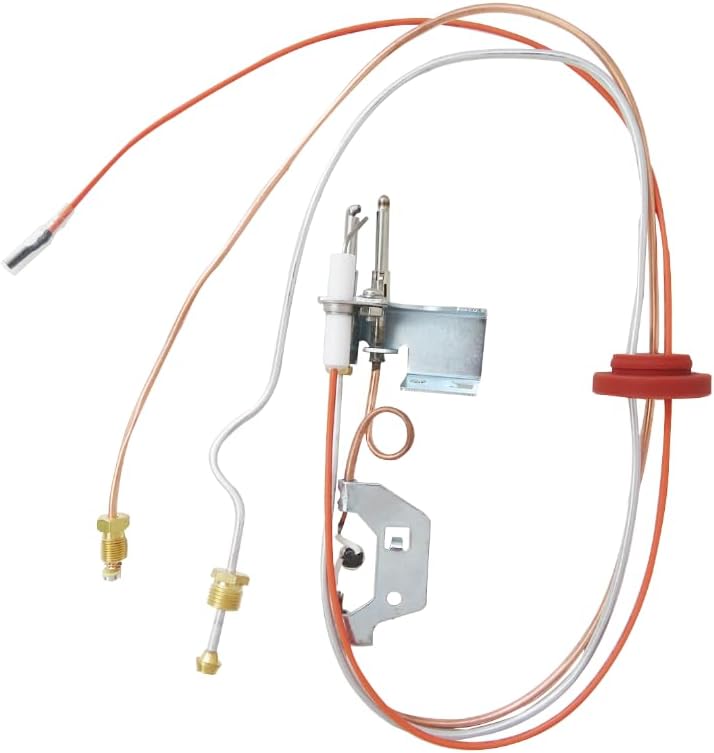

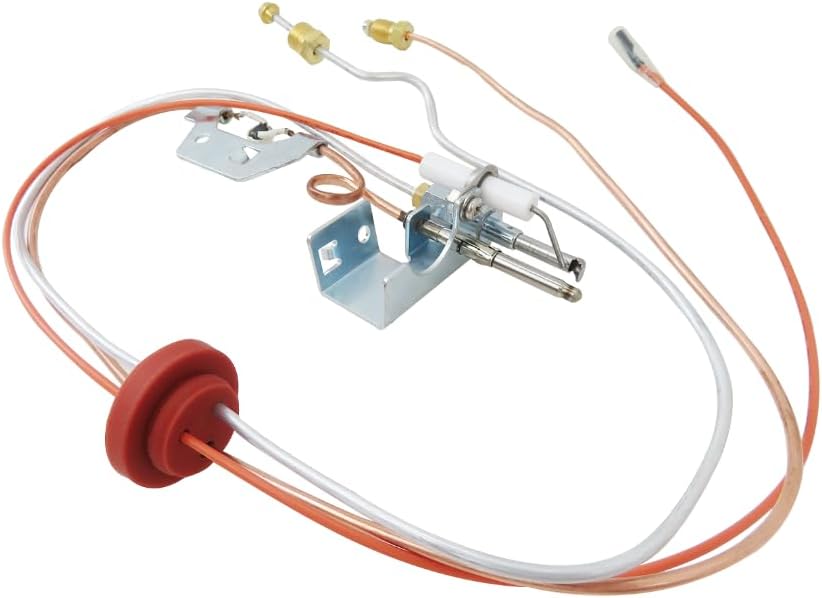

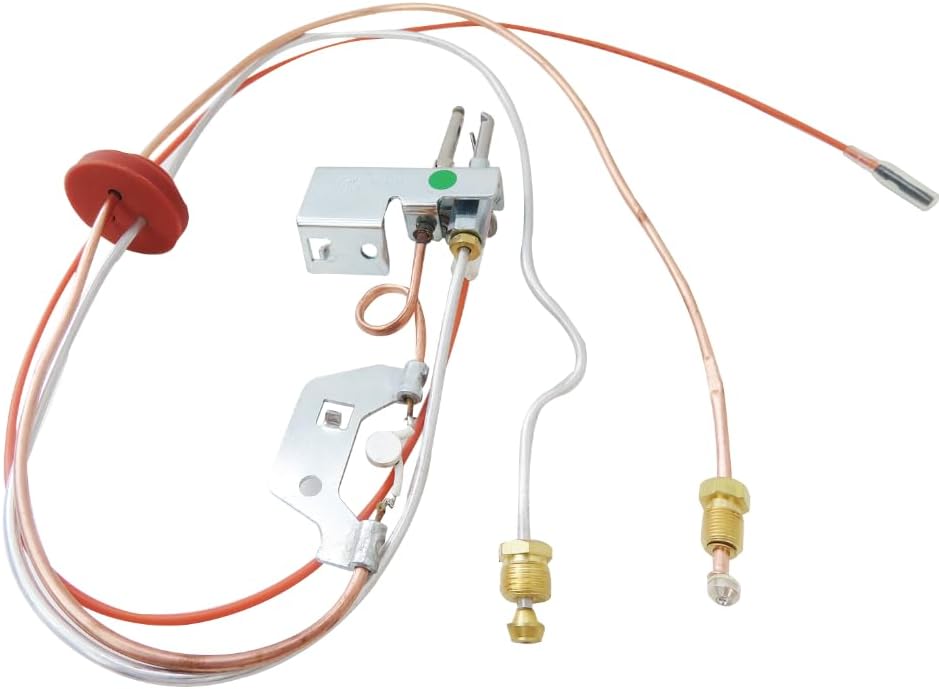

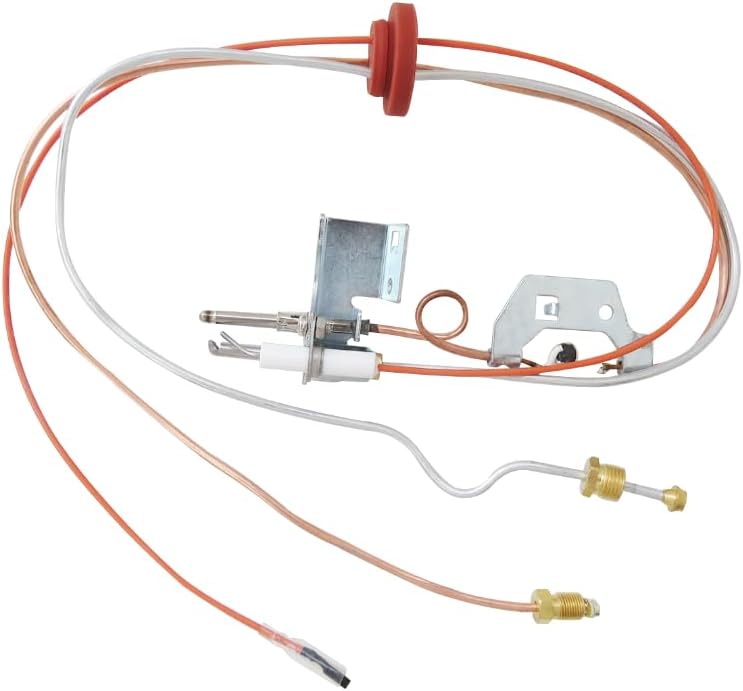

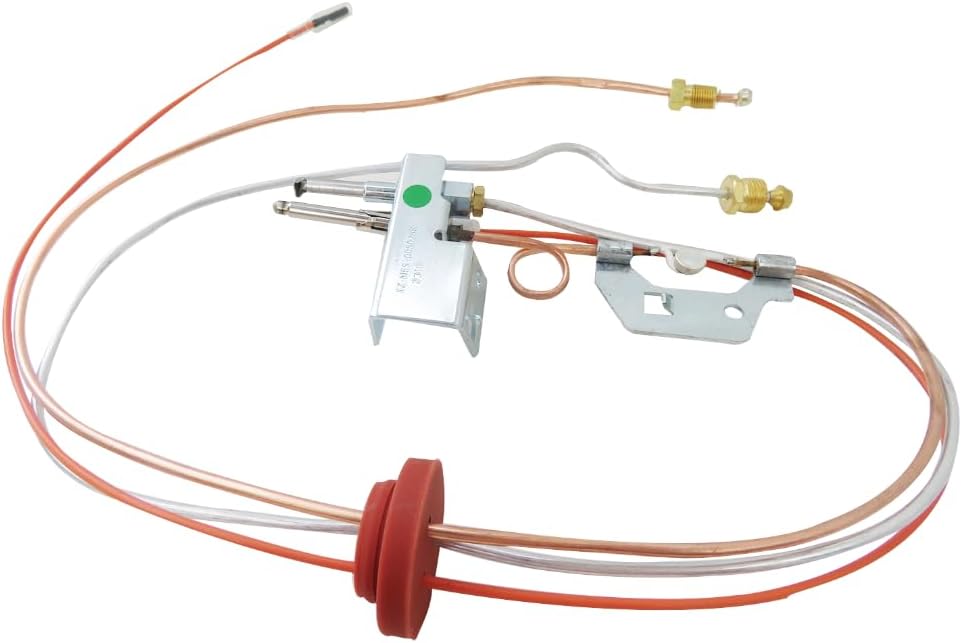

  • ✎ Package Include: 1x Pilot Assembly Include 22" gas pilot tube, 22-1/2" thermocouple, 21-1/2" ignitor.

Description

✎ Replace Part Numbers: 9003542, 9003542005, 100109295, AP4867015, 183824-190

Compatible Models:
for Kenmore:
✎ 153333315HA, 153333316HA, 153333345, 153333346, 153333347, 153333415HA, 153333416HA, 153333445, 153333446
✎ 153333447, 153333547, 153333850, 153333950, 153336162, 153336262, 153336300HA, 153336301HA, 153336320, 153336360
✎ 153336361, 153336362, 153336500HA, 153336501HA, 153336560, 153336565, 153339210HA, 153339211HA, 153339211HA
✎ 153339260, 153339261, 153339261, 153339262, 153339320, 153339360, 153339360, 153339361, 153339361, 153339362
✎ 153339411HA, 153339411HA, 153339420, 153339461, 153339461, 153339462, 153339512HA, 153339512HA, 153339520
✎ 153339561, 153339561, 153339562, 153339620, 153339640, 153339680, 153339761, 153339761 and 153339762 etc
for A.O. Smith:
✎ FCV40, FCV50, GCV30, GCV40, GCV50, GCVH30, GCVT40, GCVT40L, GCVT40Q, GVR40, XCV30, XCV40, XCV50, XCVH30, XCVL40, XCVT40, XCVT40L, XCVT40Q and XVR40
for State Gs, GSX:
✎ GS665HRRT100, GS6B5YRRT100, G9665YRRT101, GSX65HRRT100, GSX65YRRT100 , GS640YBRS, GS650YBRS, GS650YBRT and GS650YOCT, etc
for Reliance:
✎ 6-30-YORS, 6-30-YORS-D, 6-30-YORT (Ace no. 4199873）6-30-YORT-D, 6-40-YOCT ,6-40-YORT 6-40-YORT-D, 6-50-YORT-D, 9-40-YKRS-D, HRN4940S, HRN4940T(Ace no. 4203006) and HRN4950T(Ace no.4202446), etc

How to Replace:
✎ Remove cover plate: Use screwdriver and pliers to remove the combustion kit cover plate of the water heater
✎ Take out combustion kit: Unscrew the connecting wire and gas pipe with pliers, and gently take out the whole combustion kit
✎ Replace pilot assembly: Replace the original pilot assembly, and ensure that the installation position is accurate and completely fixed
✎ Check the installation: After installation, check the connection of each part to ensure safety

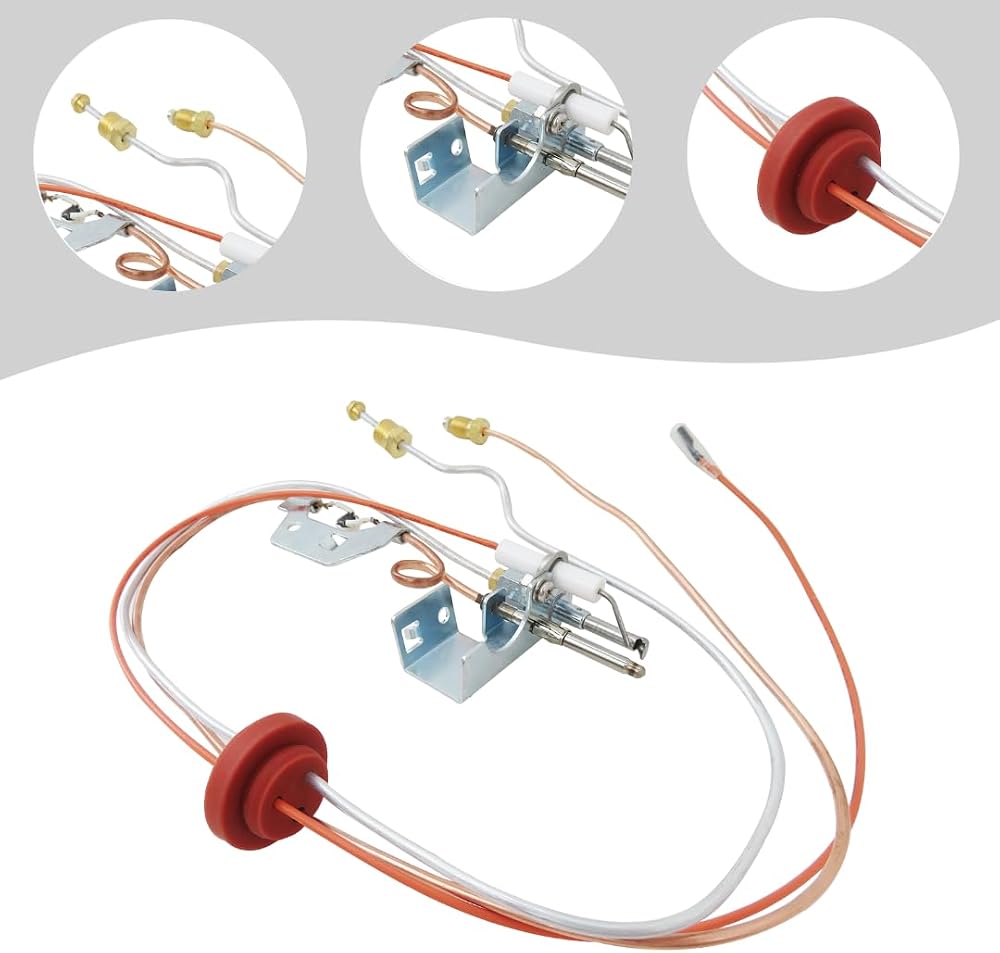

Package Include: 1x Pilot Assembly Include 22" gas pilot tube, 22-1/2" thermocouple, 21-1/2" ignitor
