Specification:

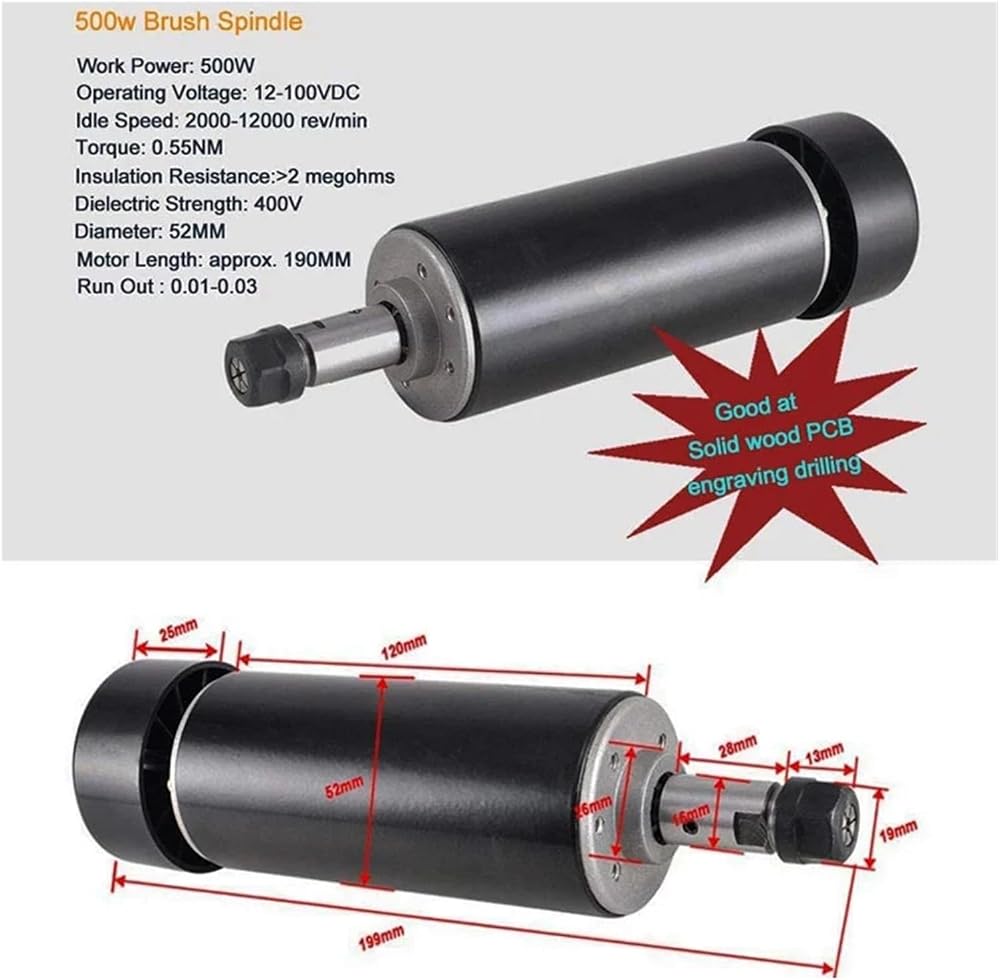

1.Spindle Parameters:
Working Voltage:12-100V DC
Idle Speed:1000-12000/rpm
Peak Power:500W
Peak Torque: 0.5NM
Insulation Resistance:> 2 megohm
Insulation Dielectric strength: 400V
Diameter: 52mm
Chuck Part Length:45mm
The Diameter of Chuck Part:16mm
Total Length of Motor: About 190mm
The Radial Runout of the Spindle: 0.01-0.03 with high accuracy
Can be used for Solid Wood / PCB / Engraving Drilling and SO ON.

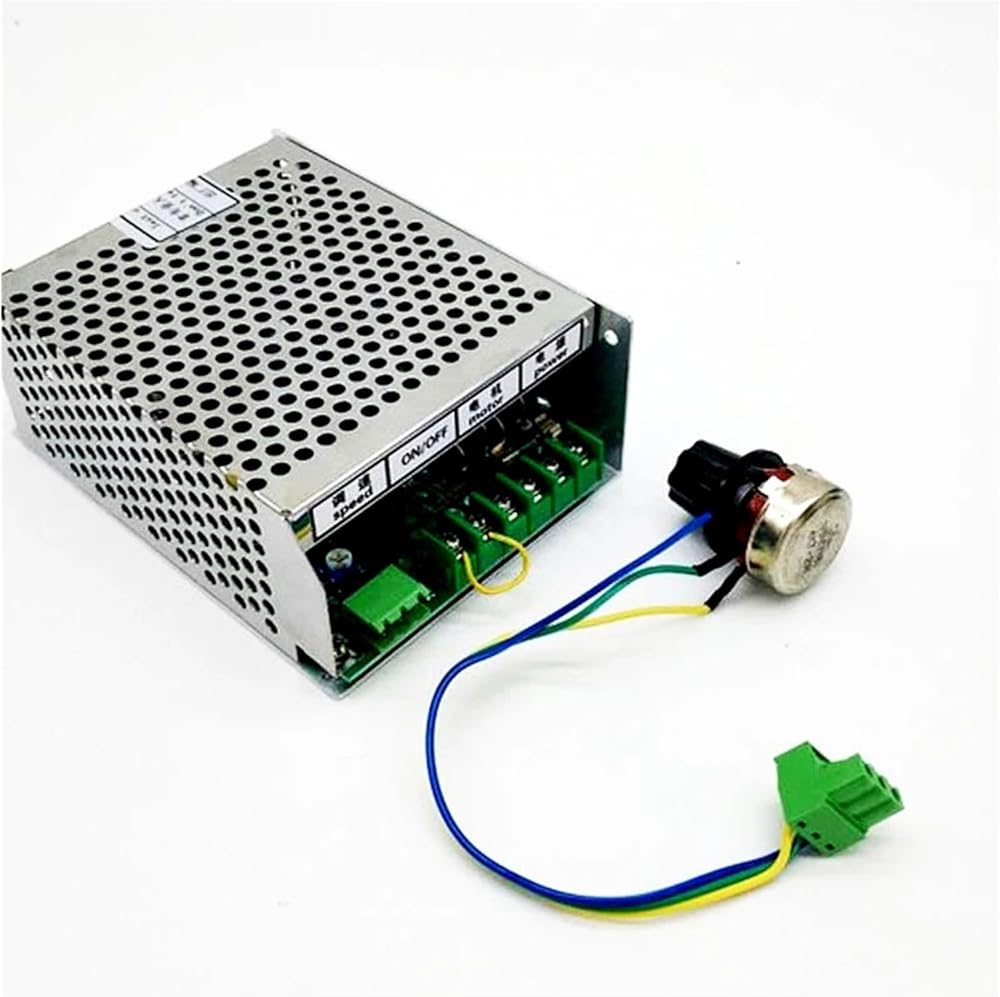

2.Detailed technical parameters of governor:
Input voltage ac110-ac220v ± 10% voltage 50 / 60Hz
Current limiting: 6A
Suitable motor power: 50W ~ 500W
Armature output voltage: DC 0 - 100V adjustable
Overall dimension: 130mm long × 100 mm wide × Height 51mm

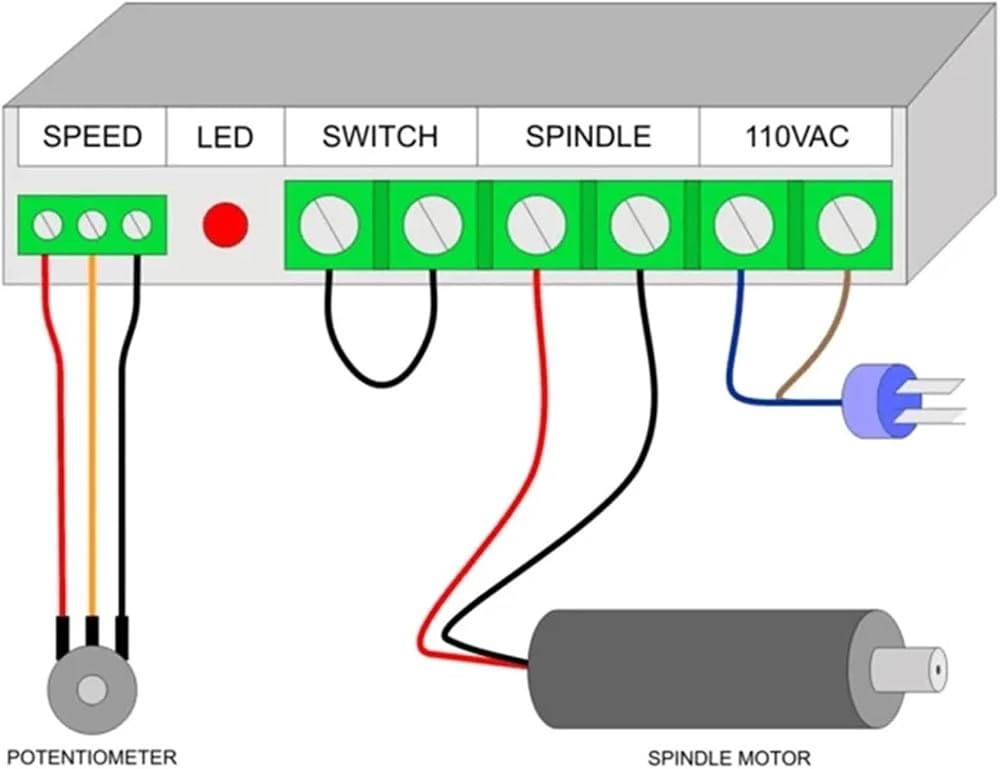

Connection mode: terminal type (convenient and fast)
3.Working Environment:
Ambient air temperature: - 10 ~ 40 ° C
The relative humidity of the air is below 85%, and the ventilation is good
It is installed in the place with good ventilation, no severe impact, no vibration, no explosive medium and no conductive metal powder
4.Product Features:
The pulse width technology is used to make the speed more stable, and the force is greater at low speed
With over-current protection cut-off device, the performance is more reliable
With soft start device to eliminate excessive starting current of motor
