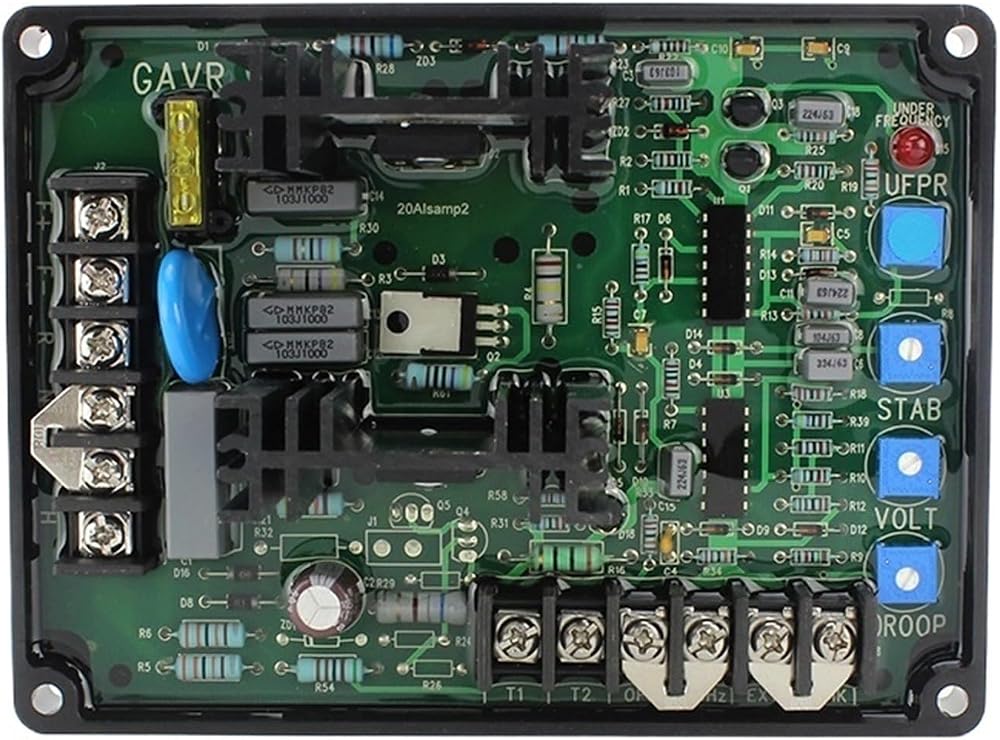

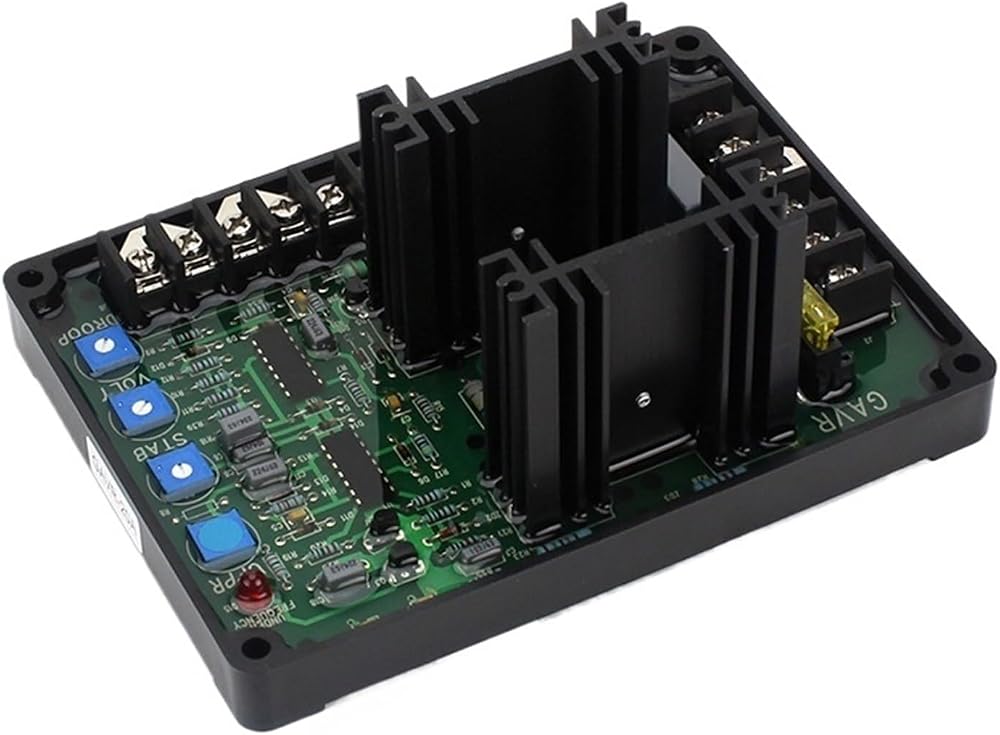

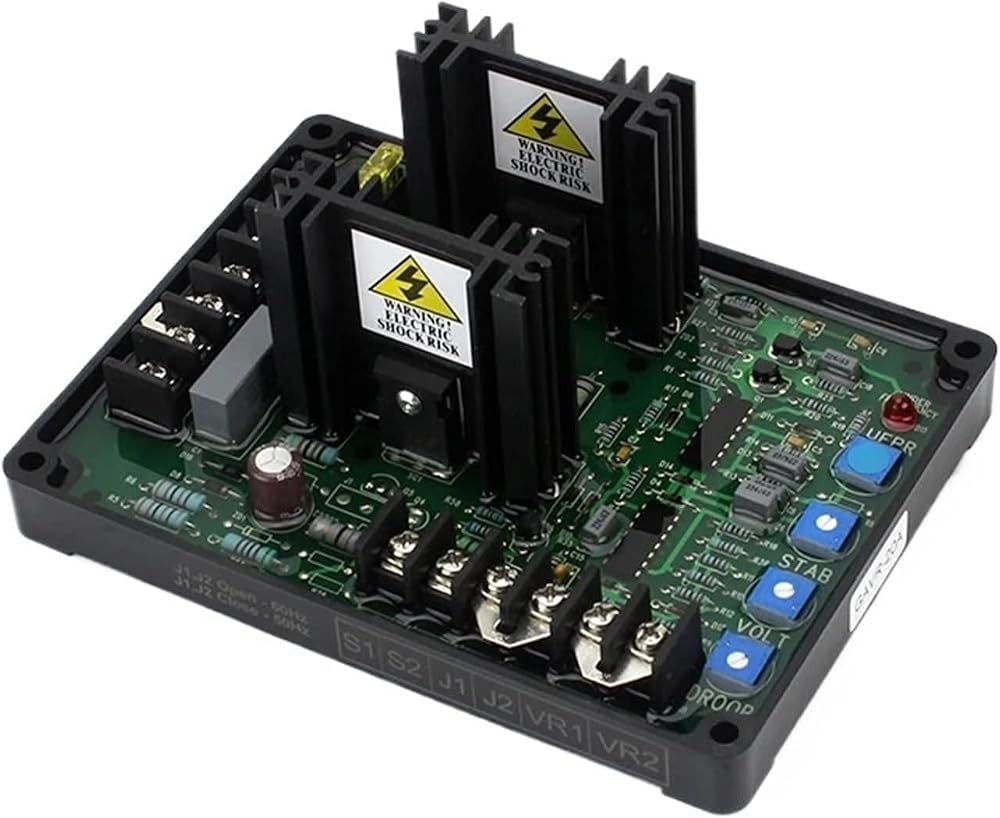

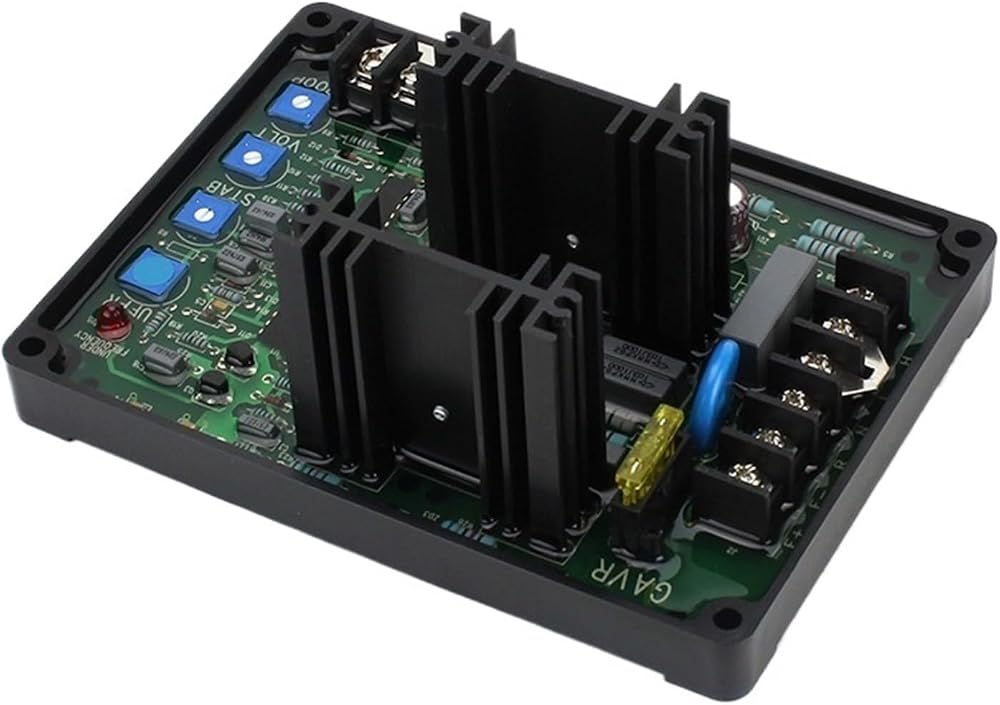

GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.
*Sensing Input Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire*Output
Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 15A for 10SEE
Resistance Min.10 Max 100
*Voltage Build-up esidualvolts at Automatic Voltage Regulator teminal >5VAC
*External Volts Adjustment +/-7%with 1K 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz*( Settings)
50Hz system presets knee point at 47HzGAVR 12A*SensingInput Voltage
220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire*Output
Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 10A for 10SEE
