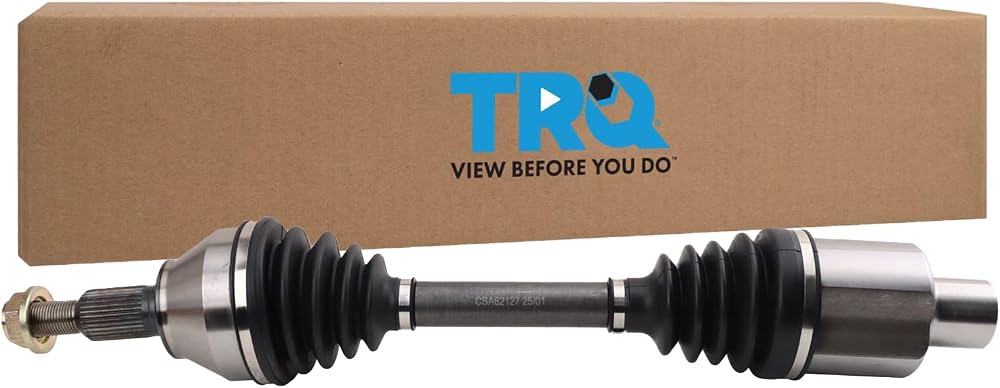

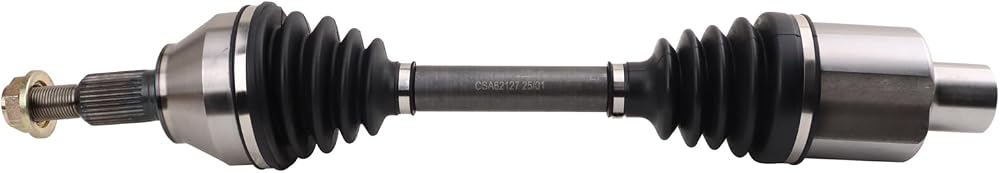

CV Axle Assembly

Fitment
Compatible with: 2012-18 Ram 1500 Truck 4 Wheel Drive Front Passenger Side
Compatible with: 2012-18 Ram 1500 Truck 4 Wheel Drive Front Driver Side
Compatible with: 2019-21 Ram 1500 Classic 4 Wheel Drive Front Driver Side with 5 Lug Wheels
Compatible with: 2019-21 Ram 1500 Classic 4 Wheel Drive Front Passenger Side with 5 Lug Wheels

Product Attributes
Axle Nut Socket Size: 1.38 in
Compressed Length: 24.37 in
Inboard Spline Quantity: 29
Outboard Spline Quantity: 33
Axle Nut Socket Size: 35 mm
Compressed Length: 619 mm
Inboard Joint Type: Female
Axle Nut Thread Size: M24x2.0
Outboard Joint Type: Male
ABS Tone Ring Included: No
Grade Type: Standard Replacement
Axle Nut Included: Yes
Outboard Boot Material: Neoprene
Inboard Boot Material: Neoprene

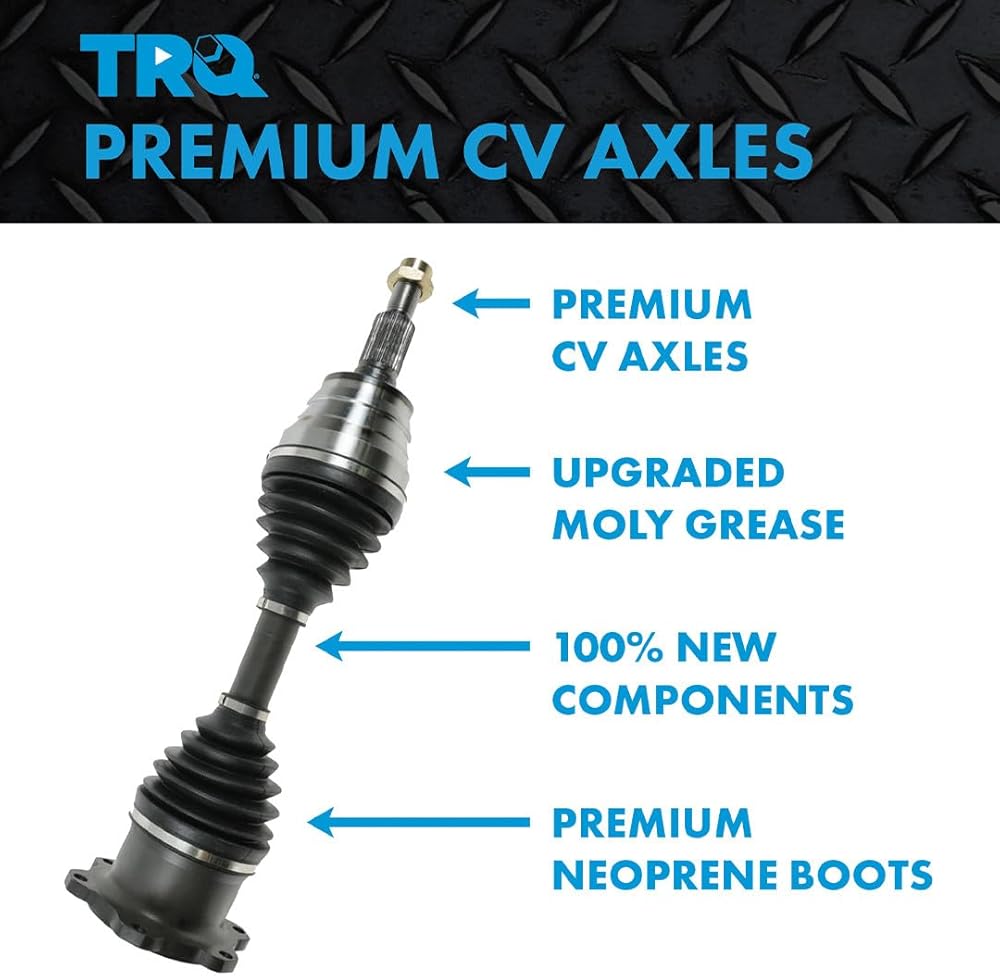

Product Features
100% New: Manufactured to tighter tolerances for extended service life
Neoprene Boots: Improved durability compared to stock material
Moly Greased: Specifically-designed grease shield to reduce premature wear
Application Specific Design: No modification

Item Details
TRQ CV (constant velocity) drive axles are manufactured using premium raw materials designed to restore original performance. TRQ CV drive axles are new, so there is no core charge with your TRQ purchase. TRQ-designed drive axles utilize neoprene boots, moly grease, stainless steel clamps, and heat-treated ball tracks to ensure extended service life. Each TRQ axle is application-specific so each spline and thread will mate properly for a seamless fit. All products are fit and road-tested in our Massachusetts R&D facility to ensure we deliver on our promise of Trusted Reliable Quality.

Reference Numbers
447-03024
66-3740
663740
68028398AA
68028398AB
68259567AA
CH-8256
NCV10040
RL028398AA
