If the water pump is not equipped with a transformer, it cannot directly use 220V AC voltage!If the 220V AC voltage is directly connected without a transformer, the water pump will be damaged!
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)
Usage:

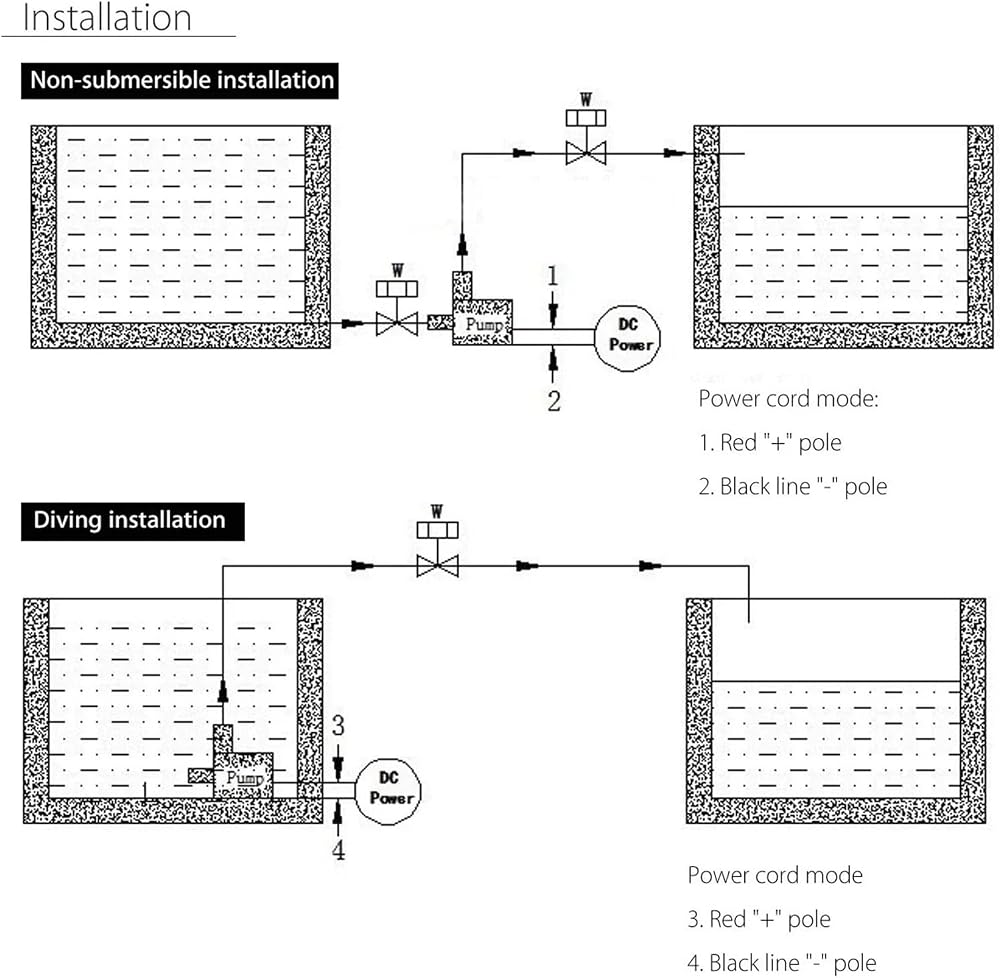

The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)

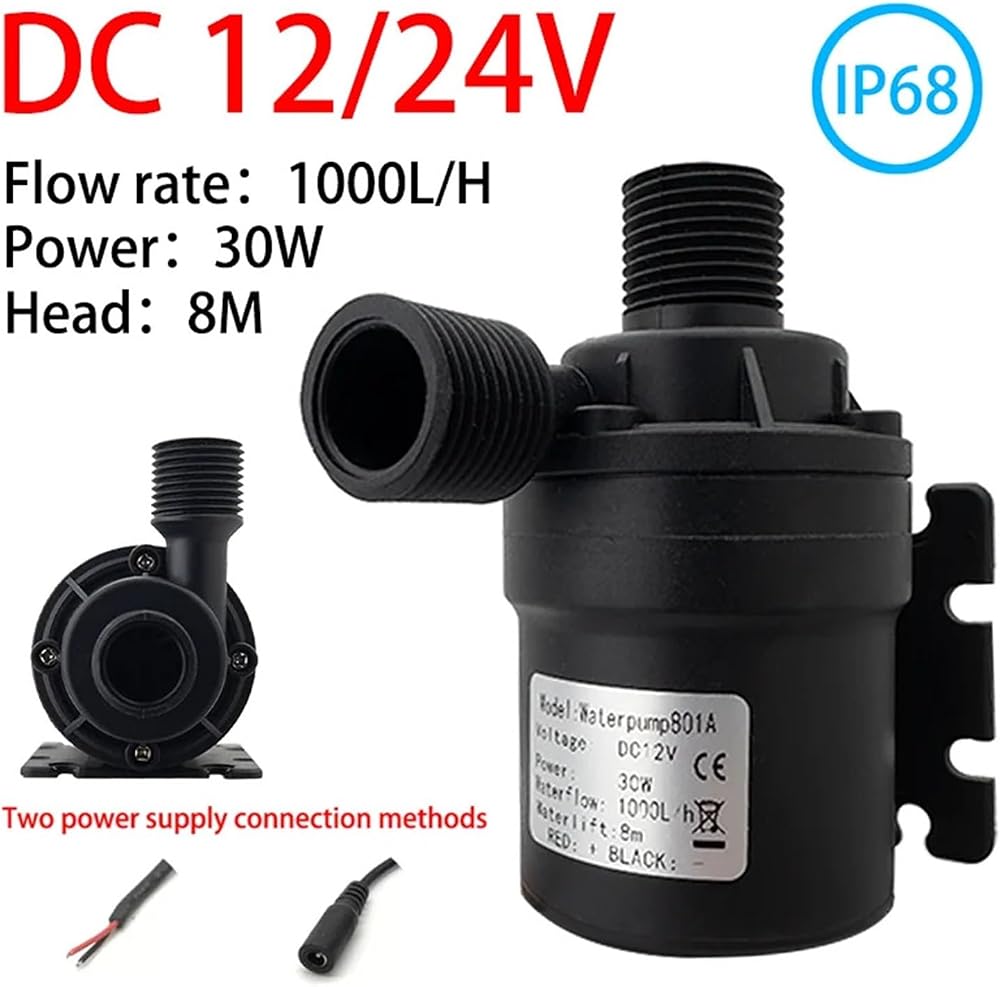

Specification:
Name: Water pump
Material: Plastic
Color: Black

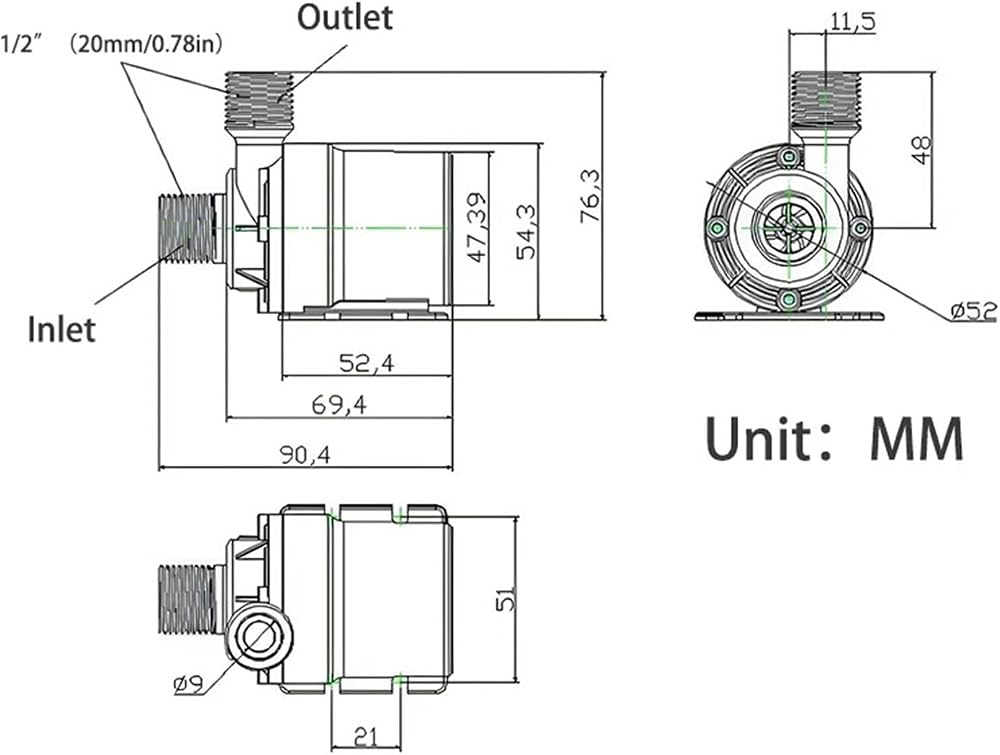

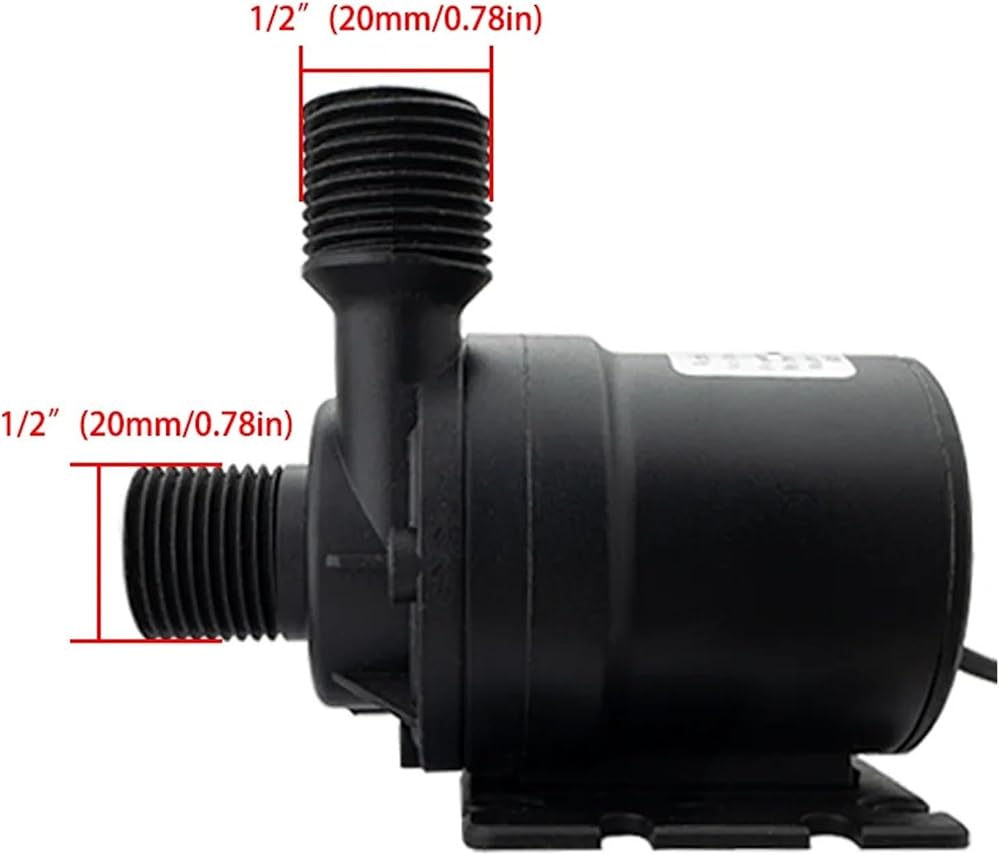

Inlet/Outlet: 1/2" male thead
Voltage: 12V DC/24V DC
Maximum Rated Current: 2.5/1.25A
Power: 30W
Max Flow Rate: 1000 L/H
Max Water Head: 8m
Max circulating water temperature: 100°C
Note:
1.Do not take the wrong pump positive and negative.
2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.
3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.
4.The pump is suitable for medium temperature 1 -100 .
Package includes:
1 x Water Pump
==========
Hign-concerned Chemical : None
Application : Submersible
Theory : Centrifugal Pump
Structure : Booster Pump
Model Number : -
Standard or Nonstandard : Standard
Pressure : High Pressure
Fuel : Electric
Origin : CHINA
Certification : CE
Power (W) : Electric
Use : Booster Pump
Voltage : DC 12/24V
Max Flow rate : 1000L/H
power : 30W
Maximum lift : 8M
Inlet and outlet diameter : 1/2 or 20mm or 0.78in
