Electronic Engine Control
Generator voltage: 277V-AC (Ph-N)
Generator frequency: 0-200Hz.
Supply Range: 9 to 30V-DC.
Cranking dropouts: survives 0V for 100ms.
Current consumption:
0 ma-DC in OFF mode
250 mA-DC max. (Relay outputs open)
Total Current Output Rating: 10A-DC.
Max. Current for each Terminal: 10A-RMS.
Operating temp: -30C (-22F) to 70C (158F).
Storage temp: -40C (-40F) to 80C (176F).
Maximum humidity: 95% non-condensing.
IP Protection: IP65 from front panel, IP30 from the rear.
Dimensions: 72 x 72 x 43mm (WxHxD)

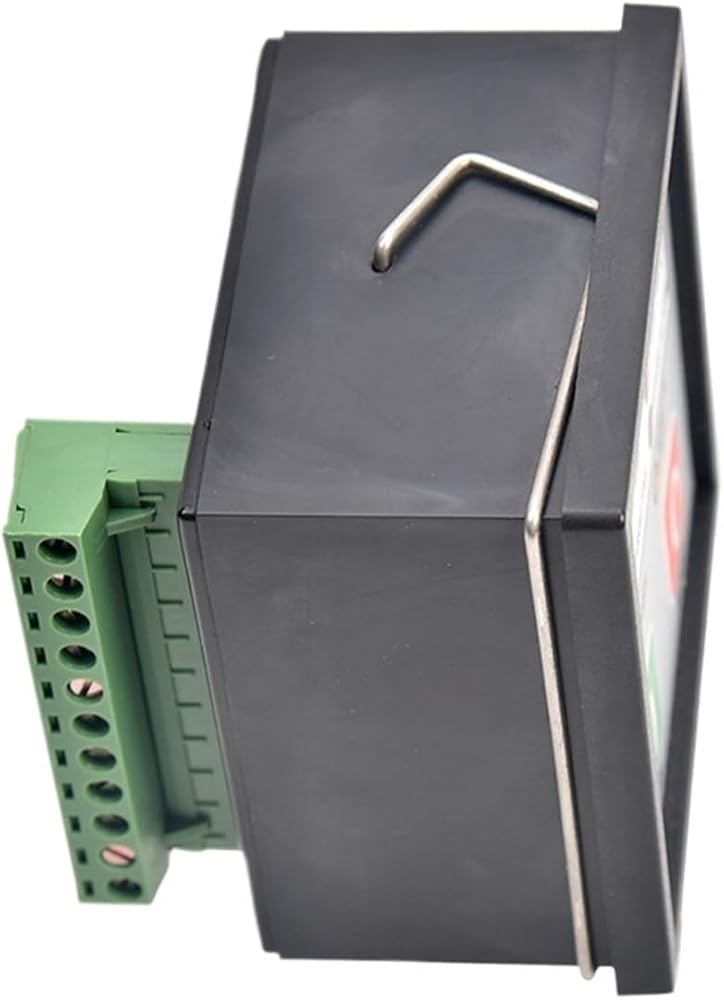

Mounting: Front panel mounted with rear retaining steel spring.
Panel cut-out dimensions: 68 x 68mm.
Weight: 180 g (approx.)
Charge excitation current: 36mA @ 12V-DC, 70mA @ 24V-DC
Charge alternator voltage: min 6 V-DC.
Genset low frequency limit: 30Hz.
Genset high frequency limit: 57Hz.
Frequency error delay: 3 sec.

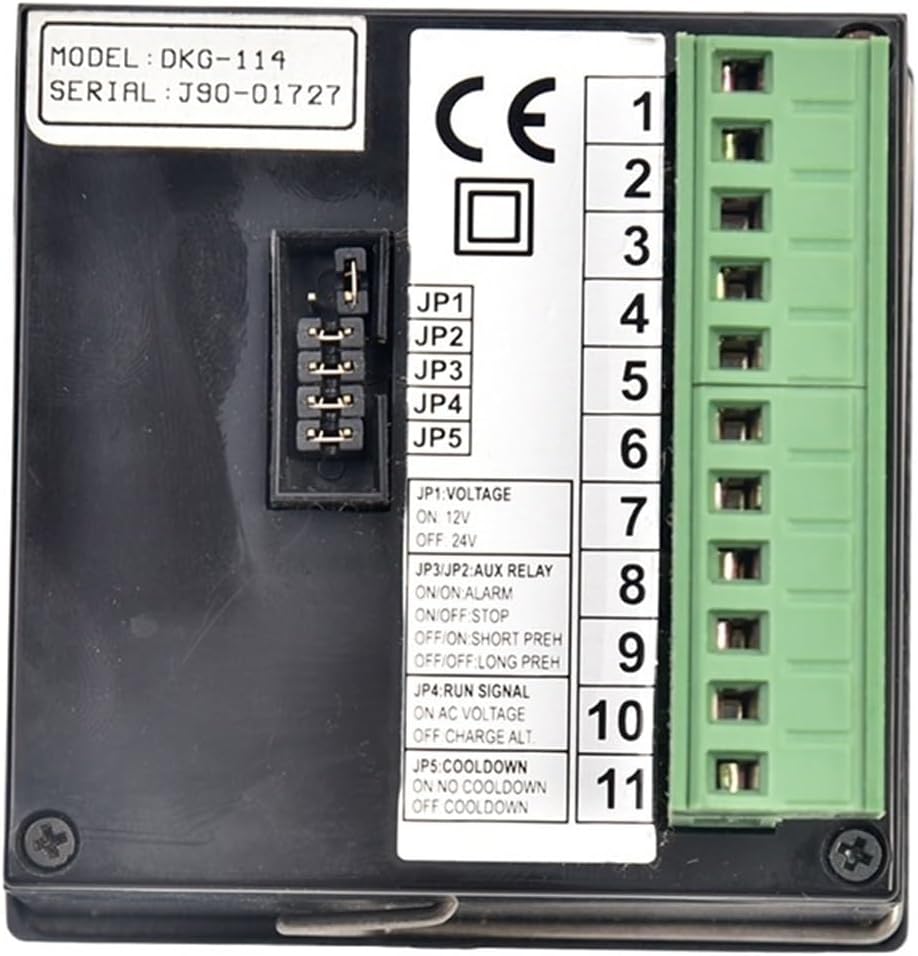

Preheat timer: 10 or 30 seconds, jumper selectable.
Number of starts: 3
Start duration: 6 sec.
Wait between starts: 10 sec.
Cooldown duration: 2 min.
Stop duration: 30 sec.
Alarm duration: 1 minute.
Protection delay: 10 sec.
Case Material: Flame Retardant High Temperature ABS (UL94-V0, 110C)
