Electronic Engine Control
Generator Controller DCP-10 Auto Start Control Modul Diesel Genset AccessoriesDescriptionDCP-10 Auto Start Diesel Generator Set Controller Module Unit Engine Control Panel GU610A Generator Accessories 8-35V.
The DCP-10 is an Automatic Controller for generator.When running in "AUTO" mode, it starts theGenset after receiving remote start signal and on failure automatically stops the Genset. Thegenerator's controlling procedure and protection parameters can be modified,which fully meets theGenset's requirements of automatic start, stop control and basic protection.

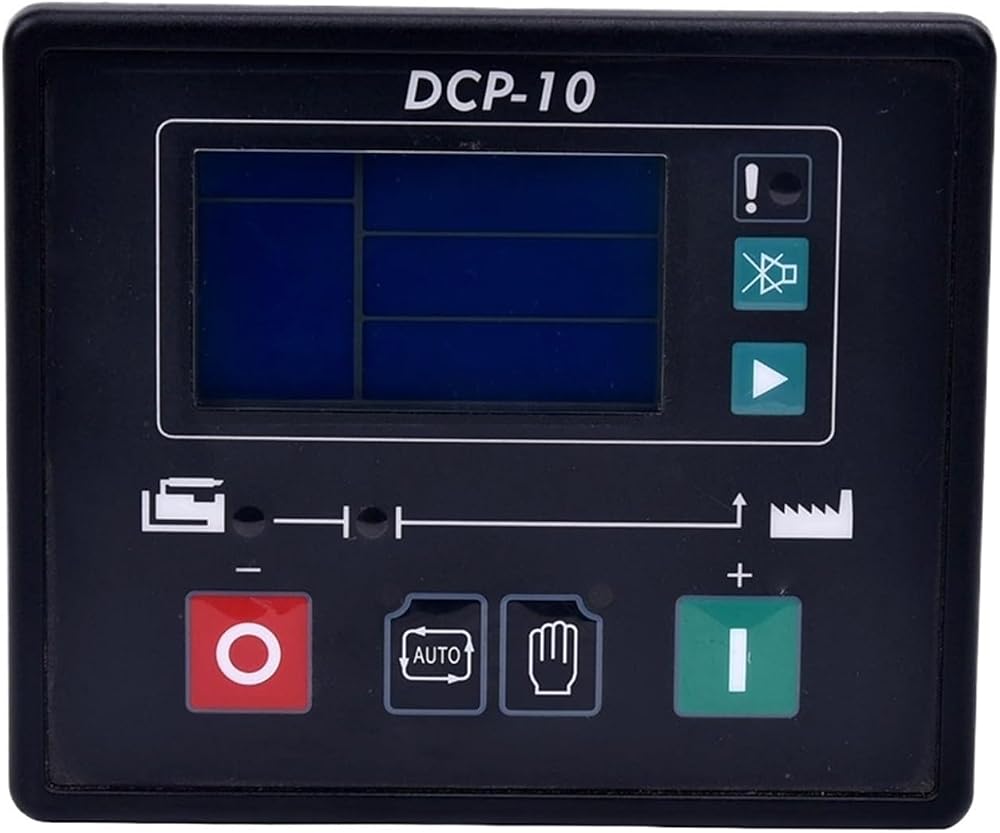

The module displays fault conditions, operational status and related metering data on panel .
has a backlight function so that the operator can read running parameters clearly even in theshadow.
The controller has 2 modes: AUTO and MANUAL. Either can be chosen through the panel push button.
Measures and displays generator's output voltage, current, oil pressure, coolant temperature,frequency, voltage,etc.
True RMS measure of voltage and current, which ensures the data more accurate.
Control the close/open of generator output switch.
Equipped with built-in communication interface to configure parameters by PC.

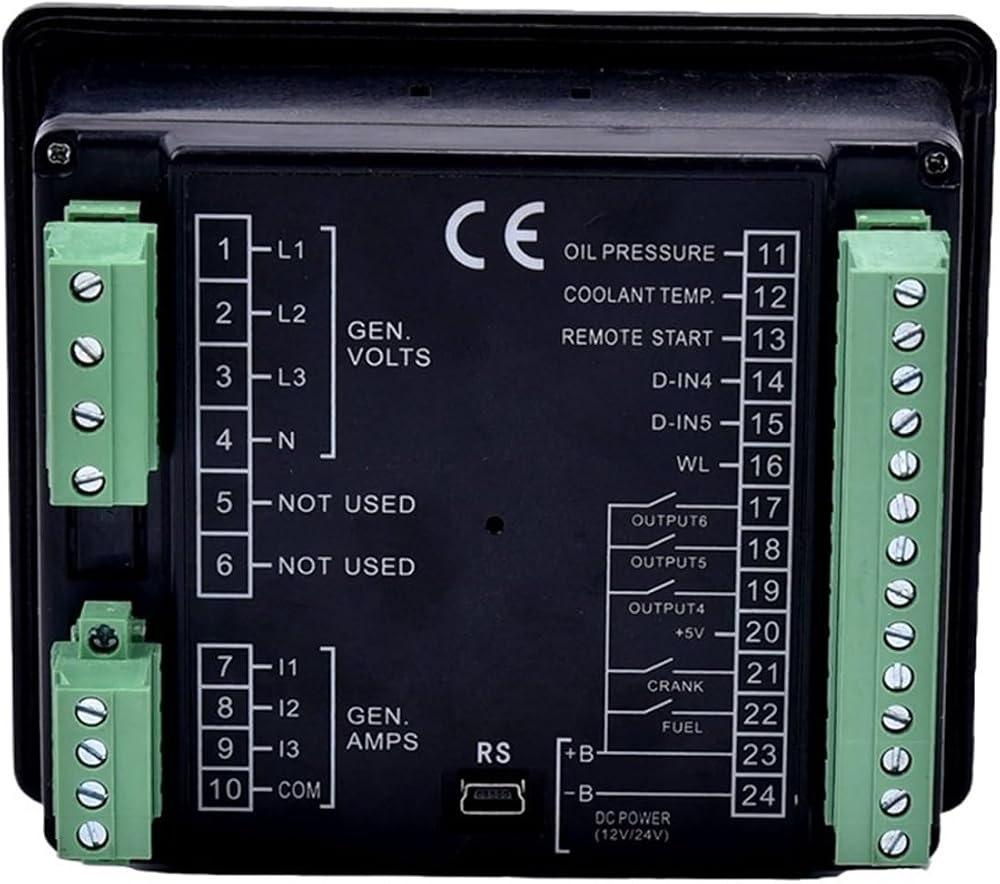

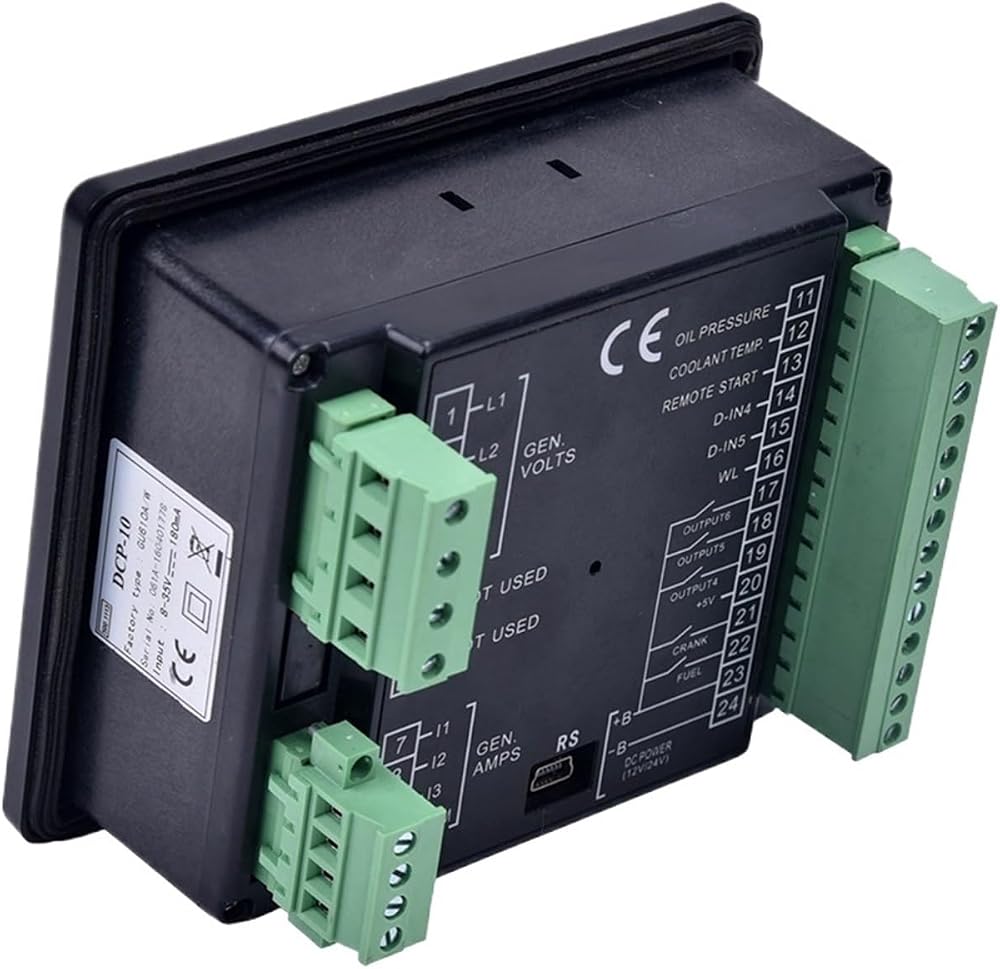

All connections of controller are by secure and socket, for ease and convenience to connect,move,maintain and replace the device.
