DB Electrical

Whatever you drive, we have the part for it!

DB Electrical is your go-to source for quality electrical parts for vehicles of every shape and size – from motorcycles and ATVs to cars, trucks, and boats. Our engineers closely partner with leading factories to develop electrical components that perform and fit OEM standards.

Selling from the heartland of America located in Kingsport, Tennessee, the people of DB Electrical make it their goal is to get your vehicle back on the road, field, trail, or water. They take great pride in providing top-quality products that keep you moving forward.

Specs:

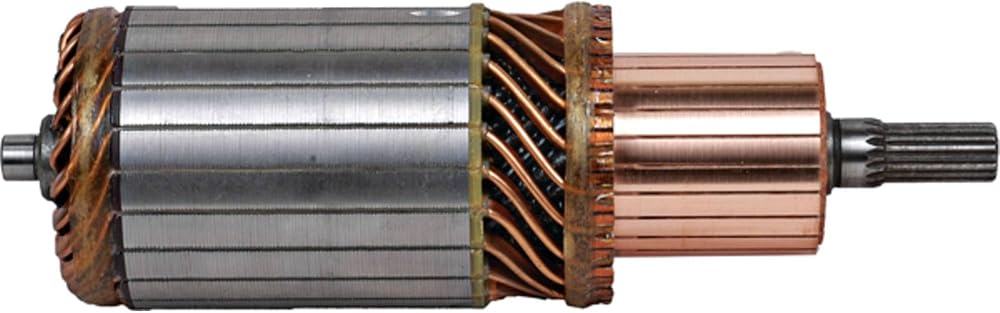

Description: Armature
Volt: 12
Body OD: 2.547"
Body OD: 64.700mm
CE OD: 0.591"
CE OD: 15mm
Length: 211 mm
Length: 8.307"
CE to Stop: 36.300
Lam Stack Thickness: 2.909"
Lam Stack Thickness: 73.900mm
Number of Splines: 18
Splines Type: Straight
Notes: Spline on CE@ Anti-Commutator End of Shaft Measures 10mm in Diameter & 8.9mm from Bearing Stop to End

Replaces OEM Number:

Arrowhead: 300-52002, 300-52002-10, SND3005
Denso: 028200-2800
J&N Electrical Products: 300-52002, 300-52002-10
Peterbilt: PSA1082
**Verify the part fits before purchasing**
